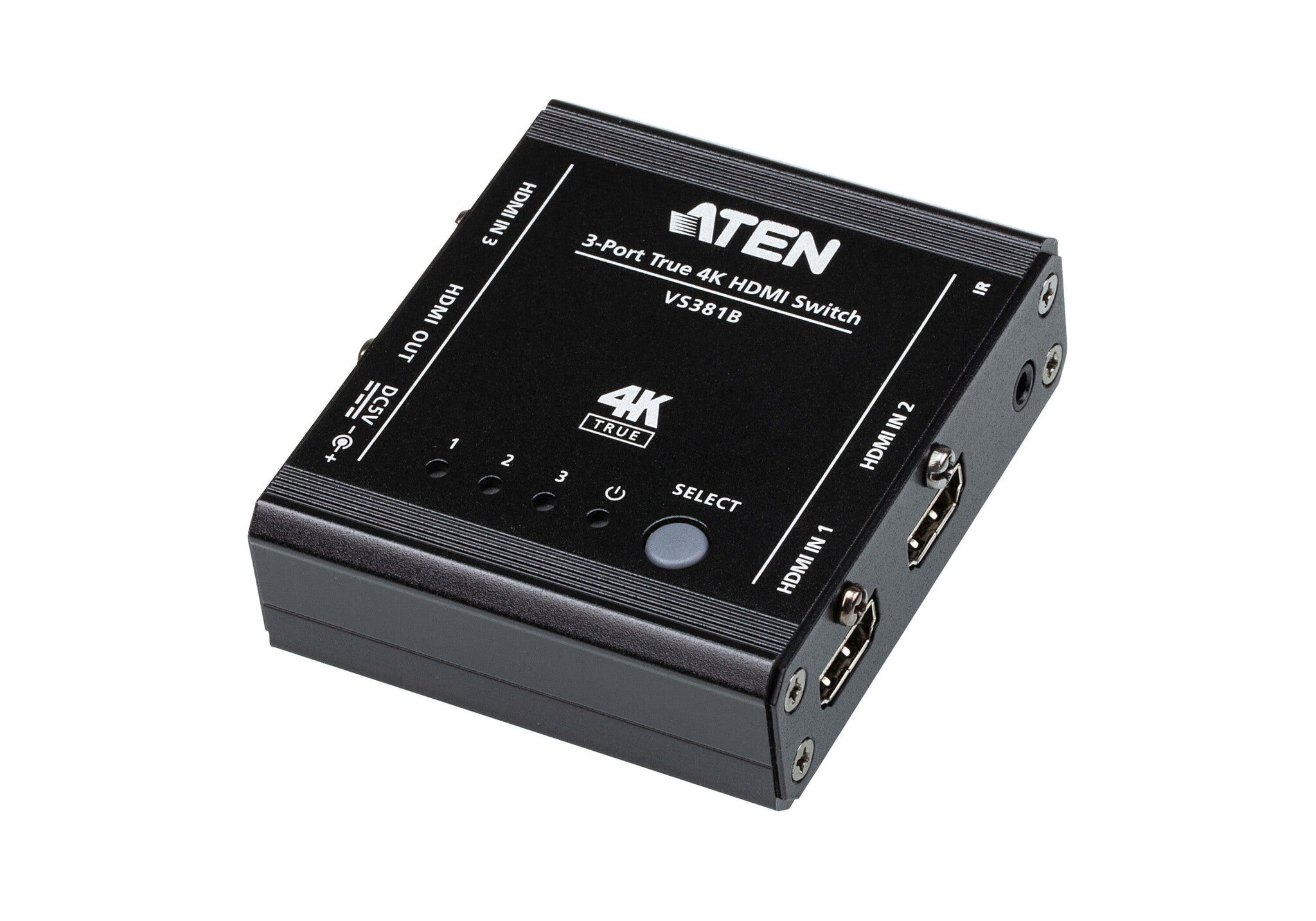

3-Port True 4K HDMI Switch
The VS381B 3-Port True 4K HDMI Switch with Auto Switching provides you to switch 3 HDMI input sources to an HDMI display. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, HDR, 3D, Deep Color, and HD lossless audio formats. Furthermore, the VS381B offers switching methods between HDMI sources by front panel pushbuttons and IR remote control, enabling users to effortlessly select desired input.
Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.
Package Contents
- 1x VS381B 3-Port True 4K HDMI Switch
- 1x USB to DC Power Cord
- 1x IR Remote Control
- 1x IR Receiver
- 1x User Instructions
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| 3.5 mm (1/8-inch) in |
Yes |
| Number of HDMI outputs |
1 |
| HDMI in |
3 |
| HDMI ports quantity |
4 |
| Video port type |
HDMI |
| Features |
|---|
| HD type |
4K Ultra HD |
| HDCP |
Yes |
| Maximum refresh rate |
60 Hz |
| Maximum operating distance |
5 m |
| Plug and Play |
Yes |
| Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
| External power adapter |
Yes |
| Bandwidth |
600 MHz |
| Dolby technologies |
Dolby Vision |
| HDCP version |
2.2 |
| Maximum resolution |
4096 x 2160 pixels |
| 3D |
Yes |
| Input impedance |
100 Ω |
| Material |
Metal |
| Product colour |
Black |
| Power |
|---|
| Power consumption (typical) |
1.46 W |
| Weight & dimensions |
|---|
| Weight |
150 g |
| Height |
25.5 mm |
| Depth |
79 mm |
| Width |
71.6 mm |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 80% |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
