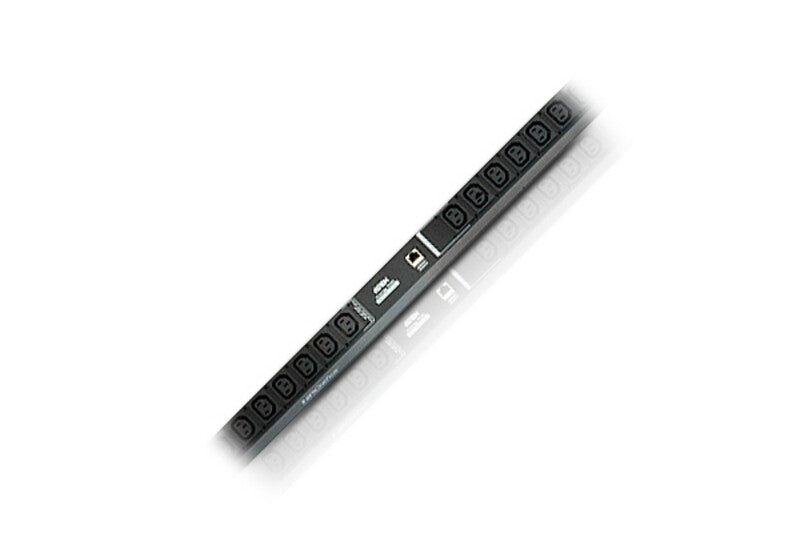

24-Port 0U Power Distribution Unit (PDU) (24 x C13) (IP-ready)
-PE1324B: 200~240V; North America, Mexico, Japan, Taiwan
-PE1324G: International
The PE1324 Energy PDU contains 24 AC outlets and is available in IEC or NEMA socket configurations. The PE1324 Energy PDU features a space-saving 0U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room, while providing 24 AC outlets.
1x PE1324 Energy PDU
(Fixed power cable 150 cm- IEC 60309- 32A power plug)
1x Mounting Kit
1x User Instructions
| Design |
|---|
| Product colour |
Black |
| Housing material |
Metal |
| PDU types |
Metered |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| AC outlet types |
C13 coupler |
| Power plug |
IEC 60309 |
| AC outlets quantity |
24 AC outlet(s) |
| Features |
|---|
| Certification |
CE, C-Tick, TUV-CB, GOST |
| Cable length |
1.6 m |
| Power |
|---|
| Load capacity |
7360 VA |
| Maximum current |
32 A |
| AC input frequency |
50 - 60 Hz |
| Nominal input voltage |
100-240 V |
| Weight & dimensions |
|---|
| Weight |
3.73 kg |
| Height |
44 mm |
| Depth |
1300 mm |
| Width |
40.4 mm |
| Packaging data |
|---|
| Package height |
166 mm |
| Package depth |
1465 mm |
| Package width |
205 mm |
| Package weight |
5.53 kg |
| Packaging content |
|---|
| Manual |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case gross weight |
5.68 kg |
| Master (outer) case height |
166 mm |
| Master (outer) case length |
1465 mm |
| Master (outer) case width |
205 mm |
| Master (outer) case net weight |
3.73 kg |
