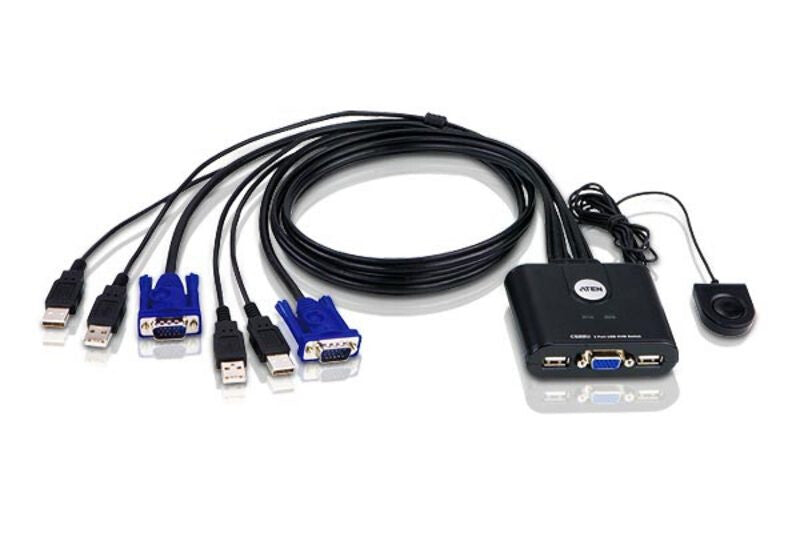

2-Port USB VGA KVM Switch
The CS22U is a 2-port USB Cable KVM Switch that provides a simple and quick method of selecting computers- a built-in remote port selector. This allows the CS22U unit to be hidden from sight, while the remote port selector can be placed conveniently on the desktop.
1x CS22U 2-Port USB Cable KVM Switch with Remote Port Selector
1x User Instructions
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A |
| USB 2.0 Type-A hub ports quantity |
2 |
| USB hub |
Yes |
| Console ports |
USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity |
2 |
| Video port type |
VGA |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
2 |
| Performance |
|---|
| DDC2B support |
Yes |
| Maximum resolution |
2048 x 1536 pixels |
| HD type |
QXGA |
| Design |
|---|
| LED indicators |
Yes |
| Housing material |
Plastic |
| Product colour |
Black |
| Rack mounting |
No |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power consumption (typical) |
0.14 W |
| Input voltage |
5 V |
| Power source |
DC |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 80% |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
302 g |
| Height |
24.6 mm |
| Depth |
70.1 mm |
| Width |
82.4 mm |
| Packaging data |
|---|
| Package weight |
400 g |
| Package height |
223 mm |
| Package depth |
155 mm |
| Package width |
55 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Logistics data |
|---|
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case gross weight |
8.48 kg |
| Master (outer) case height |
330 mm |
| Master (outer) case length |
389 mm |
| Master (outer) case width |
328 mm |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case net weight |
6.04 kg |
