2-Port USB HDMI KVM Switch with Audio

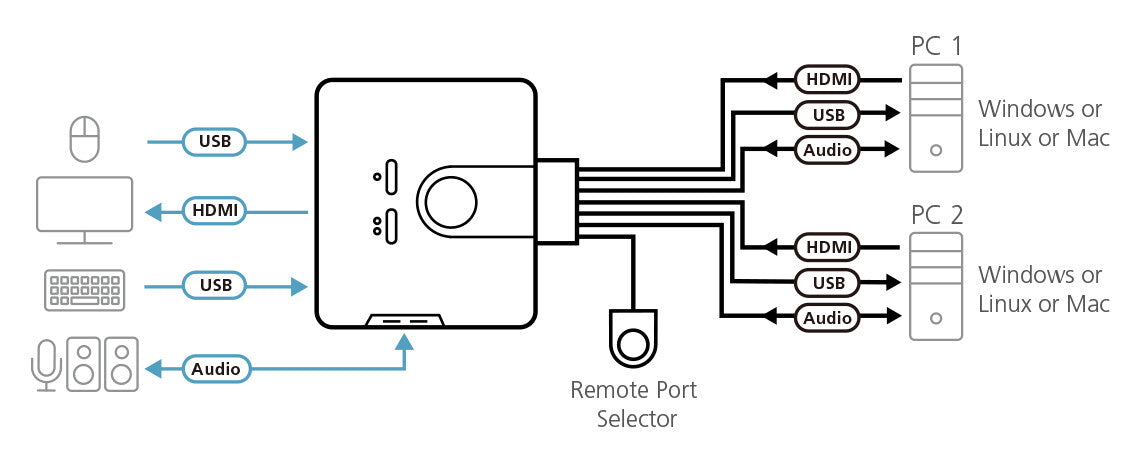

The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.

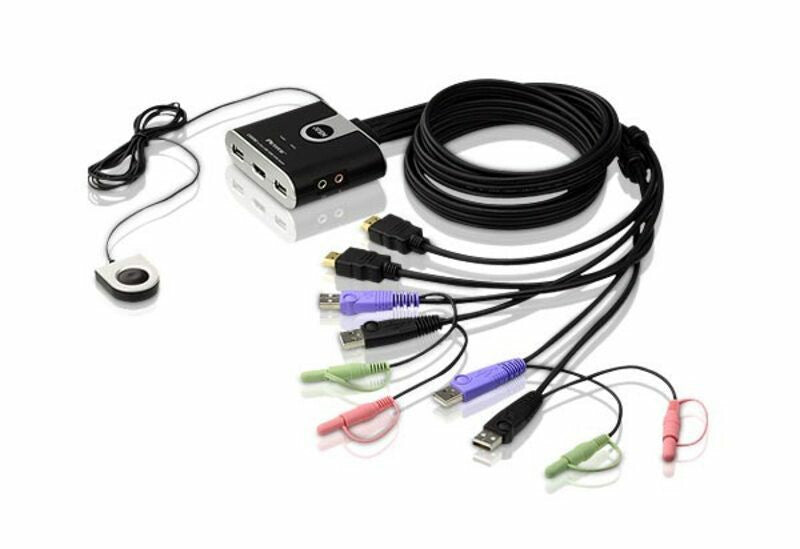

1x CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector
1x User Instructions
2x Hotkey Stickers
| Ports & interfaces |
|---|
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| HDMI ports quantity |
2 |
| Console USB ports quantity |
2 |
| Console ports |
3.5mm headphone, 3.5mm mic, HDMI, USB A |
| USB 2.0 Type-A hub ports quantity |
4 |
| USB connector type |
USB Type-A |
| Audio connections |
Yes |
| Headphone outputs |
3 |
| Number of microphone inputs |
3 |
| Performance |
|---|
| HD type |
WUXGA |
| Maximum resolution |
1920 x 1200 pixels |
| Video bandwidth |
60 Hz |
| Scan interval |
3,5,10,20 s |
| Design |
|---|
| Rack mounting |
No |
| Product colour |
Black |
| Housing material |
Plastic |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power source |
DC |
| Input voltage |
5 V |
| Power consumption (typical) |
0.72 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
82.4 mm |
| Depth |
66.5 mm |
| Height |
25.2 mm |
| Weight |
409 g |
| Packaging data |
|---|
| Package width |
70 mm |
| Package depth |
163 mm |
| Package height |
235 mm |
| Package weight |
550 g |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Manual |
Yes |
| Logistics data |
|---|
| Master (outer) case net weight |
4.09 kg |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case width |
395 mm |
| Master (outer) case length |
405 mm |
| Master (outer) case height |
182 mm |
| Master (outer) case gross weight |
6.13 kg |
| Products per master (outer) case |
10 pc(s) |
