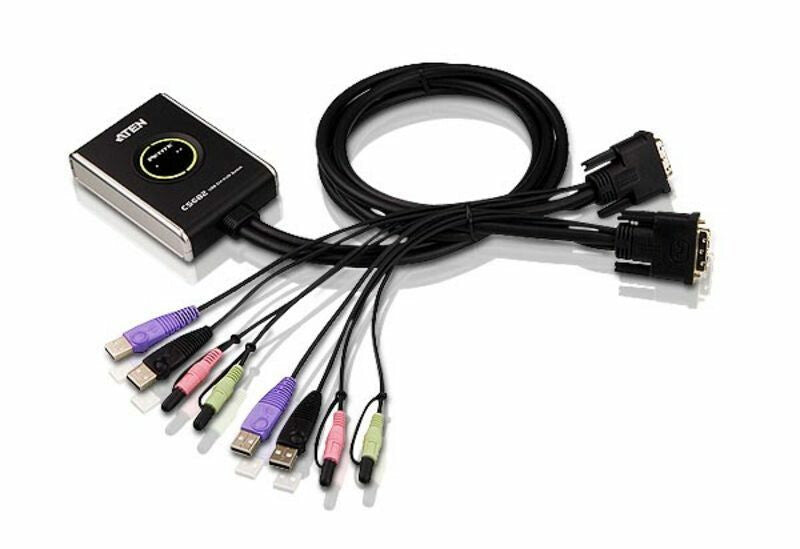

2-Port USB DVI KVM Switch with Audio
The CS682 takes a giant step forward from prior models in the Petite series, by offering DVI functionality, USB 2.0 peripheral sharing, and a rich bass experience for 2.1 surround systems. Another new feature of the CS682 is the implementation of a remote port selector. This means that you can now control port switching from the desktop while the switch itself can be placed in a convenient, out of the way, location.
1x CS682 2-Port USB 2.0 DVI KVM Switch
1x Remote Port Selector
1x User Instructions
| Ports & interfaces |
|---|
| Number of microphone inputs |
3 |
| Headphone outputs |
3 |
| Audio connections |
Yes |
| USB connector type |
USB Type-A, USB Type-B |
| USB 2.0 Type-A hub ports quantity |
4 |
| Console ports |
3.5mm headphone, 3.5mm mic, DVI-D, USB A |
| Console USB ports quantity |
2 |
| DVI-D ports quantity |
2 |
| Video port type |
DVI-D |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
2 |
| Performance |
|---|
| Scan interval |
3,5,10,20 s |
| Video bandwidth |
60 Hz |
| Maximum resolution |
1920 x 1200 pixels |
| HD type |
WUXGA |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
Black |
| Rack mounting |
No |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power consumption (typical) |
1.9 W |
| Input voltage |
5 V |
| Power source |
DC |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 80% |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
460 g |
| Height |
24 mm |
| Depth |
78 mm |
| Width |
111.5 mm |
| Packaging data |
|---|
| Package weight |
590 g |
| Package height |
235 mm |
| Package depth |
163 mm |
| Package width |
70 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Quick installation guide |
Yes |
| Logistics data |
|---|
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case gross weight |
6.61 kg |
| Master (outer) case height |
182 mm |
| Master (outer) case length |
405 mm |
| Master (outer) case width |
395 mm |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case net weight |
4.6 kg |
