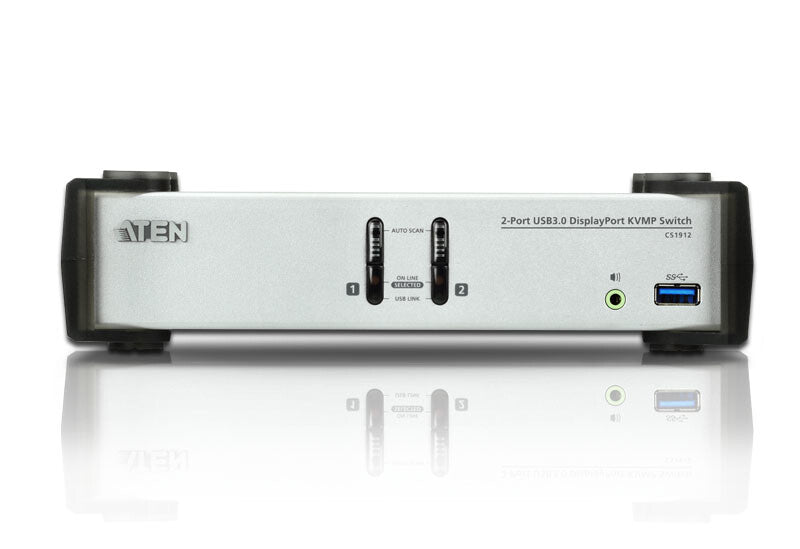

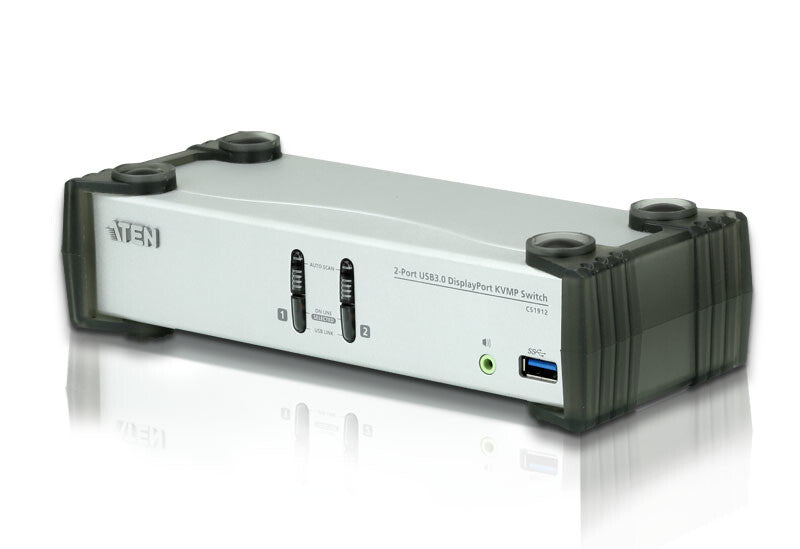

ATEN 2-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ Switch with Speaker (KVM cables included)
R 4,469.96
Regular price
R 4,469.96
Sale price
R 4,469.96
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Want next day delivery? Be quick!
Low stock! Only 1 left
2-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ Switch with Speaker (KVM cables included)
The ATEN CS1912 2-Port USB 3.0 DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1912 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.
1 x CS1912 2-Port USB 3.0 DisplayPort KVMP™ Switch
2 x LIN5-20K1-K14G DisplayPort Cables
2 x LIN6-11C1-E12G USB 3.0 Cables
2 x LIN5-0205-21CG Audio Cables
1 x 0AD8-8005-40MG Power Adapter
1 x User Instructions
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Headphone outputs | 4 |
| Audio connections | Yes |
| USB connector type | USB Type-A, USB Type-B |
| USB hub | Yes |
| Console ports | DisplayPort, USB A |
| Console USB ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| DisplayPorts quantity | 3 |
| Video port type | DisplayPort |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 2 |
| Performance | |
|---|---|
| HDCP | Yes |
| Scan interval | 1,99 s |
| Automatic switching | Yes |
| Video bandwidth | 30 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Design | |
|---|---|
| Hot keys | Yes |
| Push button | Yes |
| LED indicators | Yes |
| Housing material | Metal, Plastic |
| Product colour | Black, Grey |
| Rack mounting | No |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Power consumption (typical) | 2 W |
| External power adapter | Yes |
| Output voltage | 5 V |
| Power source | DC |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.36 kg |
| Height | 55.5 mm |
| Depth | 210 mm |
| Width | 88 mm |
| Packaging data | |
|---|---|
| Package weight | 1.77 kg |
| Package height | 173 mm |
| Package depth | 283 mm |
| Package width | 100 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case gross weight | 9.35 kg |
| Master (outer) case height | 194 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case width | 292 mm |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case net weight | 6.8 kg |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
