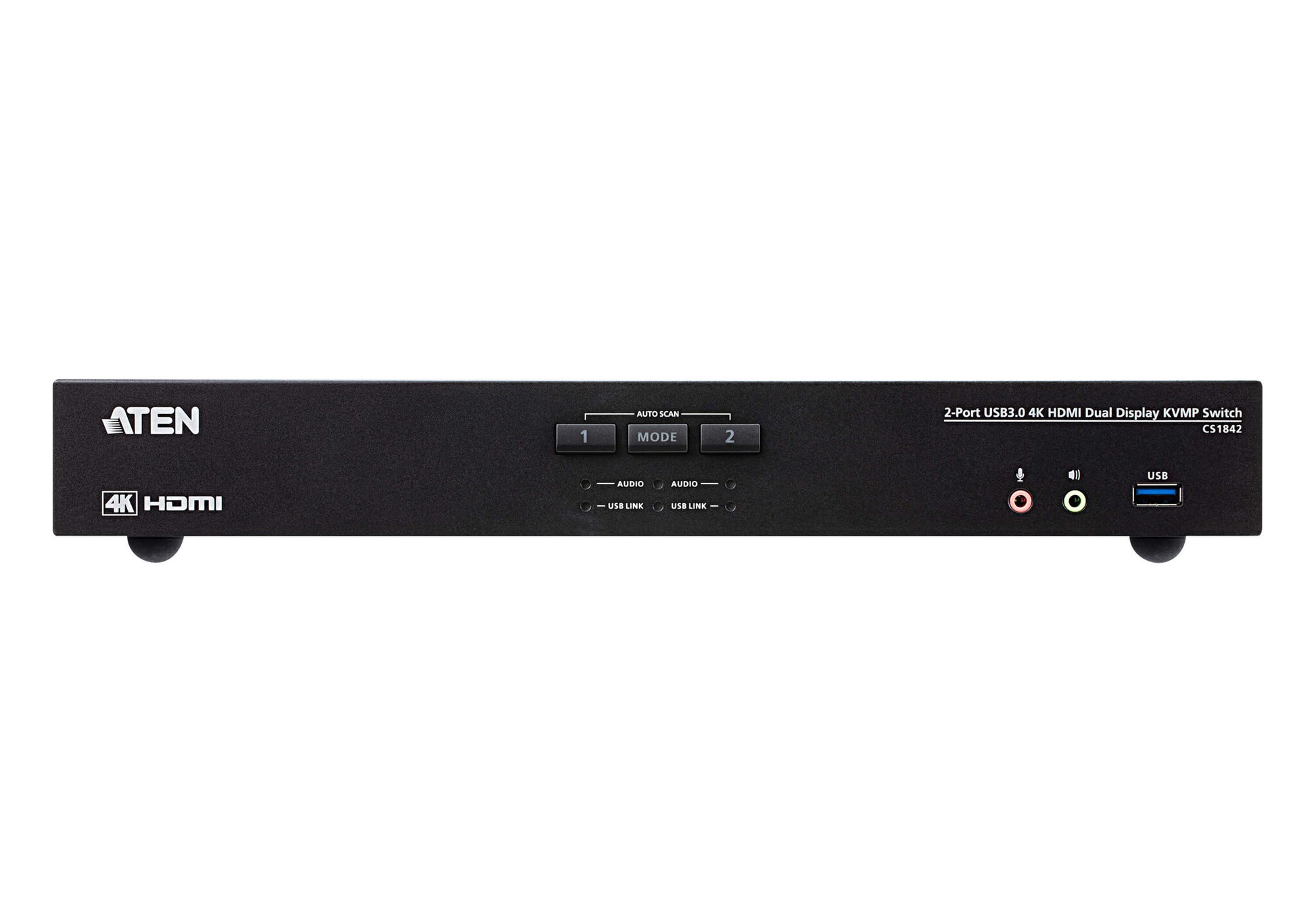

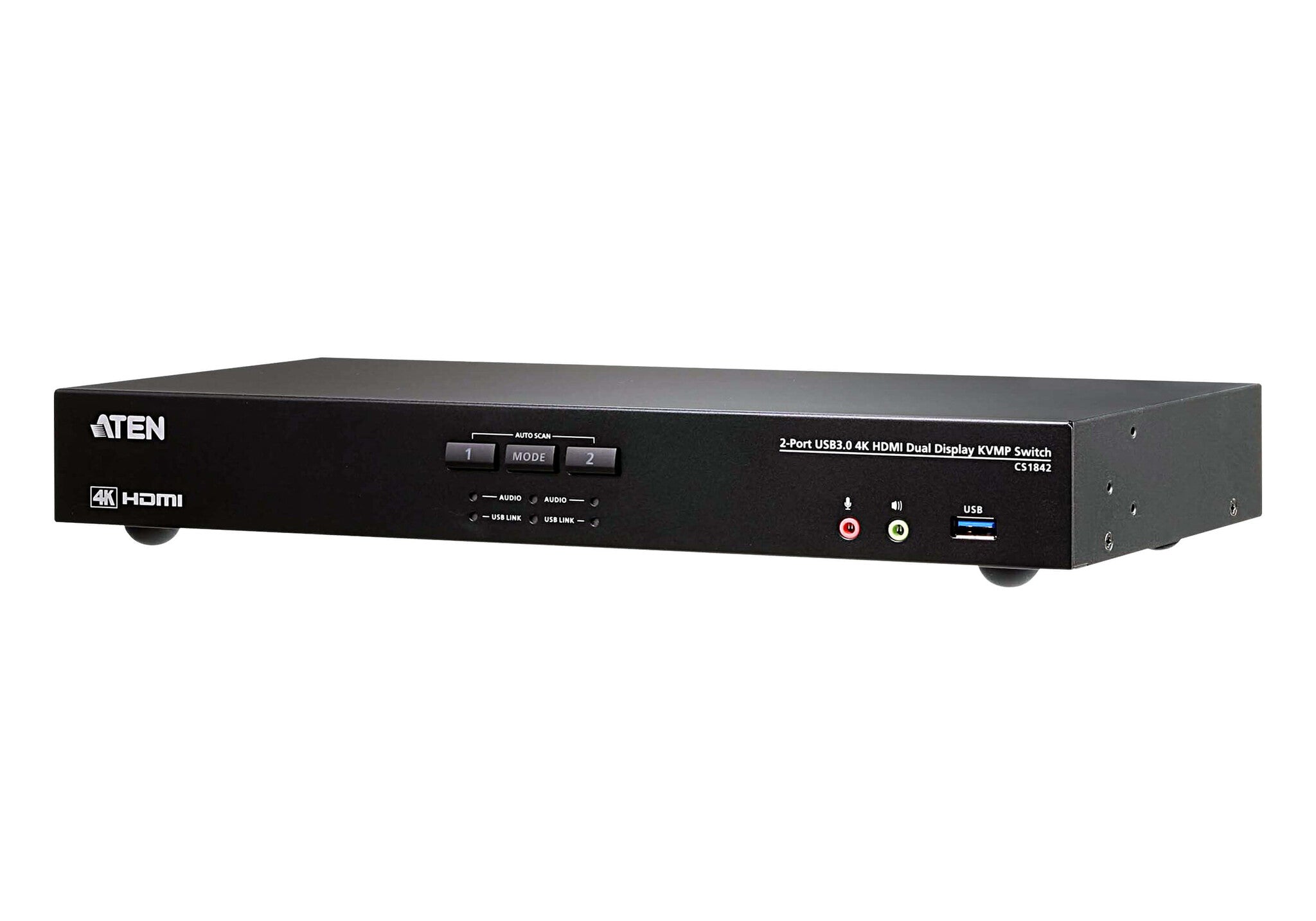

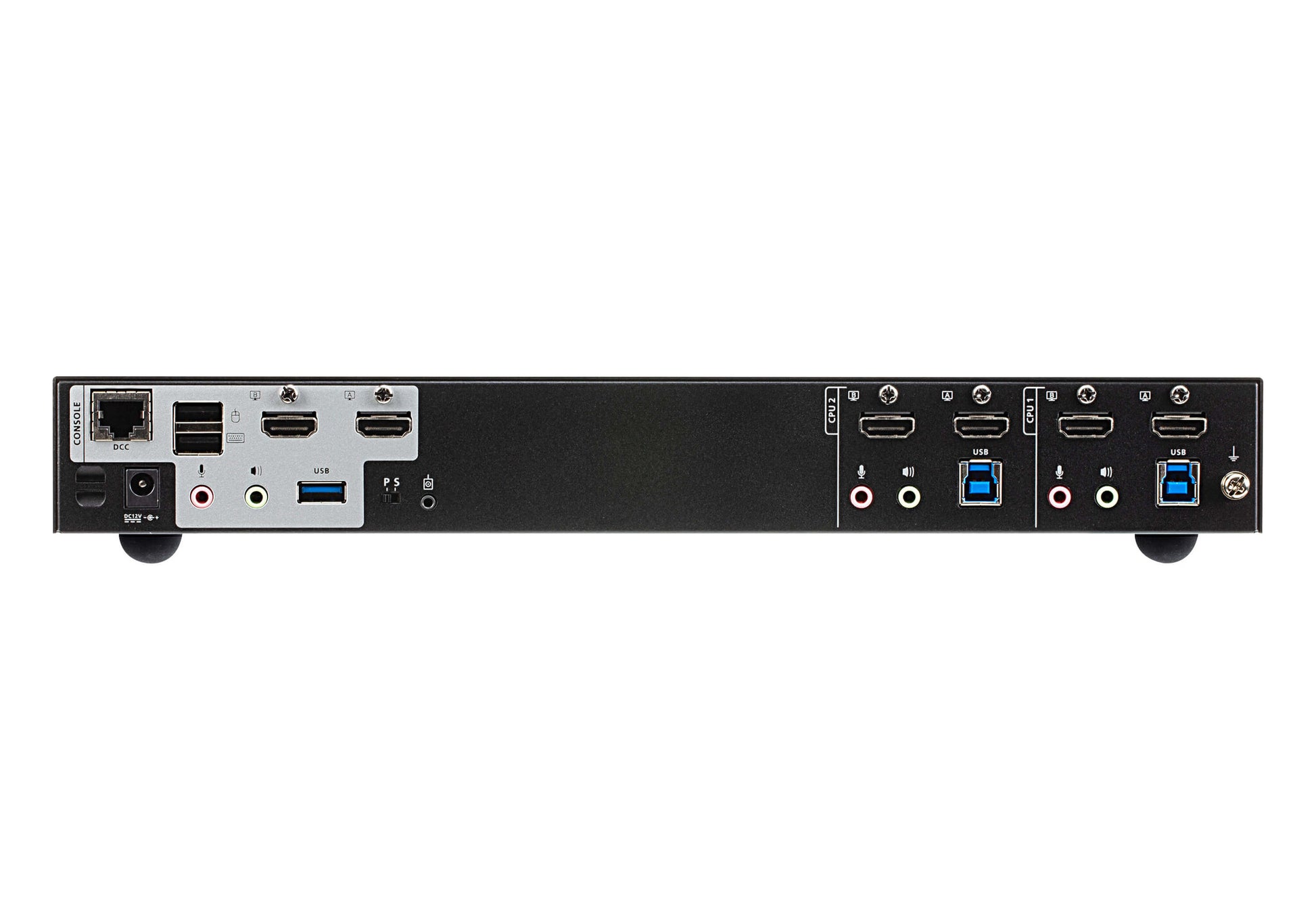

2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
1x CS1842 2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
4x LIN6-19V1-V18G HDMI 2.0 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Speaker Cables
2x LIN5-0205-21DG Microphone Cables
1x 0AD8-8012-33MG Power Adapter
1x 2XRT-0016G Remote Port Selector
1x User Instructions
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Number of microphone inputs |
4 |
| Headphone outputs |
4 |
| Audio connections |
Yes |
| USB connector type |
USB Type-A, USB Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
| USB 2.0 Type-A hub ports quantity |
2 |
| USB hub |
Yes |
| Console ports |
3.5mm headphone, HDMI, USB A |
| Console USB ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
2 |
| HDMI ports quantity |
4 |
| Video port type |
HDMI |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
2 |
| Performance |
|---|
| Scan interval |
1,5,99 s |
| Video bandwidth |
60 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| HD type |
4K Ultra HD |
| Design |
|---|
| Hot keys |
Yes |
| Push button |
Yes |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power consumption (typical) |
3.17 W |
| Input voltage |
12 V |
| Power source |
DC |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 80% |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
2.75 kg |
| Height |
44 mm |
| Depth |
160.5 mm |
| Width |
335 mm |
| Packaging data |
|---|
| Package weight |
3.52 kg |
| Package height |
233 mm |
| Package depth |
540 mm |
| Package width |
116 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Quick installation guide |
Yes |
| Logistics data |
|---|
| Products per master (outer) case |
3 pc(s) |
| Master (outer) case gross weight |
11.5 kg |
| Master (outer) case height |
258 mm |
| Master (outer) case length |
565 mm |
| Master (outer) case width |
375 mm |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case net weight |
8.25 kg |
