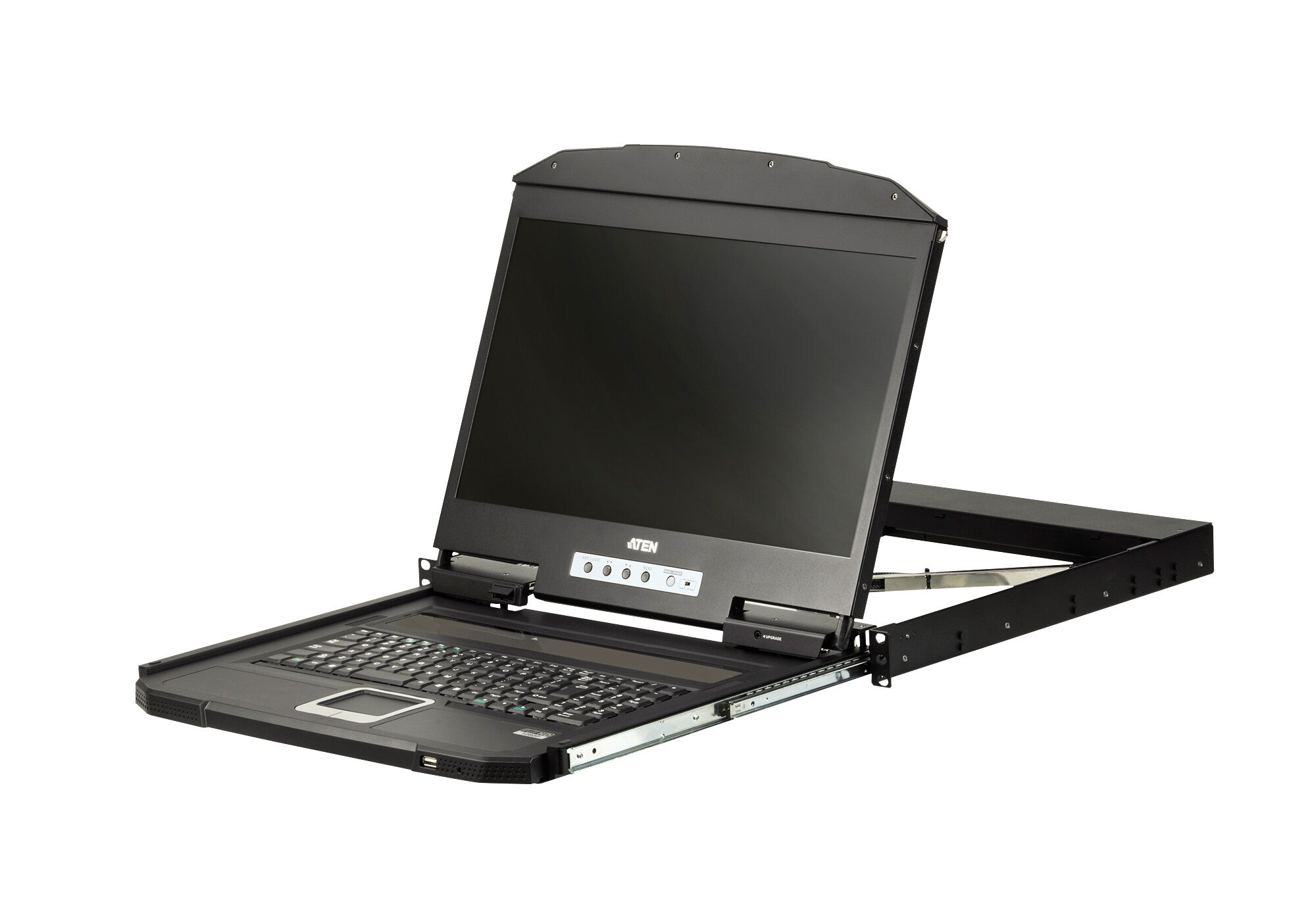

1U Short Depth USB VGA Single Rail LCD

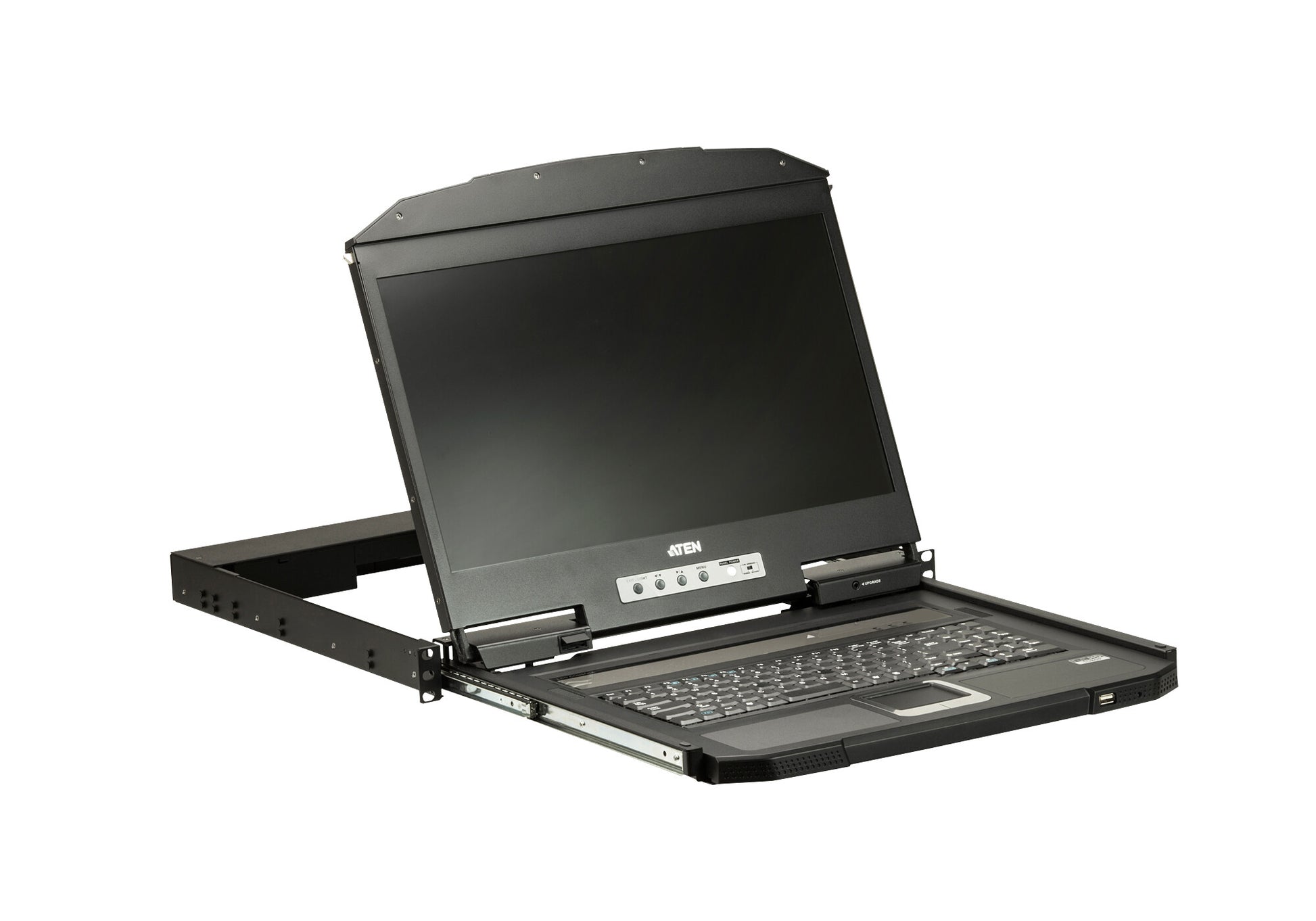

The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.
1x CL3100 LCD KVM Console with Standard Rack Mount Kit
1x LIN5-23X5-X1BG USB VGA KVM Cable (VGA, USB, Audio; 1.8 m/6 ft)
1x LIN5-04A2-J15G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
| Display |
|---|
| On Screen Display (OSD) |
Yes |
| Aspect ratio |
16:9 |
| Display brightness |
250 cd/m² |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
170° |
| Viewing angle, vertical |
160° |
| Pixel pitch |
0.3 x 0.3 mm |
| Display type |
LCD |
| Response time |
5 ms |
| Display number of colours |
16.78 million colours |
| Display |
TFT-LCD |
| Display resolution |
1366 x 768 pixels |
| Display diagonal |
47 cm (18.5") |
| Technical details |
|---|
| Rack capacity |
1U |
| Compliance certificates |
RoHS |
| Product colour |
Black |
| Hot-Plug support |
Yes |
| Operating relative humidity (H-H) |
0 - 80% |
| Built-in KVM switch |
Yes |
| Key lock |
Yes |
| Number of computers controlled |
1 |
| On/off switch |
Yes |
| LED indicators |
Yes |
| Maximum resolution |
1920 x 1200 pixels |
| Rack mounting |
Yes |
| Material |
Metal, Plastic |
| Ports & interfaces |
|---|
| I/O ports |
3.5 mm Audio Jack, SPHD |
| USB 2.0 Type-A ports quantity |
3 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |
| Keyboard |
|---|
| Keyboard language |
US English |
| Keyboard layout |
QWERTY |
| Keyboard number of keys |
105 |
| Built-in touchpad |
Yes |
| Hot keys |
Yes |
| Certificates |
|---|
| Certification |
UL 60950-1, CAN/CSA |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Power |
|---|
| Input current |
1 A |
| AC adapter frequency |
50/60 Hz |
| AC adapter input voltage |
100 - 240 V |
| Power consumption (typical) |
14.1 W |
| Power supply type |
AC |
| Weight & dimensions |
|---|
| Weight |
10.2 kg |
| Depth |
480.6 mm |
| Height |
42.8 mm |
| Width |
477 mm |
| Packaging data |
|---|
| Package height |
135 mm |
| Package depth |
658 mm |
| Package width |
612 mm |
| Package weight |
12.1 kg |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Rack mount kit |
Yes |
| Manual |
Yes |
| Cables included |
AC, KVM |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case gross weight |
12.1 kg |
| Master (outer) case height |
135 mm |
| Master (outer) case length |
658 mm |
| Master (outer) case width |
612 mm |
| Master (outer) case net weight |
10.2 kg |
