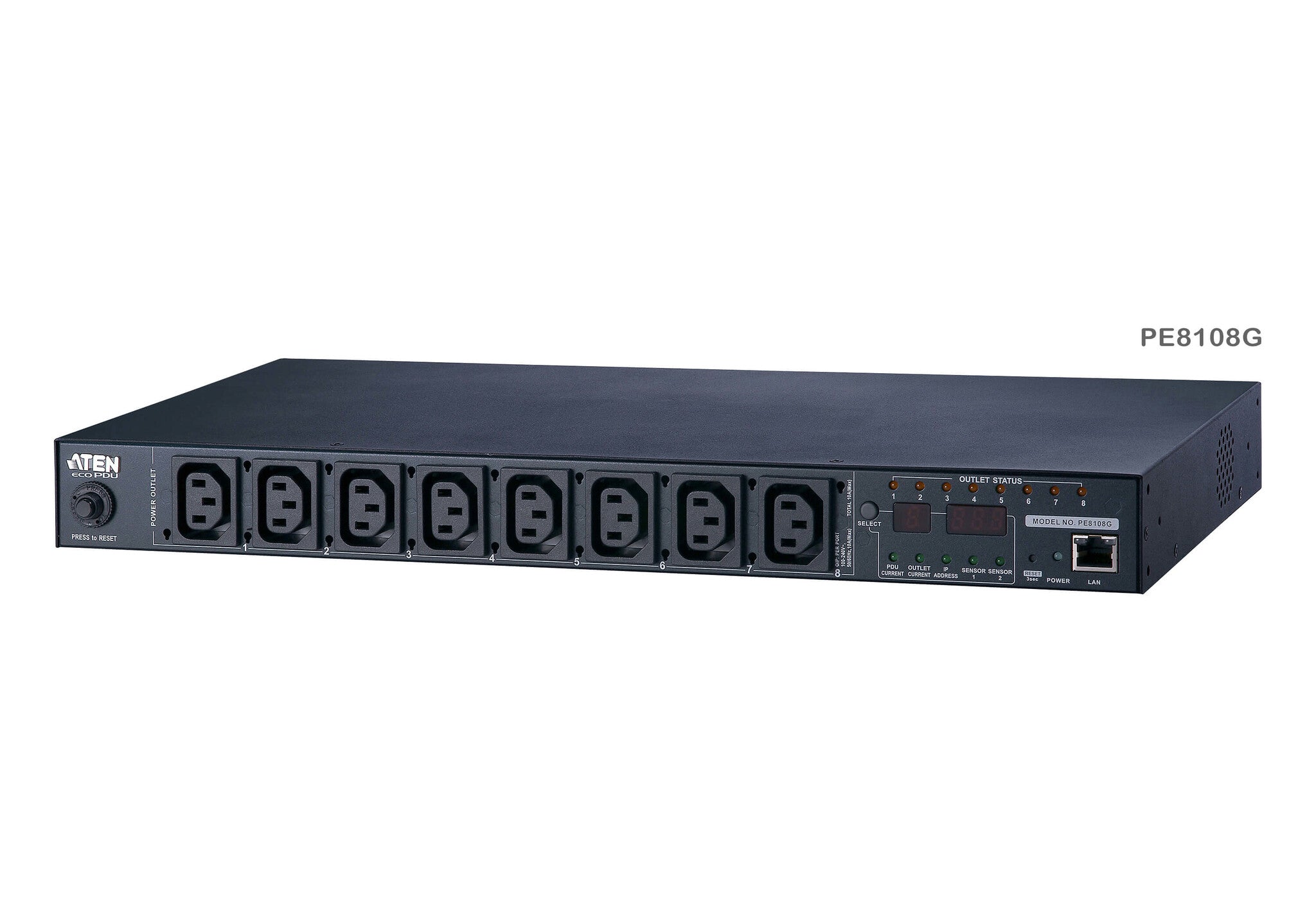

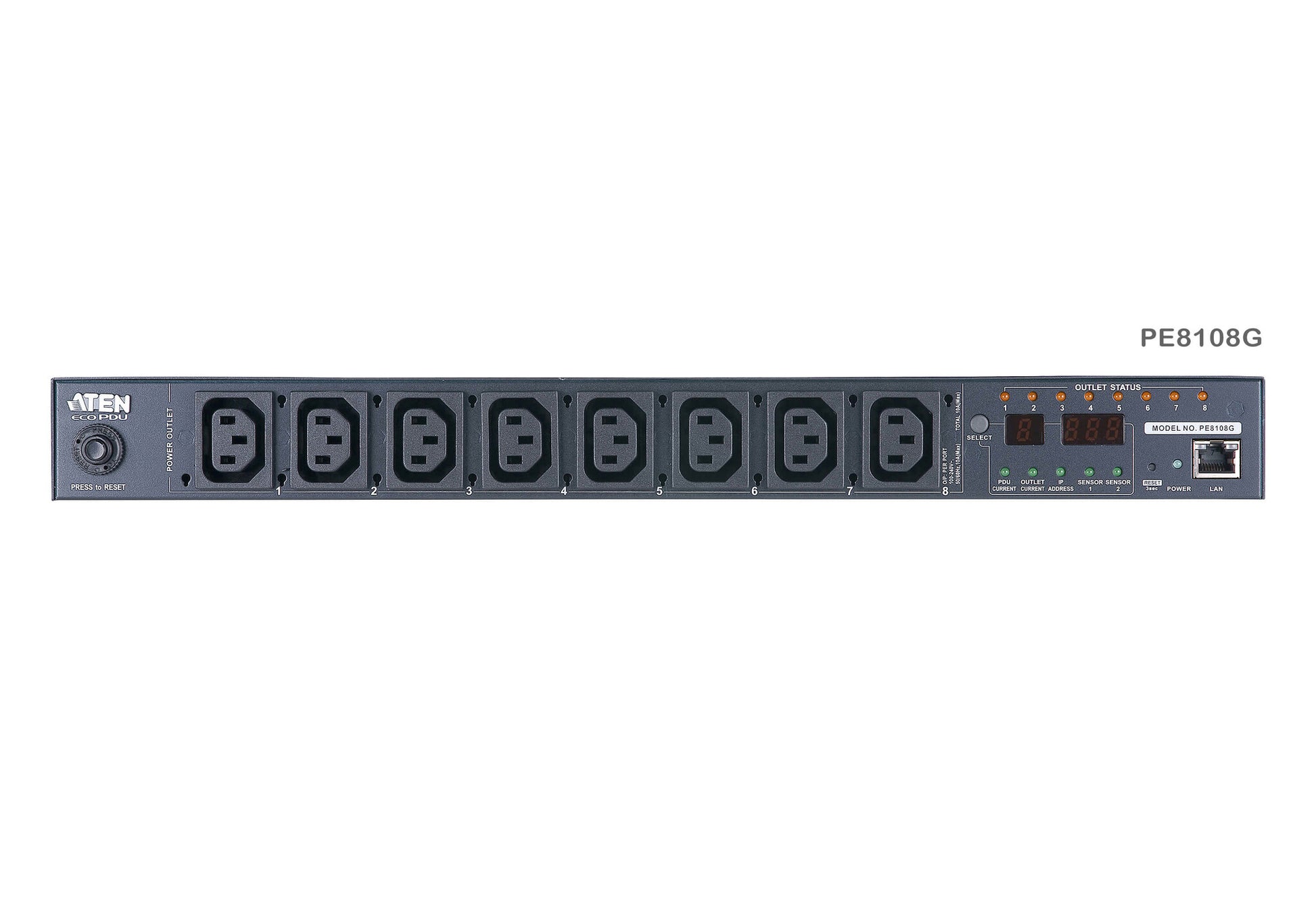

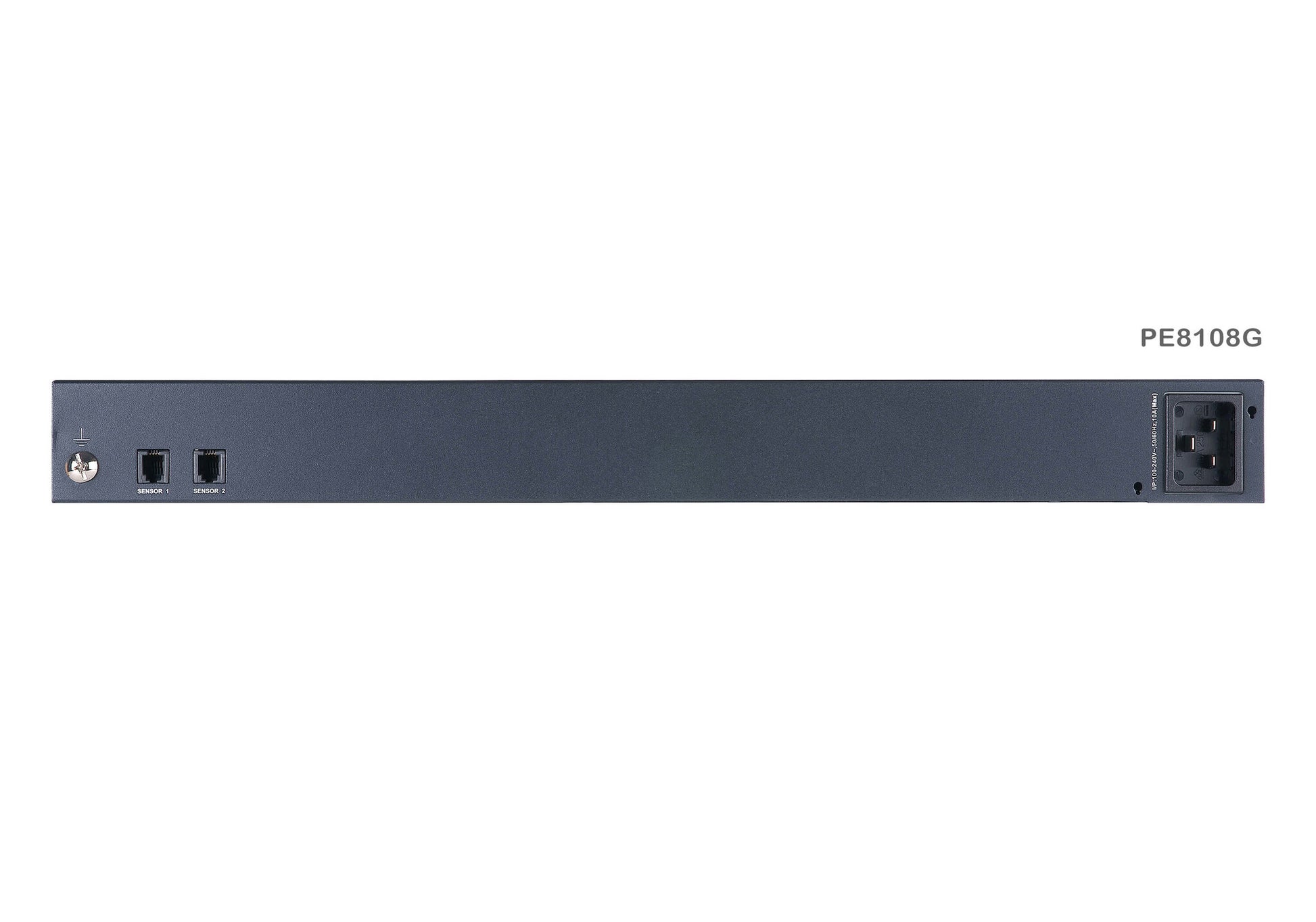

8-Port Intelligent 1U ECO Power Distribution Unit (PDU), Metered & Switched by Outlet (8 x C13) 10Amp
-8 outlets
-15A (UL derated 12A) / 10A
-Outlet Power Measurement
The PE8108 eco PDU is intelligent PDUs that contains 8 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*.
1x PE8108 Power Distribution Unit
1x Power Cord
1x Rack Mount Kit
1x Software CD
1x User Instructions
| Design |
|---|
| Product colour |
Black |
| Housing material |
Metal |
| Mounting |
Horizontal |
| Rack capacity |
1U |
| PDU types |
Metered, Switched |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| AC outlet types |
C13 coupler |
| Power plug |
C20 coupler |
| AC outlets quantity |
8 AC outlet(s) |
| Features |
|---|
| Certification |
CE, TUV-CB, CE-LVD, GOST, |
| Cable length |
3 m |
| LED indicators |
LAN, Link, Power, Status |
| Management features |
|---|
| Monitoring |
Current |
| Power |
|---|
| Maximum input current per phase |
10 A |
| Load capacity |
2300 VA |
| Nominal output voltage |
100 - 240 V |
| Maximum current |
10 A |
| AC input frequency |
50 - 60 Hz |
| Nominal input voltage |
100 - 240 V |
| Weight & dimensions |
|---|
| Weight |
3.22 kg |
| Height |
44 mm |
| Depth |
432.4 mm |
| Width |
220.4 mm |
| Packaging data |
|---|
| Package height |
324 mm |
| Package depth |
499 mm |
| Package width |
116 mm |
| Package weight |
3.99 kg |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Cables included |
AC |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
3 pc(s) |
| Master (outer) case gross weight |
12.9 kg |
| Master (outer) case height |
348 mm |
| Master (outer) case length |
519 mm |
| Master (outer) case width |
388 mm |
| Master (outer) case net weight |
9.66 kg |
