16P Short Depth Single Rail LCD KVM SW

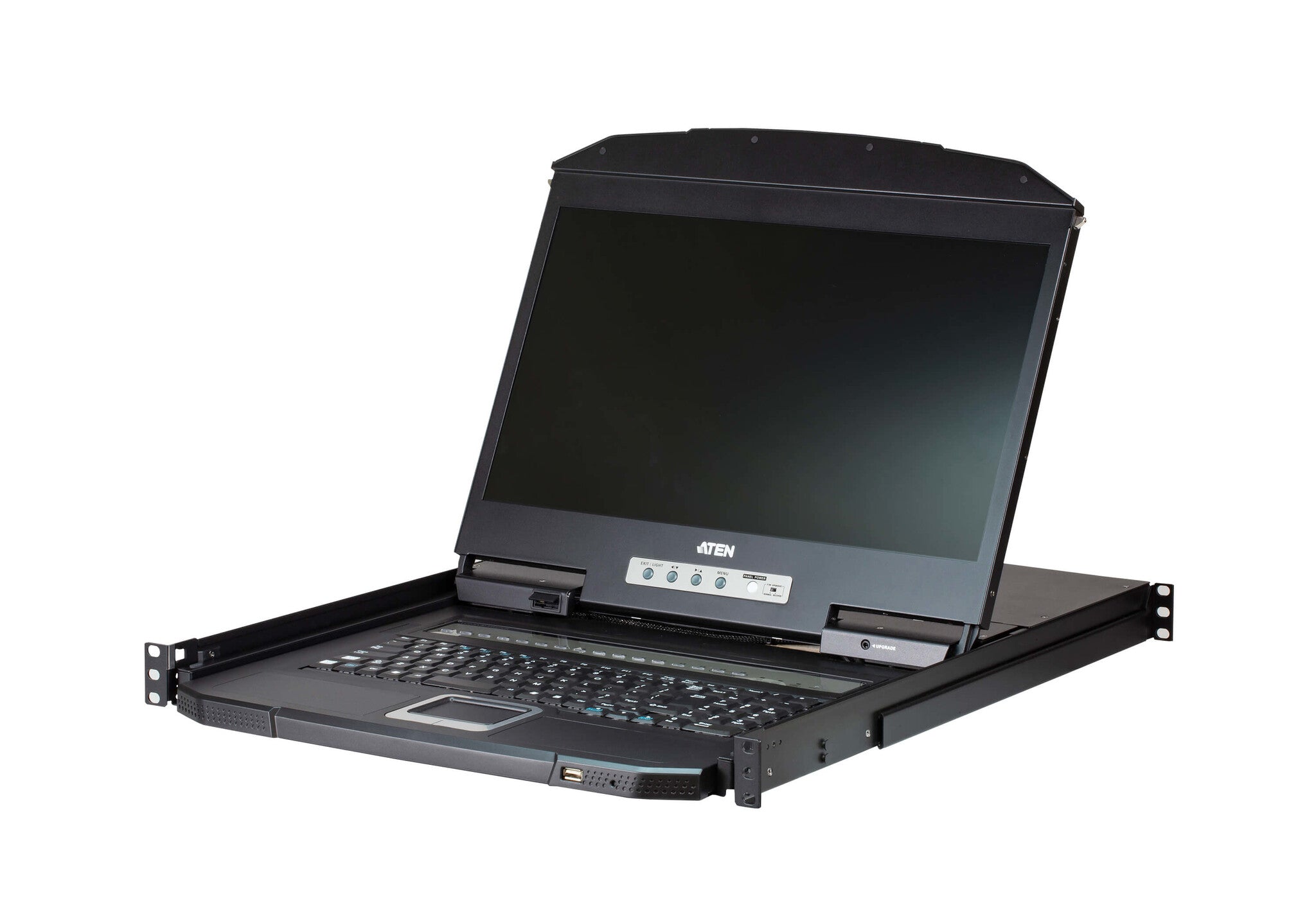

The ATEN CL3116 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.
1x CL3116 LCD KVM Switch with Standard Rack Mounting Kit
2x LIN5-15X3-U12G Custom KVM Cables (VGA, USB; 1.8m/6ft)
1x LIN5-004A2-J15G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
| Display |
|---|
| On Screen Display (OSD) |
Yes |
| Display brightness |
250 cd/m² |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
170° |
| Viewing angle, vertical |
160° |
| Pixel pitch |
0.3 x 0.3 mm |
| Display type |
LED |
| Display number of colours |
16.78 million colours |
| Display |
TFT-LCD |
| Display resolution |
1366 x 768 pixels |
| Display diagonal |
47 cm (18.5") |
| Technical details |
|---|
| Rack capacity |
1U |
| Push button |
Yes |
| Product colour |
Black |
| Hot-Plug support |
Yes |
| Operating relative humidity (H-H) |
0 - 80% |
| Built-in KVM switch |
Yes |
| Number of computers controlled |
16 |
| LED indicators |
Yes |
| Maximum resolution |
1366 x 768 pixels |
| Rack mounting |
Yes |
| Plug and Play |
Yes |
| KVM switch ports quantity |
16 |
| Material |
Metal, Plastic |
| Ports & interfaces |
|---|
| Mouse port type |
USB, PS/2 |
| Video port type |
VGA |
| 3.5 mm (1/8-inch) in |
Yes |
| Keyboard |
|---|
| Keyboard language |
US English |
| Keyboard layout |
QWERTY |
| Hot keys |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Power |
|---|
| Input current |
1 A |
| AC adapter frequency |
50 / 60 Hz |
| AC adapter input voltage |
100 - 240 V |
| Power supply type |
AC |
| Weight & dimensions |
|---|
| Weight |
11.1 kg |
| Depth |
42.8 mm |
| Height |
631.7 mm |
| Width |
480.6 mm |
| Packaging data |
|---|
| Package height |
135 mm |
| Package depth |
718 mm |
| Package width |
668 mm |
| Package weight |
13.9 kg |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case gross weight |
13.9 kg |
| Master (outer) case height |
135 mm |
| Master (outer) case length |
718 mm |
| Master (outer) case width |
668 mm |
| Master (outer) case net weight |
11.1 kg |
