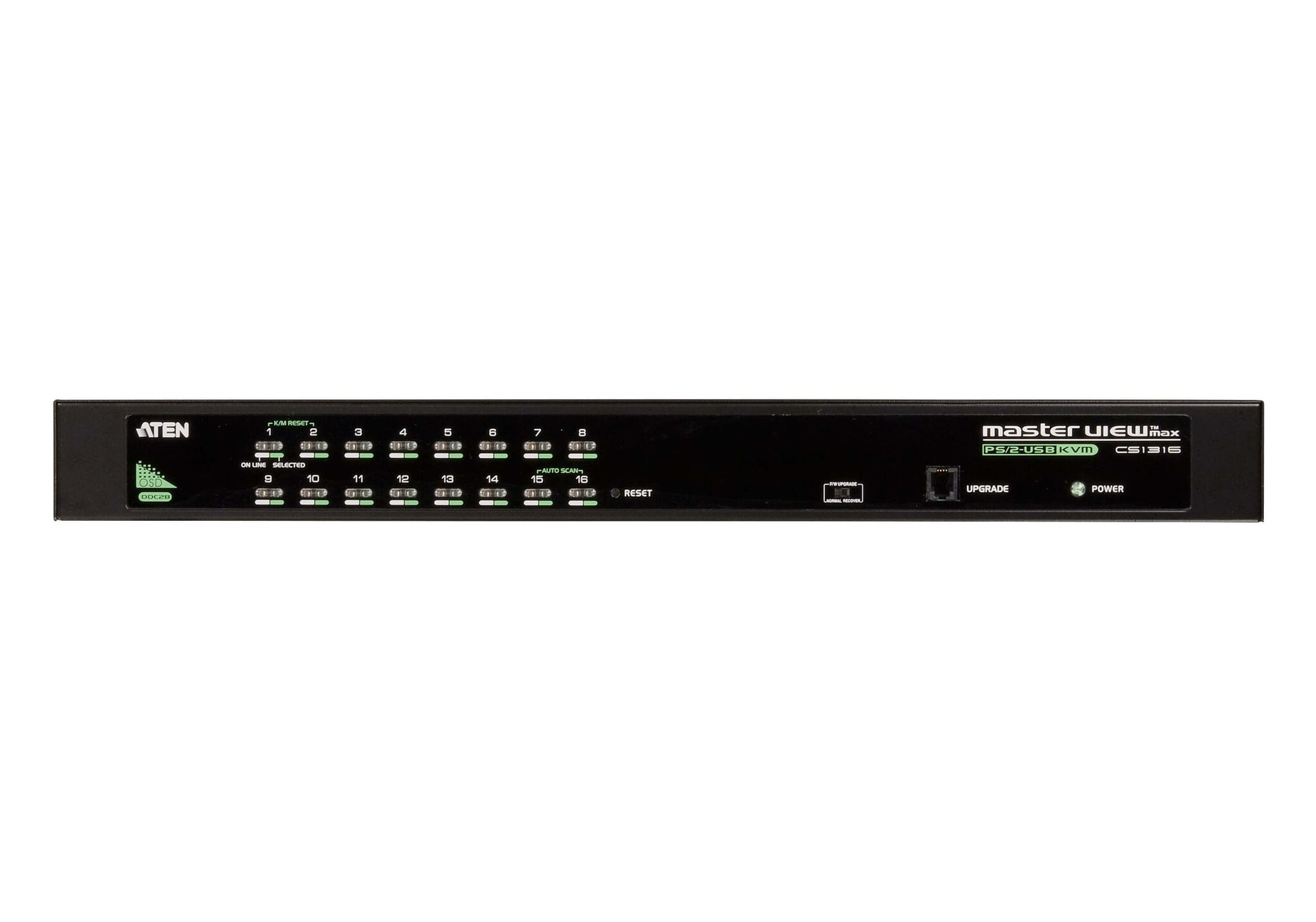

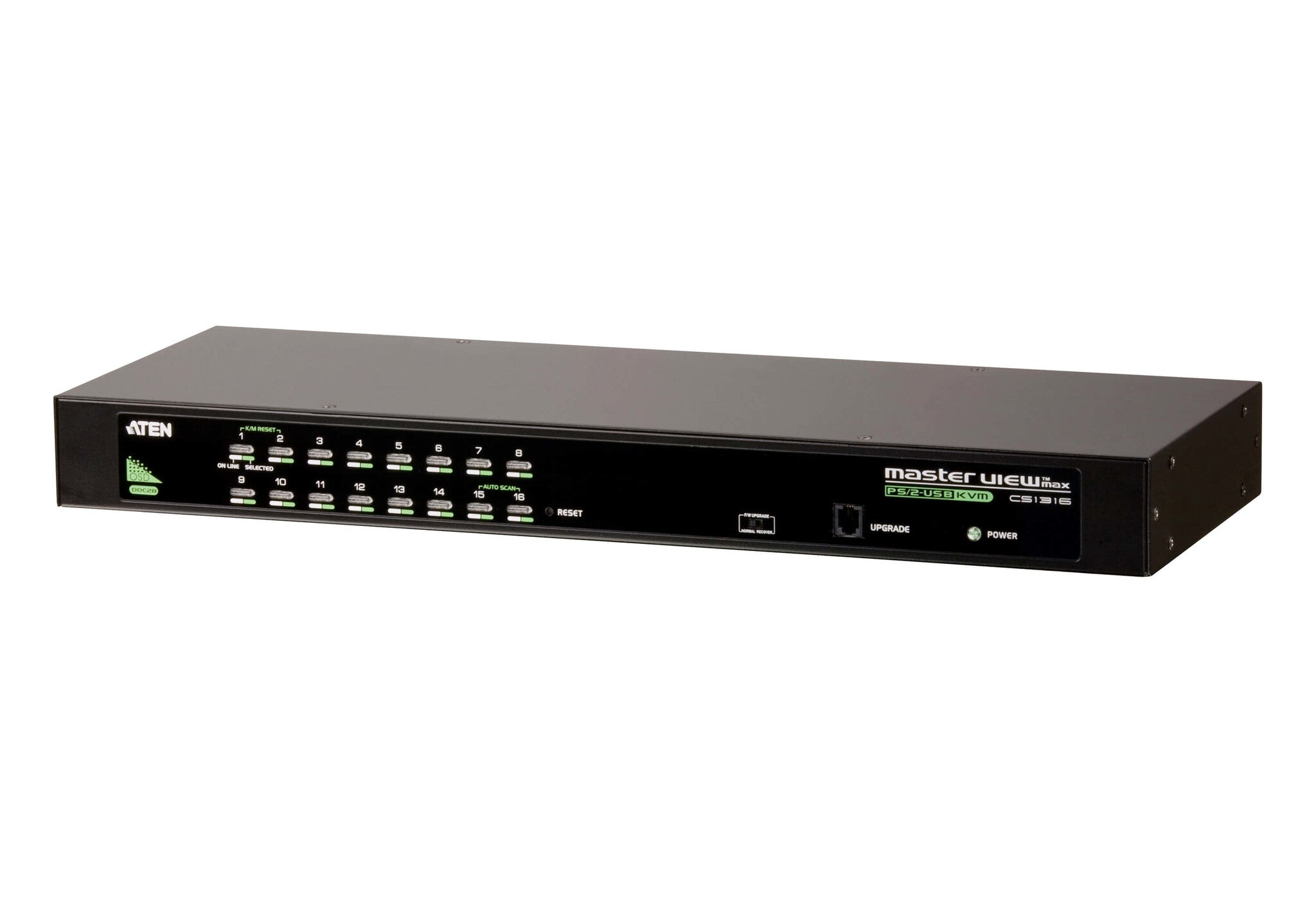

16-Port USB - PS/2 VGA KVM Switch
The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.
1x CS1316 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
| Ports & interfaces |
|---|

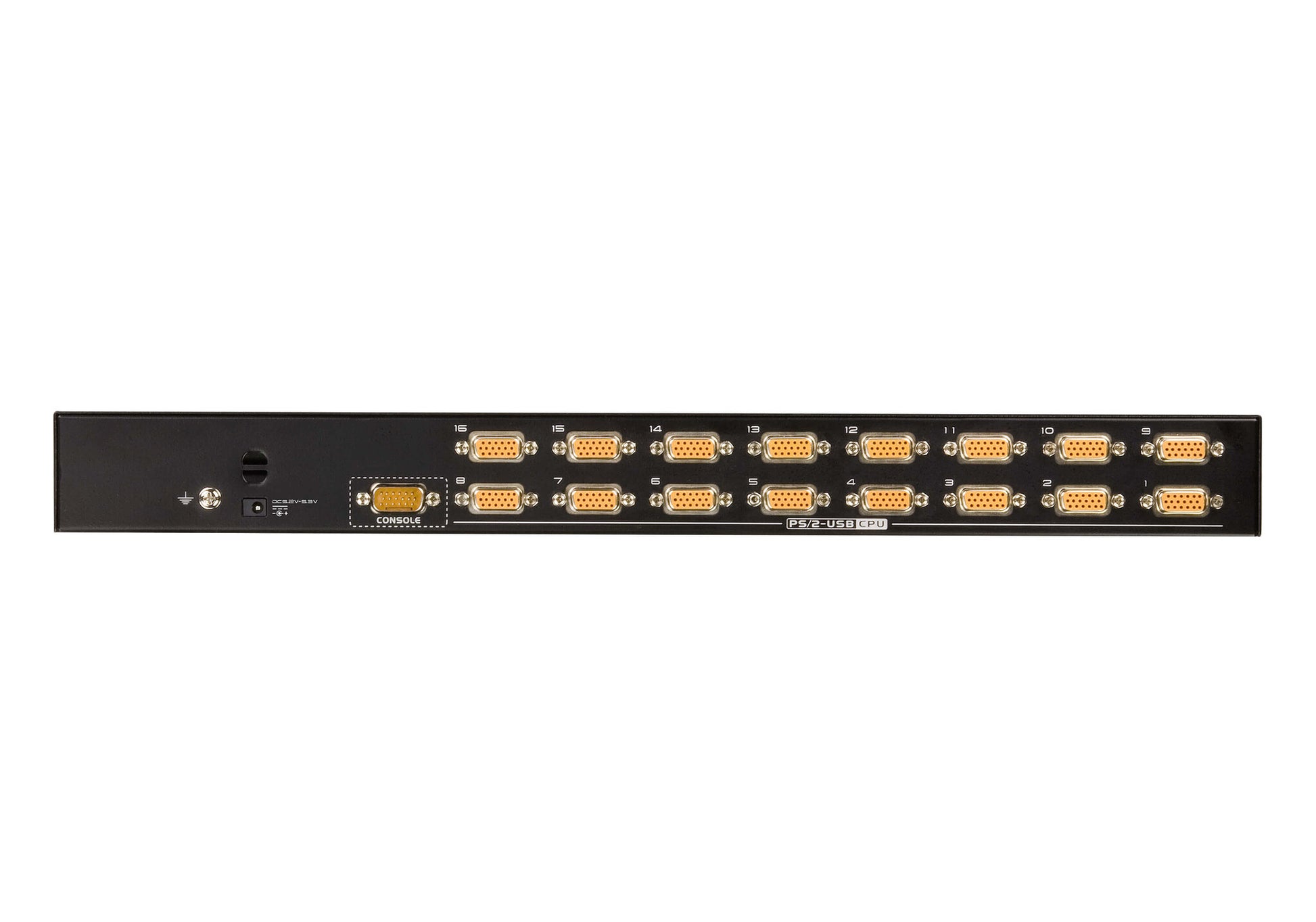

| Console ports |
VGA (D-Sub) |
| Video port type |
VGA |
| Mouse port type |
USB, PS/2 |
| Keyboard port type |
USB, PS/2 |
| Number of computers controlled |
256 |
| Performance |
|---|
| Firmware upgradeable |
Yes |
| Hot-Plug support |
Yes |
| DDC2B support |
Yes |
| Scan interval |
1,255 s |
| Maximum resolution |
2048 x 1536 pixels |
| HD type |
QXGA |
| Design |
|---|
| Hot keys |
Yes |
| Push button |
Yes |
| LED indicators |
Yes |
| Cascadable |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Display |
|---|
| On Screen Display (OSD) |
Yes |
| Built-in display |
No |
| Power |
|---|
| Power consumption (typical) |
6.5 W |
| Input voltage |
5.3 V |
| Power source |
DC |
| System requirements |
|---|
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
2.5 kg |
| Height |
44 mm |
| Depth |
161.3 mm |
| Width |
437.2 mm |
| Packaging data |
|---|
| Package weight |
2.87 kg |
| Package height |
233 mm |
| Package depth |
540 mm |
| Package width |
116 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Cables included |
KVM |
| Logistics data |
|---|
| Products per master (outer) case |
3 pc(s) |
| Master (outer) case gross weight |
9.27 kg |
| Master (outer) case height |
258 mm |
| Master (outer) case length |
565 mm |
| Master (outer) case width |
375 mm |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case net weight |
7.5 kg |
