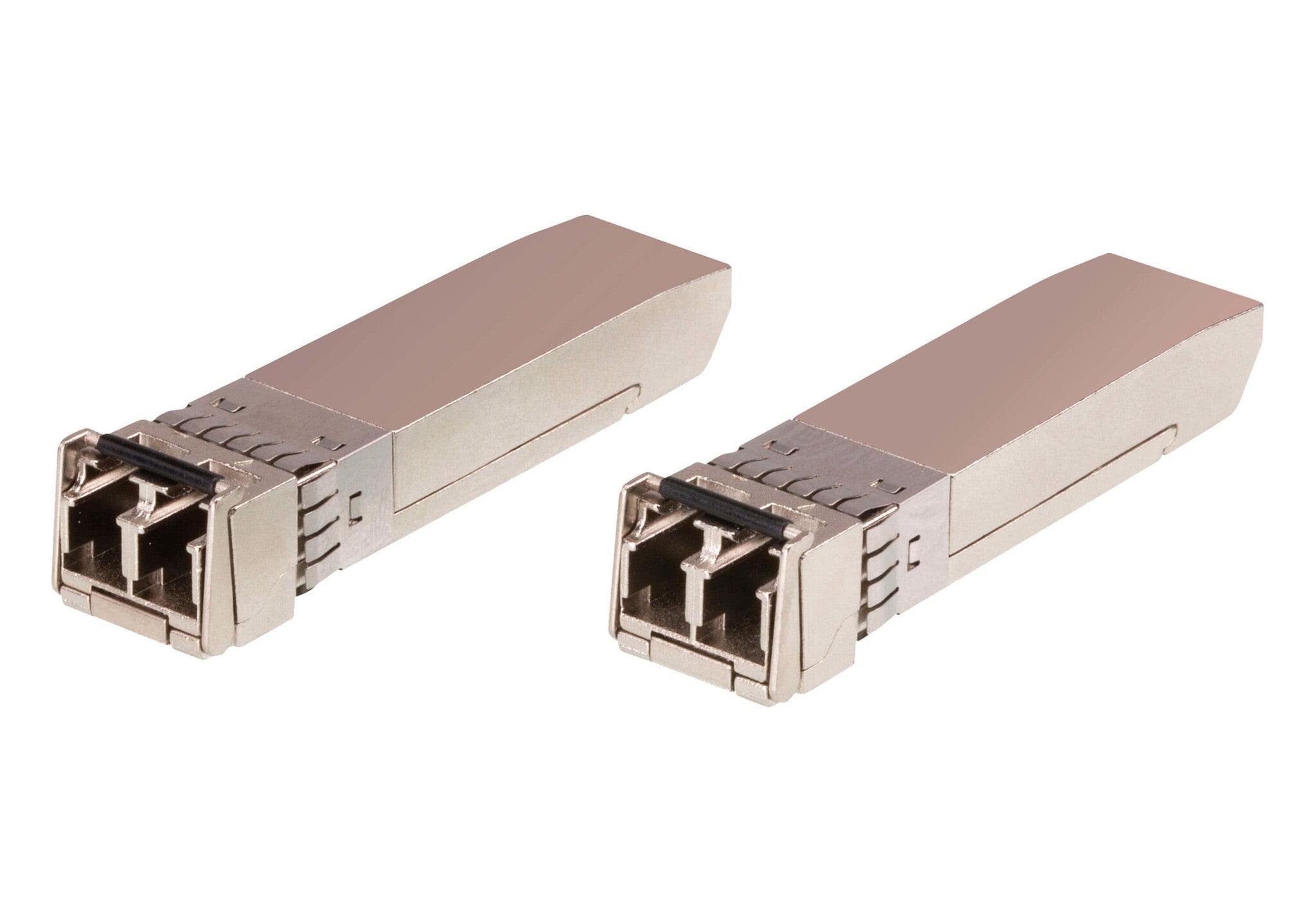

10G Multi-Mode/300M Fiber SFP Module
The 2A-141G 10G Multi-Mode/300M Fiber SFP+ Module is designed for use in 10GbE Ethernet environment that allows you to connect a multi-mode Gigabit Ethernet network cable to a network switch’s SFP+ port. The 2A-141G provides 10GbE connectivity at distances up to 300 meters. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-141G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm. This makes the module a cost-effective and highperformance transceiver to substantially increase the span of a compatible network switch.
| Performance |
|---|
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Networking standards |
IEEE 802.3ae |
| Wavelength |
850 nm |
| Maximum transfer distance |
300 m |
| Multi-mode fiber (MMF) supported |
Yes |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
|---|
| Hot-Plug support |
Yes |
| Product colour |
Stainless steel |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Weight & dimensions |
|---|
| Weight |
44 g |
| Height |
13 mm |
| Depth |
55.9 mm |
| Width |
14.6 mm |
| Packaging data |
|---|
| Package weight |
85 g |
| Package height |
129 mm |
| Package depth |
124 mm |
| Package width |
42 mm |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case gross weight |
1.27 kg |
| Master (outer) case height |
157 mm |
| Master (outer) case length |
288 mm |
| Harmonized System (HS) code |
85369010 |
| Master (outer) case width |
237 mm |
| Quantity per pack |
2 pc(s) |
| Master (outer) case net weight |
440 g |
