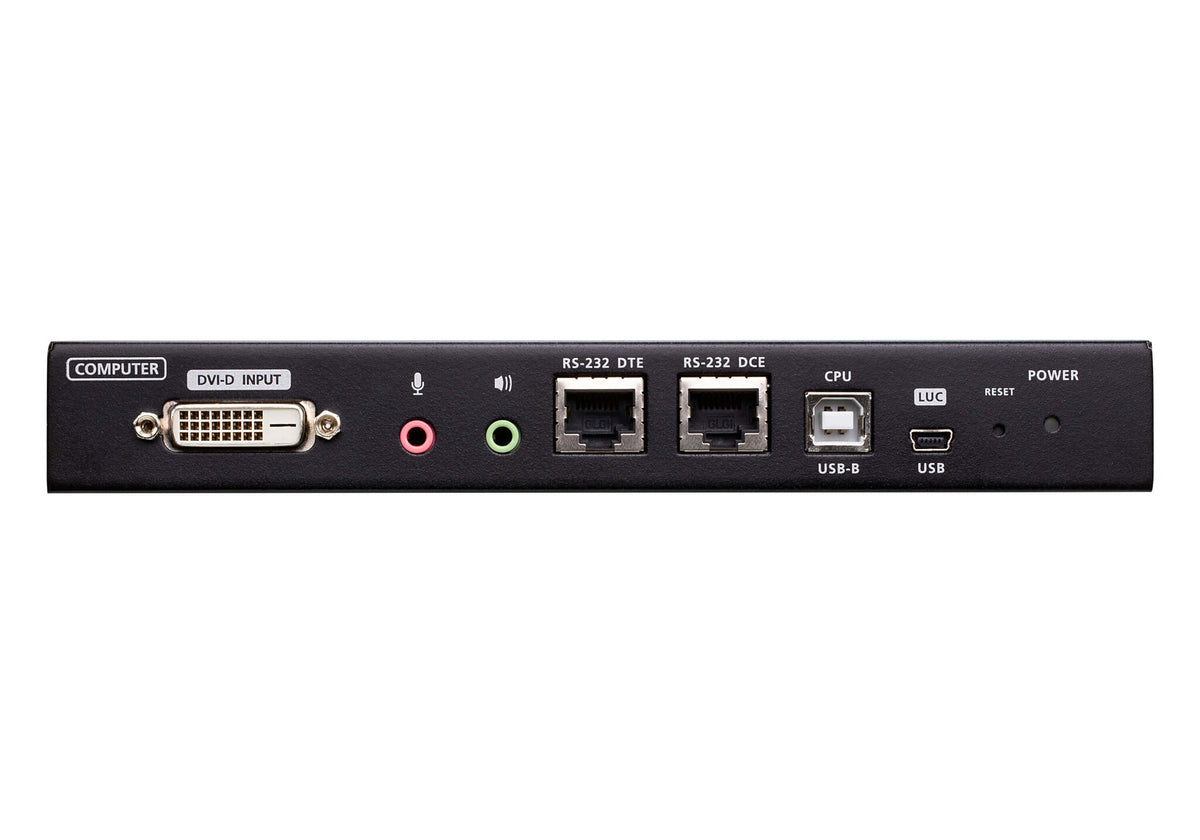

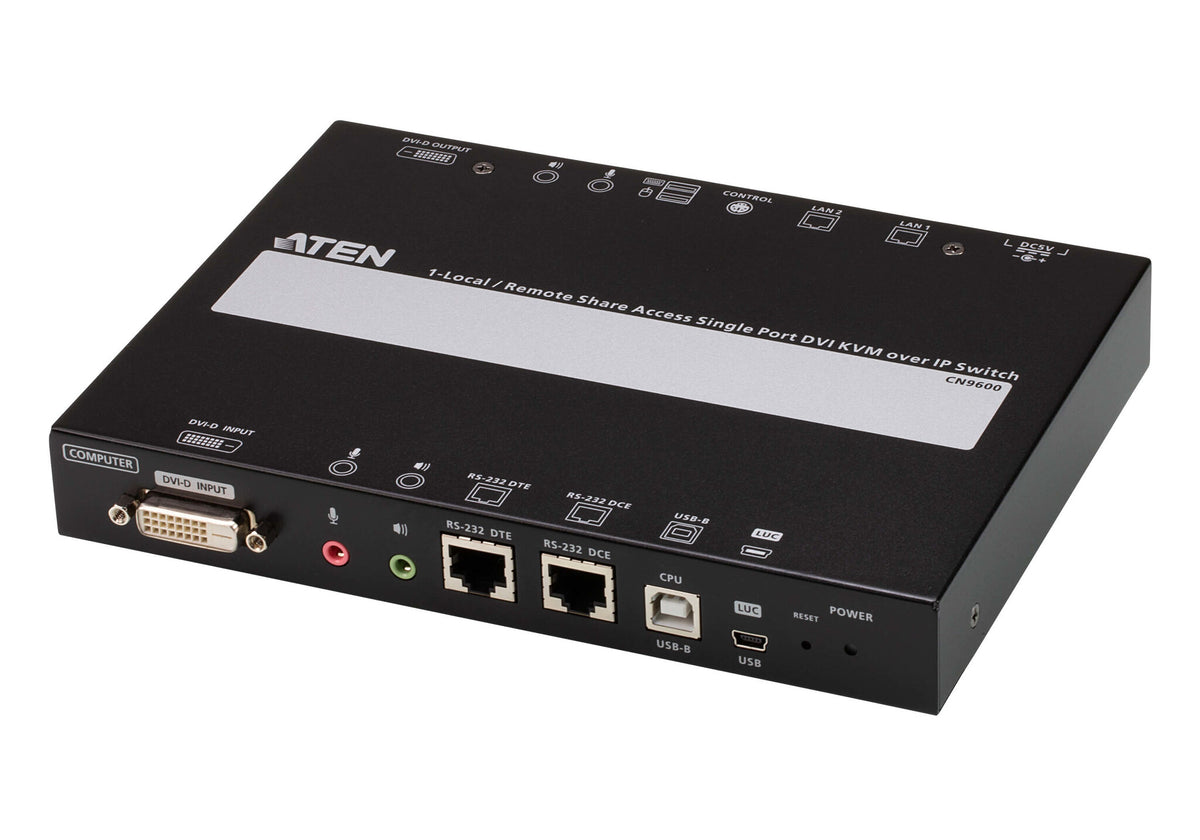

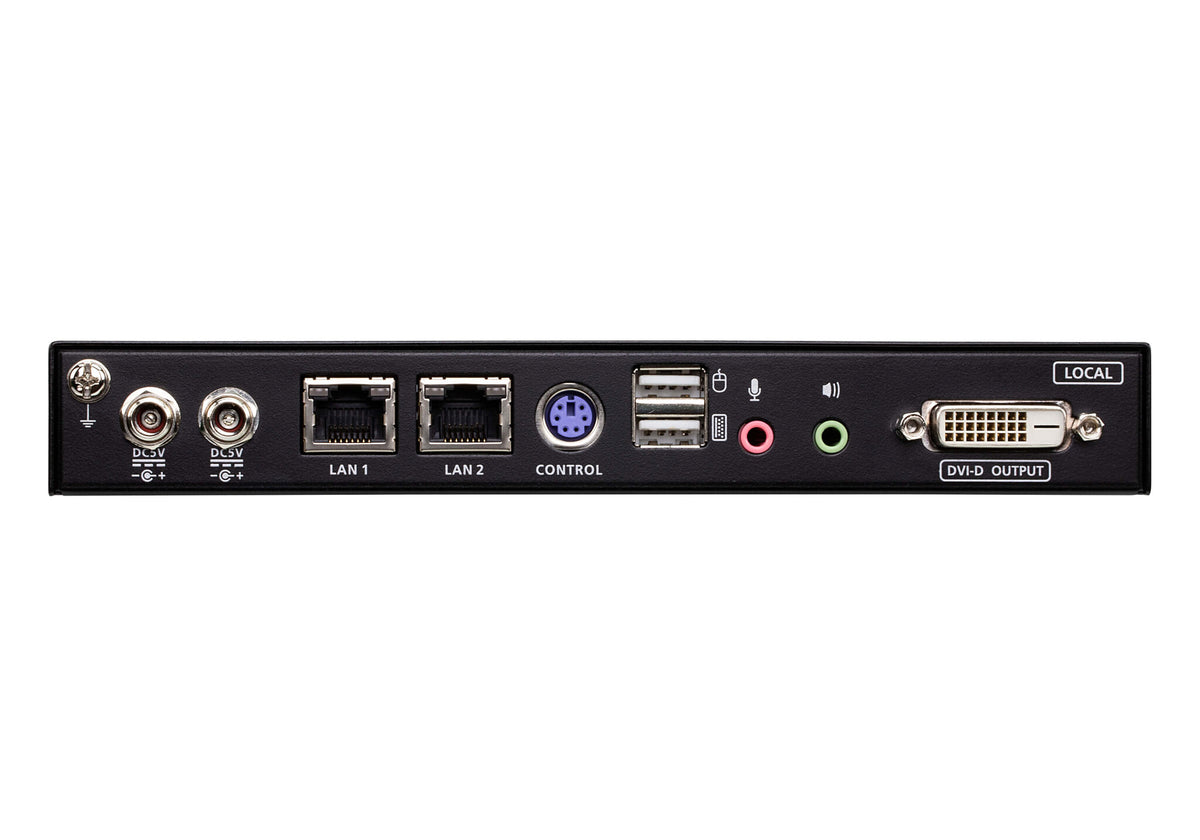

    1-Local/Remote Share Access Single Port DVI KVM over IP Switch

    The CN9600 DVI KVM over IP Switch is a cost-efficient over-IP device, which allows remote access of digital video, audio and virtual media via remote control of a PC or workstation. The CN9600 enables over-IP capability by connecting compatible ATEN DVI KVM switch and/or LCD console, such as the CS1768 (8-Port USB DVI/Audio KVM Switch) or the CL3800 (DVI LCD Console).

    1x CN9600 DVI KVM over IP Switch
    1x KVM Cable (DVI-D, USB, Audio; 1.8 m/6 ft)
    1x USB Cable (1.8 m/6 ft)
    1x Power Adapter
    1x Mounting Kit
    1x User Instructions

    Ports & interfaces
    Keyboard port type USB
    Mouse port type USB
    Video port type DVI-D
    DVI-D ports quantity 2
    USB 2.0 Type-B ports quantity 1
    Console USB ports quantity 2
    Console ports 3.5mm headphone, DVI-D, USB A
    USB connector type Mini-USB B, USB Type-A
    PS/2 ports quantity 1
    Serial port type RJ-45
    Serial ports quantity 2
    Audio connections Yes
    Headphone outputs 1
    Number of microphone inputs 1
    DC-in jack Yes
    Network
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 2
    Performance
    Maximum resolution 1920 x 1200 pixels
    Video bandwidth 60 Hz
    Firmware upgradeable Yes
    Design
    Product colour Black
    Housing material Metal
    LED indicators Yes
    Display
    Built-in display No
    Power
    Power source DC
    Input voltage 5 V
    Power consumption (typical) 5.55 W
    Operational conditions
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -20 - 60 °C
    Weight & dimensions
    Width 154.9 mm
    Depth 200 mm
    Height 28.5 mm
    Weight 1.24 kg
    Packaging data
    Package width 98 mm
    Package depth 325 mm
    Package height 210 mm
    Package weight 1.61 kg
    Logistics data
    Master (outer) case net weight 6.2 kg
    Harmonized System (HS) code 85176200
    Master (outer) case width 342 mm
    Master (outer) case length 512 mm
    Master (outer) case height 232 mm
    Master (outer) case gross weight 8.72 kg
    Products per master (outer) case 5 pc(s)
    Technical details
    Compliance certificates RoHS
