AMD Radeon RX 9060 XT 16GB GDDR6, PCI Express 5.0, OpenGL 4.6, 20 Gbps, 128-bit, 1 x 8-pin, 550W

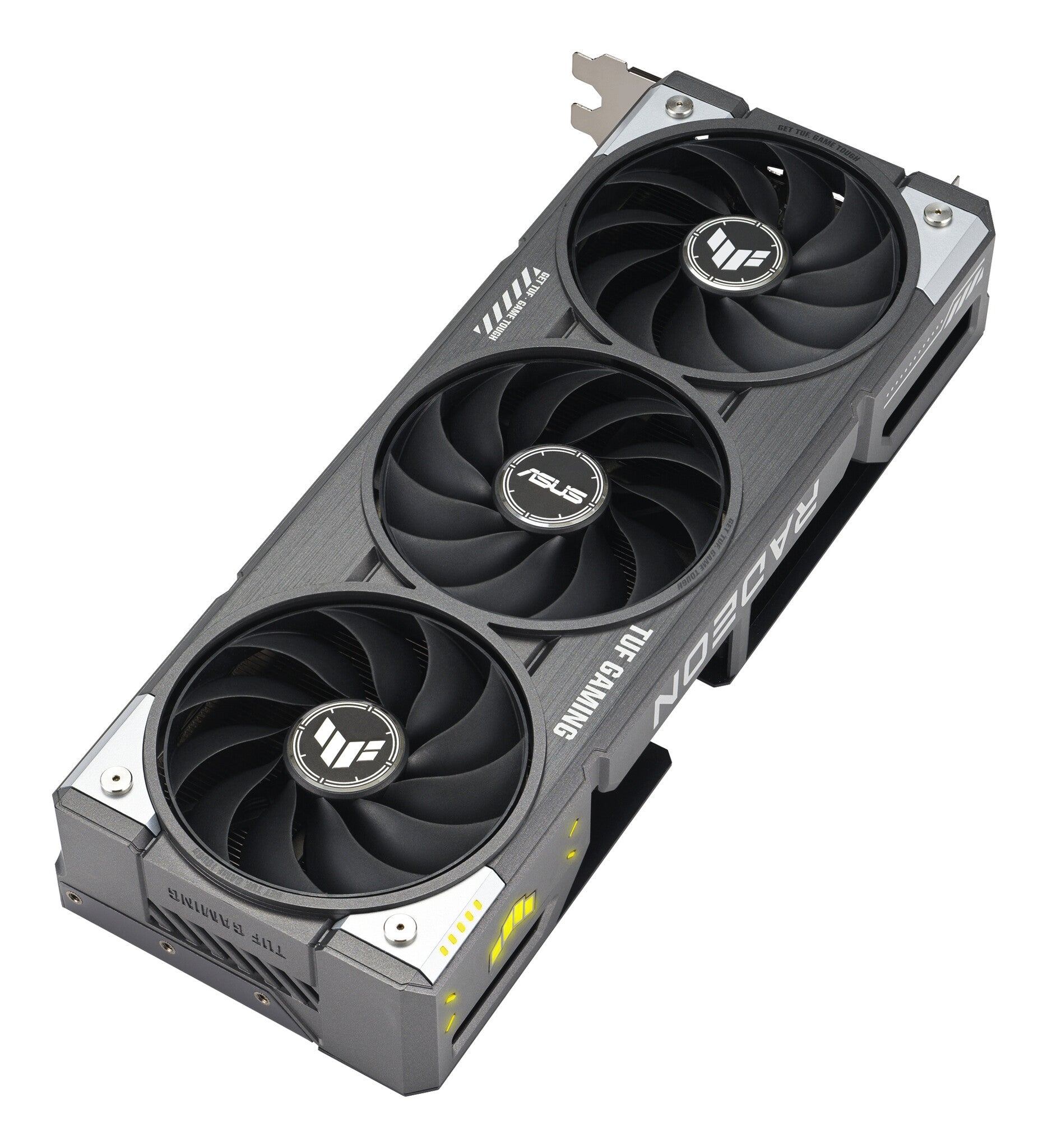

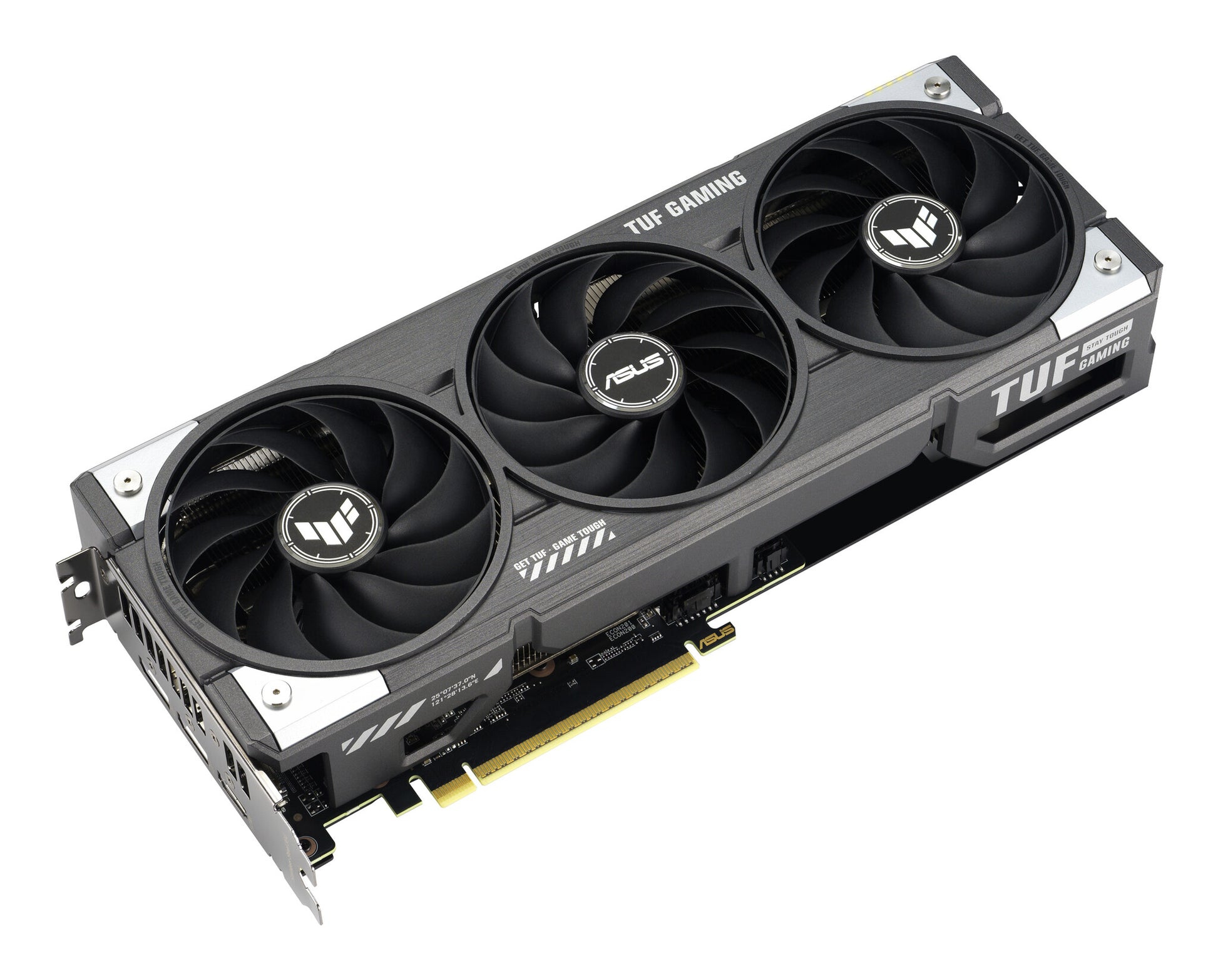

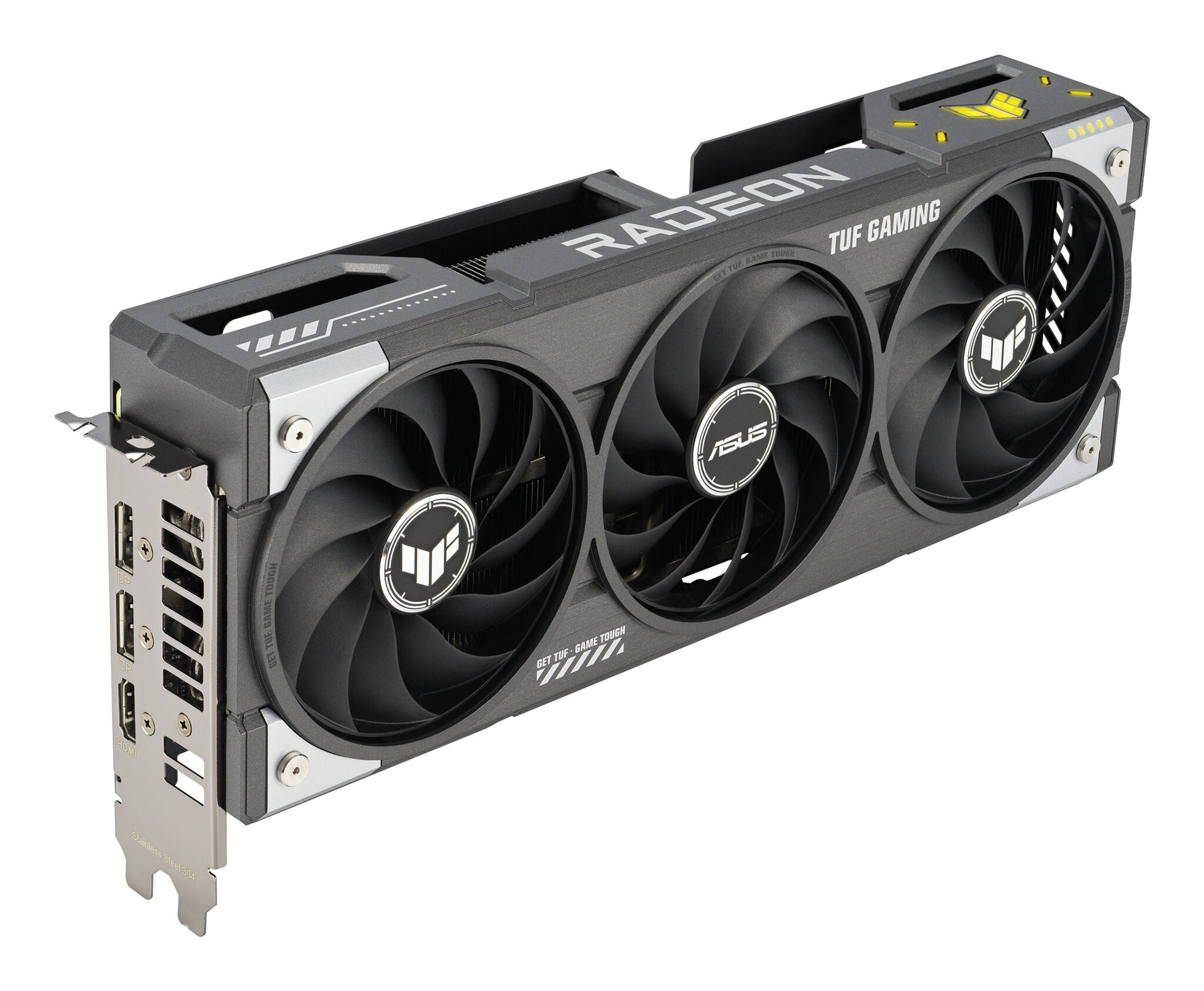

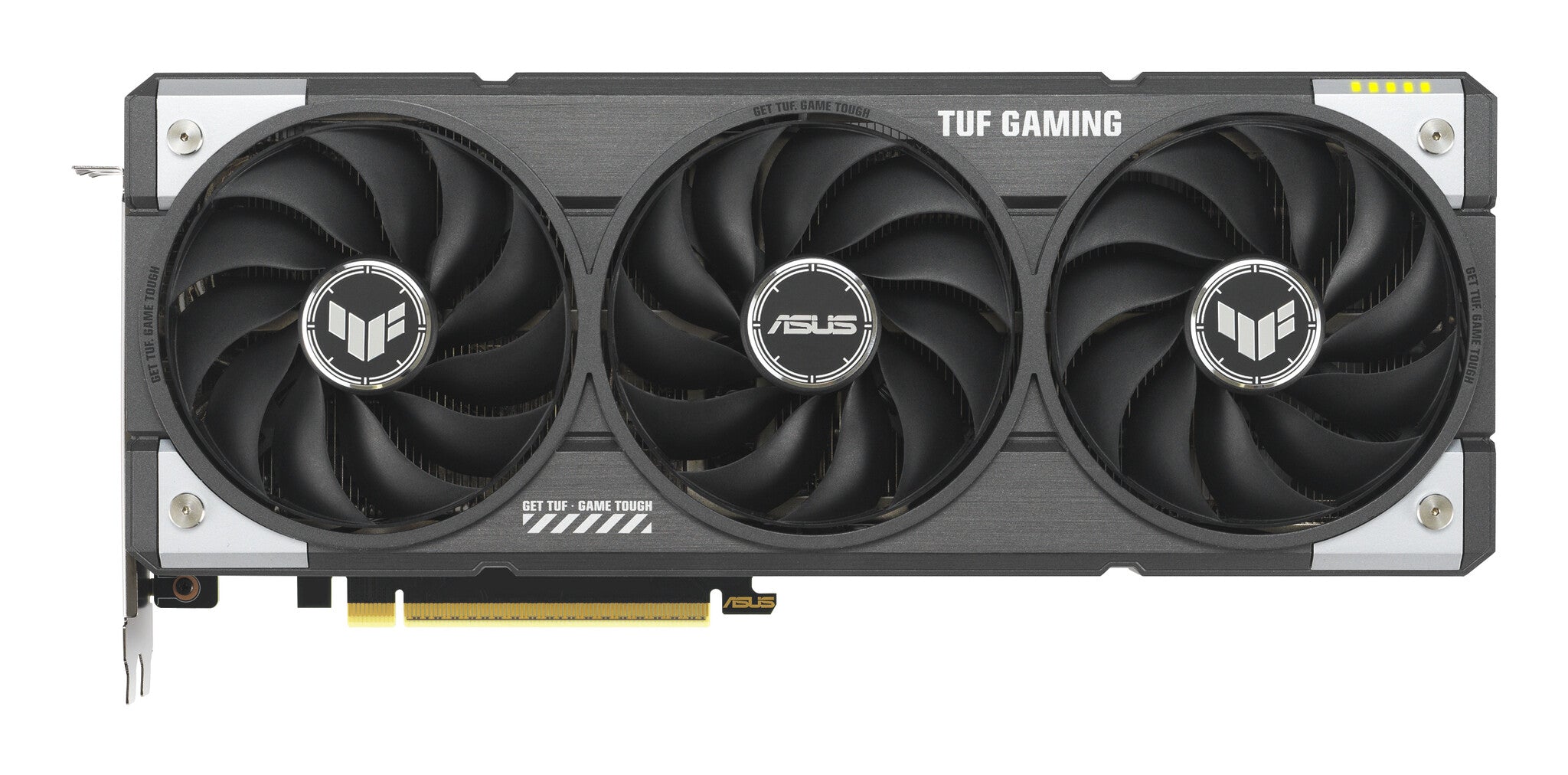

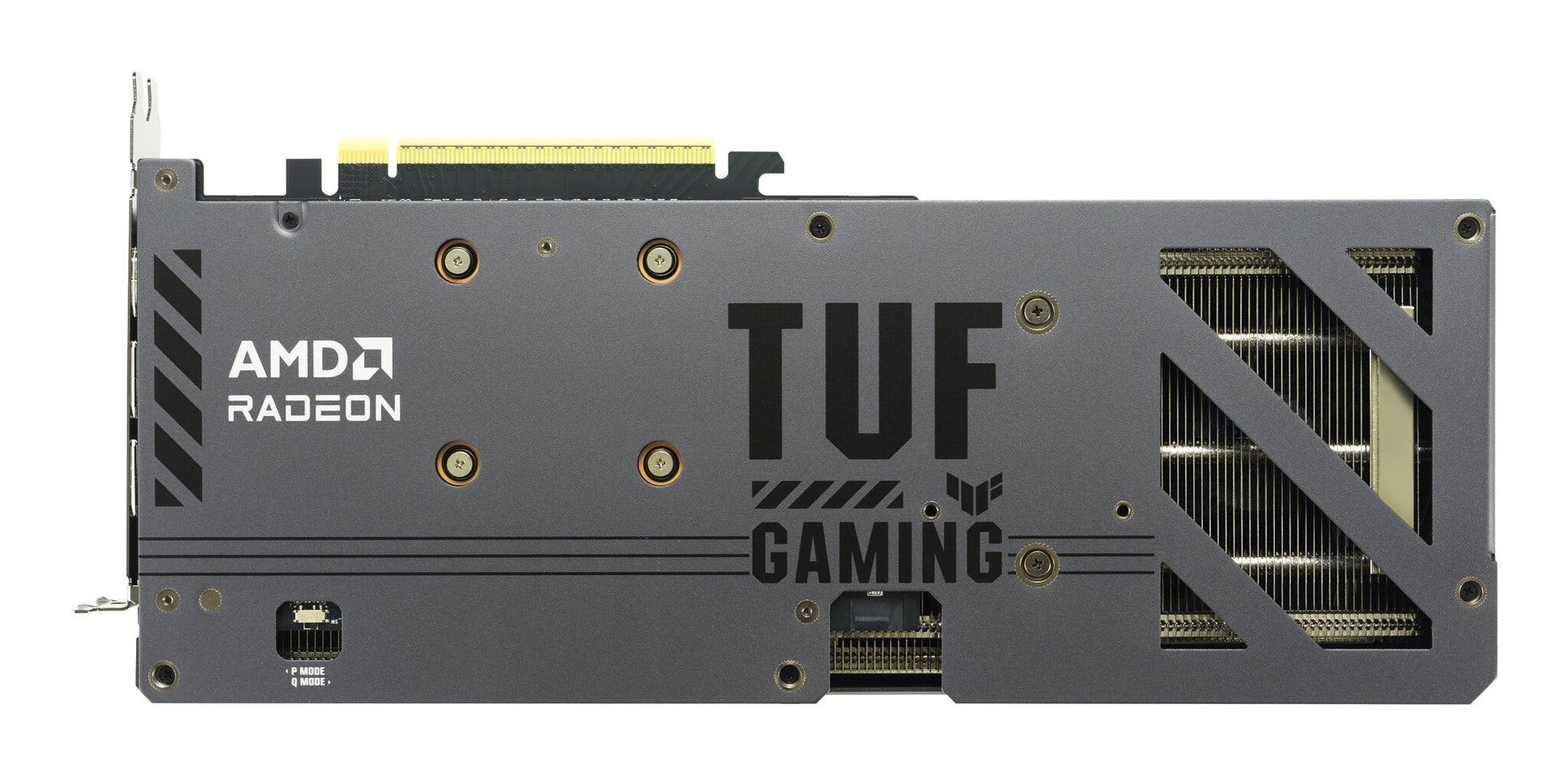

ASUS TUF Gaming Radeon™ RX 9060 XT
The AMD RDNA™ 4 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.
| Processor |
|---|
| Graphics processor family |
AMD |
| Graphics processor |
Radeon RX 9060 XT |
| Maximum resolution |
7680 x 4320 pixels |
| CUDA |
No |
| Processor boost clock speed |
3320 MHz |
| Stream processors |
2048 |
| Maximum displays per videocard |
3 |
| Parallel processing technology support |
Not supported |
| Memory |
|---|
| Discrete graphics card memory |
16 GB |
| Graphics card memory type |
GDDR6 |
| Memory bus |
128 bit |
| Data transfer rate |
20 Gbit/s |
| Ports & interfaces |
|---|
| Interface type |
PCI Express 5.0 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
2 |
| HDMI version |
2.1b |
| DisplayPort version |
2.1a |
| Performance |
|---|
| OpenGL version |
4.6 |
| Virtual Reality (VR) ready |
Yes |
| HDCP version |
2.3 |
| HDCP |
Yes |
| Dual Link DVI |
No |
| Overclocked (OC) edition |
Yes |
| Design |
|---|
| Cooling type |
Active |
| Cooling technology |
ASUS Axial-tech |
| Number of fans |
3 fan(s) |
| Bracket height |
Full-Height (FH) |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Number of slots |
2.5 |
| SFF ready |
No |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Product colour |
Black |
| Power |
|---|
| Minimum system power supply |
550 W |
| Supplementary power connectors |
1x 8-pin |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Weight |
941 g |
| Length |
304 mm |
| Height |
126 mm |
| Depth |
50 mm |
| Packaging data |
|---|
| Package width |
405 mm |
| Package depth |
233 mm |
| Package height |
88.5 mm |
| Package weight |
1.56 kg |
| Package type |
Box |
| General |
|---|
| Product family |
TUF Gaming |
