TUF Gaming GeForce RTX 5070 12GB GDDR7 OC Edition
Game TUF. Built to Last.

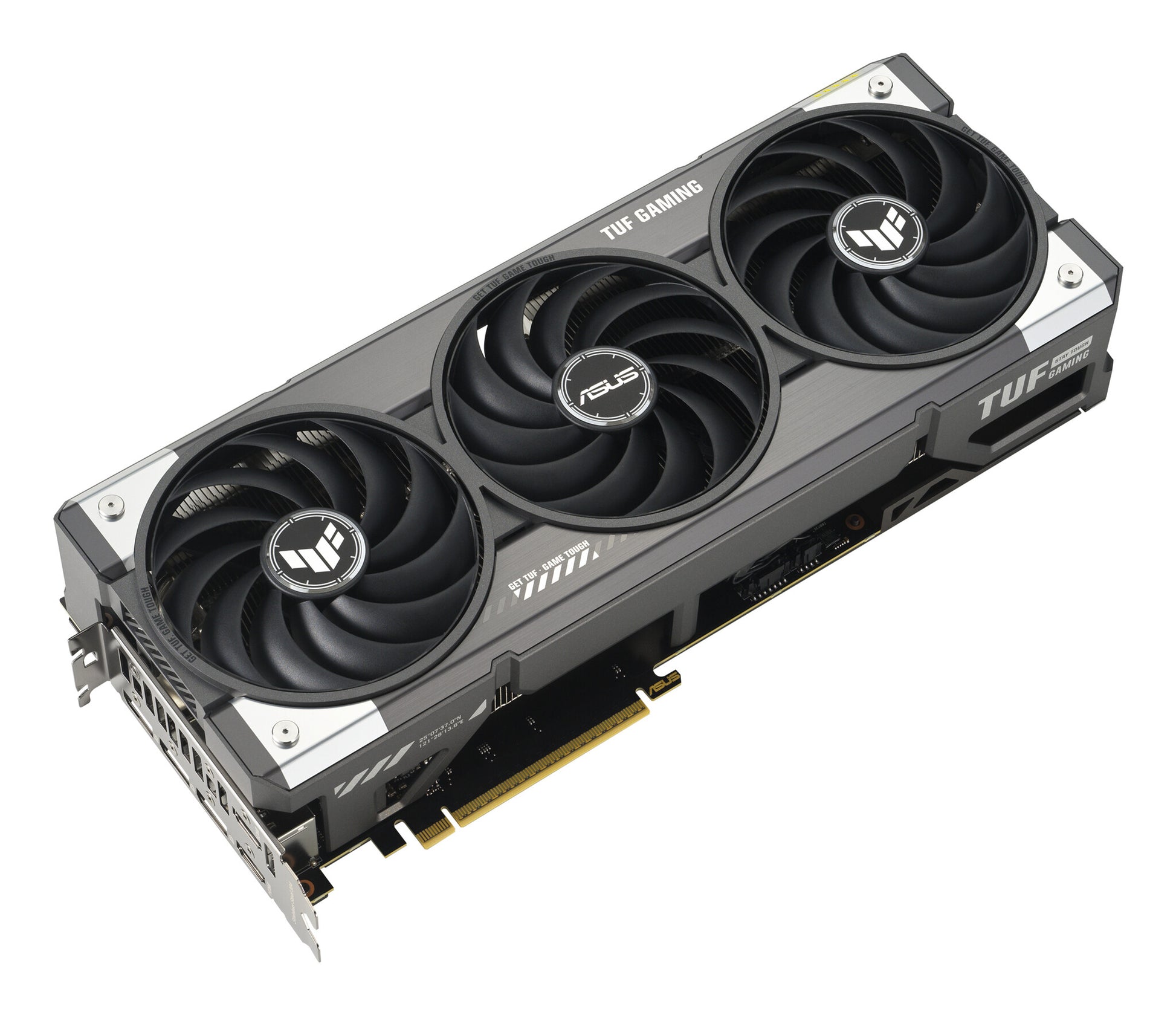

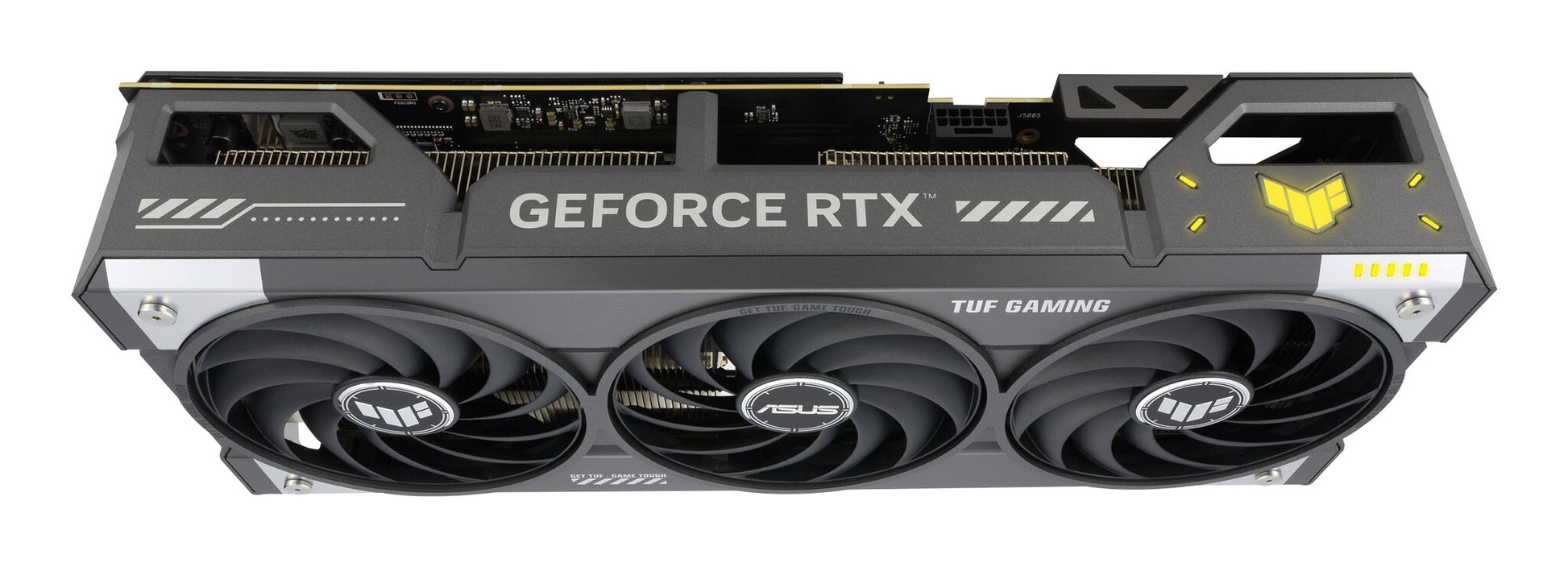

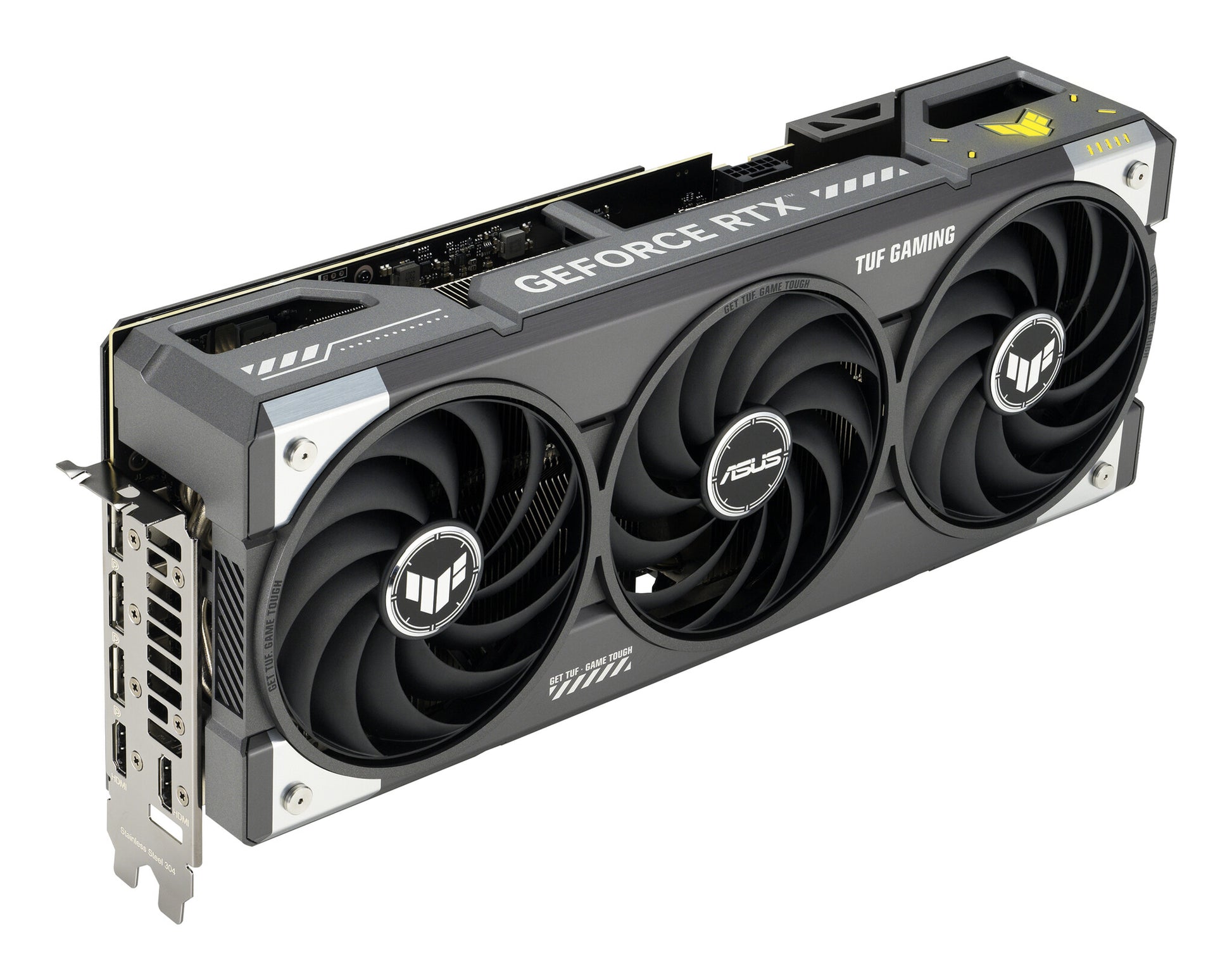

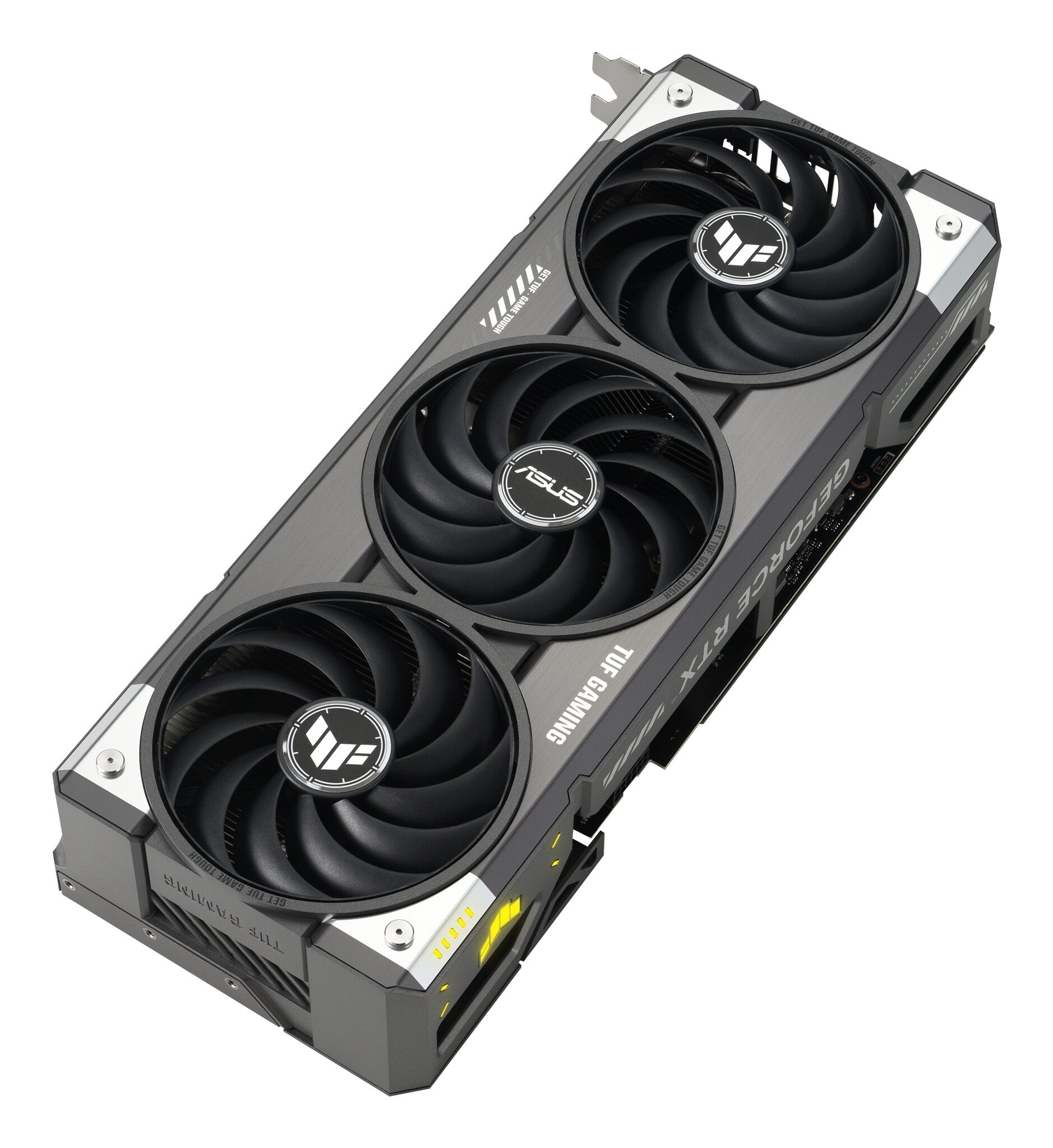

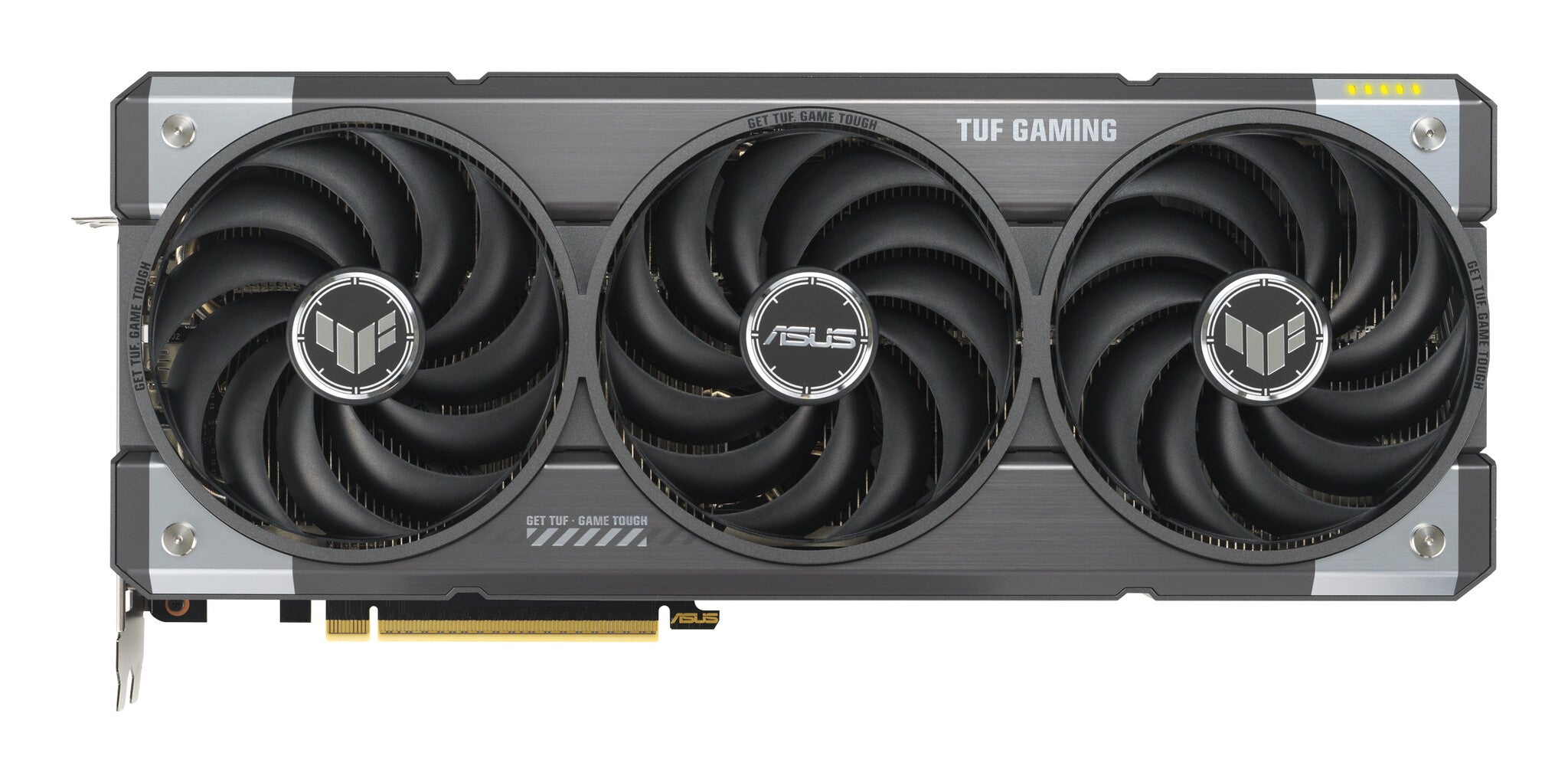

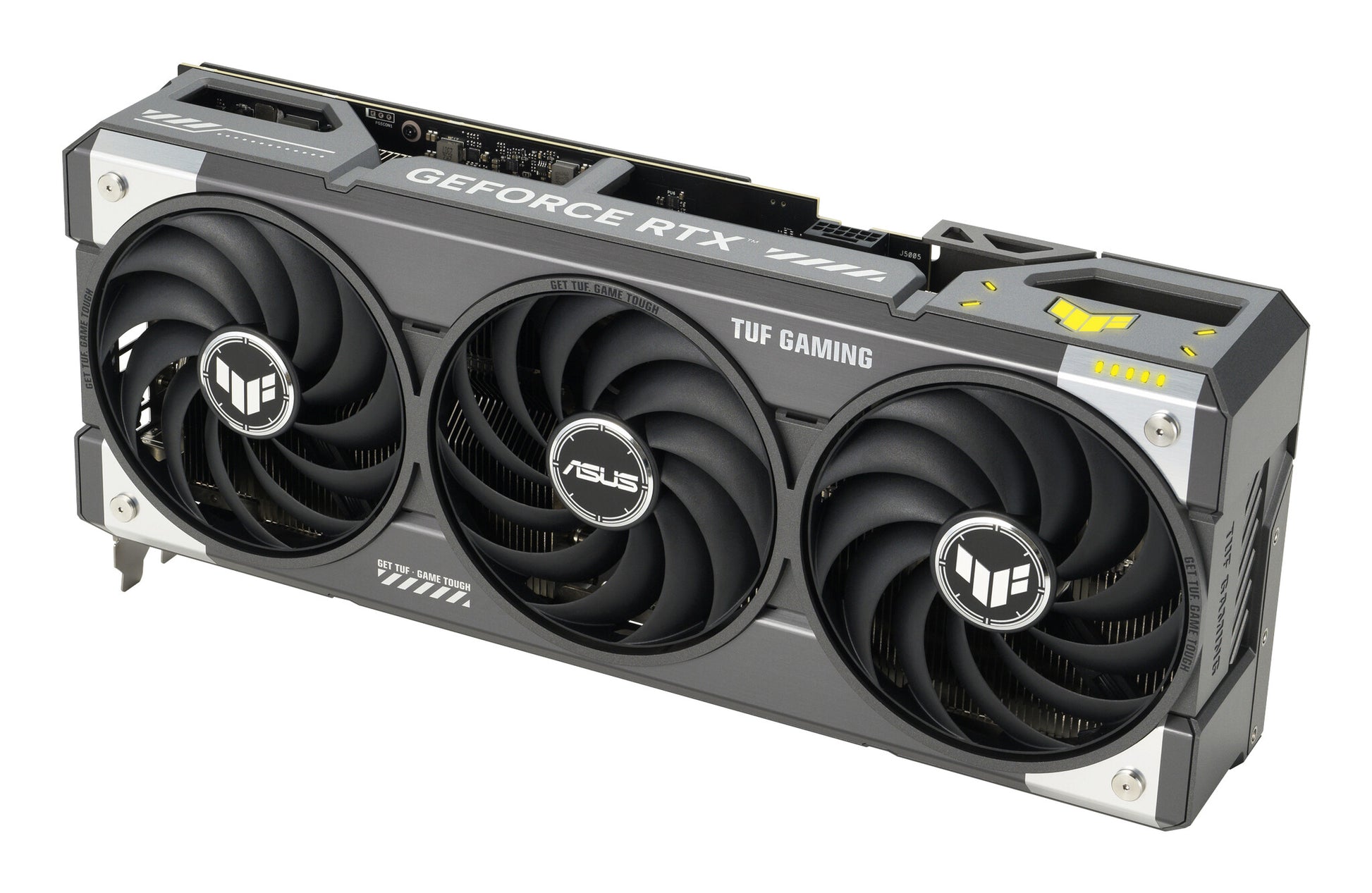

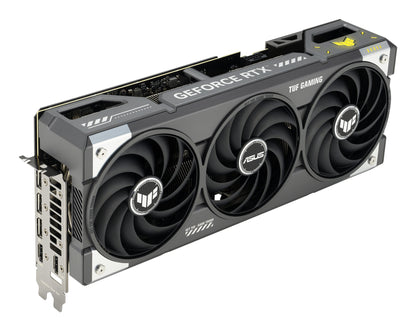

ASUS TUF Gaming GeForce RTX™ 5070
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5070, designed to withstand the harshest conditions and deliver unparalleled performance.
TUF Chokes & MOSFETs
Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.
TUF Capacitors
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
Dual-ball Fan Bearings
Dual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Graphics processor |
GeForce RTX 5070 |
| Maximum resolution |
7680 x 4320 pixels |
| CUDA |
Yes |
| CUDA cores |
6144 |
| Processor boost clock speed |
2610 MHz |
| Processor frequency (OC mode) |
2640 MHz |
| Maximum displays per videocard |
4 |
| Parallel processing technology support |
Not supported |
| Memory |
|---|
| Discrete graphics card memory |
12 GB |
| Graphics card memory type |
GDDR7 |
| Memory bus |
192 bit |
| Data transfer rate |
28 Gbit/s |
| Ports & interfaces |
|---|
| Interface type |
PCI Express 5.0 |
| HDMI ports quantity |
2 |
| DisplayPorts quantity |
3 |
| HDMI version |
2.1b |
| DisplayPort version |
2.1b |
| Performance |
|---|
| TV tuner integrated |
No |
| OpenGL version |
4.6 |
| HDCP version |
2.3 |
| HDCP |
Yes |
| Dual Link DVI |
No |
| NPU performance up to |
988 TOPs |
| Overclocked (OC) edition |
Yes |
| Design |
|---|
| Cooling type |
Active |
| Cooling technology |
ASUS Axial-tech |
| Number of fans |
3 fan(s) |
| Bracket height |
Full-Height (FH) |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Number of slots |
3.125 |
| SFF ready |
No |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Product colour |
Black, Grey |
| Power |
|---|
| Minimum system power supply |
750 W |
| Supplementary power connectors |
1x 16-pin |
| Weight & dimensions |
|---|
| Weight |
1.53 kg |
| Length |
329 mm |
| Height |
140 mm |
| Depth |
62.5 mm |
| Packaging data |
|---|
| Package width |
420 mm |
| Package depth |
226 mm |
| Package height |
87 mm |
| Package weight |
2.33 kg |
| Package type |
Box |
| Packaging content |
|---|
| Manual |
Yes |
| General |
|---|
| Product family |
TUF Gaming |
