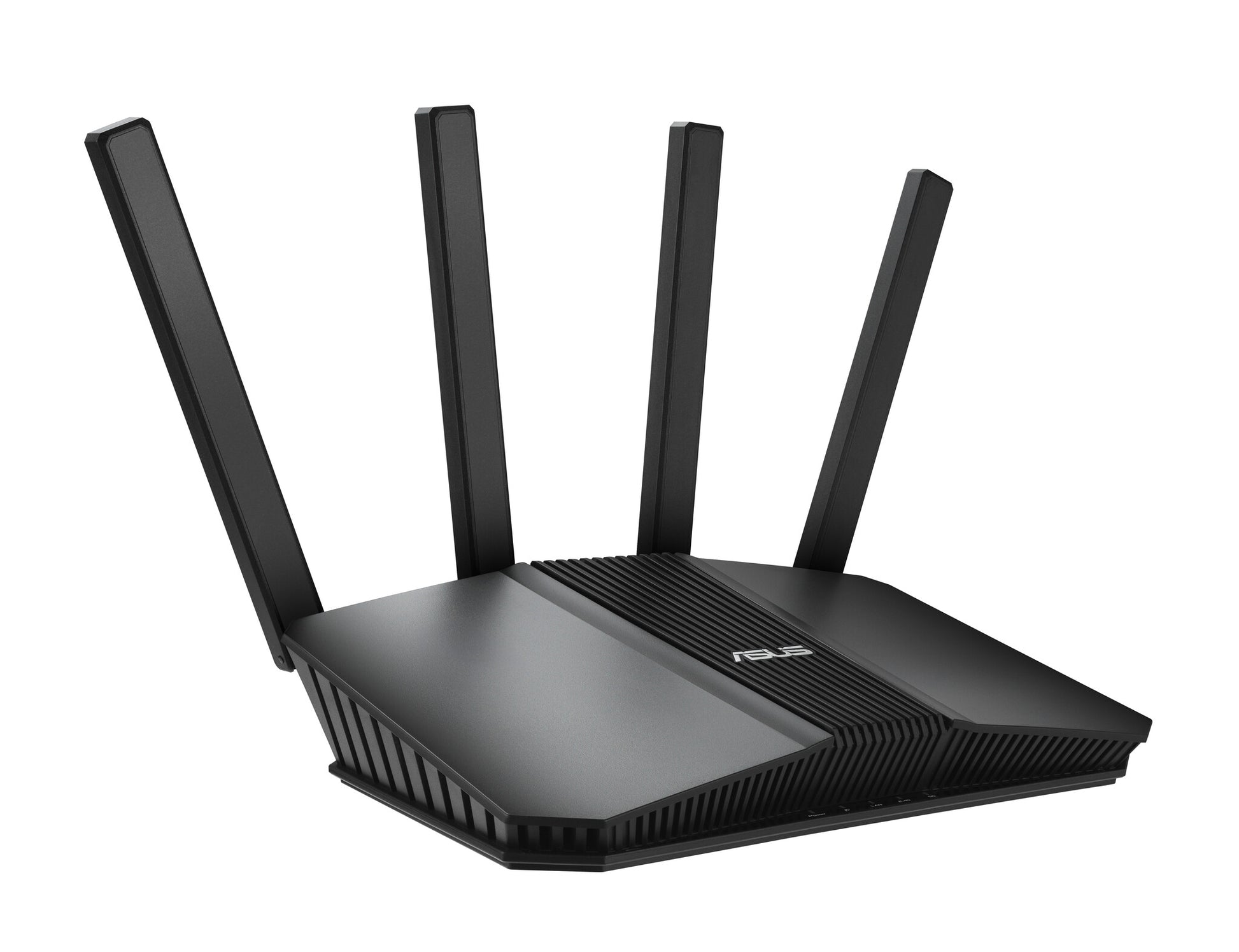

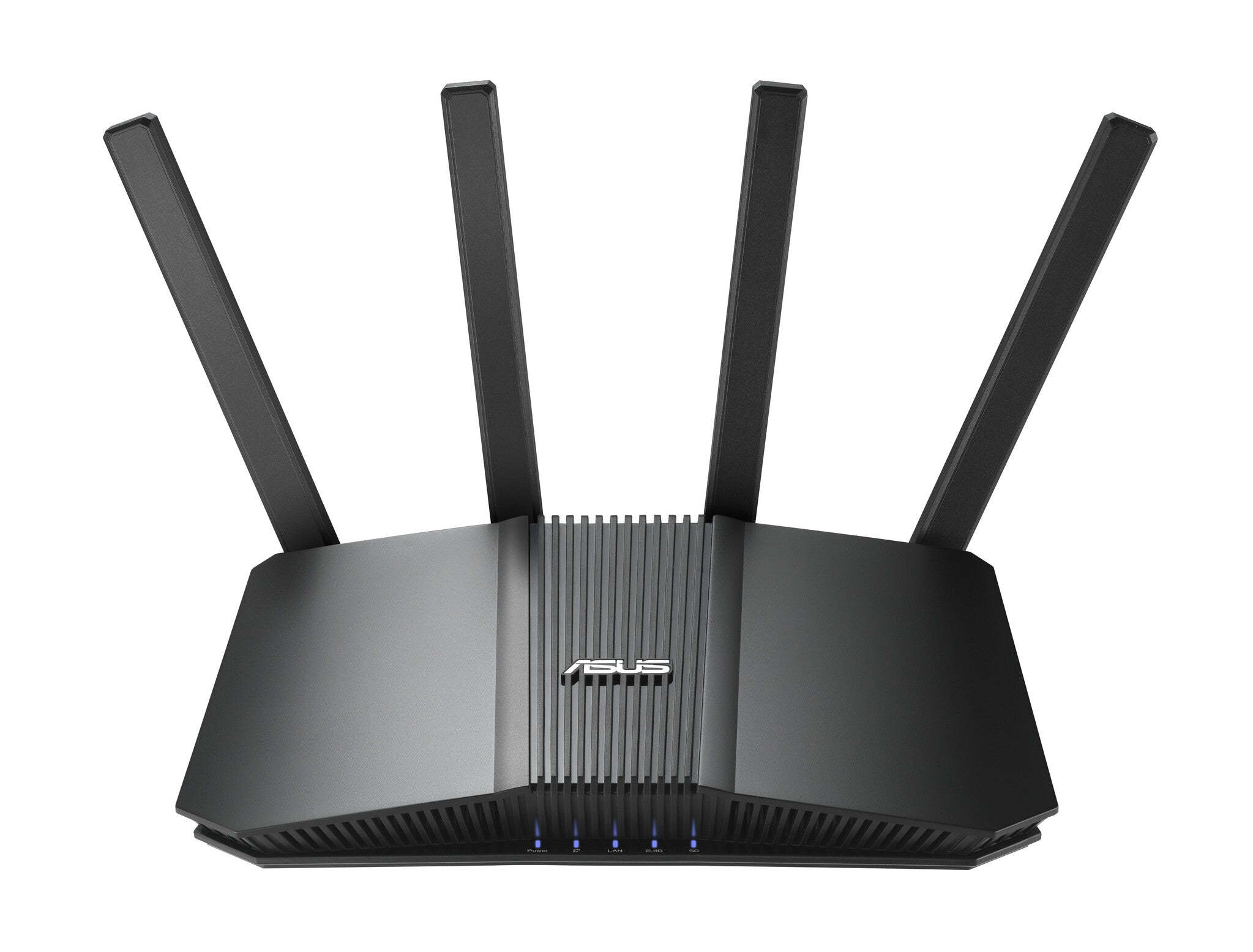

ASUS ROUTER/Main/688+2882Mbps/2.4GHz2x2/5GHz 2x2/1xWAN/4xLAN/AiMesh/MU-MIMO/Router APP/VPN/
ASUS ROUTER/Main/688+2882Mbps/2.4GHz2x2/5GHz 2x2/1xWAN/4xLAN/AiMesh/MU-MIMO/Router APP/VPN/
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| SIM card slot |
No |
| WAN connection type |
RJ-45 |
| Wireless LAN features |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) |
3600 Mbit/s |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Modulation |
4096-QAM |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN data rates |
1000,2500 Mbit/s |
| Port triggering |
Yes |
| Port forwarding |
Yes |
| Ports & interfaces |
|---|

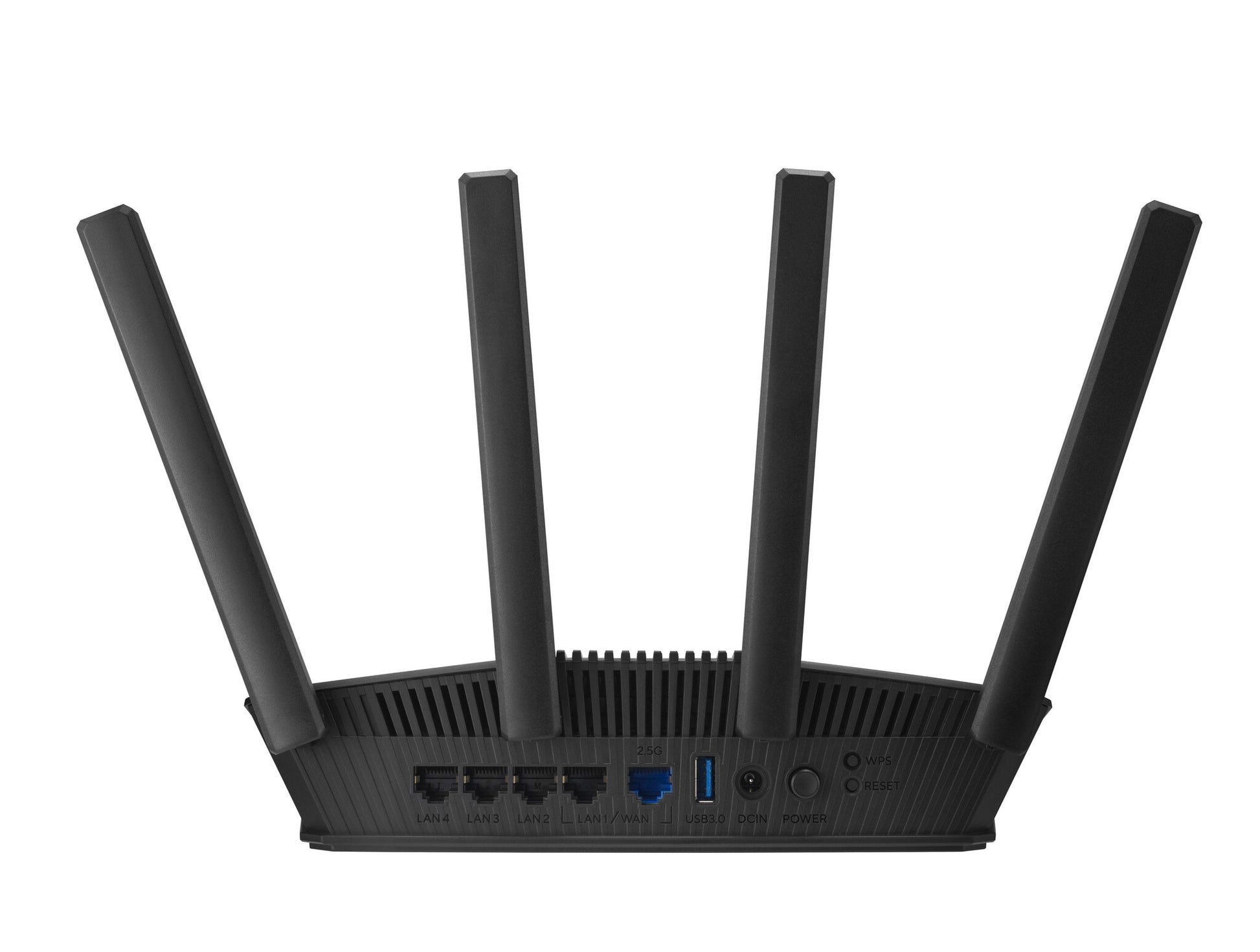

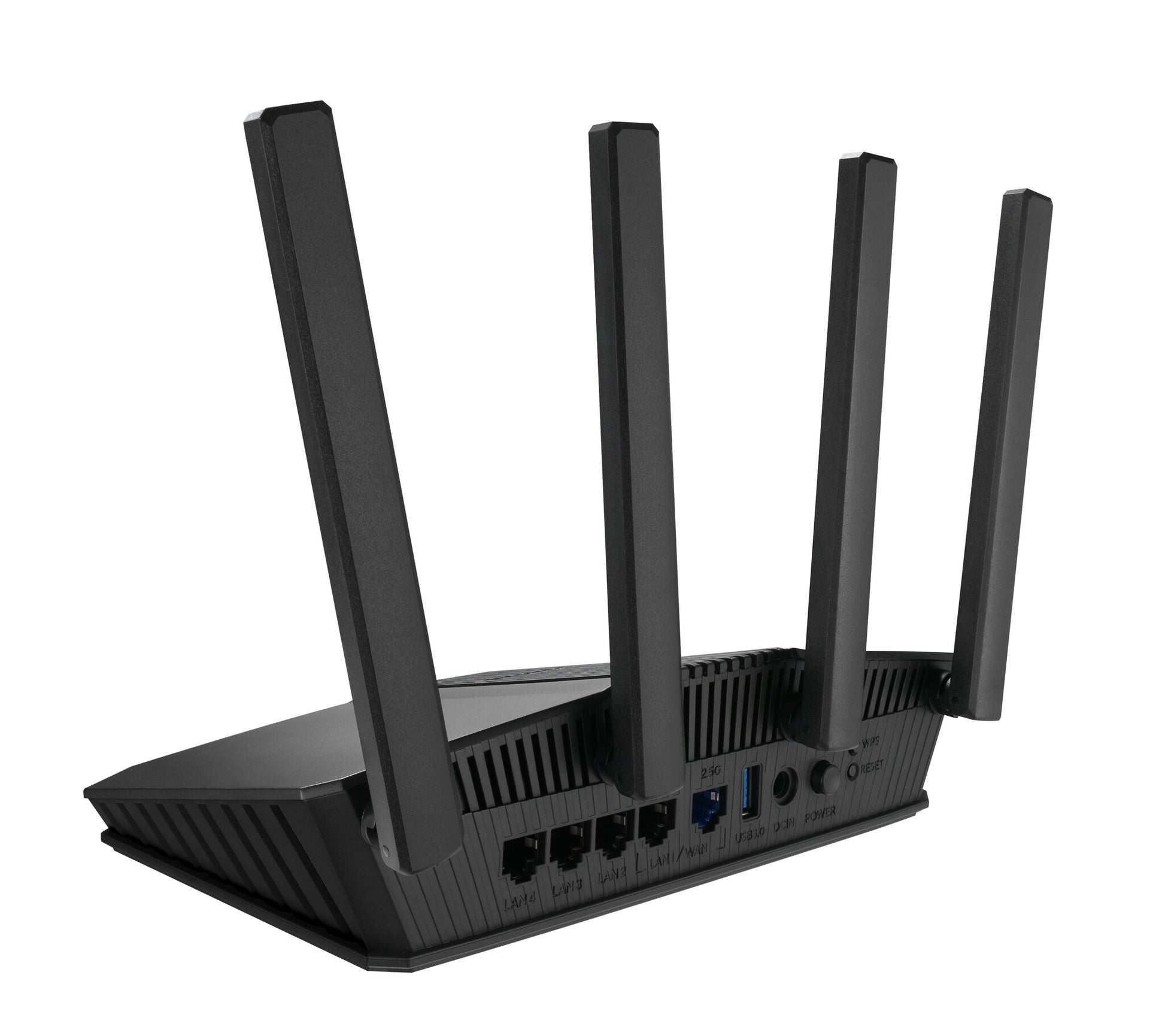

| Ethernet LAN (RJ-45) ports |
5 |
| USB port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| DC-in jack |
Yes |
| Management features |
|---|
| Reset button |
Yes |
| WPS push button |
Yes |
| Security |
|---|
| Parental control |
Yes |
| Design |
|---|
| Product type |
Tabletop router |
| Product colour |
Black |
| LED indicators |
Power, LAN, WAN |
| On/off switch |
Yes |
| Antenna |
|---|
| Antenna design |
External |
| Antennas quantity |
4 |
| Features |
|---|
| Built-in processor |
Yes |
| Processor manufacturer |
Broadcom |
| Processor frequency |
2000 MHz |
| Processor cores |
4 |
| Power |
|---|
| Power source type |
DC |
| Output voltage |
12 V |
| Output current |
2 A |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
20 - 90% |
| Operating relative humidity (H-H) |
50 - 90% |
| Storage temperature (T-T) |
0 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
461 g |
| Height |
59 mm |
| Depth |
193 mm |
| Width |
238 mm |
| Packaging data |
|---|
| Package width |
285 mm |
| Package depth |
193 mm |
| Package height |
104 mm |
| Package weight |
1.03 kg |
| Package type |
Box |
