ROG Strix GeForce RTX 5070 Ti 16GB GDDR7 OC Edition
ROG Strix GeForce RTX™ 5070 Ti
FIND YOUR EDGE
The premium performance ROG Strix GeForce RTX 5070 Ti, featuring advanced cooling system with axial-tech fan, vapor chamber, phase-change GPU thermal pad and MaxContact design, lowering GPU temperature to reach higher performance. Aura sync provides endless possibilities for personalization with color or functional effects.
Cooling Expertise

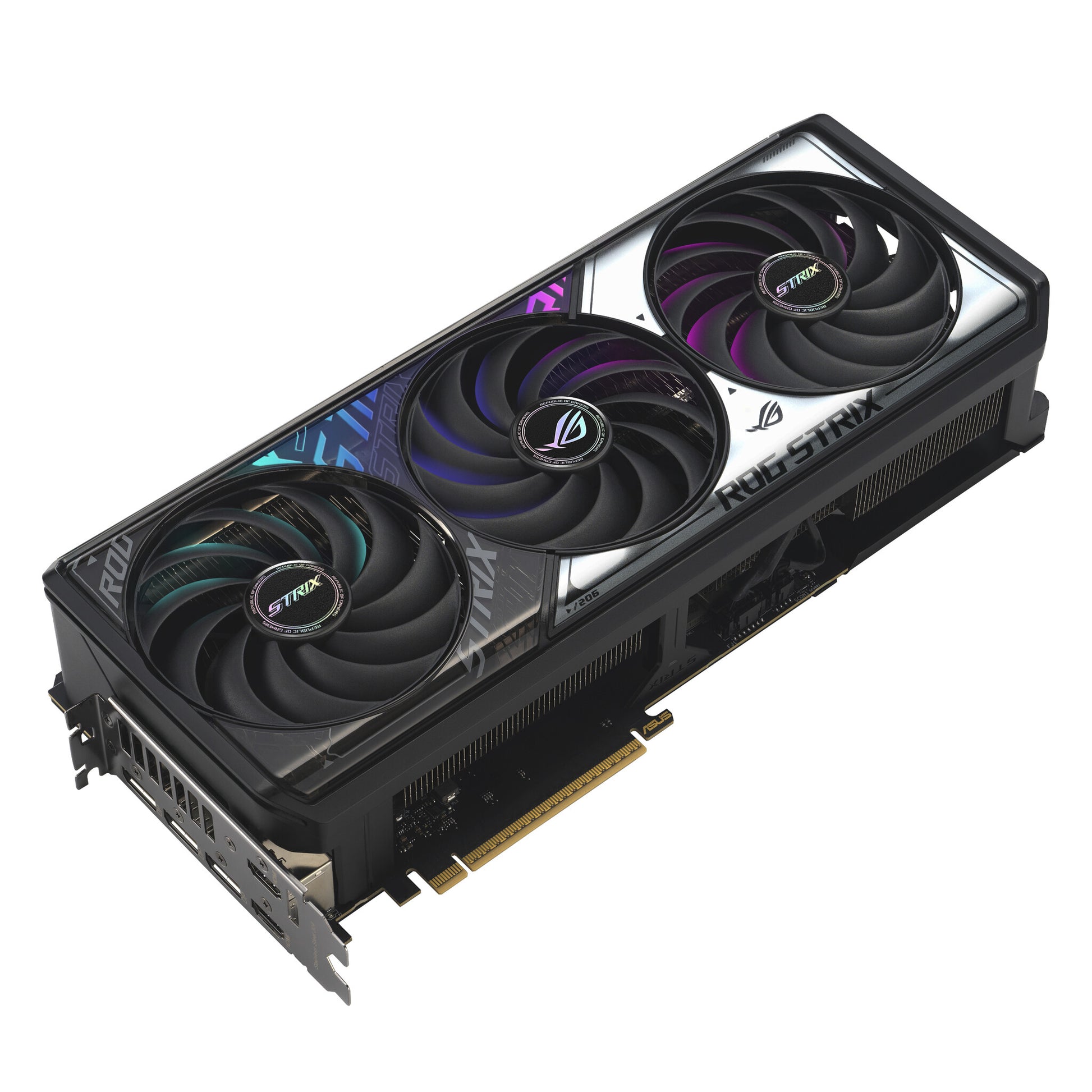

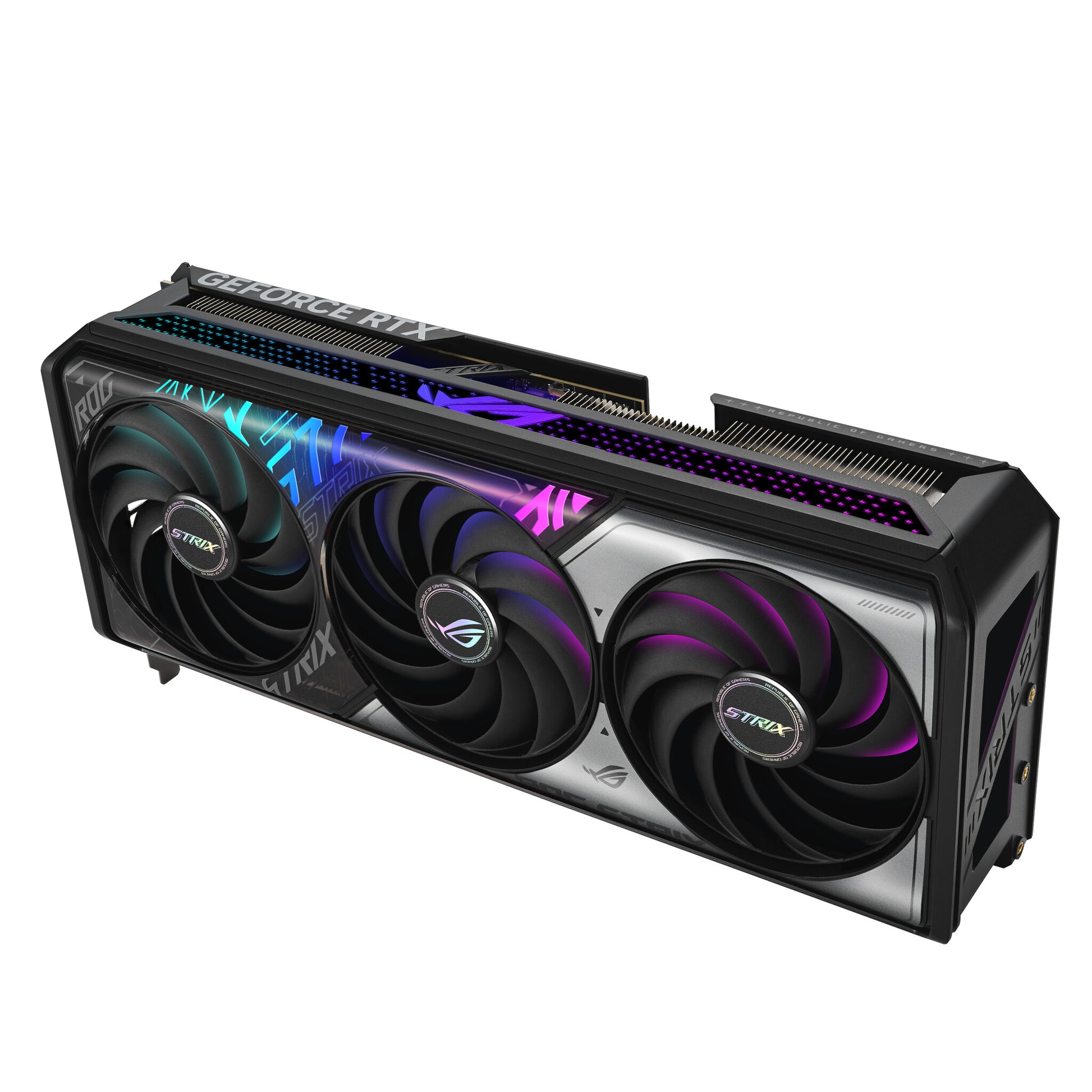

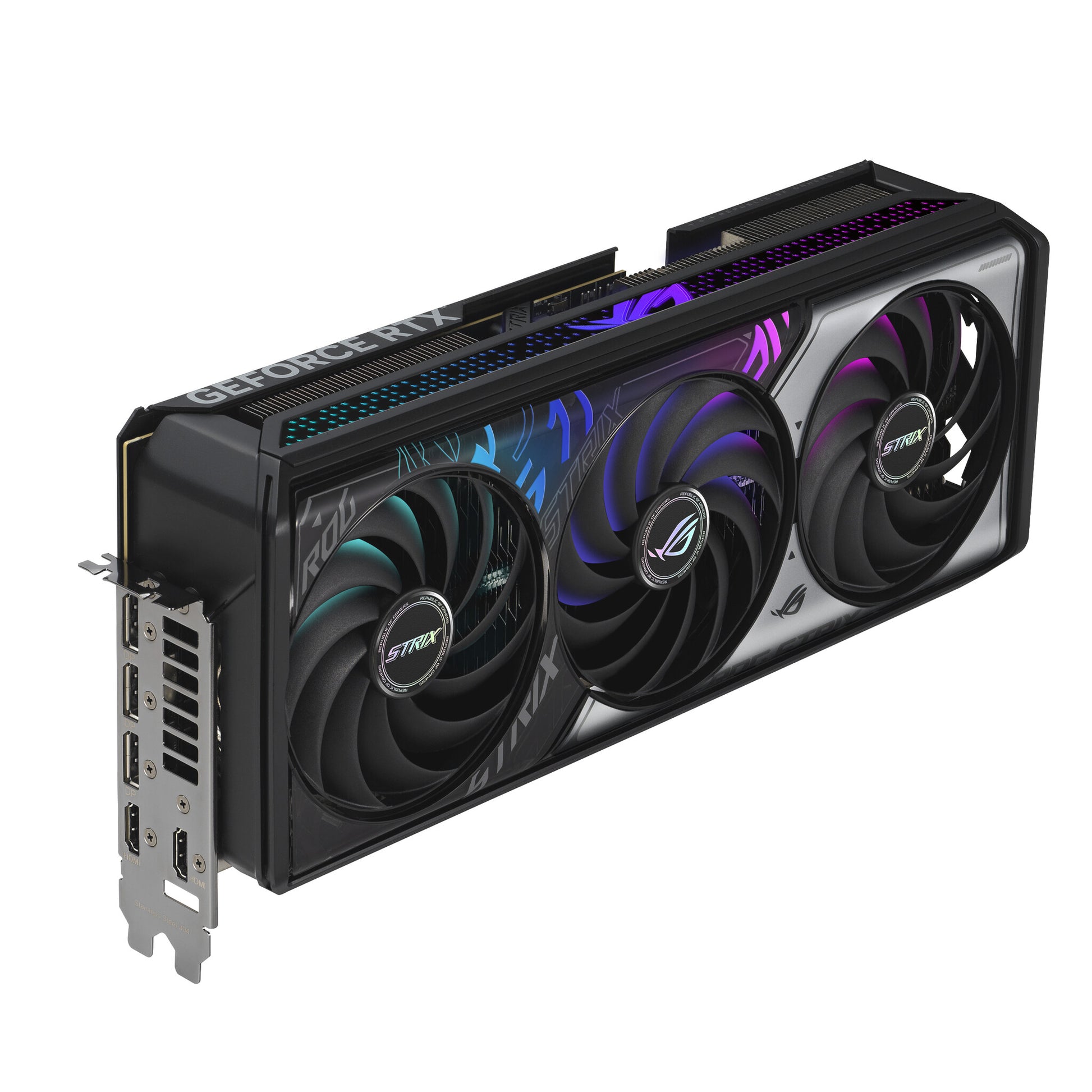

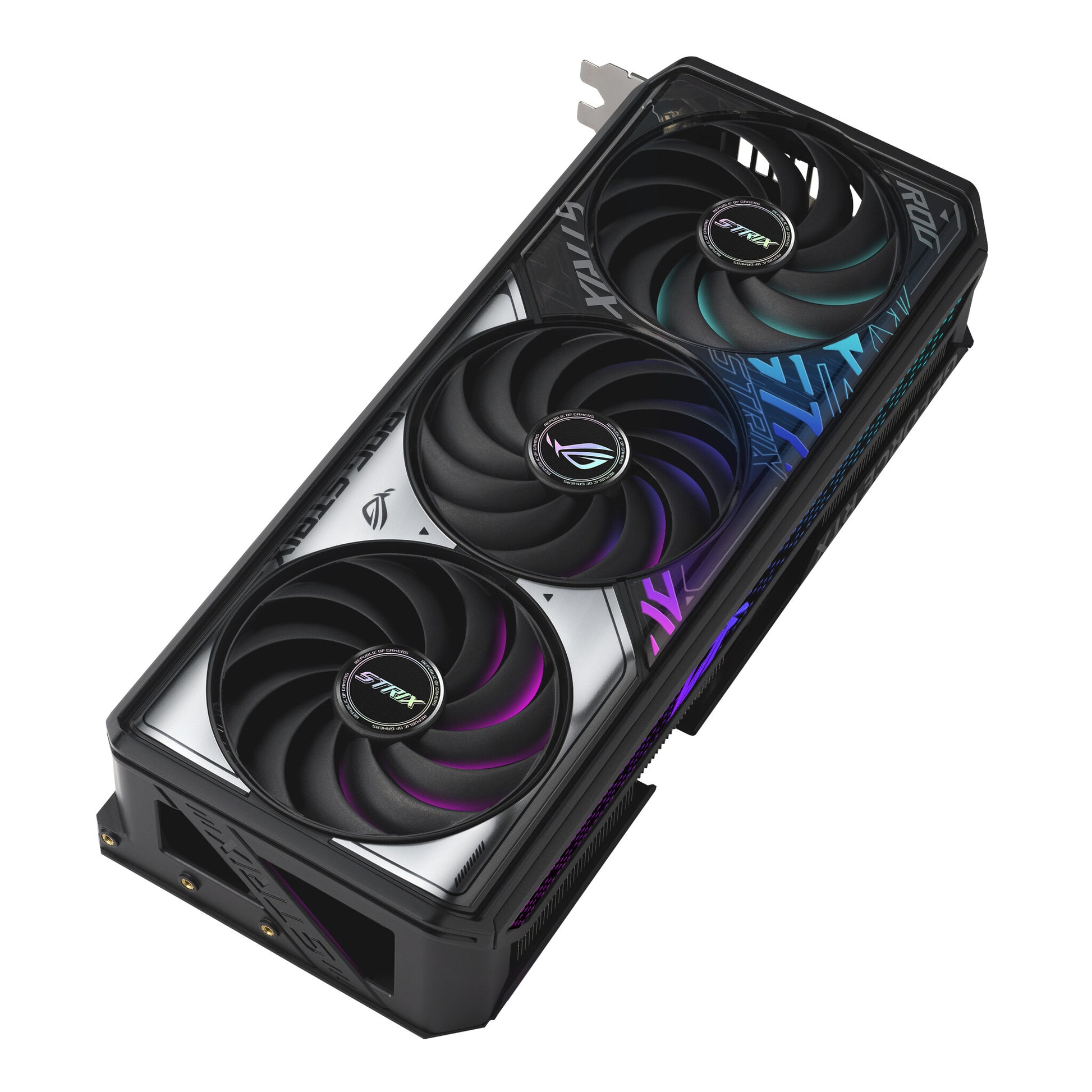

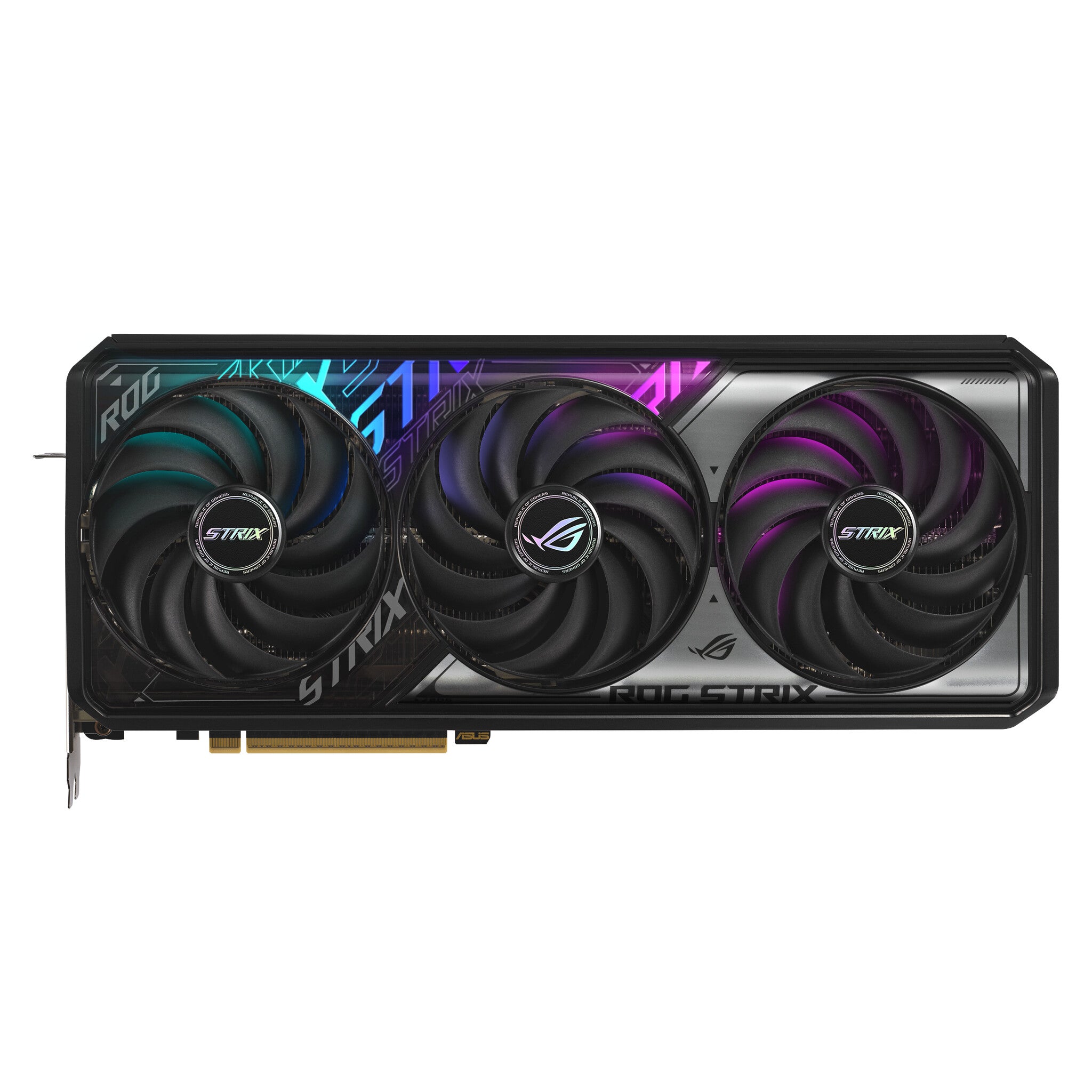

Axial-tech Upgrades
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Reverse Rotation and 0dB Technology
The two side fans spin counterclockwise to reduce turbulence and improve airflow through the heatsink. All three fans stop when GPU temperatures are below 50°C, ensuring quiet operation during light tasks or less-demanding games. They resume operation above 55°C, following a speed curve that optimizes performance and noise levels.
Vapor Chamber
A vapor chamber and heatsink soaks up heat from the graphics card, helping to ensure premium performance in a variety of scenarios.

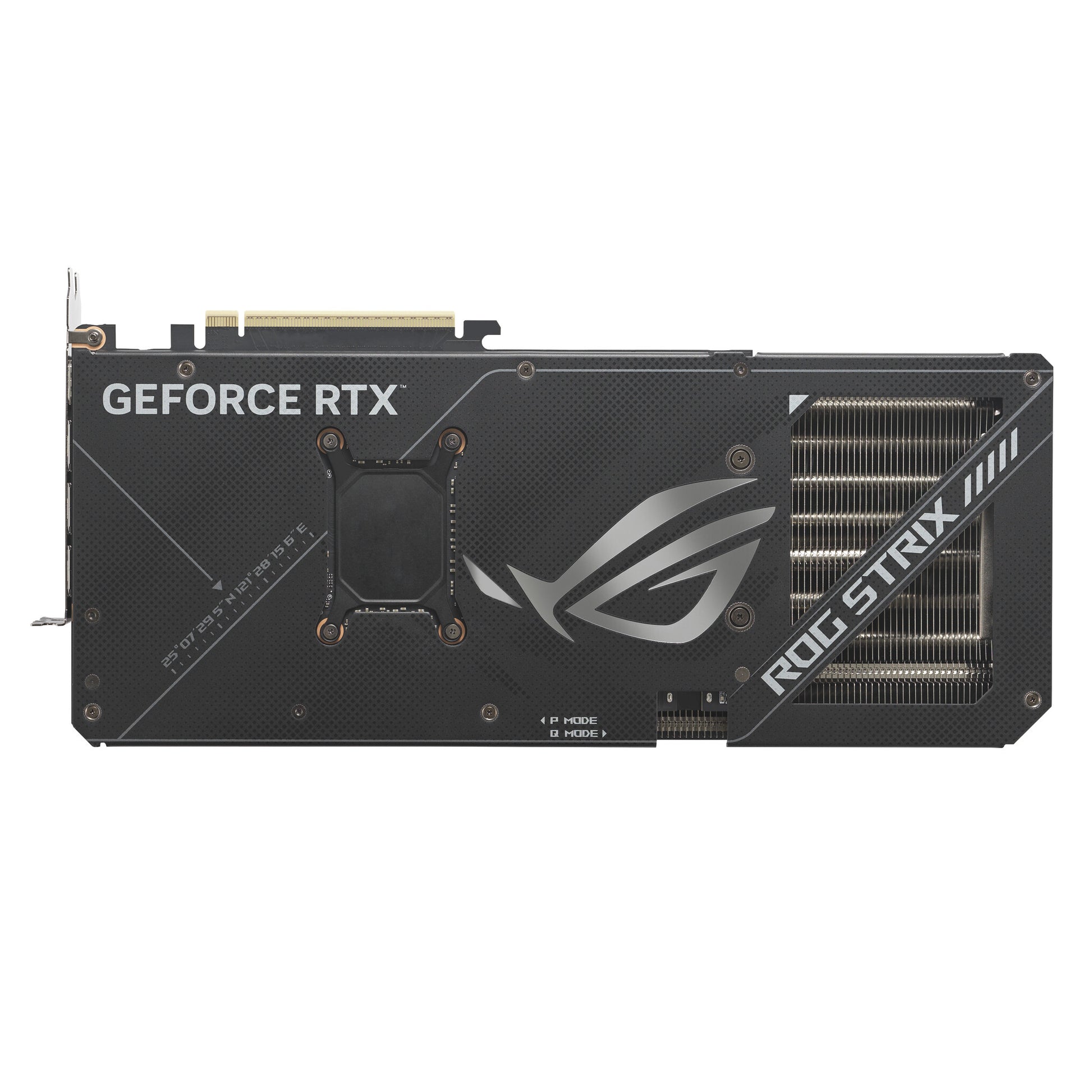

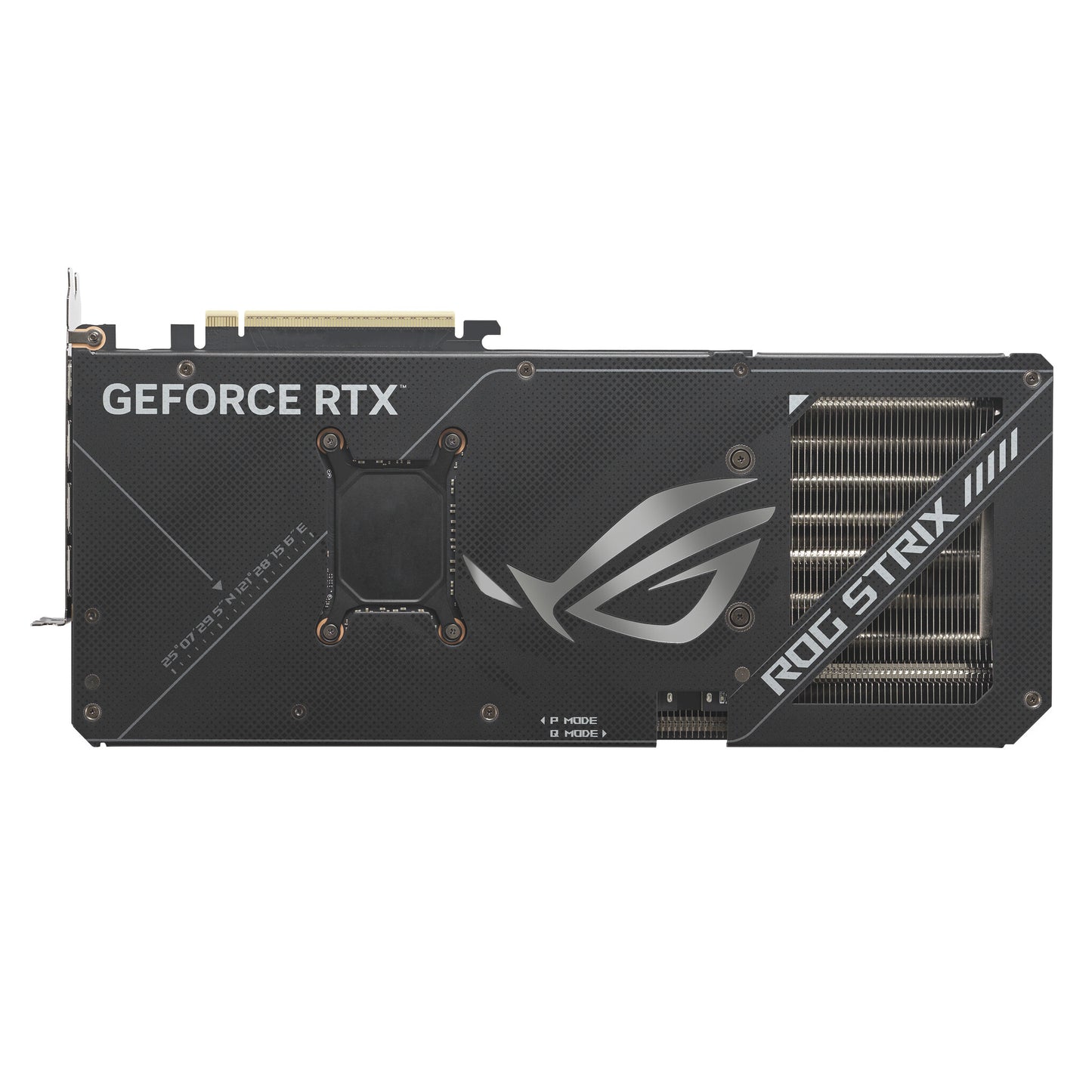

Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
A shorter PCB with optimized component and trace layouts reduces power loss and allows heat to escape through a large backplate vent.
MaxContact Design
MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
| Processor |
|---|
| Maximum displays per videocard |
4 |
| Parallel processing technology support |
Not supported |
| Processor frequency (OC mode) |
2625 MHz |
| Processor boost clock speed |
2602 MHz |
| CUDA cores |
8960 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 5070 Ti |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Data transfer rate |
28 Gbit/s |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR7 |
| Discrete graphics card memory |
16 GB |
| Ports & interfaces |
|---|
| DisplayPort version |
2.1b |
| HDMI version |
2.1b |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
2 |
| Interface type |
PCI Express 5.0 |
| Performance |
|---|
| Overclocked (OC) edition |
Yes |
| NPU performance up to |
1406 TOPs |
| NVIDIA G-SYNC |
Yes |
| Dual Link DVI |
No |
| HDCP |
Yes |
| HDCP version |
2.3 |
| Virtual Reality (VR) ready |
Yes |
| OpenGL version |
4.6 |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
Multicolour |
| Illumination |
Yes |
| Illumination colour |
Multi |
| Number of slots |
3.2 |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Number of fans |
3 fan(s) |
| Cooling technology |
ASUS Axial-tech |
| Cooling type |
Active |
| Power |
|---|
| Supplementary power connectors |
1x 16-pin |
| Minimum system power supply |
850 W |
| Weight & dimensions |
|---|
| Depth |
64 mm |
| Height |
147.3 mm |
| Length |
332 mm |
| Weight |
1.67 kg |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
2.64 kg |
| Package height |
126 mm |
| Package depth |
226 mm |
| Package width |
420 mm |
| Packaging content |
|---|
| Manual |
Yes |
| General |
|---|
| Product family |
ROG |
| Product series |
Strix |
