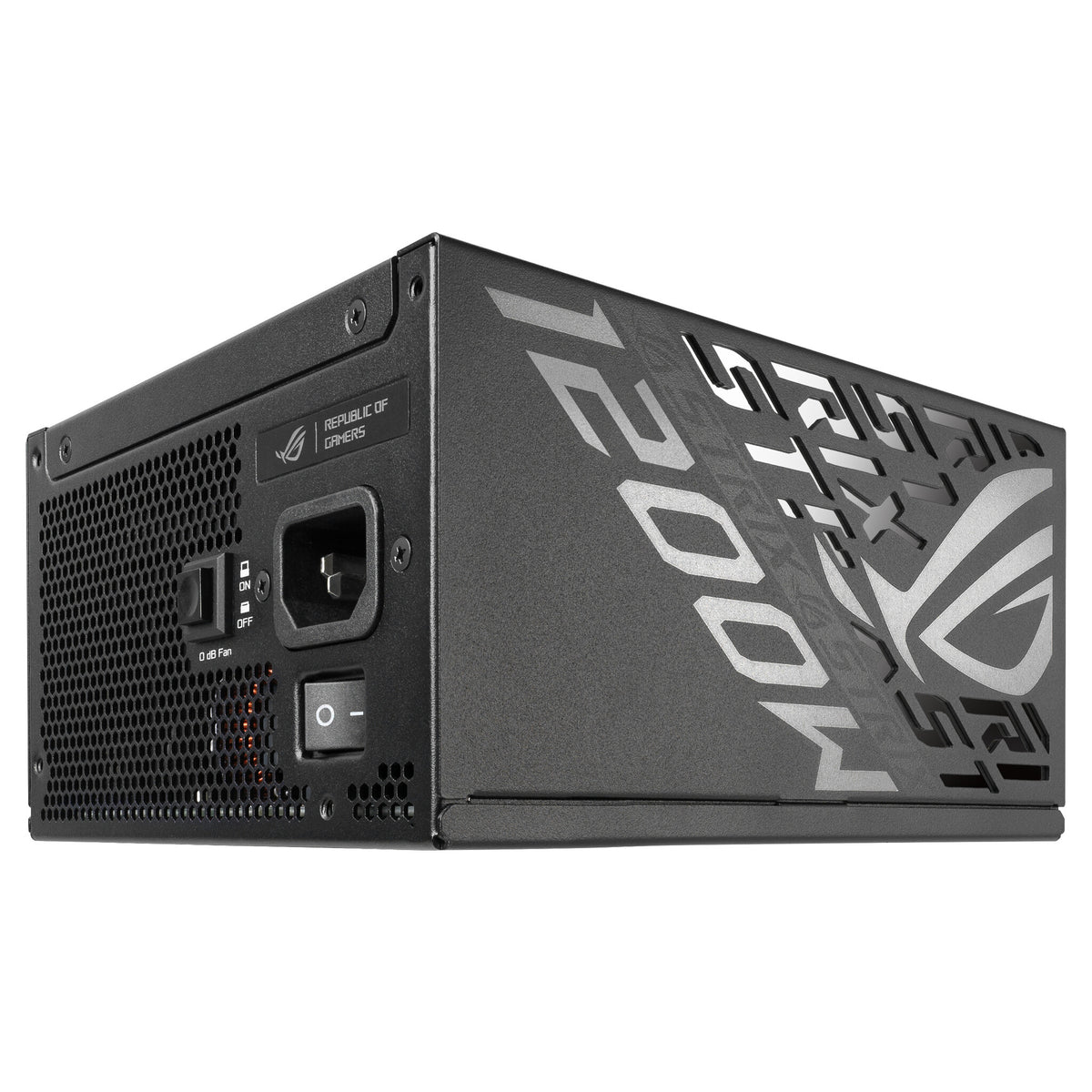

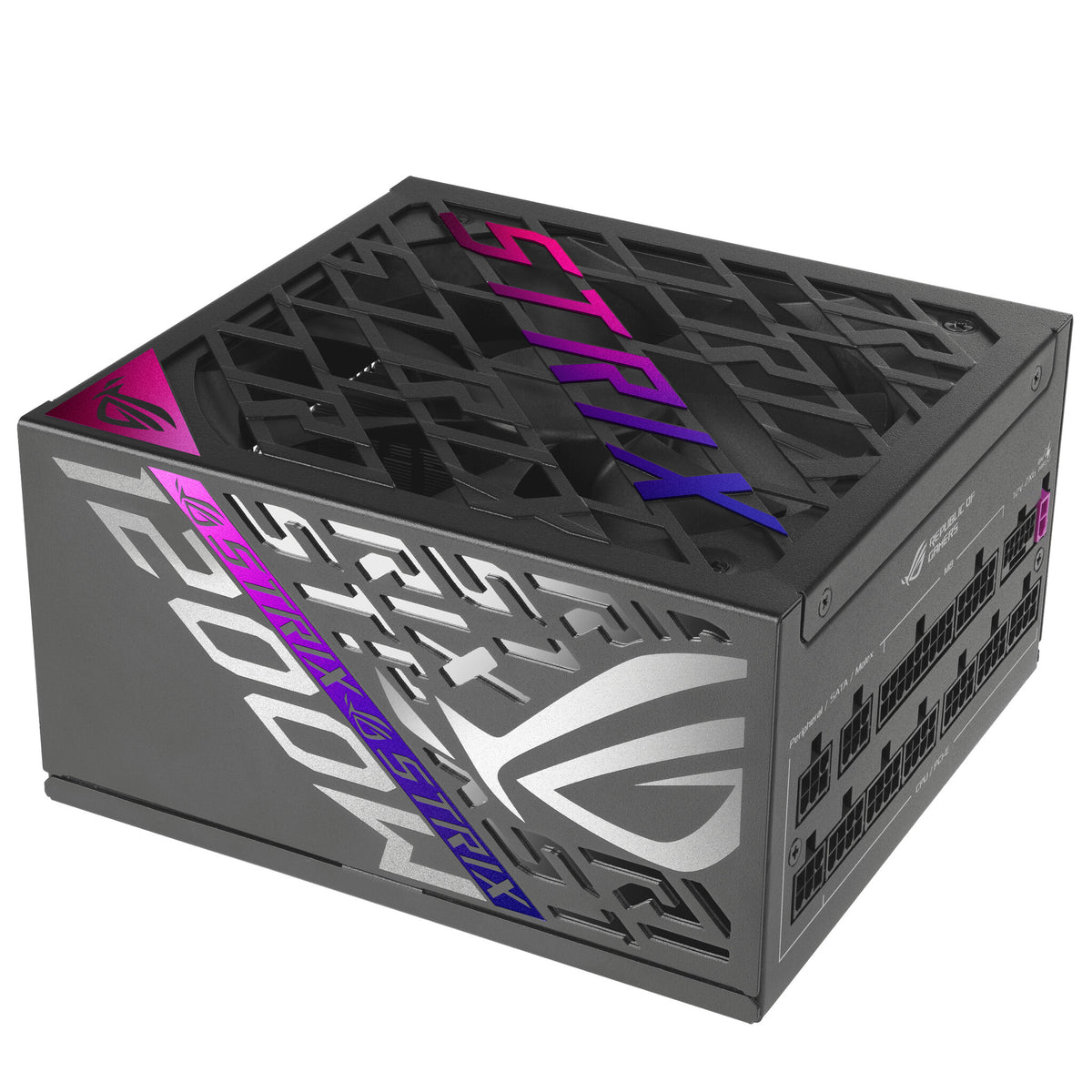

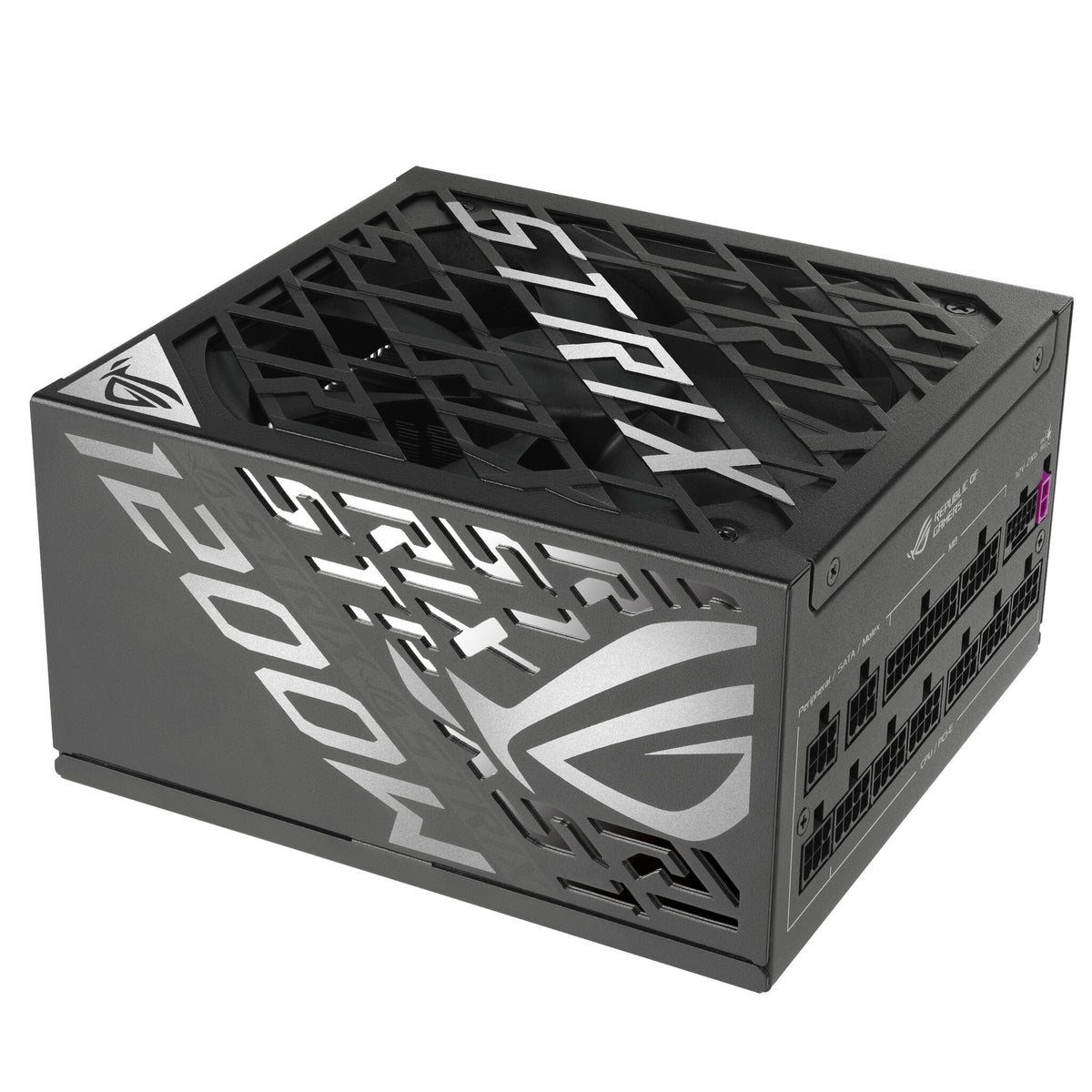

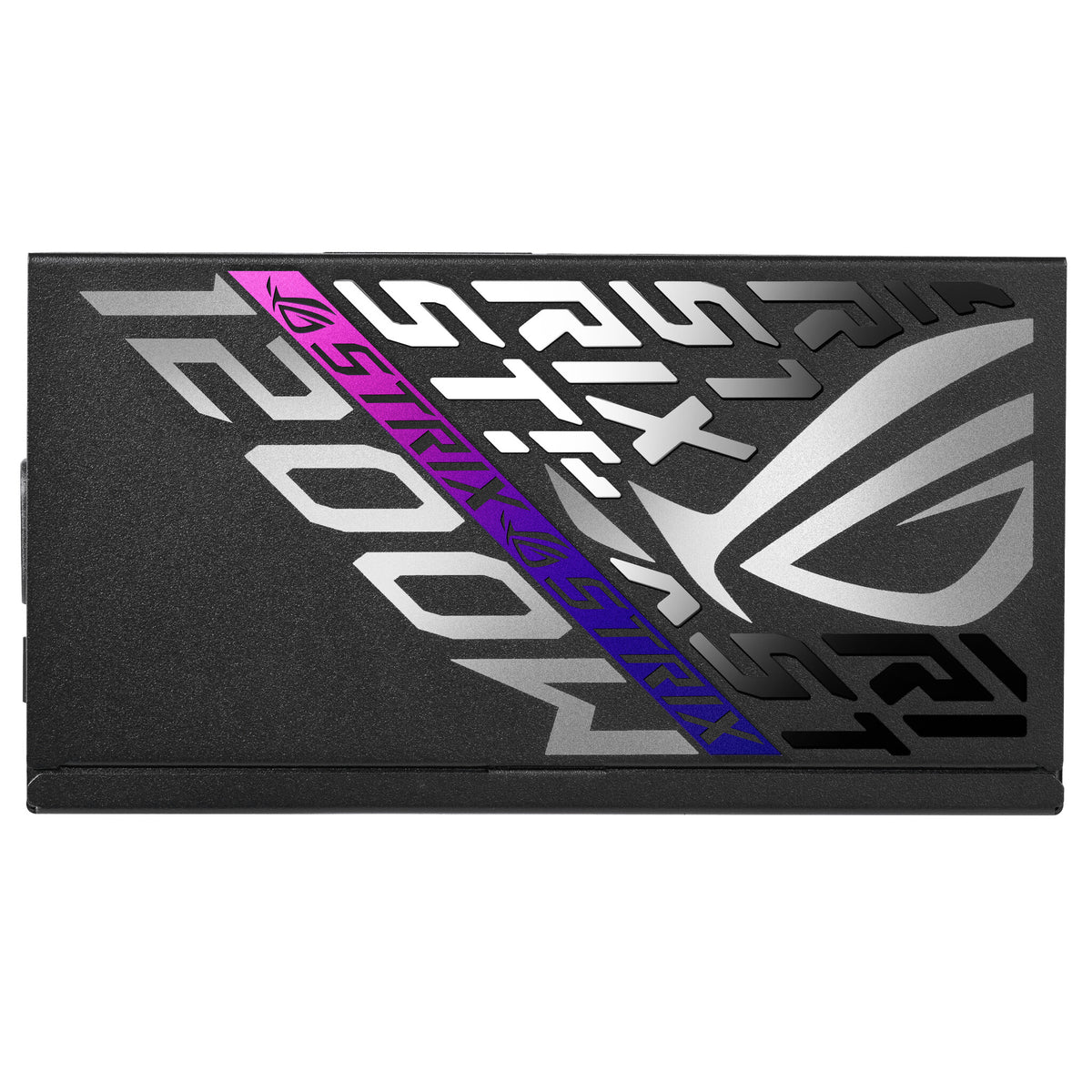

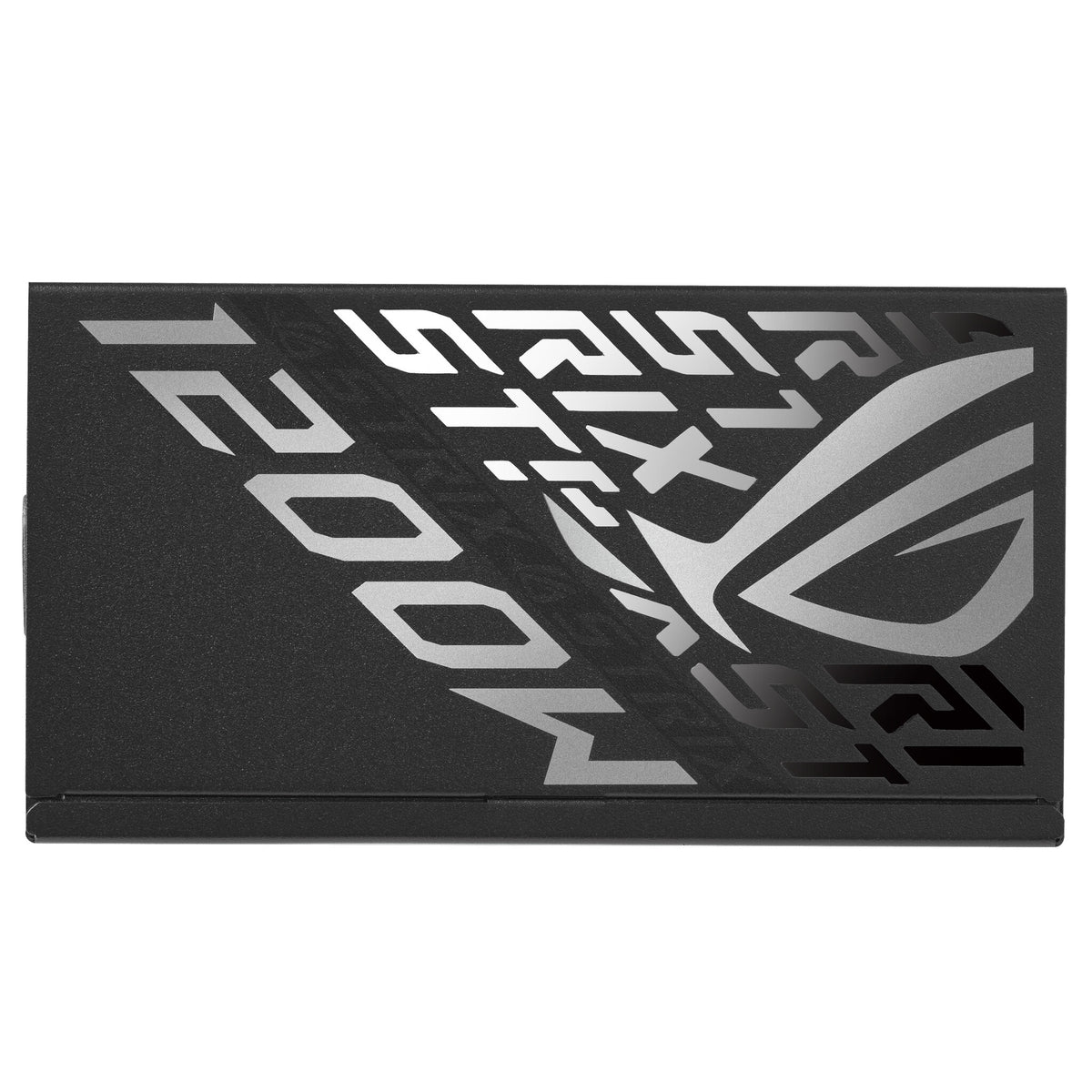

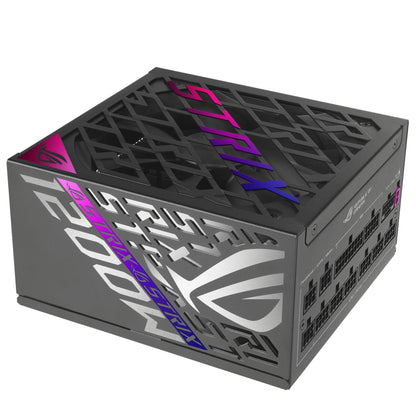

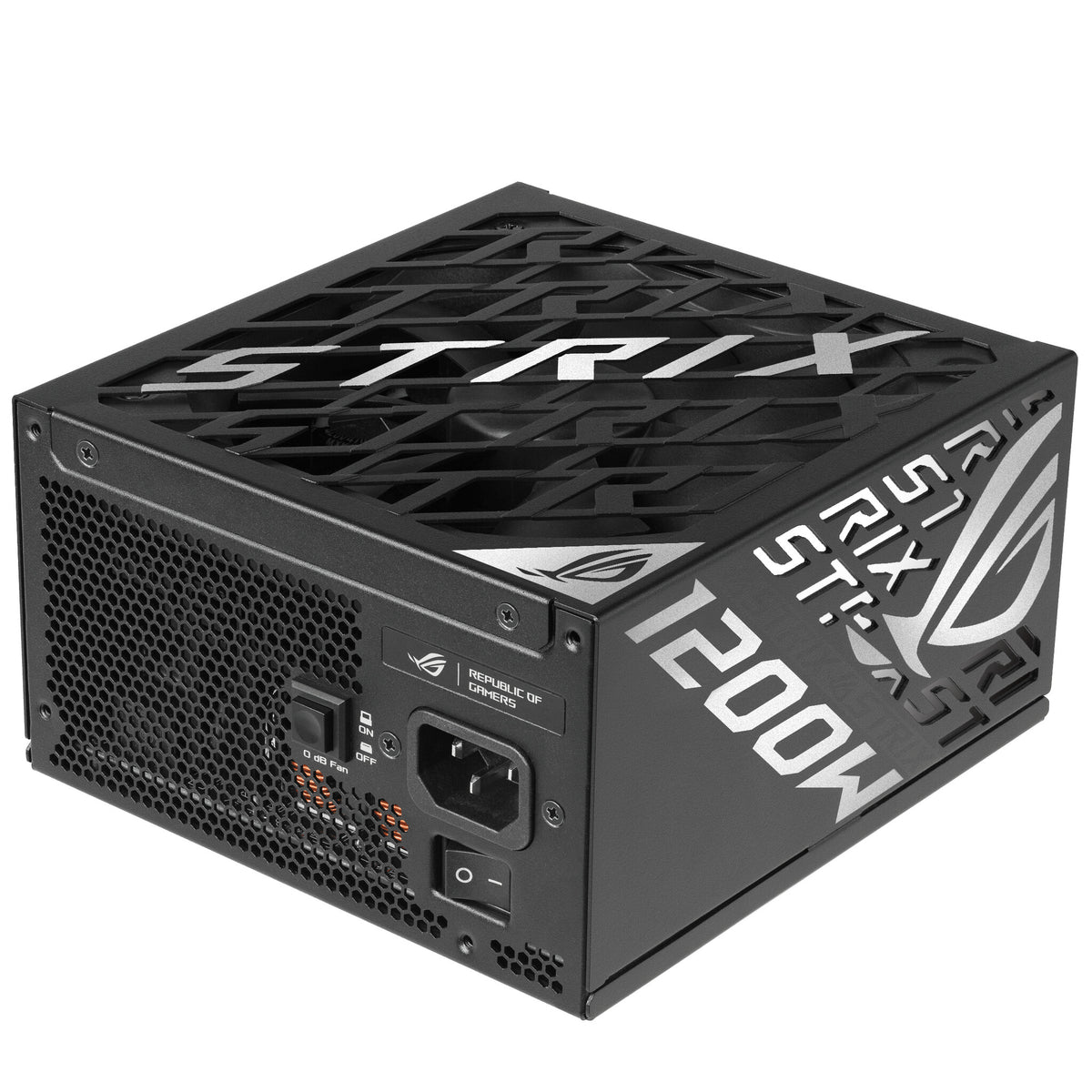

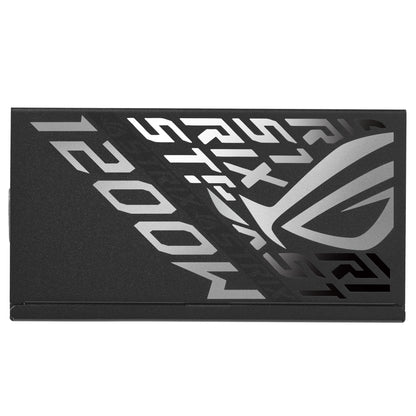

ROG Strix 1200W Platinum (ROG Equalizer)
Superior Stability. Next-Level Efficiency
The ROG Strix 1200W Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring a next gen GaN MOSFET for premium power efficiency, it also incorporates the patented GPU-First Intelligent Voltage Stabilizer to maintain a steady and reliable flow of power to the graphics card.
The ROG Strix 1200W Platinum further includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2×6 connector, the ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.
| Power |
|---|
| Total power |
1200 W |
| AC input voltage |
100 - 240 V |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
130 W |
| Combined power (+12V) |
1200 W |
| Combined power (+5V) |
130 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
15 W |
| Max output current (+3.3V) |
25 A |
| Max output current (+12V) |
100 A |
| Max output current (+5V) |
25 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
3 A |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces |
|---|
| Motherboard power connector |
20+4 pin ATX |
| Motherboard power cable length |
61 cm |
| Number of SATA power connectors |
6 |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| PCI Express power connectors (6+2 pin) |
4 |
| PCI Express power connectors (16-pin) |
1 |
| PCI Express power cable length |
75 cm |
| CPU power connector (4+4 pin) |
Yes |
| CPU power cable length |
100 cm |
| ATX power connector (20+4 pin) |
Yes |
| PCI Express connector |
Yes |
| Cabling type |
Fully-Modular |
| Performance |
|---|
| Purpose |
PC |
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
80 PLUS Platinum |
| ATX version |
3.1 |
| Noise level |
25 dB |
| Bearing technology |
DBB |
| Mean time between failures (MTBF) |
120000 h |
| Design |
|---|
| Product colour |
Black, Multicolour |
| Cooling type |
Active |
| Number of fans |
1 fan(s) |
| On/off switch |
Yes |
| General |
|---|
| Product series |
STRIX |
| Product family |
ROG |
| Packaging content |
|---|
| Cables included |
AC, CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions |
|---|
| Width |
160 mm |
| Depth |
150 mm |
| Height |
86 mm |
| Weight |
1.84 kg |
| Packaging data |
|---|
| Package width |
320 mm |
| Package depth |
200 mm |
| Package height |
108 mm |
| Package weight |
3.65 kg |
| Package type |
Box |
