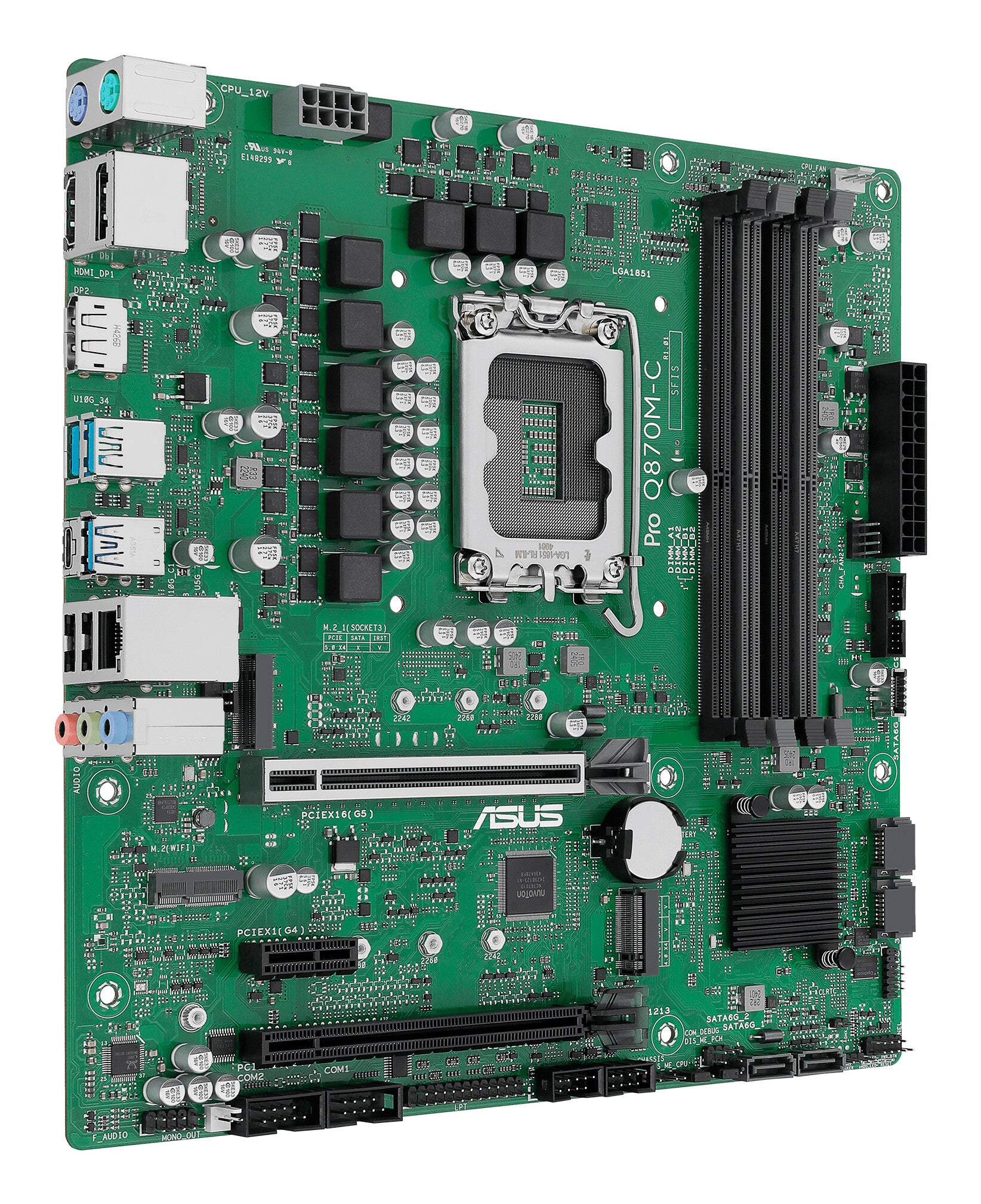

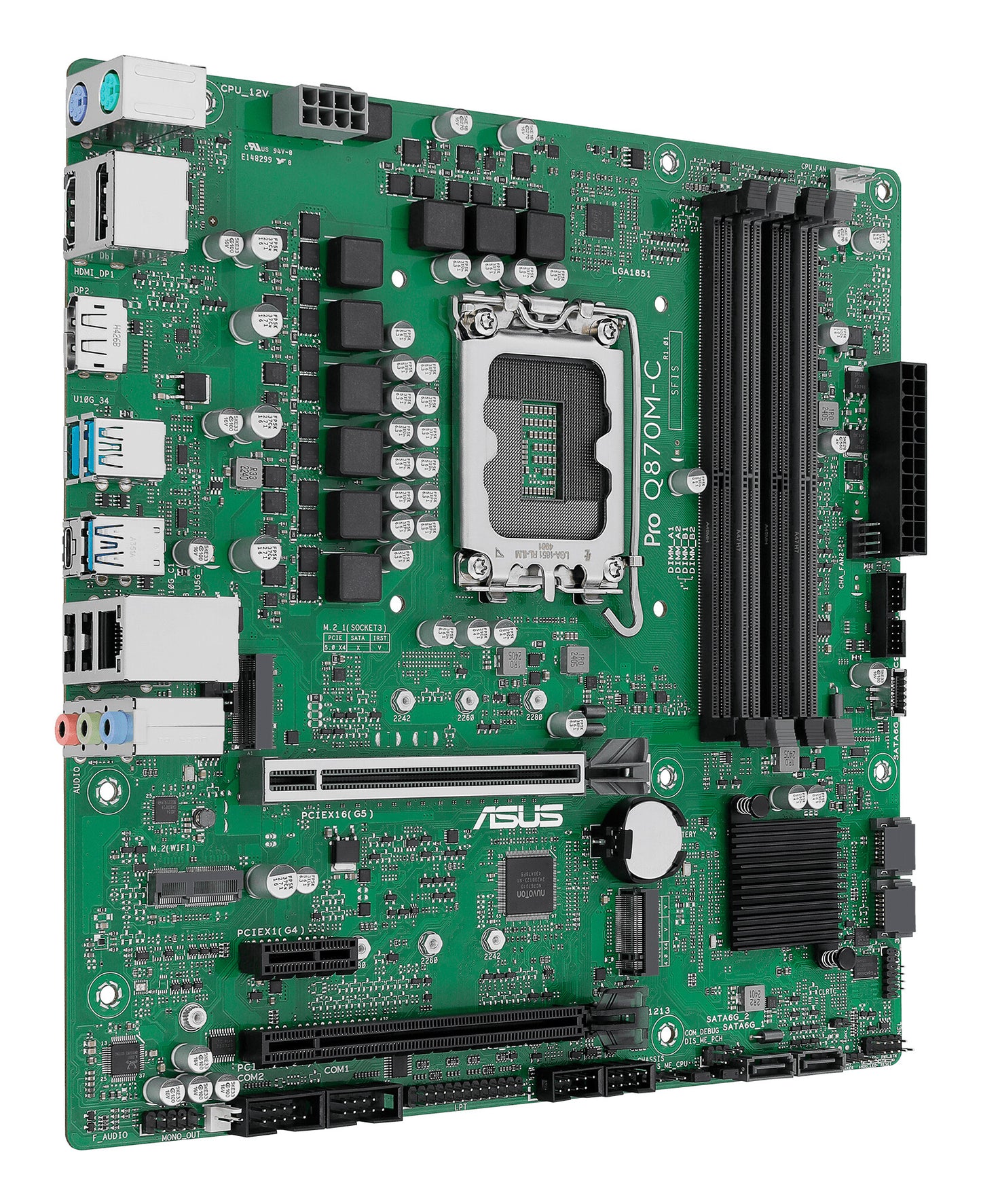

Intel Q870, LGA1851, 4 x DIMM slots, max. 256GB, DDR5, Intel I219LM 1Gb Ethernet, 256Mb Flash ROM, micro-ATX
Micro-ATX Q870 business motherboard with Intel® vPro support and enhanced security, reliability and manageability
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1851 (Socket V1) |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Memory |
|---|
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
Non-ECC |
| Supported memory clock speed (max) |
6400 MHz |
| Maximum internal memory |
256 GB |
| Unbuffered memory |
Yes |
| Storage controllers |
|---|
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| Number of storage drives supported |
6 |
| Number of HDDs supported |
4 |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 10 |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| On-board graphics card |
No |
| Internal I/O |
|---|
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| Front panel connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of CPU fan connectors |
1 |
| Number of chassis fan connectors |
2 |
| EPS power connector (8-pin) |
Yes |
| Number of COM connectors |
2 |
| 12V power connector |
Yes |

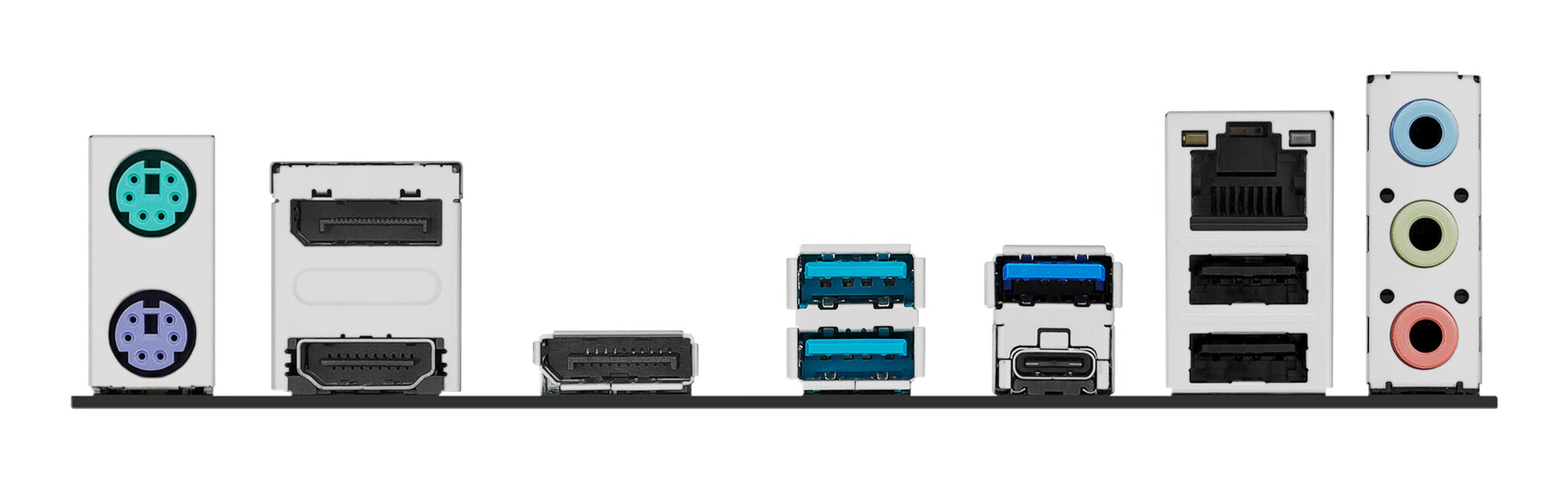

| Rear panel I/O ports |
|---|
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| PS/2 ports quantity |
2 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
2 |
| Microphone in |
Yes |
| USB connector type |
USB Type-A, USB Type-C |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| LAN controller |
Intel® I219-LM |
| Wi-Fi |
No |
| Features |
|---|
| Component for |
PC |
| Motherboard form factor |
micro ATX |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel® Q870 |
| Audio output channels |
7.1 channels |
| Product colour |
Multicolour |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Expansion slots |
|---|
| PCI Express x1 (Gen 4.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Number of M.2 (M) slots |
2 |
| BIOS |
|---|
| BIOS memory size |
256 Mbit |
| Packaging data |
|---|
| Package width |
270 mm |
| Package depth |
263 mm |
| Package height |
51.5 mm |
| Package weight |
889.03 g |
| Weight & dimensions |
|---|
| Width |
244 mm |
| Depth |
244 mm |
| Height |
50 mm |
| Other features |
|---|
| Weight |
550.6 g |
