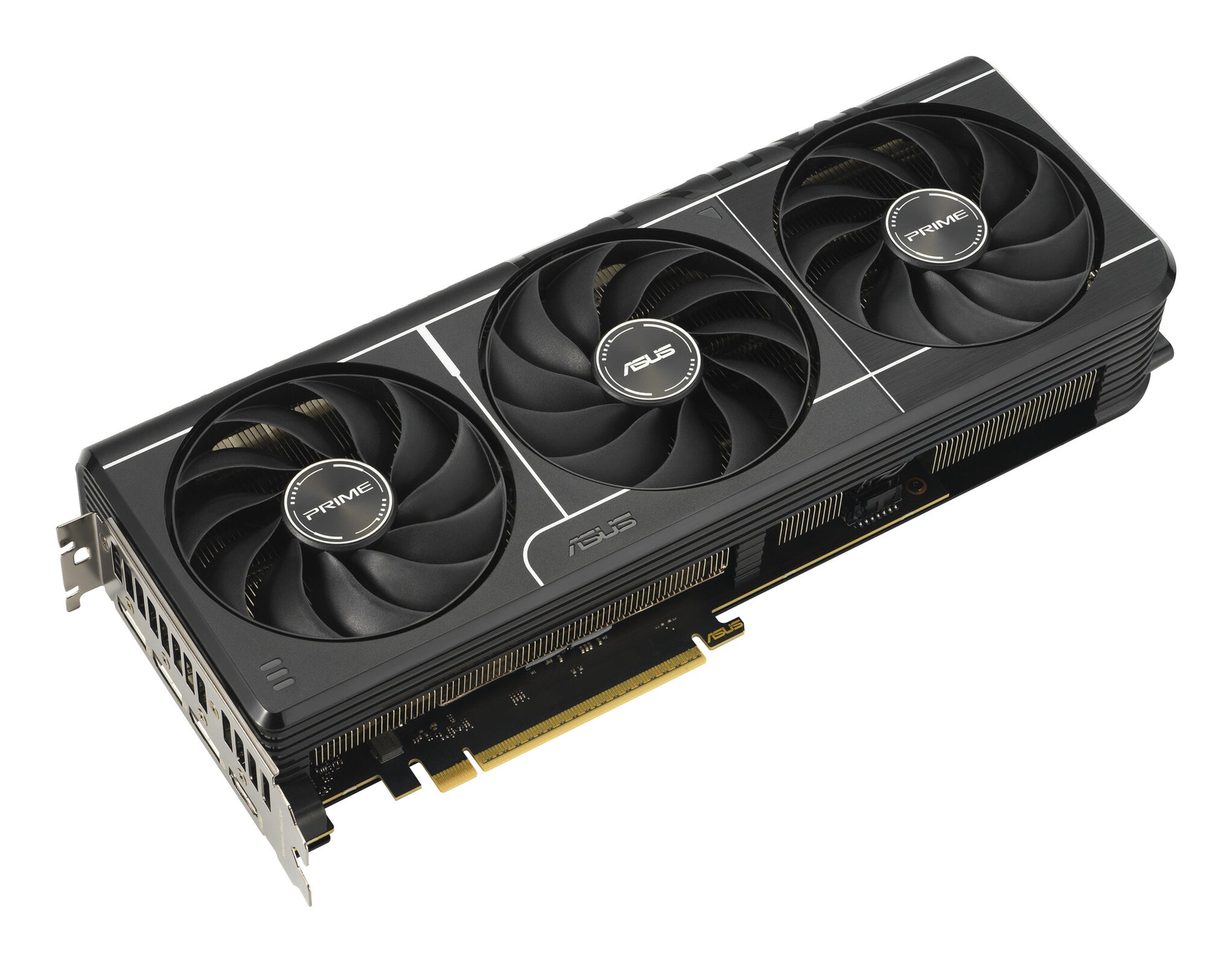

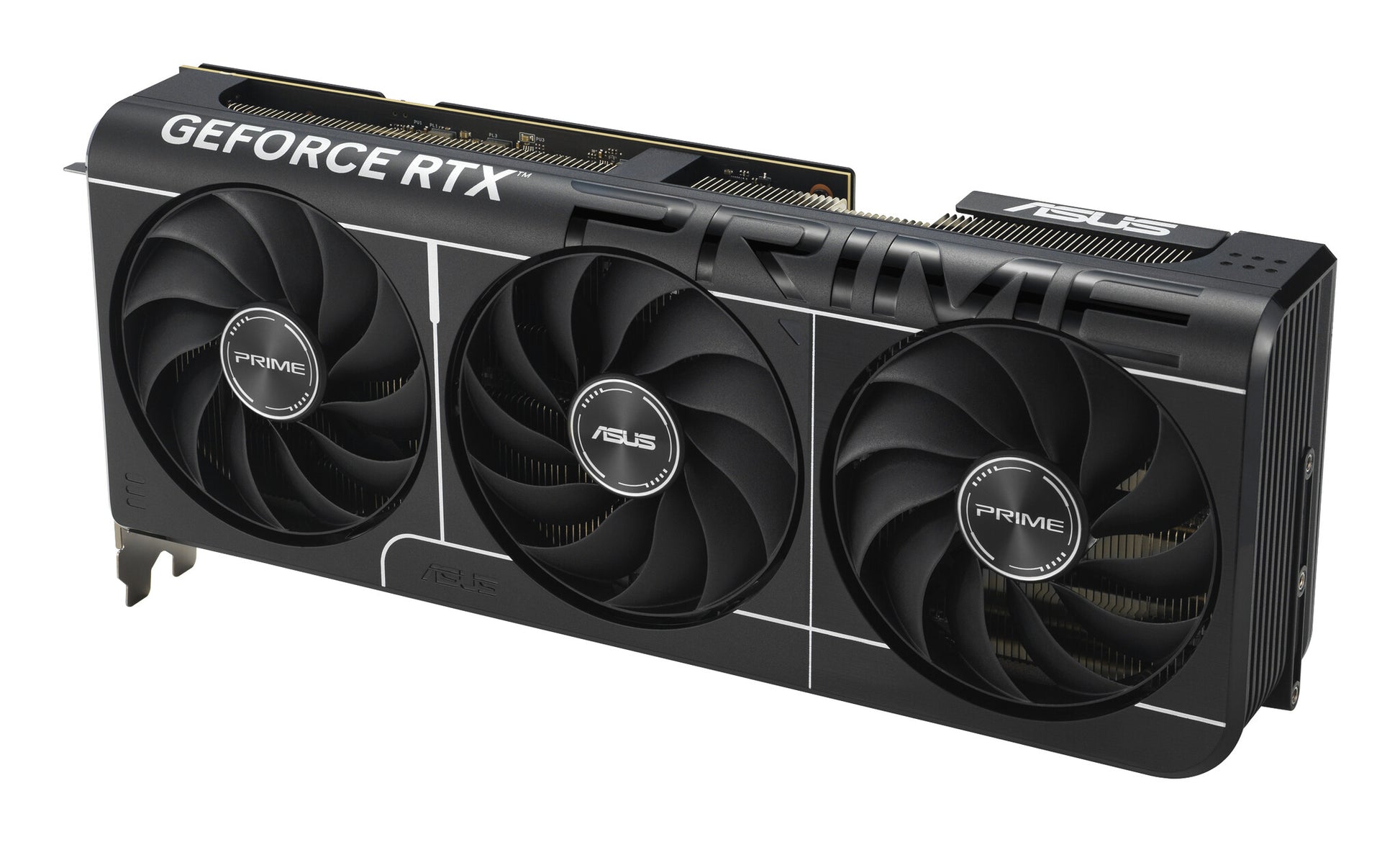

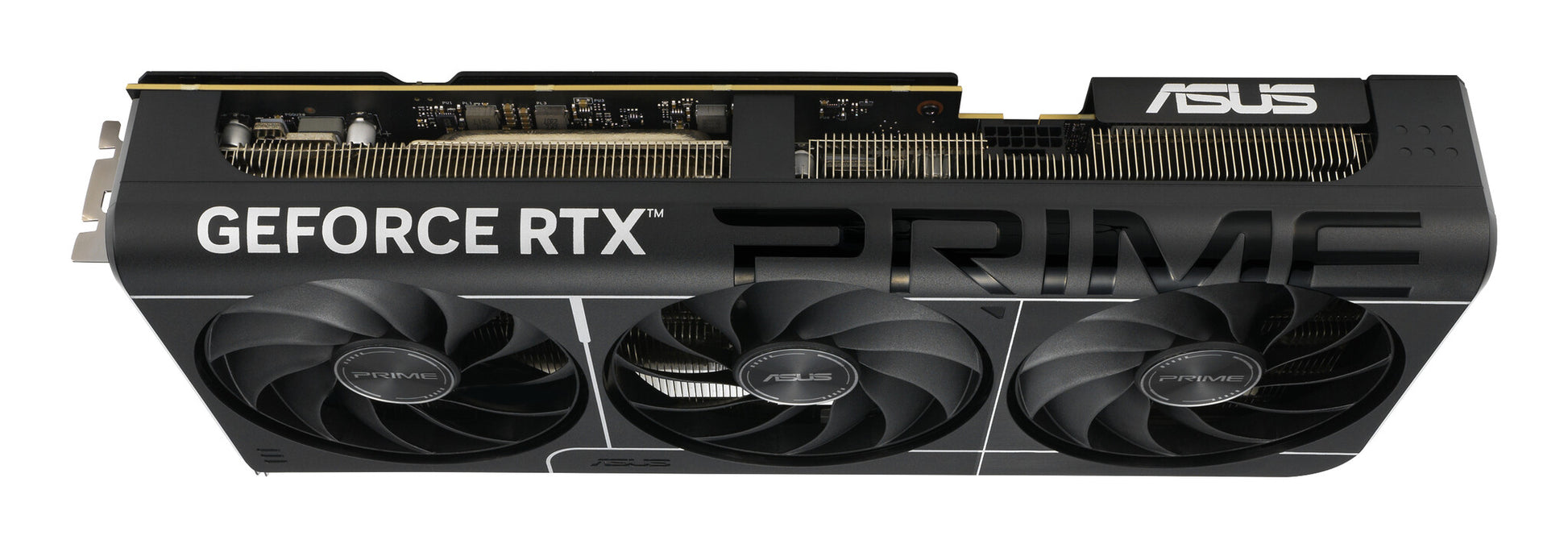

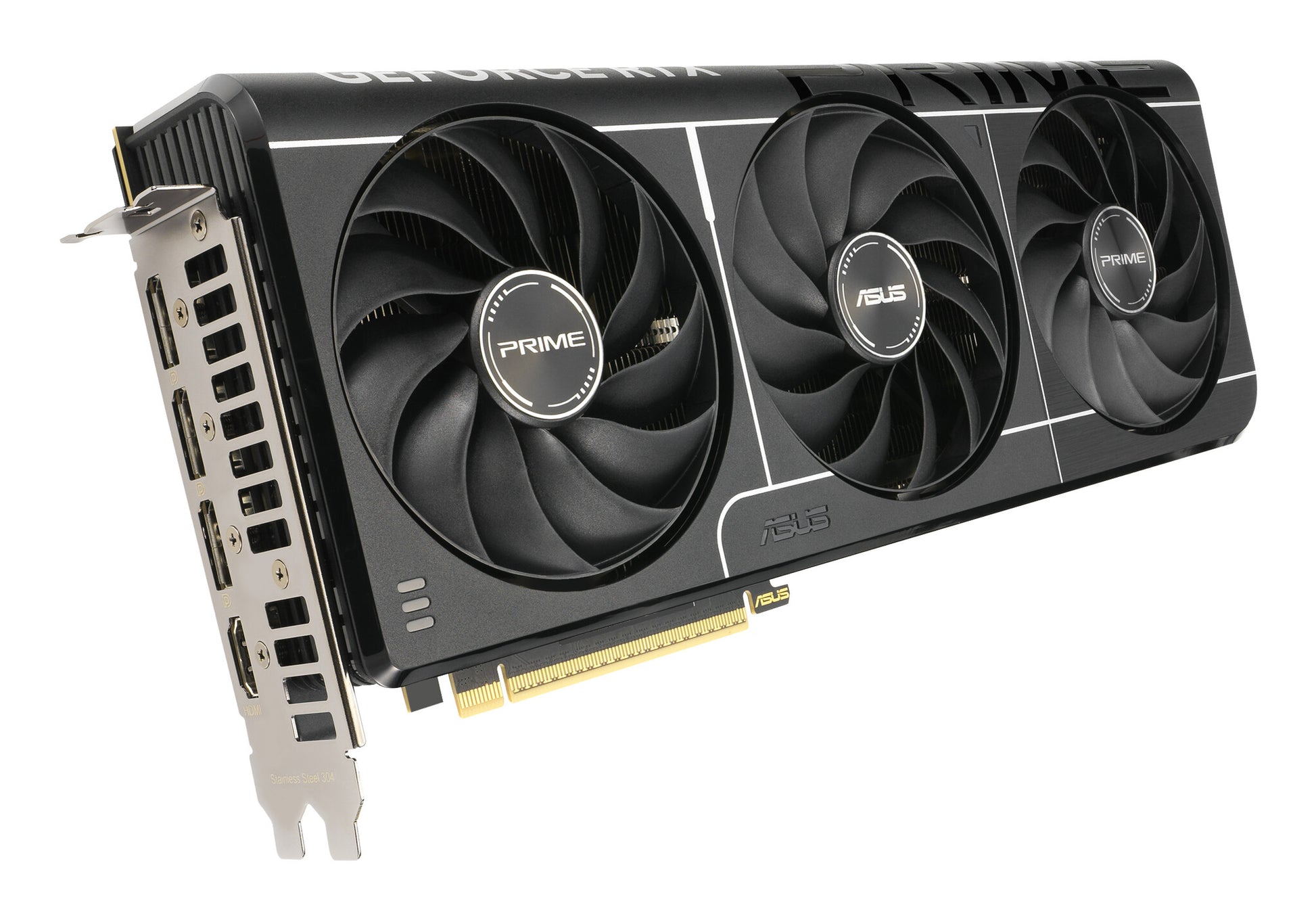

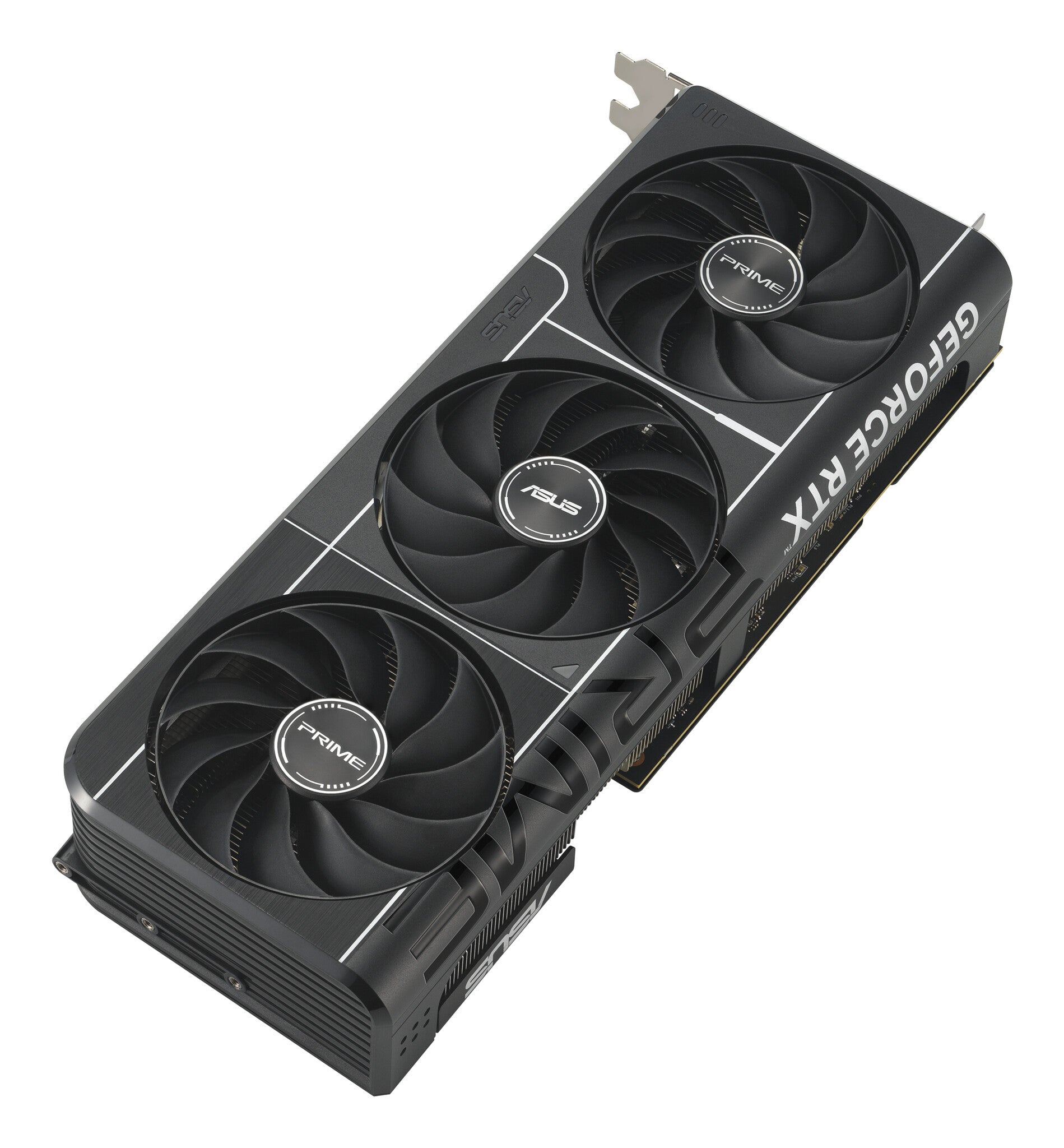

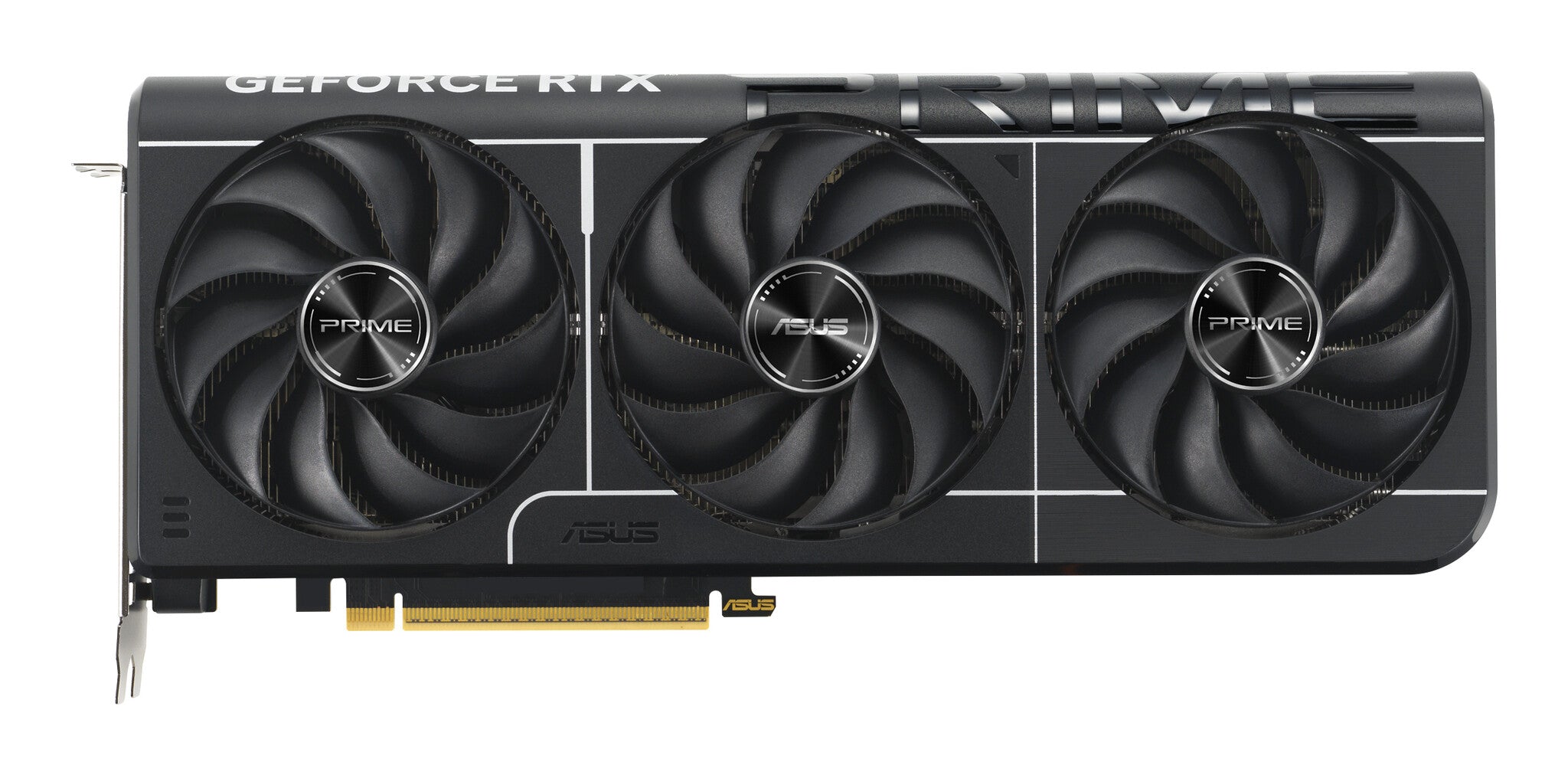

PRIME GeForce RTX 5070 Ti 16GB GDDR7 OC Edition
Primed for Power
Experience Primal performance with the Prime GeForce RTX 5070 Ti, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Cooling
2.5-slot Design
The Prime RTX 5070 Ti features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.
Axial-tech Upgrades
Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.
0dB Technology
All three fans come to a standstill when GPU temperatures are below 50 Celsius, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 55 C, establishing a speed curve that balances performance and acoustics for work or play.
Dual Ball Fan Bearings
Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.
Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
| Processor |
|---|
| Maximum displays per videocard |
4 |
| Parallel processing technology support |
Not supported |
| CUDA cores |
8960 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 5070 Ti |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Data transfer rate |
28 Gbit/s |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR7 |
| Discrete graphics card memory |
16 GB |
| Ports & interfaces |
|---|
| DisplayPort version |
2.1b |
| HDMI version |
2.1b |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express 5.0 |
| Performance |
|---|
| NPU performance up to |
1406 TOPs |
| NVIDIA G-SYNC |
Yes |
| Dual Link DVI |
No |
| HDCP |
Yes |
| HDCP version |
2.3 |
| OpenGL version |
4.6 |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
Black |
| SFF ready |
Yes |
| Number of slots |
2.5 |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Number of fans |
3 fan(s) |
| Cooling technology |
ASUS Axial-tech |
| Cooling type |
Active |
| Power |
|---|
| Supplementary power connectors |
1x 16-pin |
| Minimum system power supply |
750 W |
| Weight & dimensions |
|---|
| Depth |
50 mm |
| Height |
126 mm |
| Length |
306 mm |
| Weight |
1.17 kg |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
1.82 kg |
| Package height |
88.5 mm |
| Package depth |
233 mm |
| Package width |
405 mm |
| Packaging content |
|---|
| Manual |
Yes |
| General |
|---|
| Product family |
Prime |
