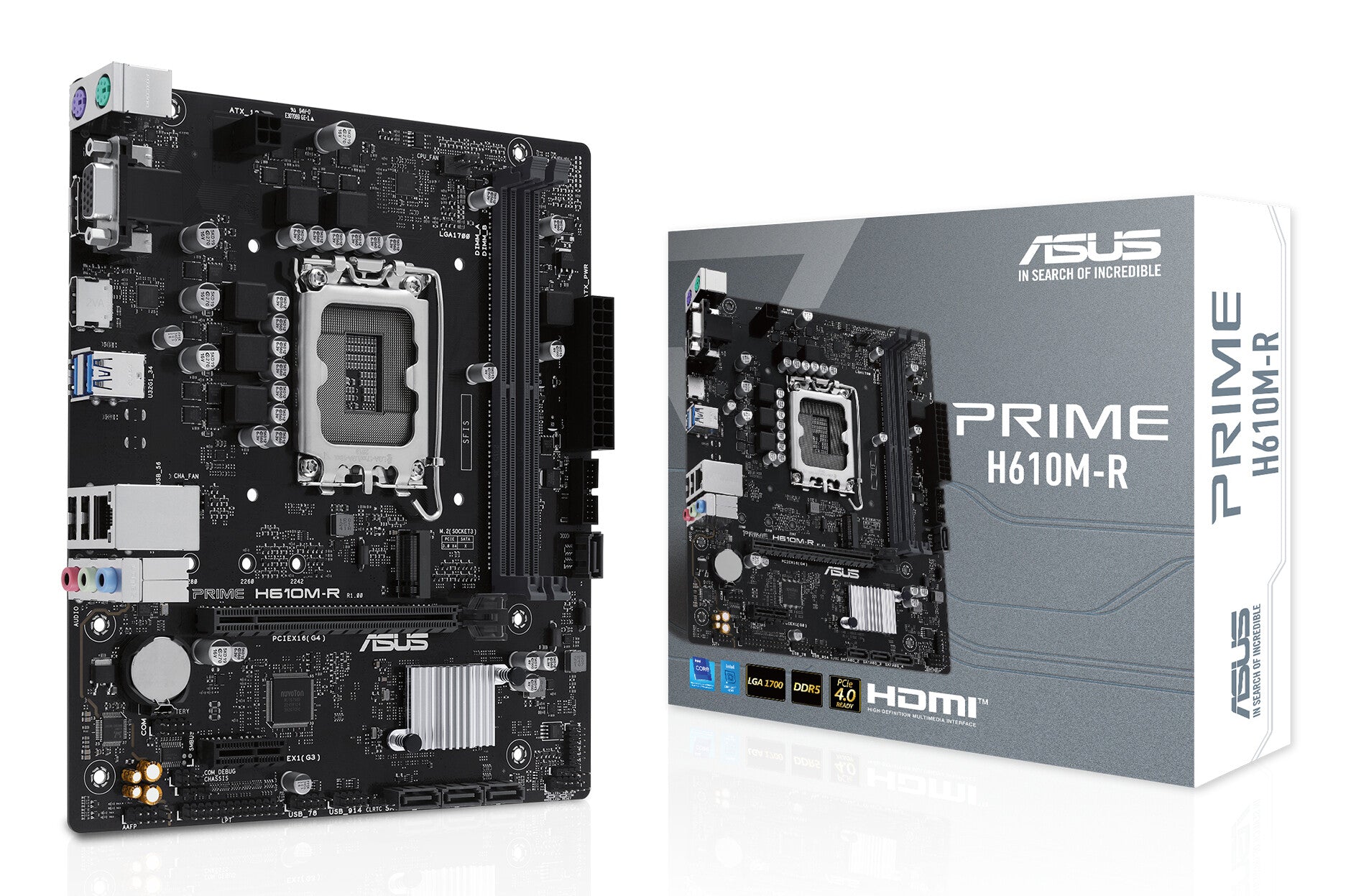

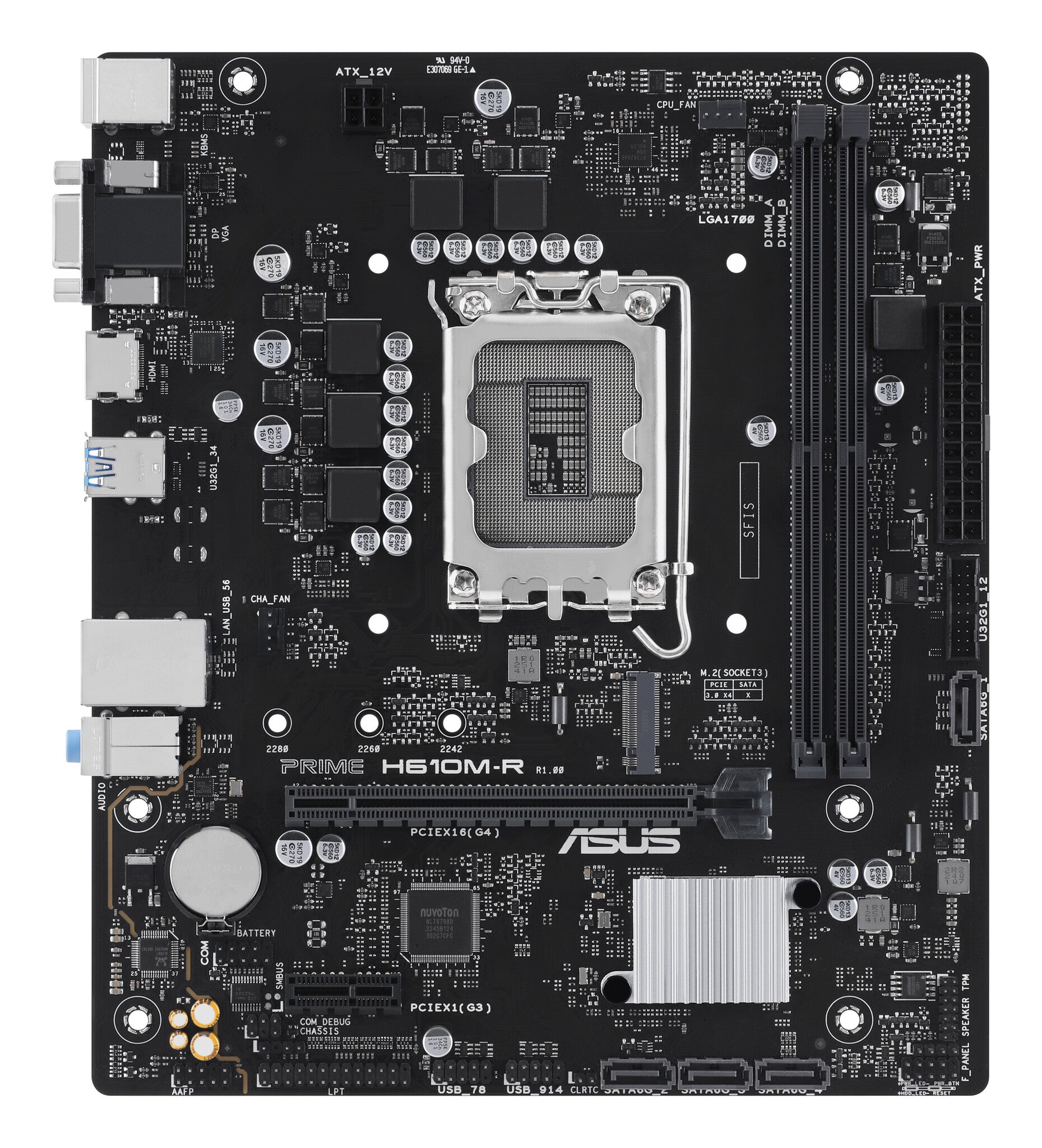

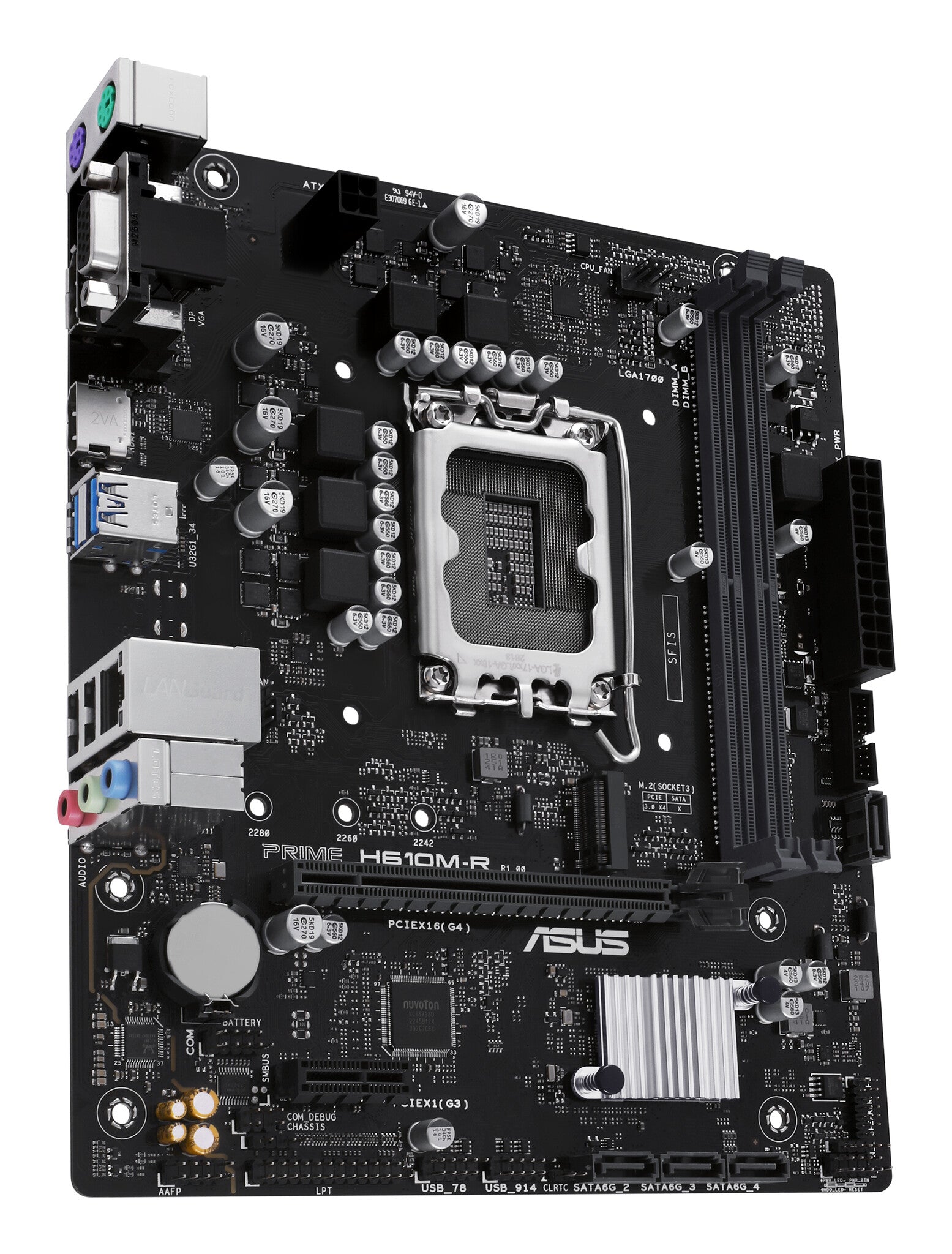

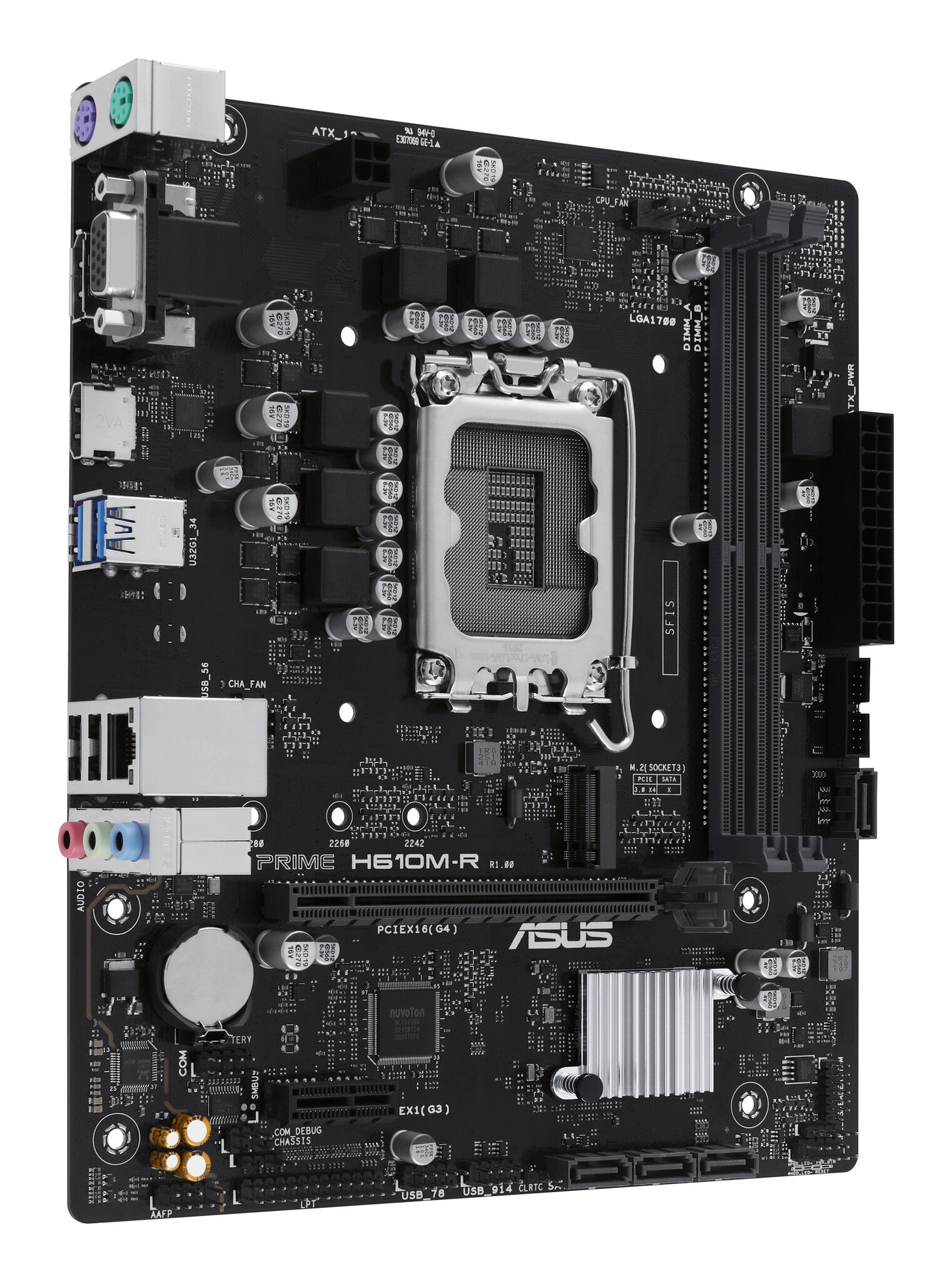

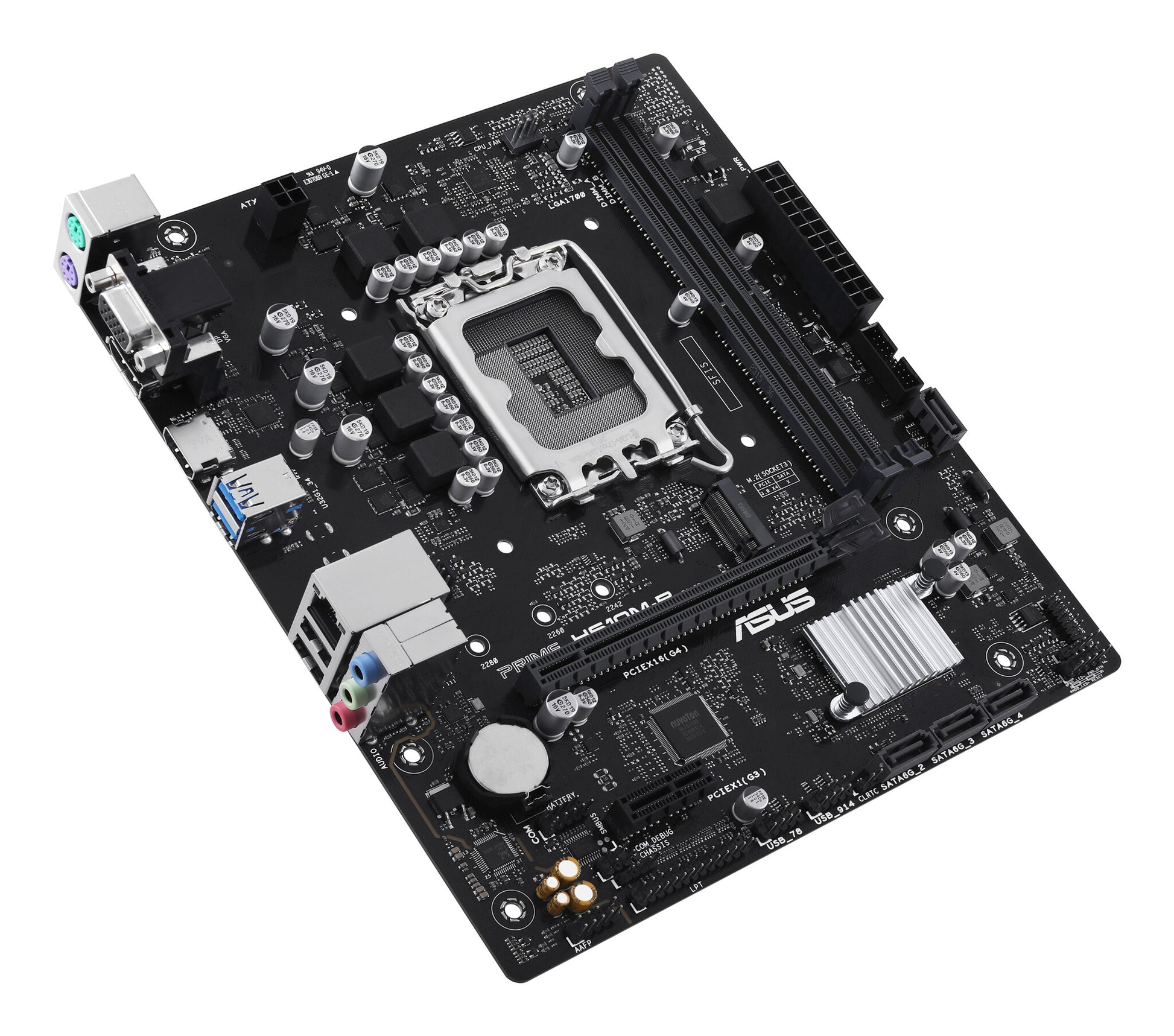

LGA 1700, Intel H610 Chipset, 2 x DDR5-SDRAM up to 96GB, LAN, 1 x RJ-45, 4 x SATA III, 1 x M.2(M), UEFI AMI, Micro ATX
ASUS Motherboard/mATX/LGA1700/2xDDR4/M.2/4xSATA/1xPCIe4*16/1xPCIe3*1/ D-Sub/HDMI/DVI/PS2/4xUSB
| Processor |
|---|
| Supported processor sockets |
LGA 1700 |
| Compatible processor series |
Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Unbuffered memory |
Yes |
| Maximum internal memory |
96 GB |
| Supported memory clock speed (max) |
5600 MHz |
| Supported memory clock speeds |
5600,5400,5200,5000,4800 MHz |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
|---|
| Number of HDDs supported |
4 |
| Number of storage drives supported |
5 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| Internal I/O |
|---|
| TPM connector |
Yes |
| 12V power connector |
Yes |
| Number of COM connectors |
1 |
| Number of chassis fan connectors |
1 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |

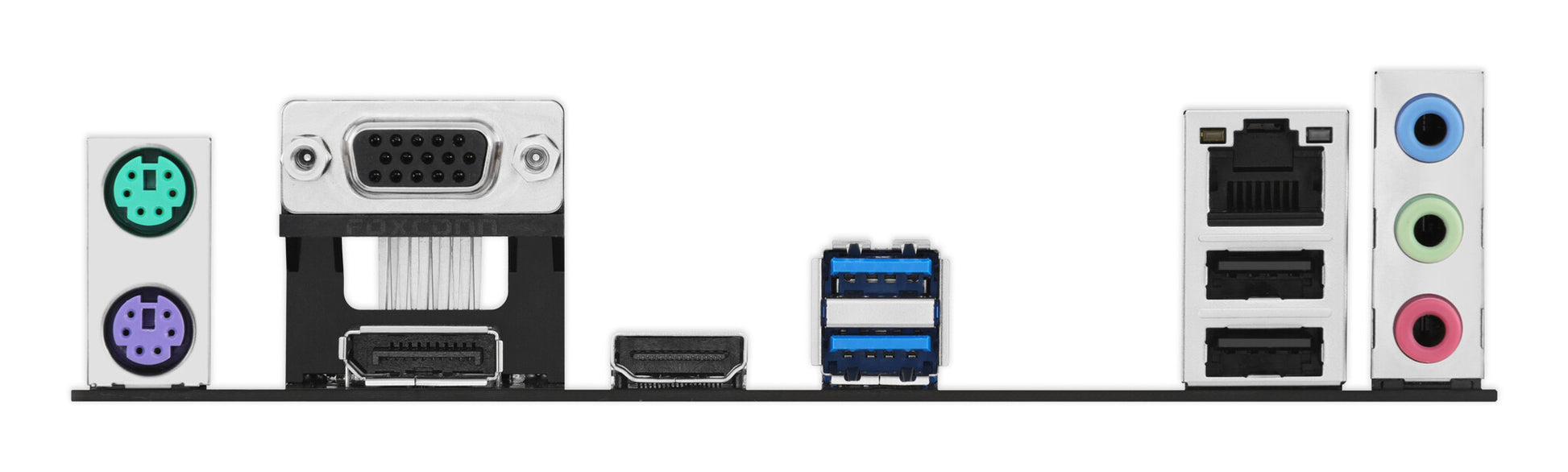

| Rear panel I/O ports |
|---|
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Line-in |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Audio output channels |
7.1 channels |
| Motherboard chipset |
Intel H610 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| BIOS |
|---|
| BIOS memory size |
128 Mbit |
| BIOS type |
UEFI AMI |
| Packaging data |
|---|
| Package weight |
680 g |
| Package height |
50 mm |
| Package depth |
223 mm |
| Package width |
246 mm |
| Weight & dimensions |
|---|
| Height |
36.5 mm |
| Depth |
195 mm |
| Width |
226 mm |
| Packaging content |
|---|
| Cables included |
SATA |
| Other features |
|---|
| Weight |
437 g |
