Intel N250 (6M Cache, up to 3.8 GHz), Intel Graphics, WiFi 6e, no OS, 1 x SO-DIMM, Realtek Ethernet Controller RTL8125BG-CG, 2.5G
Power efficient Mini PC powered by Intel® Core™ N-Series processor, featuring triple 4K display supports and easy access design, perfect for education and office tasks
Efficient Performance. Smart Savings.
ASUS NUC 14 Essential is the next-generation mini PC that takes performance, portability, and versatility to greater heights. Powered by the latest energy-efficient Intel® Core™ N-series processors and equipped with diverse connectivity options, this sleek, compact device is built to boost productivity and makes light work of diverse applications.
| Processor |
|---|
| Built-in processor |
Yes |
| Processor manufacturer |
Intel |
| Processor model |
N250 |
| Processor cores |
4 |
| Processor threads |
4 |
| Processor boost frequency |
3.8 GHz |
| Processor cache |
6 MB |
| Memory |
|---|
| Internal memory installed |
No |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
1 |
| Supported memory types |
DDR5-SDRAM |
| Supported memory clock speeds |
4800 MHz |
| Maximum internal memory |
16 GB |
| Storage |
|---|
| Storage drives installed |
No |
| Supported storage drive types |
SSD |
| Storage drive sizes supported |
M.2 |
| SSD form factor |
M.2 |
| Storage drive interface |
M.2 |
| Number of storage drives supported |
1 |
| Maximum storage capacity |
2 TB |
| Graphics |
|---|
| On-board graphics card |
Yes |
| Graphics card family |
Intel |
| On-board graphics card model |
Intel® Graphics |
| Discrete graphics card model |
Not available |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Copper ethernet cabling technology |
2.5GBASE-T |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| LAN controller |
Dragon RTL8125BG |

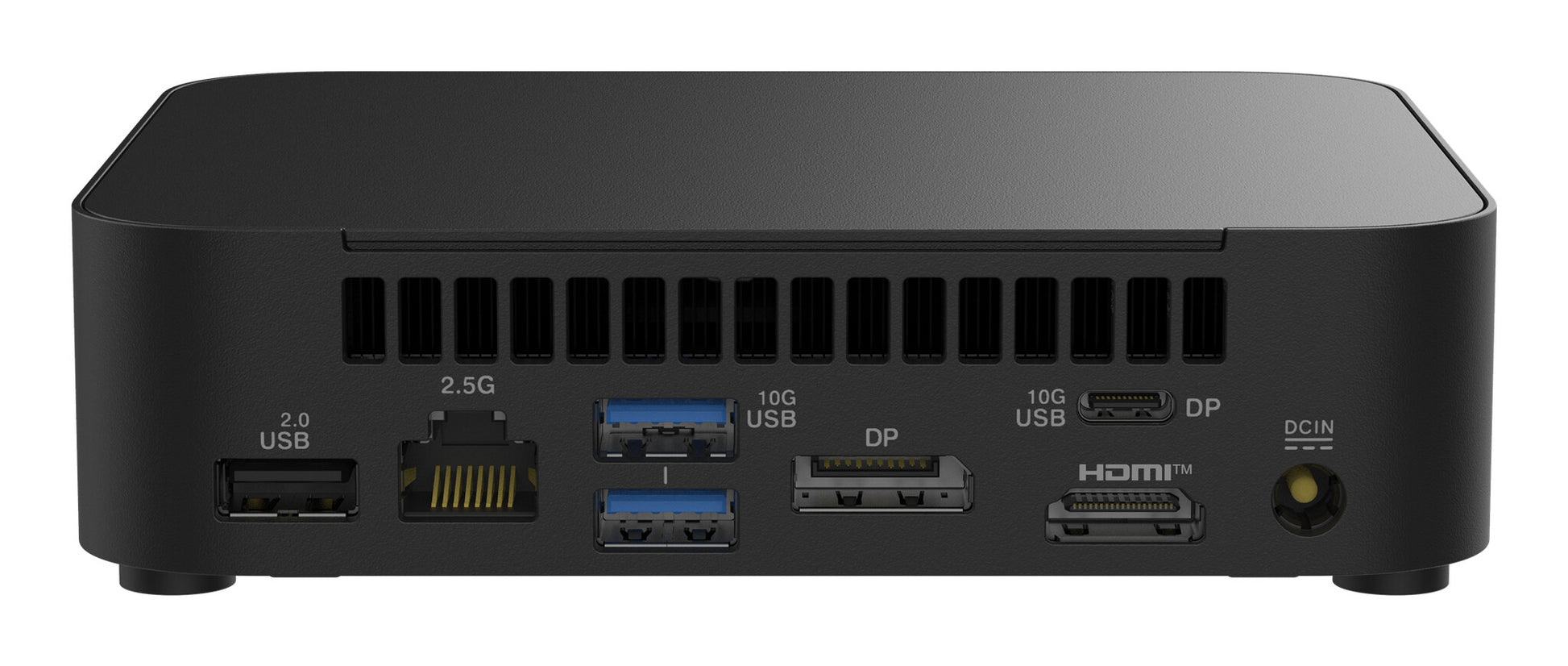

| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.4 |
| Headphone outputs |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
| Design |
|---|
| Product colour |
Black |
| On/off switch |
Yes |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| VESA mounting |
Yes |
| Product type |
Mini PC barebone |
| General |
|---|
| Product family |
NUC 14 Essential |
| Software |
|---|
| Operating system installed |
No |
| Power |
|---|
| Power supply type |
External AC adapter |
| AC adapter output current |
3.42 A |
| AC adapter output voltage |
19 V |
| Power supply |
65 W |
| Weight & dimensions |
|---|
| Width |
135 mm |
| Depth |
115 mm |
| Height |
36 mm |
| Weight |
470 g |
