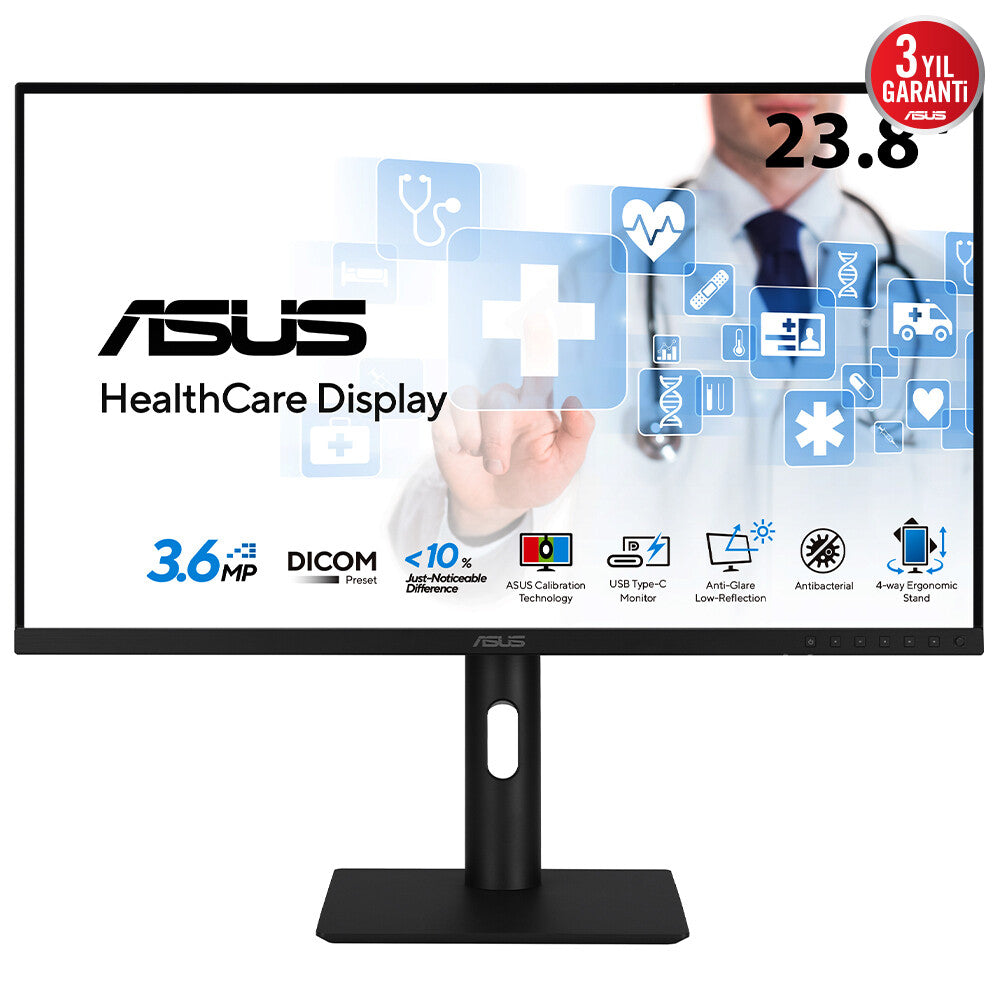

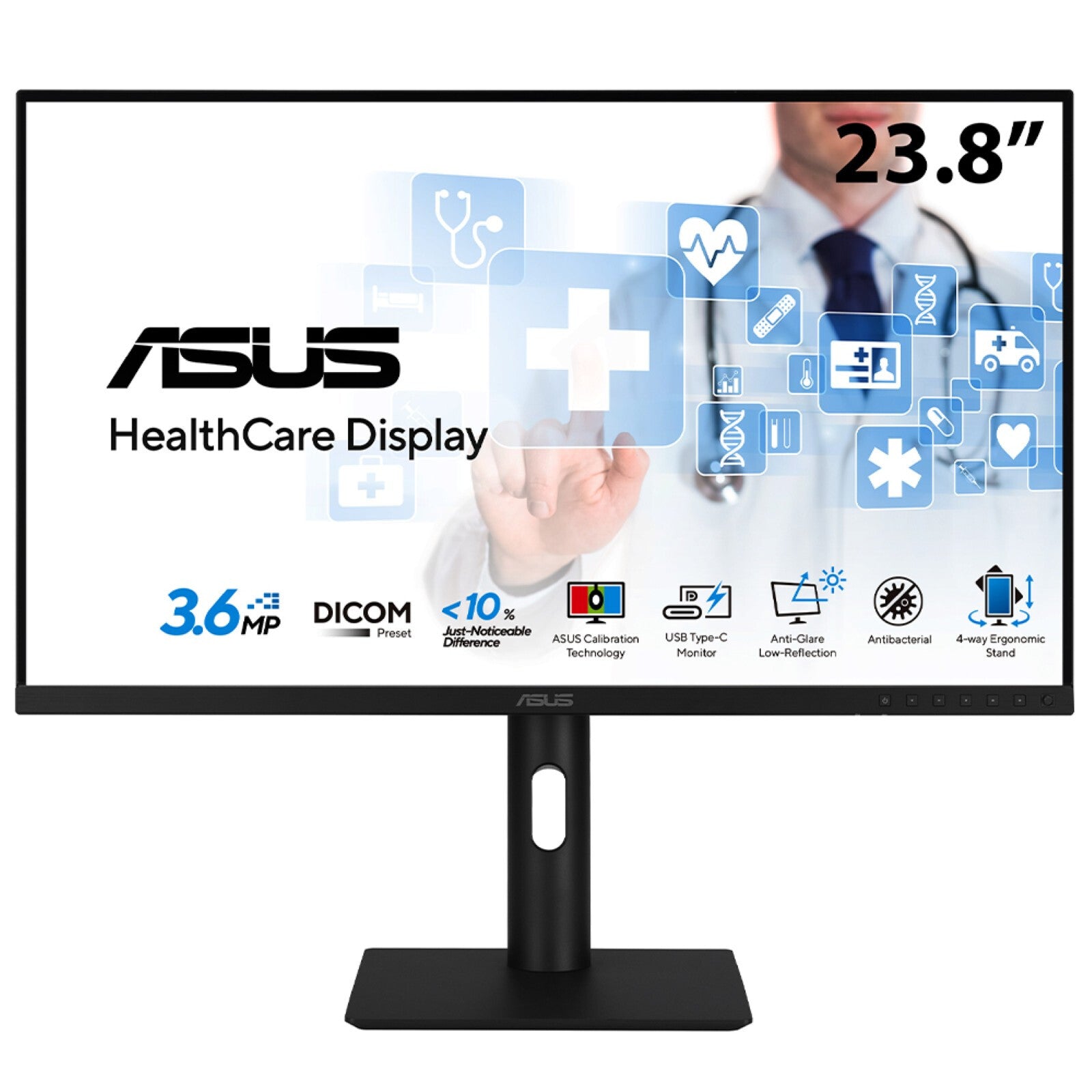

HA2441A HealthCare Monitor – 24-inch (23.8-inch viewable), 3.6MP (2560 x 1440), AGLR, DICOM Part 14 GSDF, DICOM Preset, Auto Calibration, JND < 10%, Antibacterial Treatment, USB-C, HDMI, DisplayPort Daisy-chain, Ergonomic Stand
HealthCare Monitor
ASUS HealthCare Displays provides comprehensive line-up targeting for every HealthCare institutions needs. ASUS HealthCare Displays are factory calibrated with DICOM® Part 14 GSDF (Grayscale Standard Display Function) compliance to ensure visual accuracy and consistency in finest details. ASUS HA2441A features 23.8-inch 3.6MP Anti-Glare, Low-Reflection (AGLR) IPS panel, ASUS exclusive Hardware Calibration Technology supports auto calibration to keep DICOM long term accuracy. ASUS HealthCare Displays delivers high-performance, precise and stable capabilities to fit any scenario.
Lifelike Views Vith 178° Wide View Angle
ASUS HA2441A IPS panel provides 178° viewing angles, both horizontally and vertically, so you can reproduce excellent contrast, ensuring the accurate and clear medical images from almost any direction.
| Display |
|---|
| Display diagonal |
60.5 cm (23.8") |
| Display resolution |
2560 x 1440 pixels |
| Native aspect ratio |
16:9 |
| Display technology |
LCD |
| Touchscreen |
No |
| HD type |
Quad HD |
| Panel type |
IPS |
| LED backlight |
Yes |
| Backlight type |
LED |
| Display brightness (typical) |
300 cd/m² |
| Response time |
5 ms |
| Anti-glare screen |
Yes |
| Screen shape |
Flat |
| Contrast ratio (typical) |
900:1 |
| Maximum refresh rate |
75 Hz |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
16.7 million colours |
| Pixel pitch |
0.206 x 0.206 mm |
| Viewable size, horizontal |
52.7 cm |
| Viewable size, vertical |
29.6 cm |
| Display diagonal (metric) |
61 cm |
| Colour gamut |
100% |
| Colour gamut standard |
sRGB |
| Performance |
|---|
| Brand specific technologies |
Eye Care+ |
| Flicker-free technology |
Yes |
| Low Blue Light technology |
Yes |
| Multimedia |
|---|
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| Design |
|---|
| Market positioning |
Medical |
| Product colour |
Black |
| Frameless design |
Yes |
| Feet colour |
Black |
| Ports & interfaces |
|---|
| Built-in USB hub |
Yes |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Number of USB Type-C upstream ports quantity |
1 |
| USB Type-A downstream ports quantity |
3 |
| USB Type-C downstream ports quantity |
1 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
15 W |
| HDMI |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
2.0 |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.4 |
| Headphone out |
Yes |
| Headphone outputs |
1 |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Wall mountable |
Yes |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |

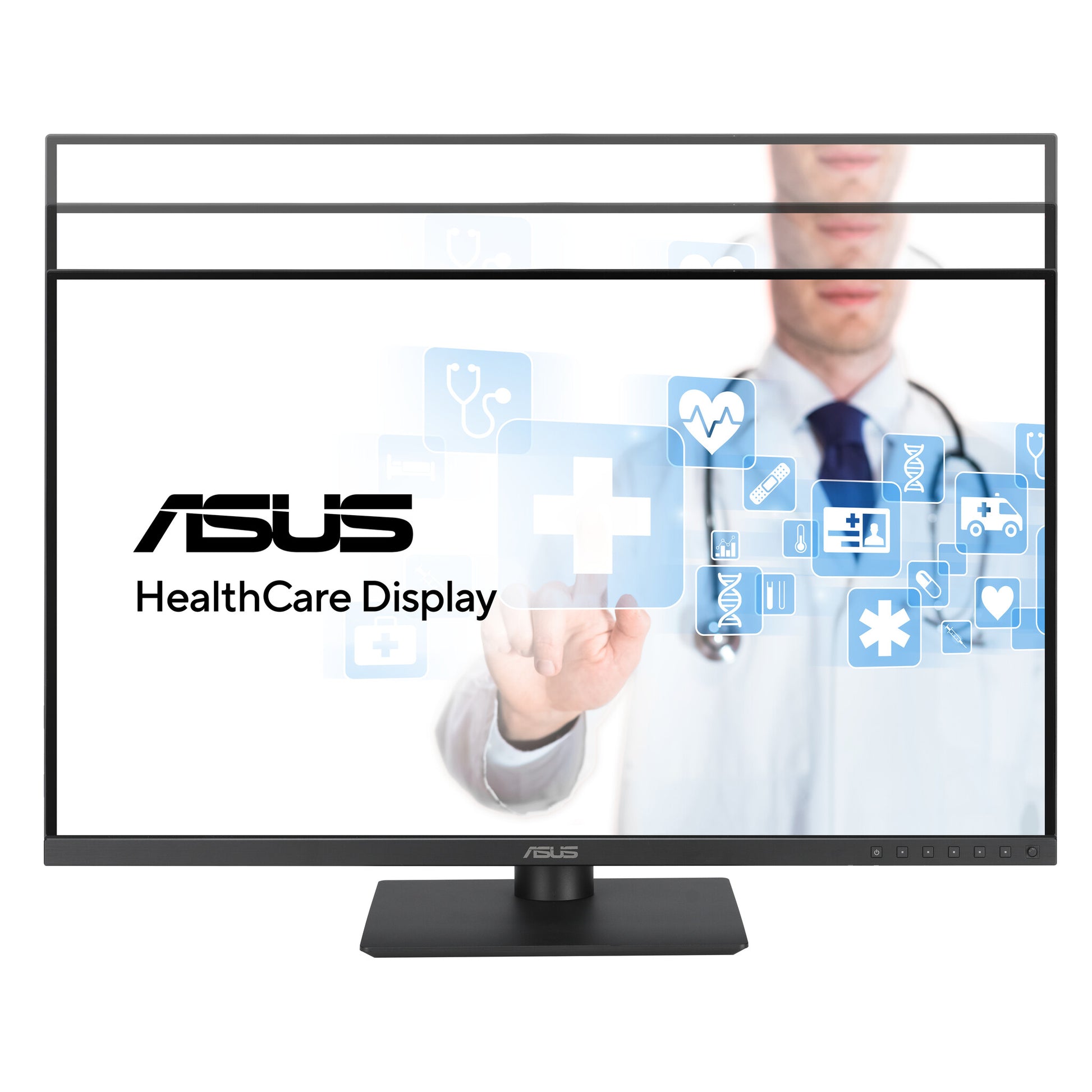

| Height adjustment |
Yes |
| Adjustable height (max) |
13 cm |

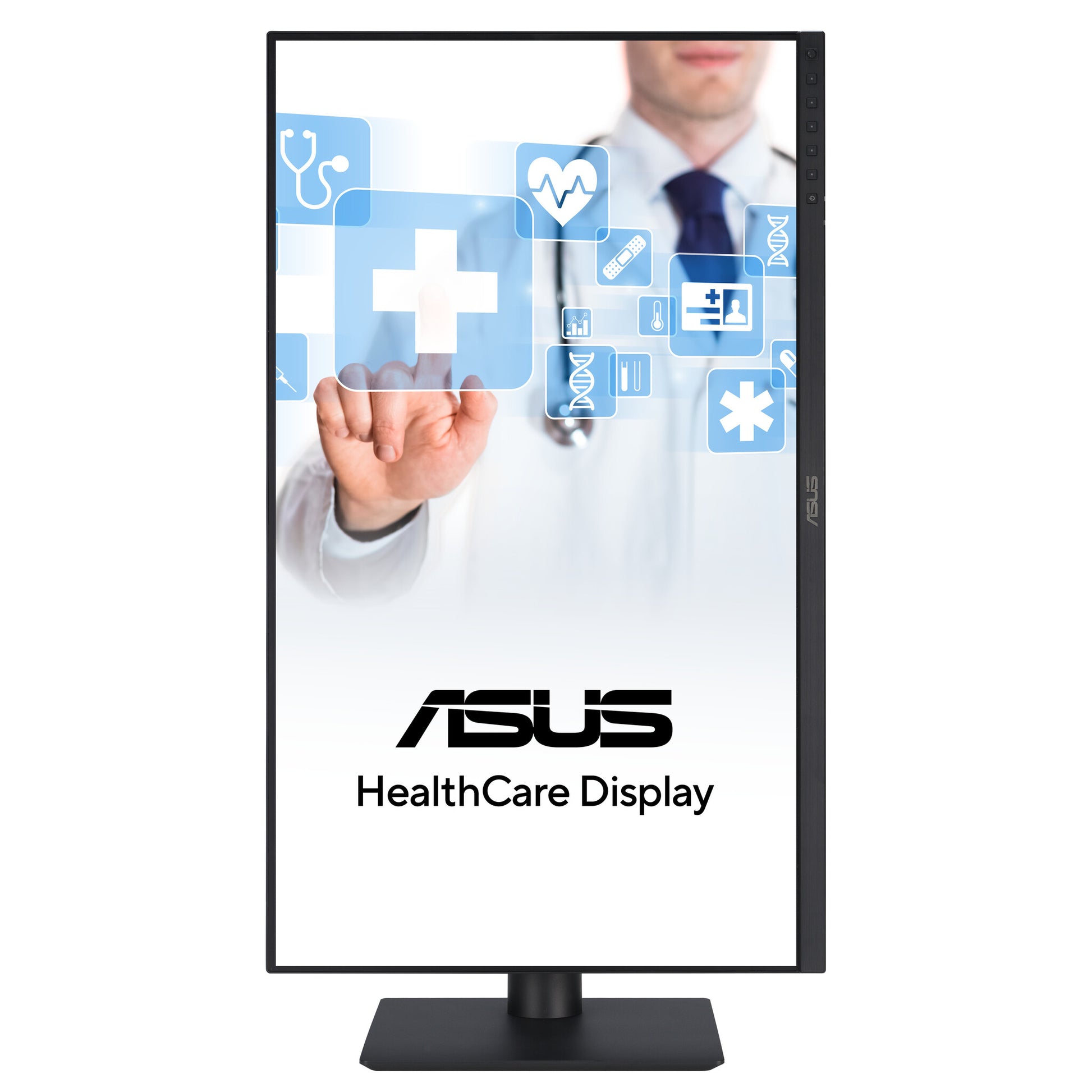

| Pivot |
Yes |
| Pivot angle |
-90 - 90° |
| Swivelling |
Yes |
| Swivel angle range |
-30 - 30° |
| Tilt adjustment |
Yes |
| Tilt angle range |
-5 - 23° |
| Power |
|---|
| Energy efficiency class (SDR) |
E |
| Energy efficiency class (HDR) |
G |
| Energy consumption (SDR) per 1000 hours |
17 kWh |
| Energy consumption (HDR) per 1000 hours |
25 kWh |
| Power consumption (typical) |
21.8 W |
| Power consumption (off) |
0.3 W |
| Power consumption (PowerSave) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Energy efficiency scale |
A to G |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width (with stand) |
539 mm |
| Depth (with stand) |
197 mm |
| Height (with stand) |
515 mm |
| Weight (with stand) |
5.4 kg |
| Width (without stand) |
539 mm |
| Depth (without stand) |
44 mm |
| Height (without stand) |
322 mm |
| Weight (without stand) |
3.7 kg |
| Packaging data |
|---|
| Package width |
620 mm |
| Package depth |
127 mm |
| Package height |
390 mm |
| Package weight |
8.2 kg |
| Package type |
Box |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, Forest Stewardship Council (FSC) Mix |
