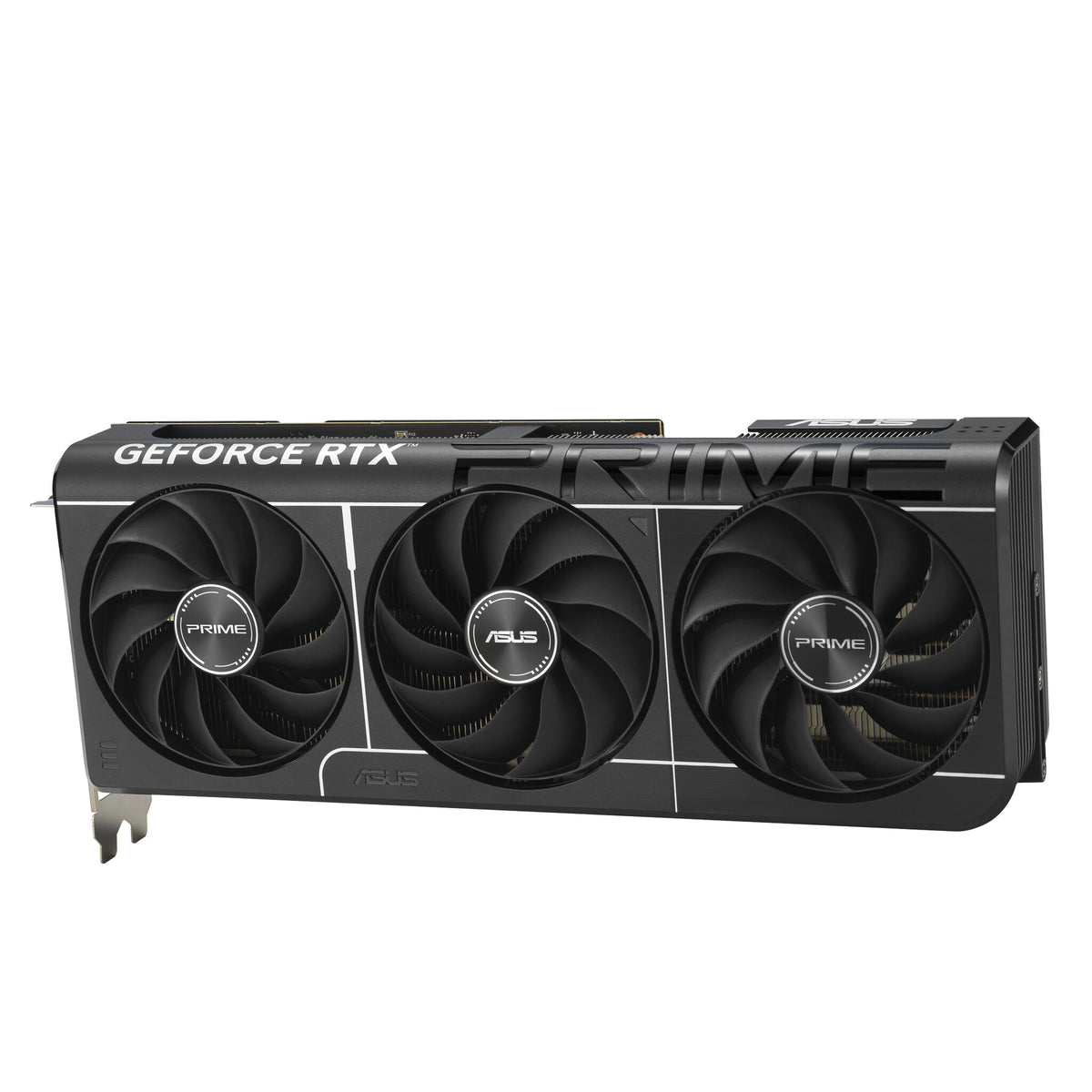

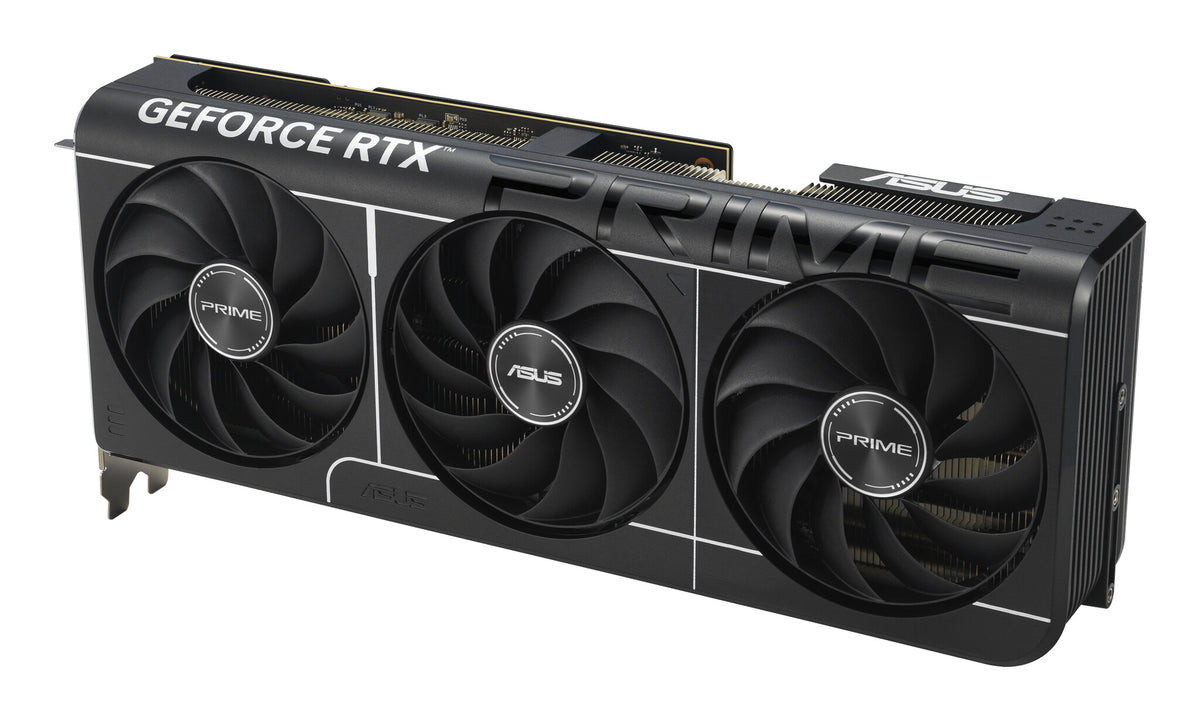

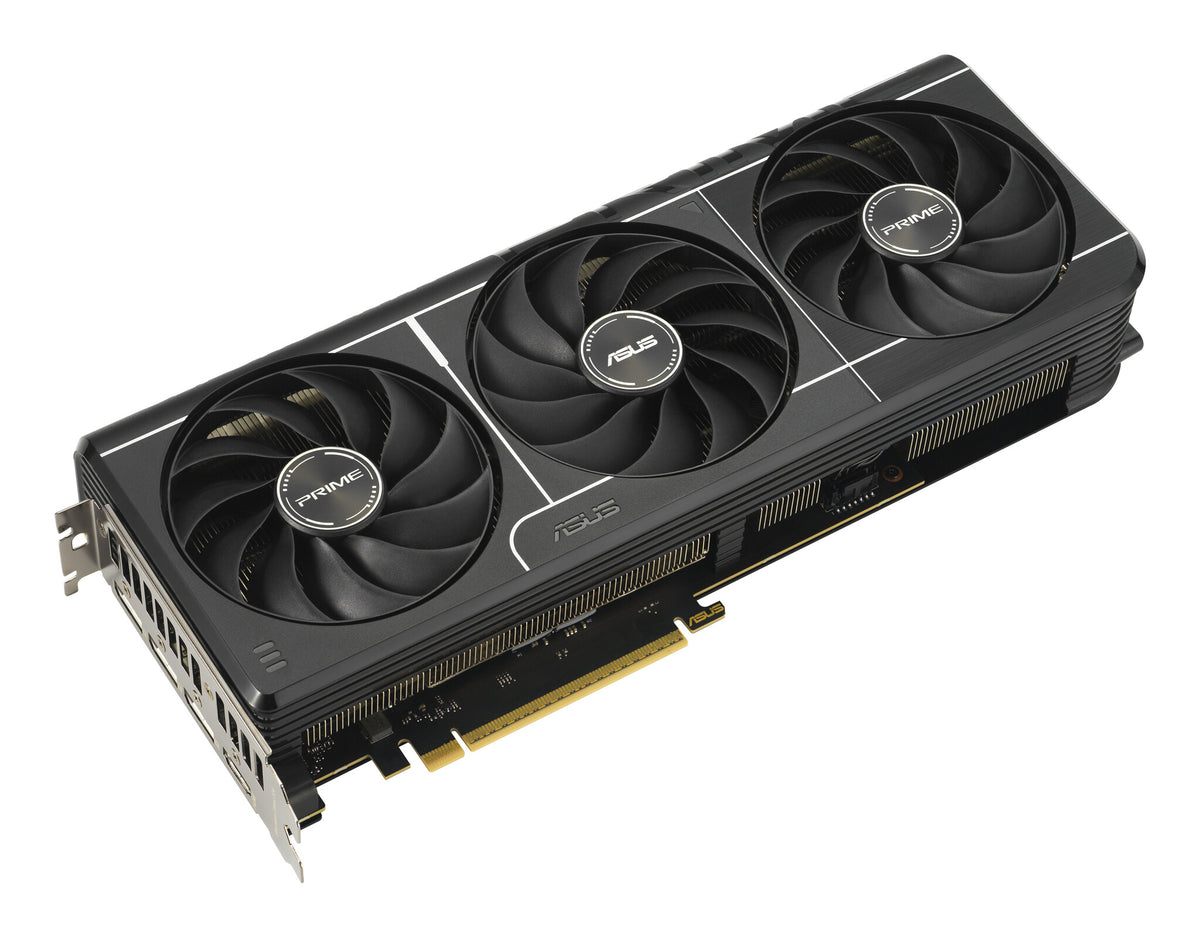

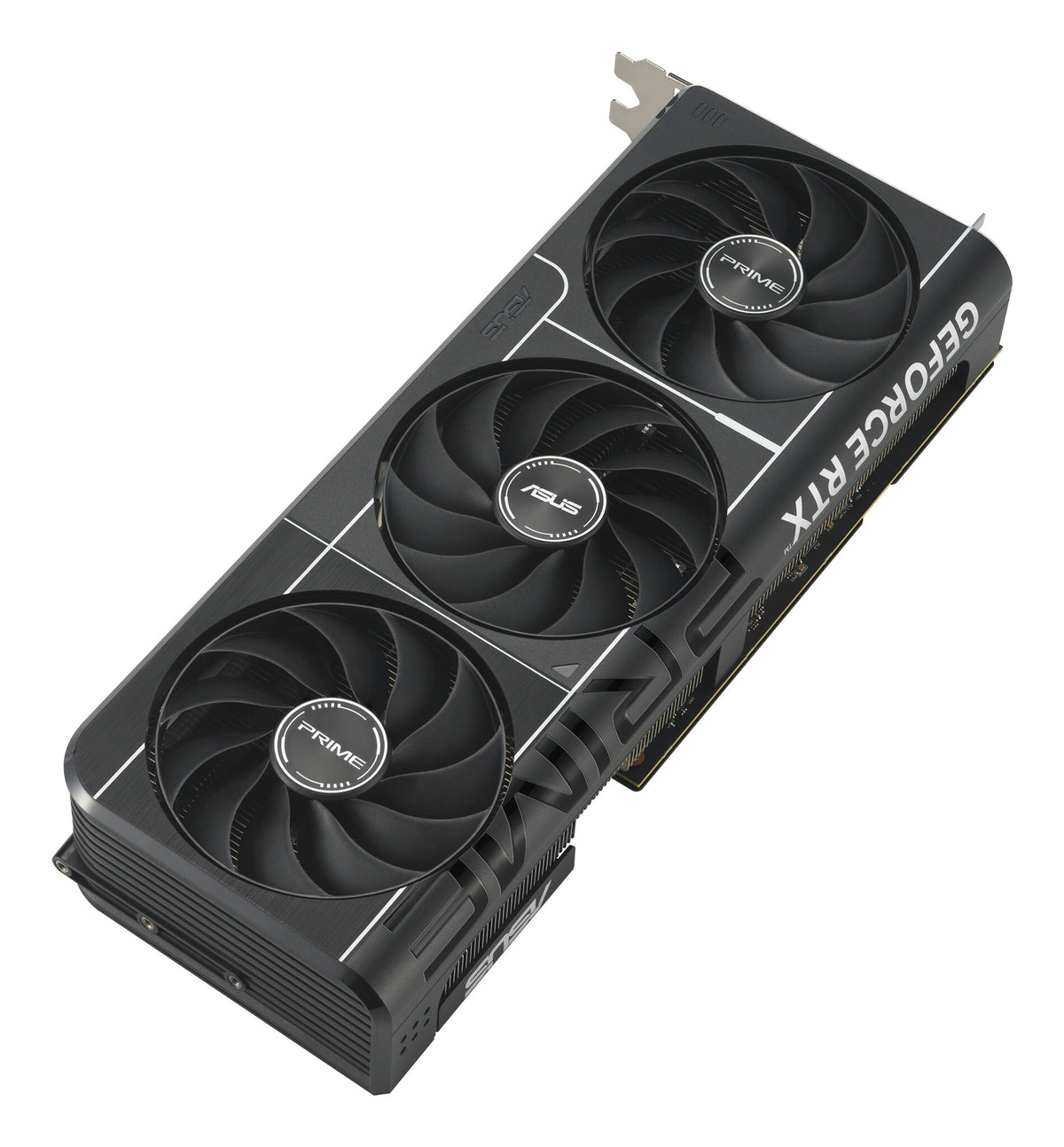

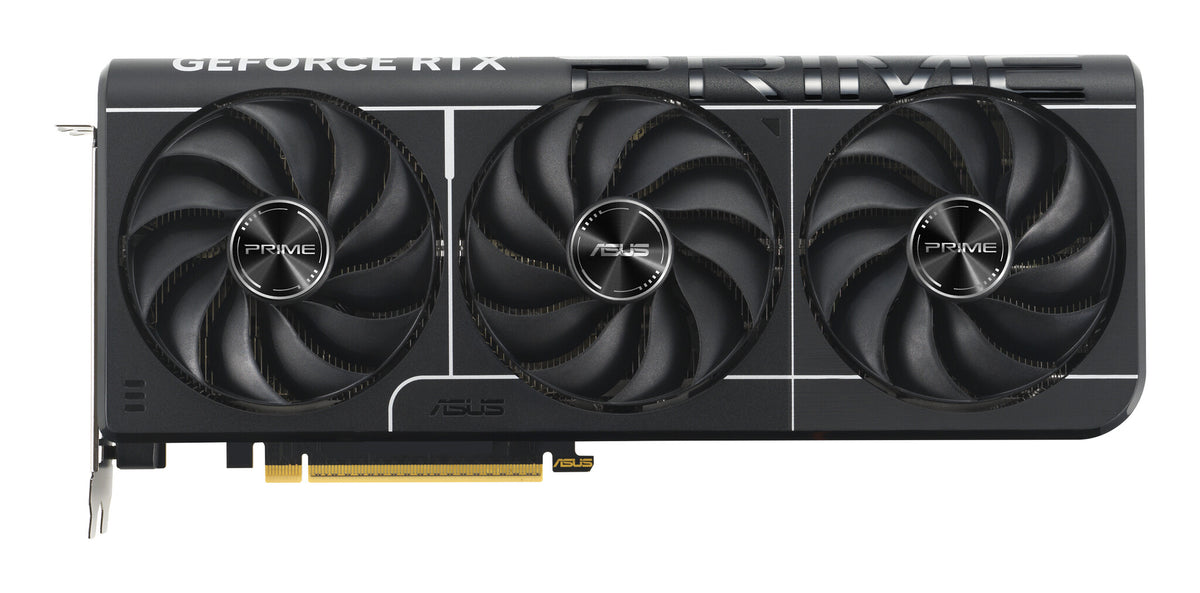

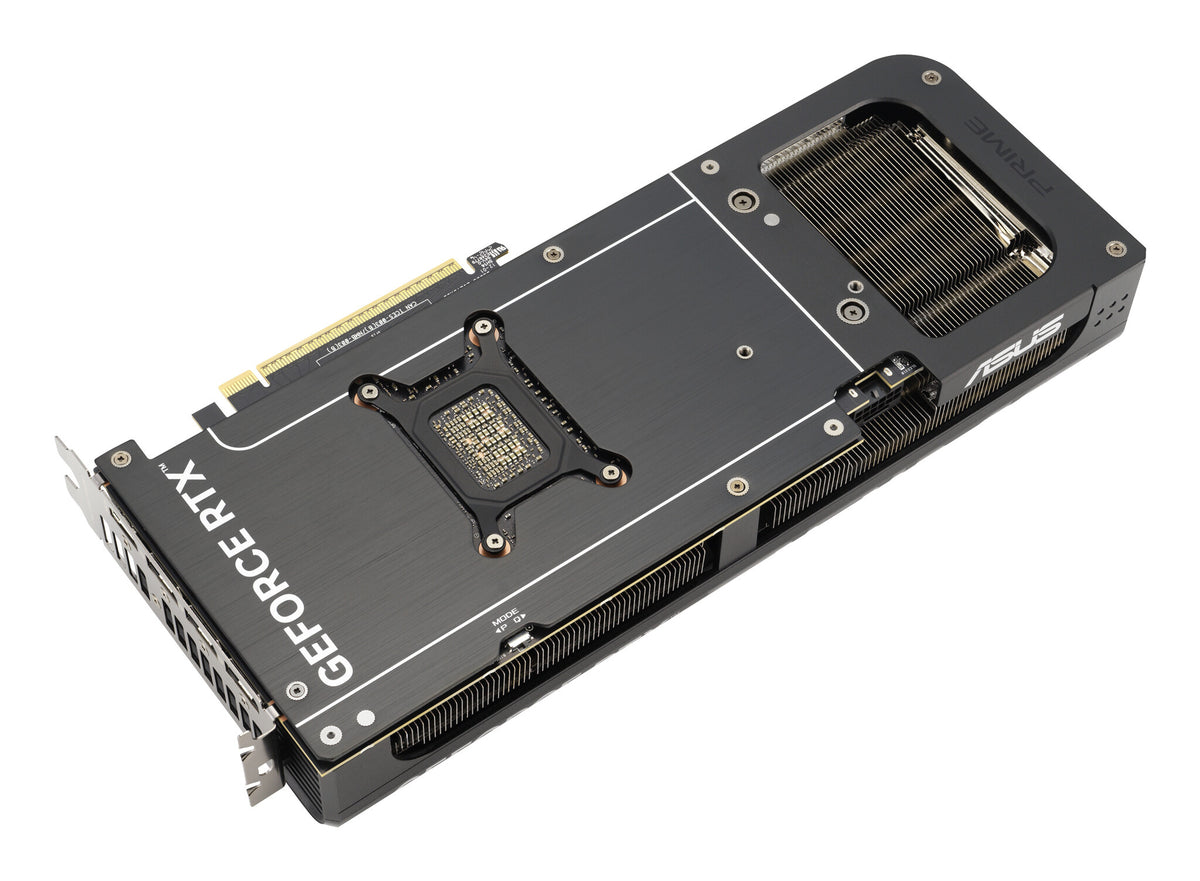

PRIME GeForce RTX 5080 EVO 16GB GDDR7 OC Edition
Primed for Power
Experience Primal performance with the PRIME GeForce RTX 5080 EVO, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow for supreme cooling.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Cooling
2.5-slot Design
The Prime GeForce RTX 5080 EVO features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Graphics processor |
GeForce RTX 5080 |
| Maximum resolution |
7680 x 4320 pixels |
| CUDA |
Yes |
| CUDA cores |
10752 |
| Processor boost clock speed |
2655 MHz |
| Processor frequency (OC mode) |
2685 MHz |
| Maximum displays per videocard |
4 |
| Parallel processing technology support |
Not supported |
| Memory |
|---|
| Discrete graphics card memory |
16 GB |
| Graphics card memory type |
GDDR7 |
| Memory bus |
256 bit |
| Data transfer rate |
30 Gbit/s |
| Ports & interfaces |
|---|
| Interface type |
PCI Express 5.0 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
3 |
| HDMI version |
2.1b |
| DisplayPort version |
2.1b |
| Performance |
|---|
| TV tuner integrated |
No |
| OpenGL version |
4.6 |
| HDCP version |
2.3 |
| HDCP |
Yes |
| Dual Link DVI |
No |
| NPU performance up to |
1801 TOPs |
| Overclocked (OC) edition |
Yes |
| Design |
|---|
| Cooling type |
Active |
| Cooling technology |
ASUS Axial-tech |
| Number of fans |
3 fan(s) |
| Bracket height |
Full-Height (FH) |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Number of slots |
2.5 |
| SFF ready |
Yes |
| Illumination |
No |
| Product colour |
Black |
| Power |
|---|
| Minimum system power supply |
850 W |
| Supplementary power connectors |
1x 16-pin |
| Weight & dimensions |
|---|
| Weight |
1.34 kg |
| Length |
304 mm |
| Height |
126 mm |
| Depth |
50 mm |
| Packaging data |
|---|
| Package width |
405 mm |
| Package depth |
233 mm |
| Package height |
88.5 mm |
| Package weight |
1.99 kg |
| Package type |
Box |
| Packaging content |
|---|
| Manual |
Yes |
| General |
|---|
| Product family |
Prime |
