ATX/Micro-ATX/Mini-ITX, 2x USB 3.0, 1x USB 3.2 Gen 2 Type-C, 1x Headphone/Microphone
270° Panoramic View
Experience a seamless view unobstructed by a front pillar, offering an unparalleled visual display of the internal components and ensuring your build shines from every angle.
ROBUST THERMAL DESIGN

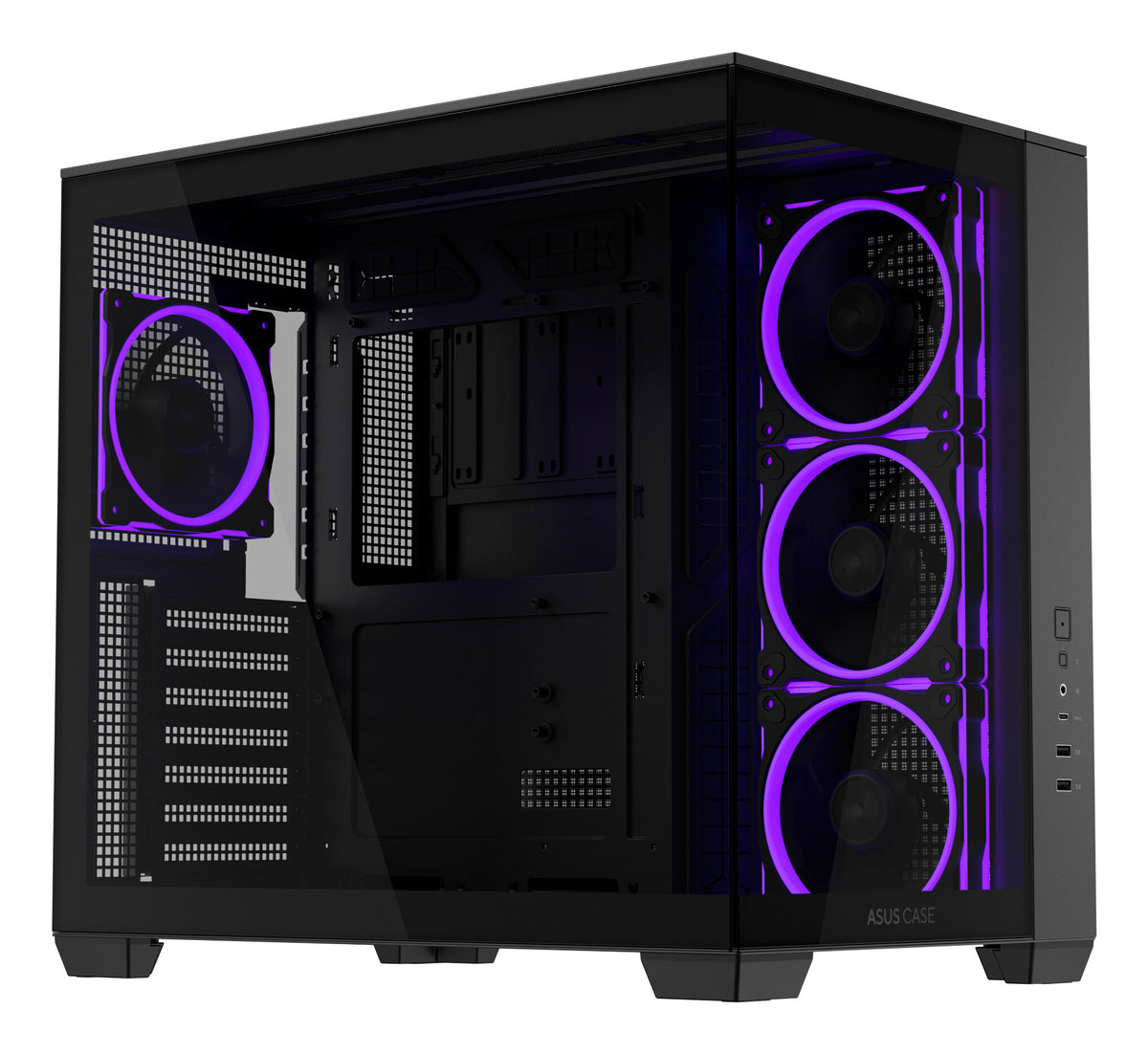

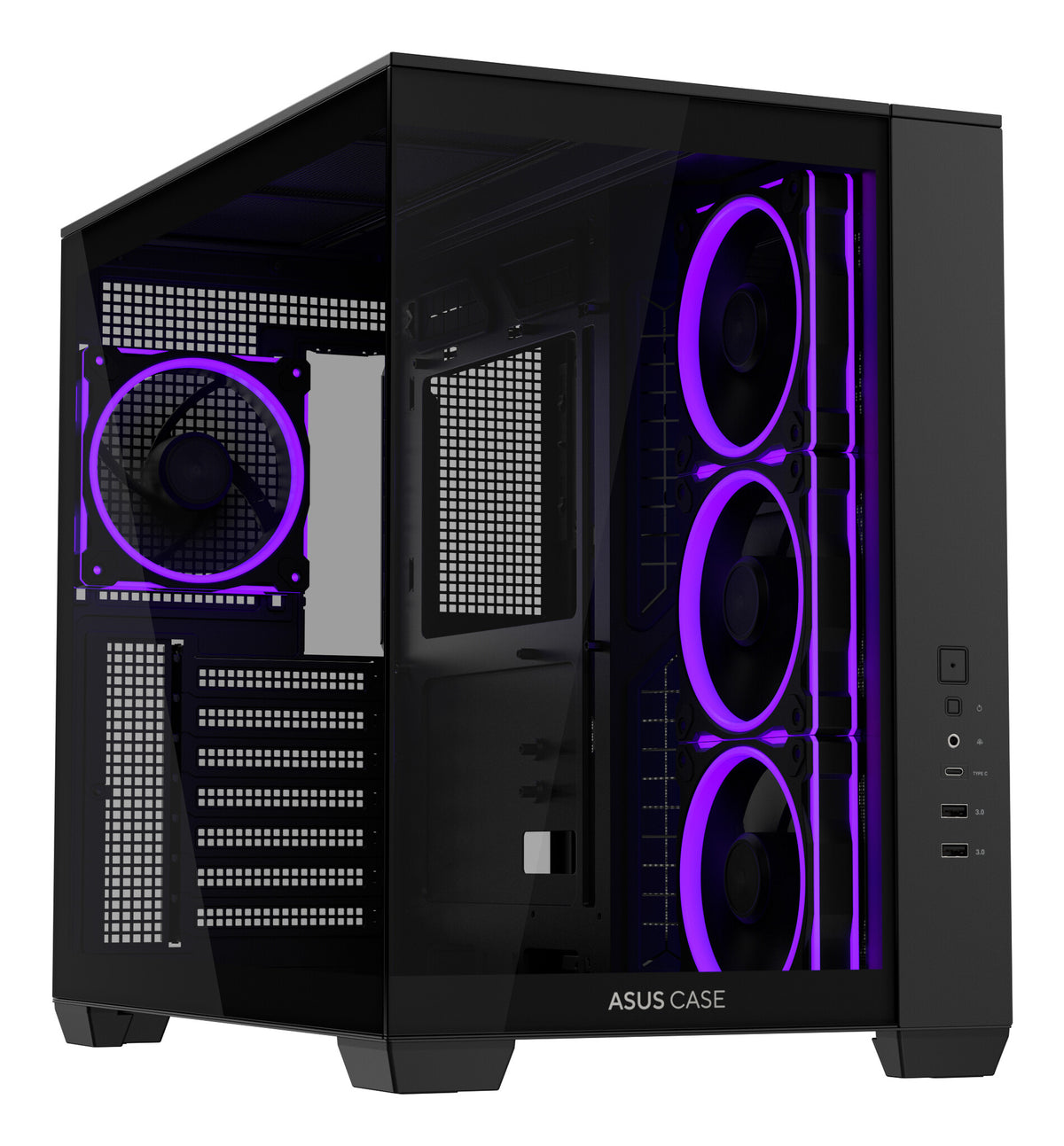

Four pre-installed ARGB fans
The A32 PLUS chassis is engineered for optimal cooling, with four ARGB fans pre-installed—three reverse- blade models and one standard model—and support for six more. Optimally located side panel grilles also facilitate high-volume airflow.
Broad Compatibility
A32 PLUS supports radiators up to 360mm long, graphics cards up to 420mm long, CPU air coolers up to 165mm tall, ATX power supplies up to 220mm long, and up to ten 120mm fans, giving builders plenty of options to assemble their next PC.
Front Panel USB Type-C
The A32 PLUS front I/O panel features a USB 10Gbps Type-C® port for transfer speeds up to 10Gbps, in addition to two USB-A ports.
Easy Way To Detach Side Panels
The side panels use an intuitive mechanism to open effortlessly. This user-friendly design ensures quick accessibility.
Silicone Cable Grommet For Easy Cable Management And Aesthetics
High-quality silicone grommets help organize wires, enhance durability and create an aesthetically pleasing interior.
User-Friendly Storage Support
The A32 PLUS features a removable drive cage to enhance storage flexibility. The cage supports up to two 3.5-inch or three 2.5-inch drives.
Color-Coordinated Builds
The two colorways of the A32 PLUS have matching black or white internal I/O cables to complement any build theme.
| Design |
|---|
| Form factor |
Midi Tower |
| Type |
PC |
| Material |
Metal |
| Product colour |
Black |
| Supported motherboard form factors |
ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
3 |
| Side window |
Yes |
| Suitable for |
Gaming |
| Illumination |
Yes |
| Illumination colour |
Multi |
| Illumination location |
Case fans |
| Tempered glass panel(s) |
Yes |
| Anti-dust filter |
Yes |
| Cable management |
Yes |
| On/off button |
Yes |
| Reset button |
Yes |
| Maximum CPU cooler height |
16.5 cm |
| Maximum graphics card length |
42 cm |
| Maximum PSU length |
22 cm |
| Power supply |
|---|
| Power supply included |
No |
| Supported power supply form factors |
ATX |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Combo headphone/mic port |
Yes |
| Cooling |
|---|
| Side fans installed |
3x 120 mm |
| Number of side fans supported (max) |
3 |
| Side fans diameters supported |
120 mm |
| Rear fans installed |
1x 120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120 mm |
| Number of top fans supported (max) |
3 |
| Top fans diameters supported |
120 mm |
| Liquid cooling capability |
Yes |
| Rear radiator sizes supported |
120 mm |
| Top radiator sizes supported |
120,240,360 mm |
| Pulse-width modulation (PWM) support |
Yes |
| Storage |
|---|
| Supported HDD sizes |
3.5" |
| SSD form factor |
2.5" |
| Packaging content |
|---|
| Manual |
Yes |
| Weight & dimensions |
|---|
| Width |
285 mm |
| Depth |
435 mm |
| Height |
390 mm |
| Weight |
7.6 kg |
| Packaging data |
|---|
| Package width |
505 mm |
| Package depth |
348 mm |
| Package height |
480 mm |
| Package weight |
9.2 kg |
