Screen size (inch) 23.8, Panel resolution 1920x1080, Max Refresh rate 144 Hz, Response time MPRT 0.5 ms, Panel type IPS, HDMI HDMI 1.4 x 1, D-SUB (VGA) 1x, Sync technology (VRR) Adaptive Sync

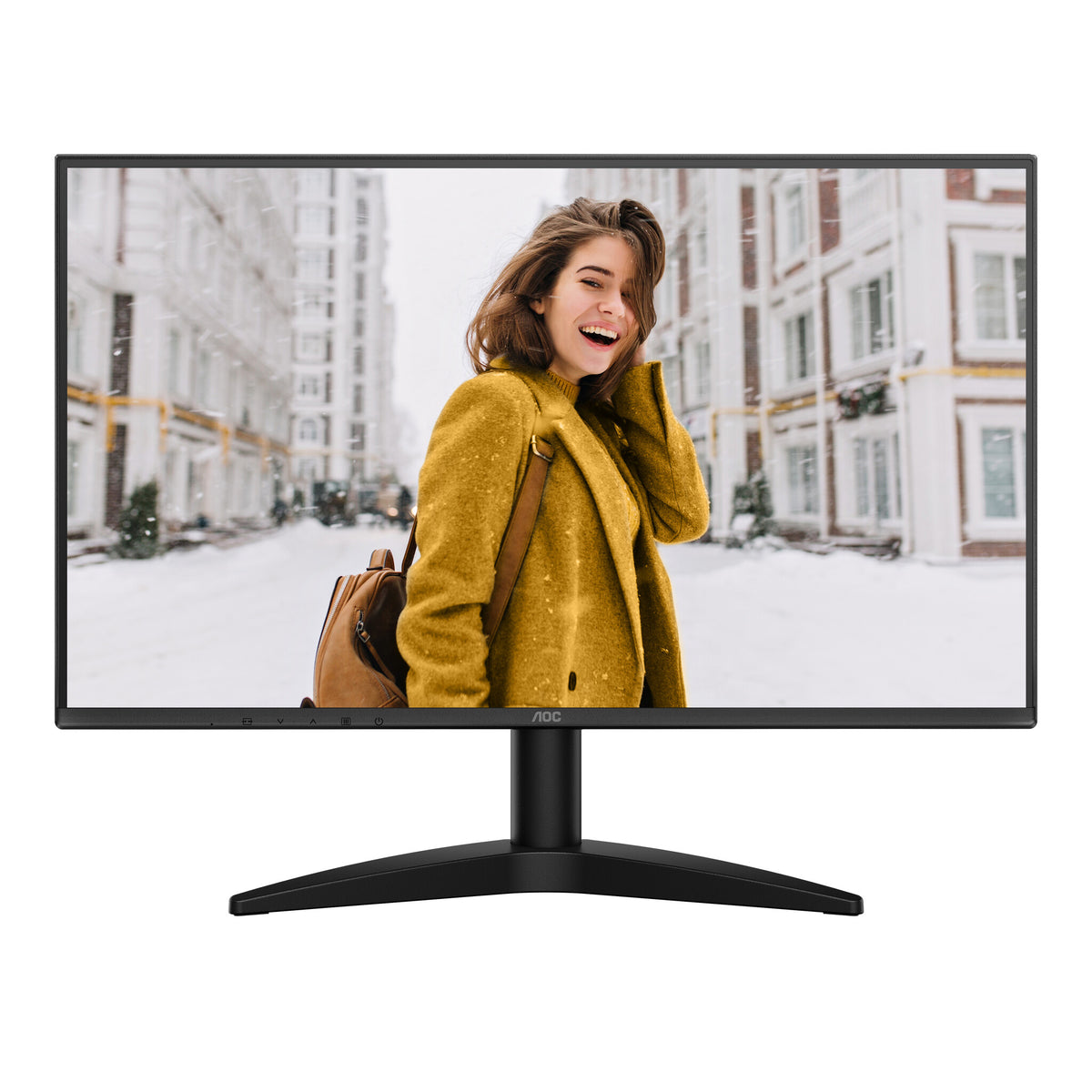

23.8" IPS FHD monitor with 144Hz smoothness and flexible connectivity for everyday work, study, and entertainment.
AOC 24B36XE combines sharp Full HD clarity, smooth 144Hz performance, and comfortable viewing in a clean, modern design. With 16.7 million colors, eye-care features, and flexible connectivity, it delivers a reliable everyday display for work, study, and entertainment.
| Display |
| Display diagonal |
60.5 cm (23.8") |
| Display resolution |
1920 x 1080 pixels |
| Native aspect ratio |
16:9 |
| Display technology |
LED |
| Touchscreen |
No |
| HD type |
Full HD |
| Panel type |
IPS |
| LED backlight |
Yes |
| Backlight type |
W-LED |
| Display brightness (typical) |
300 cd/m² |
| Response time |
4 ms |
| Response time measurement type |
GTG (Gray to Gray) |
| Response time (MPRT) |
0.5 ms |
| Anti-glare screen |
Yes |
| Screen shape |
Flat |
| Contrast ratio (typical) |
1500:1 |
| Maximum refresh rate |
144 Hz |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
16.7 million colours |
| Pixel pitch |
0.2745 x 0.2745 mm |
| Pixel density |
92.56 ppi |
| DDC/CI |
Yes |
| Haze rate |
25% |
| NTSC coverage (typical) |
85% |
| Colour gamut standard |
NTSC |
| Performance |
| VESA Adaptive Sync support |
Yes |
| Flicker-free technology |
Yes |
| Low Blue Light technology |
Yes |
| Multimedia |
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| Design |
| Market positioning |
Consumer |
| Product colour |
Black |
| Frameless design |
Yes |
| Front bezel colour |
Black |
| Certification |
RoHs compliant,FCC |
| Ports & interfaces |
| Built-in USB hub |
No |
| VGA (D-Sub) ports quantity |
1 |
| HDMI |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
1.4 |
| Headphone out |
No |
| Ergonomics |
| VESA mounting |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Cable lock slot |
Yes |
| Height adjustment |
No |
| Tilt adjustment |
Yes |
| Tilt angle range |
-5 - 23° |
| Plug and Play |
Yes |
| LED indicators |
Yes |
| Power |
| Energy efficiency class (SDR) |
Not available |
| Energy efficiency class (HDR) |
Not available |
| Power consumption (standby) |
0.3 W |
| Power consumption (off) |
0.3 W |
| Power supply type |
External |
| Weight & dimensions |
| Width (with stand) |
544 mm |
| Depth (with stand) |
198 mm |
| Height (with stand) |
413.8 mm |
| Weight (with stand) |
2.5 kg |
| Width (without stand) |
544 mm |
| Depth (without stand) |
34.7 mm |
| Height (without stand) |
318.5 mm |
| Weight (without stand) |
2.21 kg |
| Packaging data |
| Package width |
610 mm |
| Package depth |
124 mm |
| Package height |
378 mm |
| Package weight |
4.24 kg |
| Package type |
Box |
| Technical details |
| Compliance certificates |
CE |
| Other features |
| Bezel thickness type |
Frameless |
| Mean time between failures (MTBF) |
30000 h |
