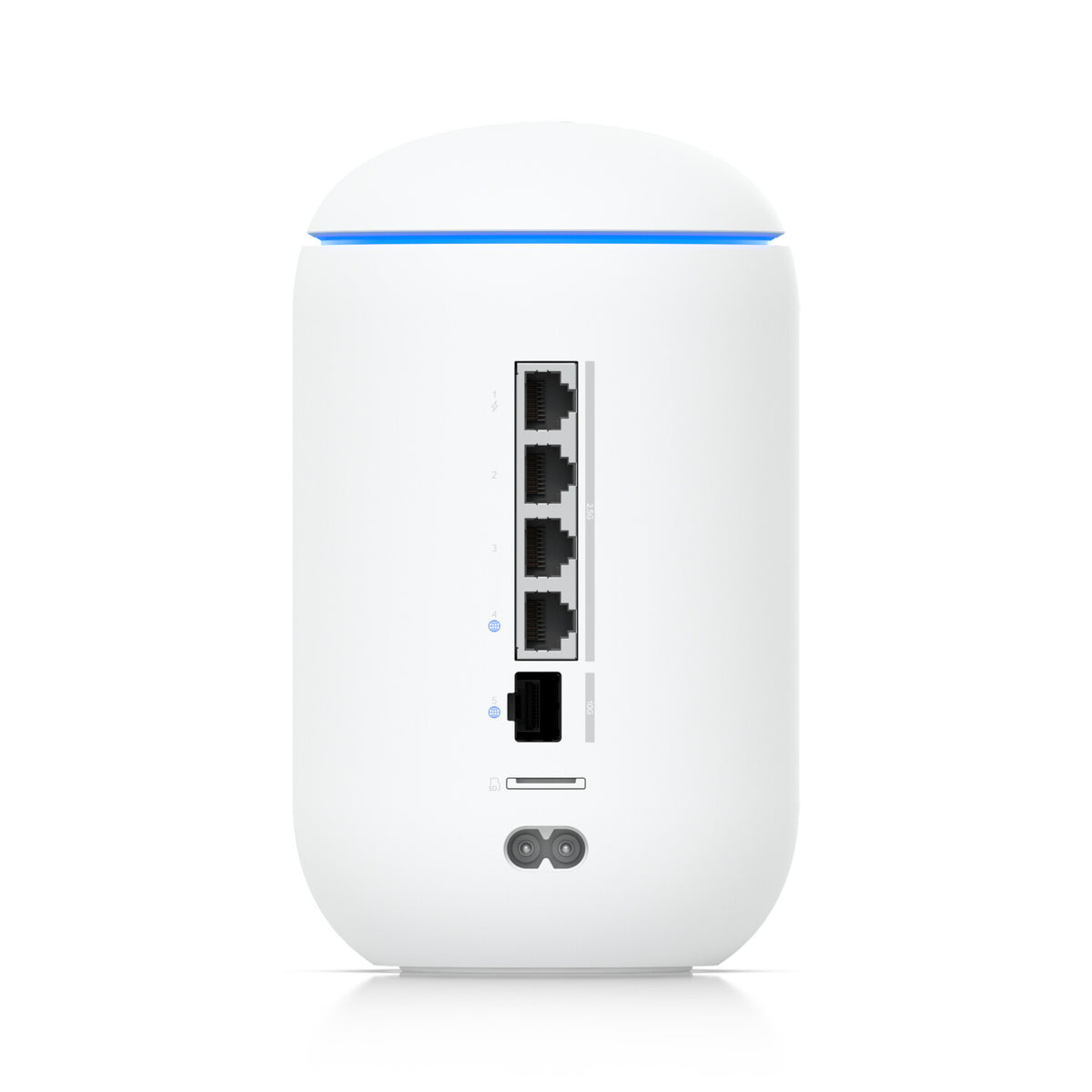

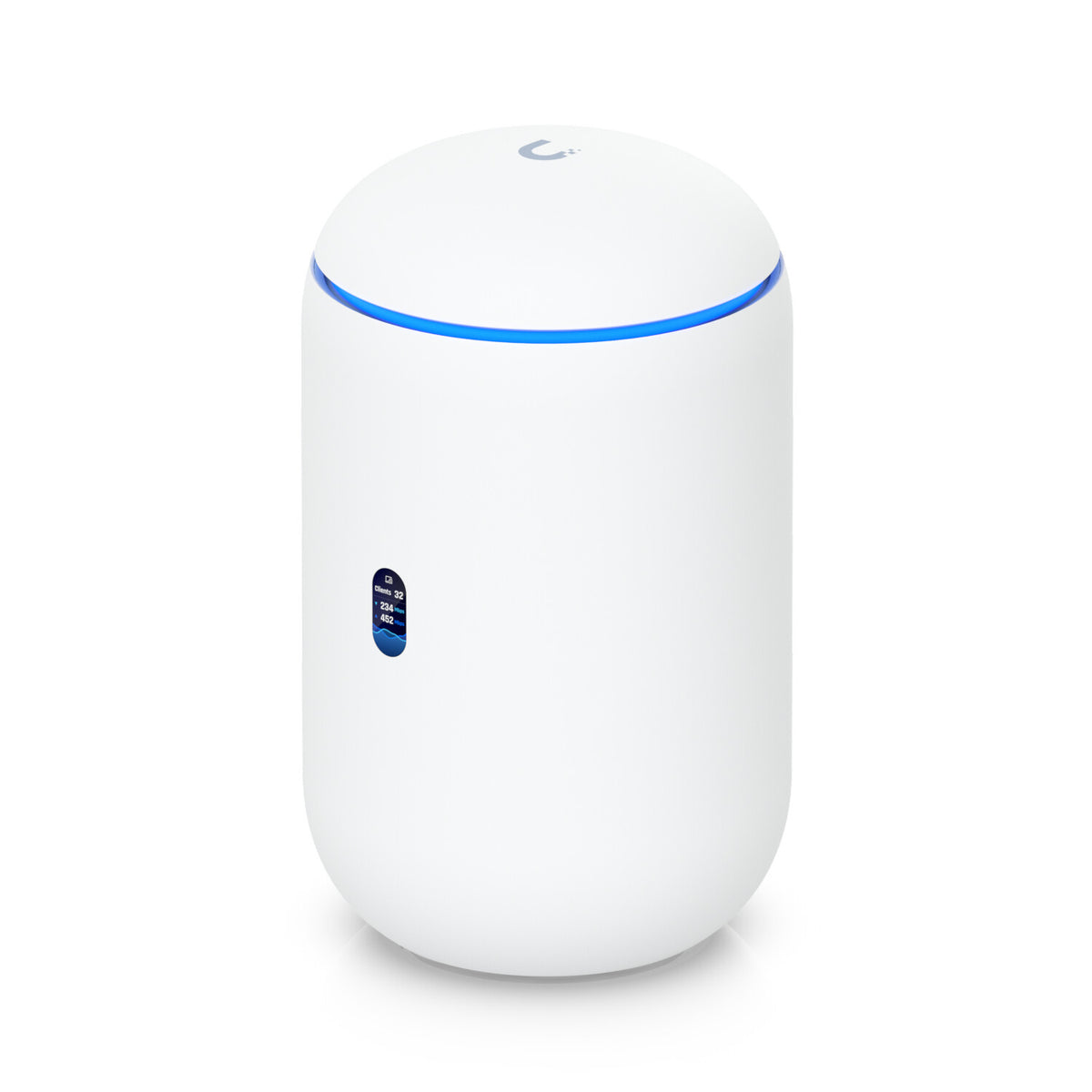

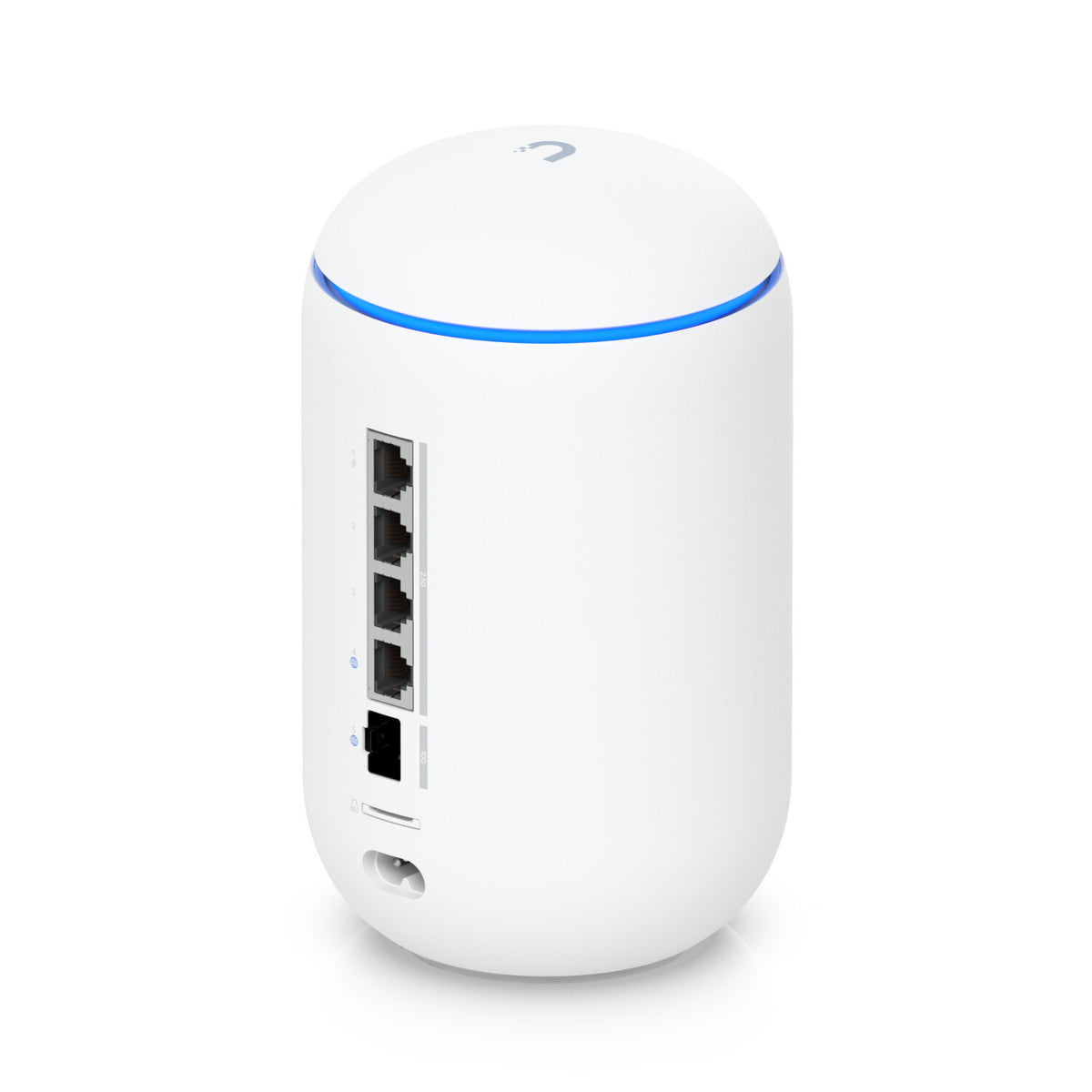

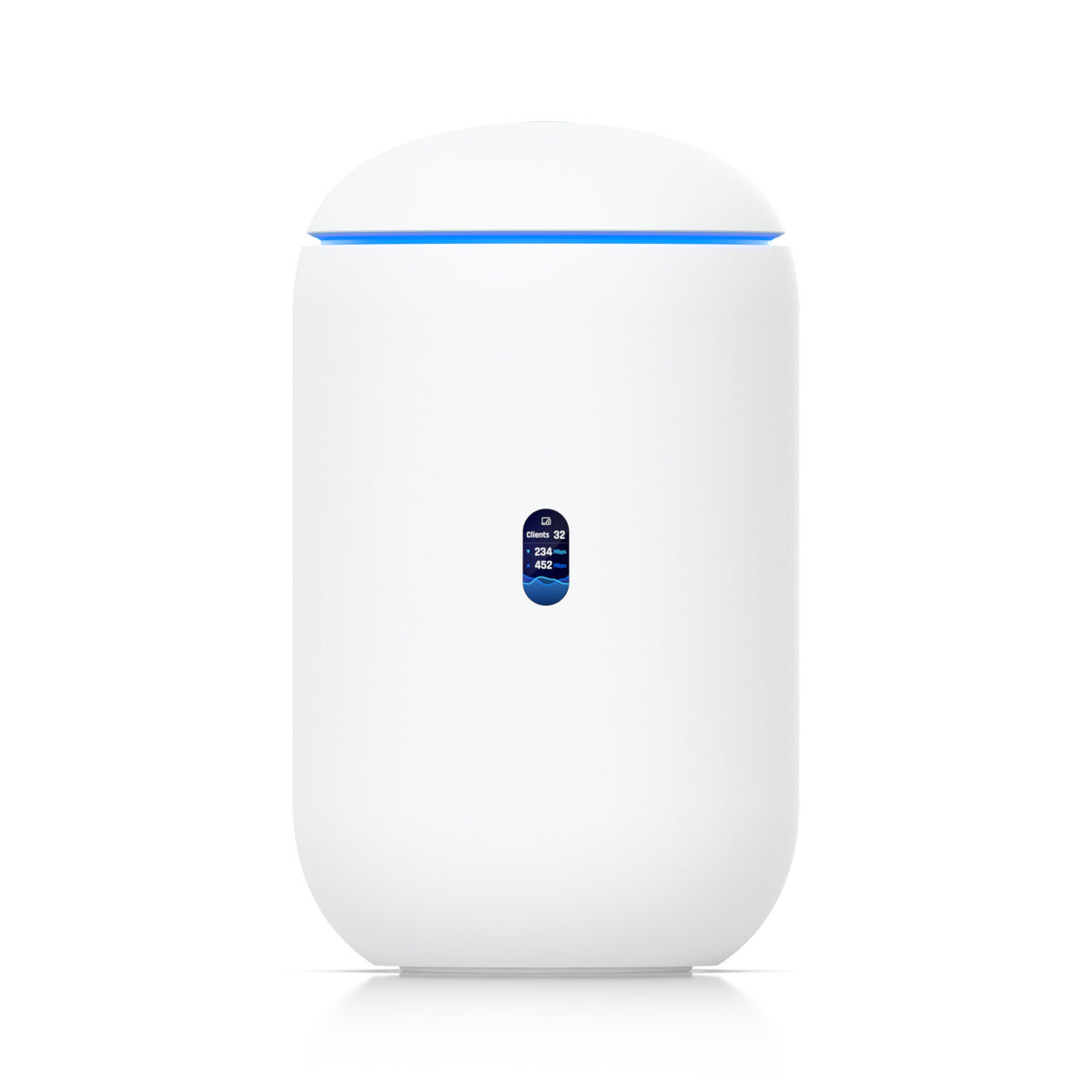

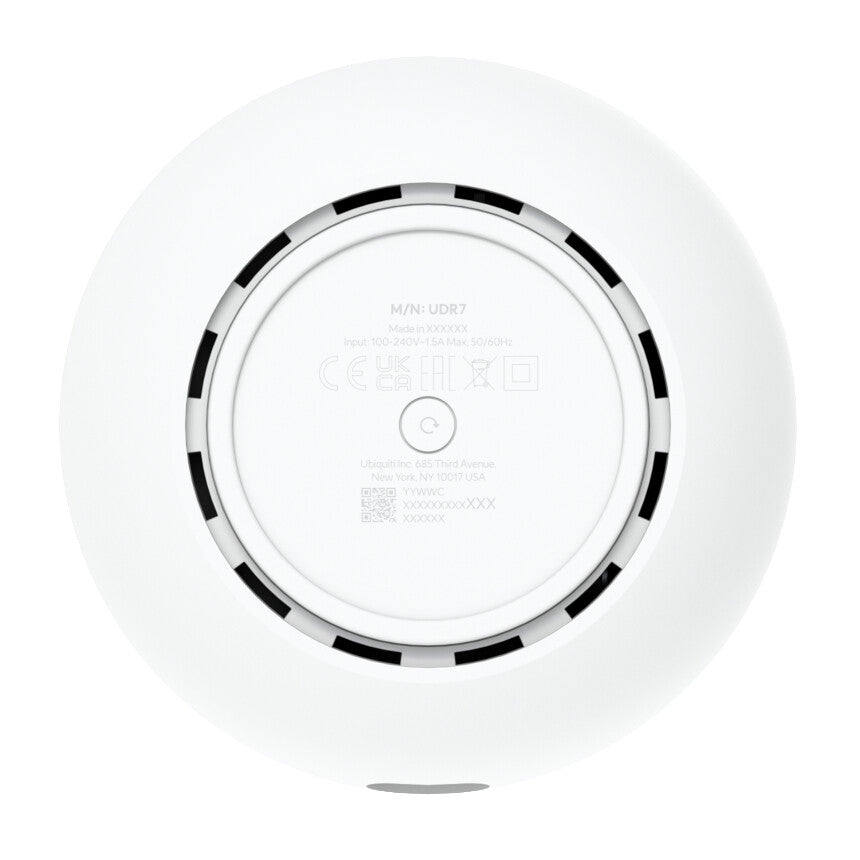

UDR7 (15W), 10G SFP+, 2.5 GbE RJ45, 3x 2.5 GbE RJ45 including (1) PoE, 160 m² (1,750 ft²), WiFi 7, PoE, microSD
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| Wireless LAN features |
|---|
| Wi-Fi band |
Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) |
5700 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) |
688 Mbit/s |
| WLAN data transfer rate (second band) |
4300 Mbit/s |
| WLAN data transfer rate (third band) |
5700 Mbit/s |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN data rates |
2500 Mbit/s |
| Networking standards |
IEEE 802.1Q |
| Multicast support |
Yes |
| Load balancing system |
Yes |
| Policy-based routing |
Yes |
| Maximum coverage |
160 m² |
| VPN server |
Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP |
| Maximum Tx power (5 GHz) |
26 dBmW |
| Maximum Tx power (2.4 GHz) |
23 dBmW |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
4 |
| USB port |
No |
| Memory card slot(s) |
Yes |
| Compatible memory cards |
MicroSD (TransFlash) |
| Fiber optic connector |
SFP+ |
| Management features |
|---|
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Reset button |
Yes |
| MIMO |
Yes |
| MU-MIMO technology |
Yes |
| Security |
|---|
| Security algorithms |
PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Firewall |
Yes |
| Filtering |
Yes |
| MAC address table |
2000 entries |
| Protocols |
|---|
| DHCP server |
Yes |
| Routing protocols |
OSPF |
| Design |
|---|
| Product type |
Tabletop router |
| Product colour |
White |
| Housing material |
Polycarbonate (PC) |
| LED indicators |
Status |
| Display type |
LCM |
| Built-in display |
Yes |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |

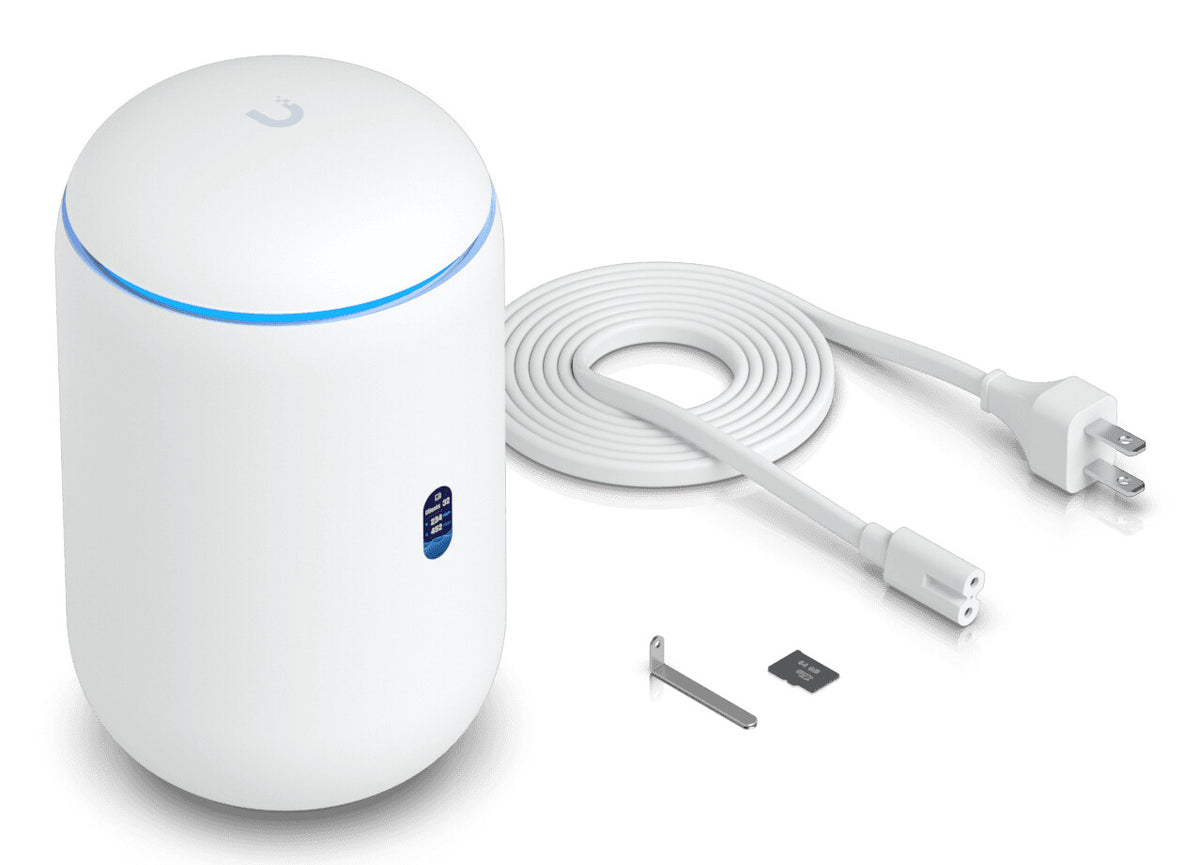

| Packaging content |
|---|
| Cables included |
AC |
| Manual |
Yes |
| Antenna |
|---|
| Antenna design |
Internal |
| Antenna gain level (max) |
7 dBi |
| Features |
|---|
| Built-in processor |
Yes |
| Processor architecture |
ARM Cortex-A53 |
| Processor frequency |
1500 MHz |
| Processor cores |
4 |
| Internal memory |
3000 MB |
| Number of simultaneously connected devices (max) |
300 |
| Bluetooth |
Yes |
| Power |
|---|
| Power source type |
AC, PoE |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (typical) |
26 W |
| Power supply |
50 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) voltage |
57 V |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-10 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
1.1 kg |
| Height |
184.1 mm |
| Depth |
110 mm |
| Width |
110 mm |
| Packaging data |
|---|
| Number of products included |
1 pc(s) |
