NanoStation AC Loco, 10/100/1000 Mbps Ethernet Port, Atheros MIPS 74Kc, 560 MHz, 64 MB DDR2, 179 x 77.5 x 59.1 mm
The indoor/outdoor NanoStation® AC and NanoStation AC loco are compact, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management.

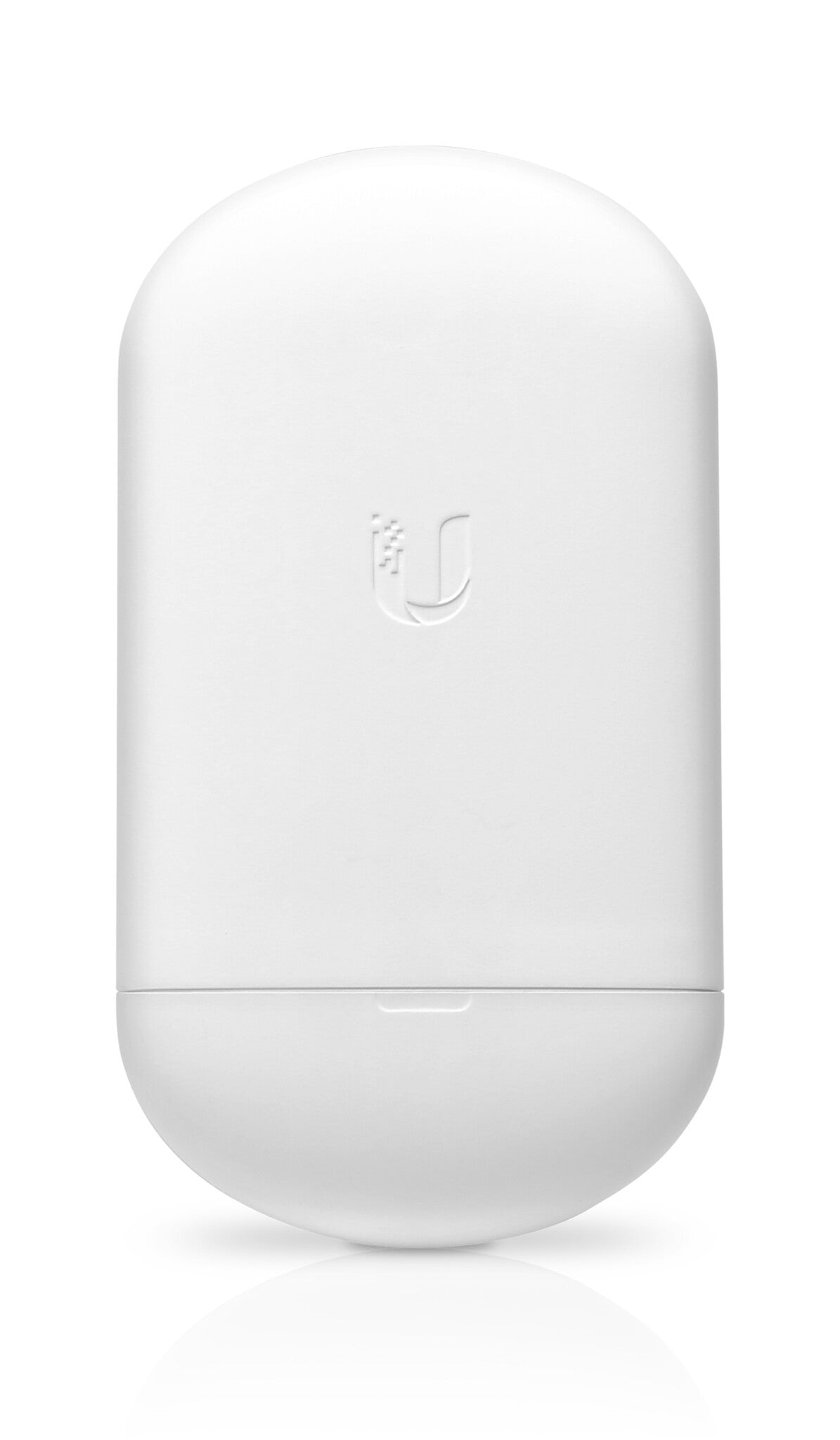

Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

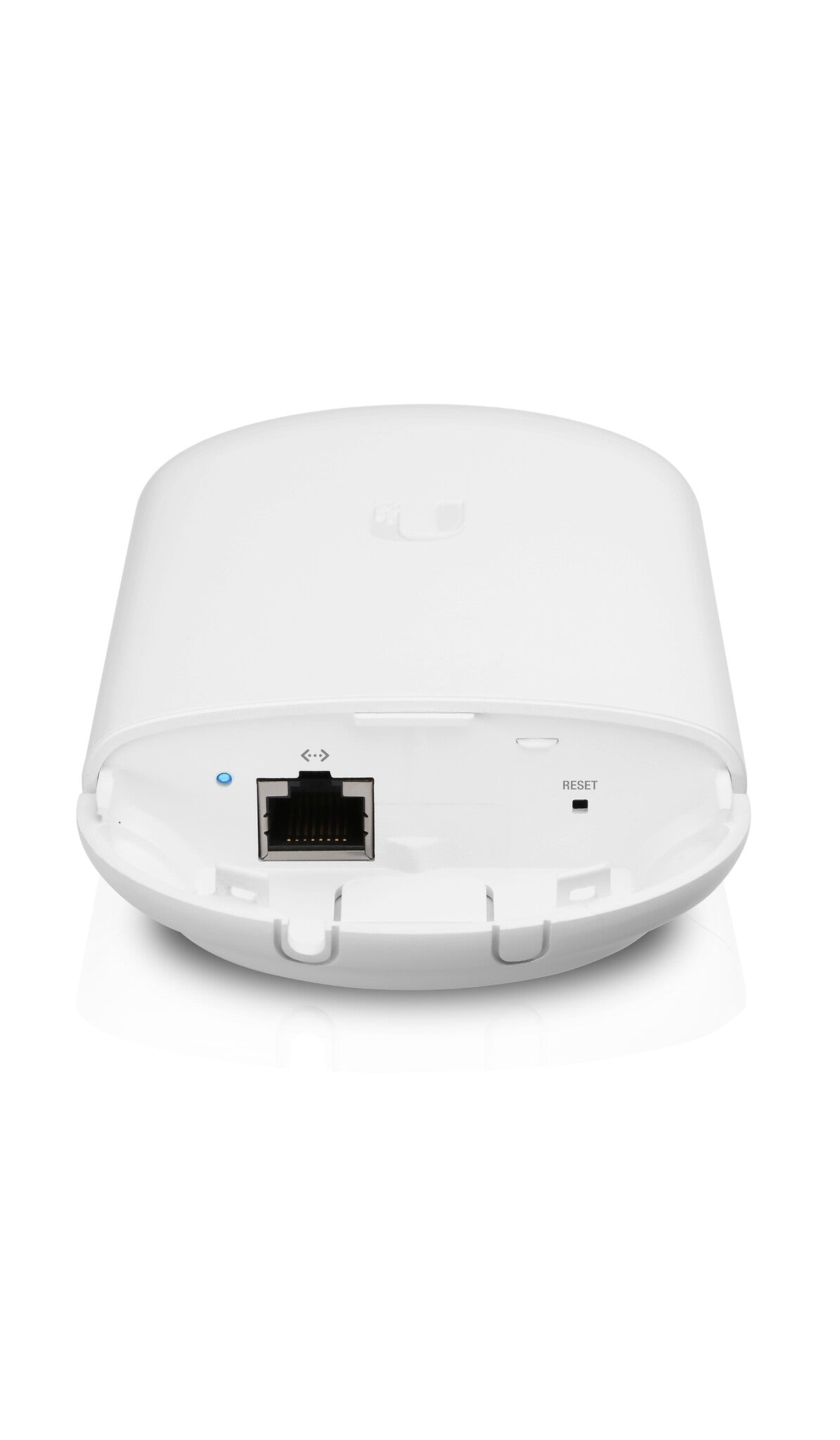

Dual Ethernet Connectivity
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
| Features |
|---|
| 5 GHz |
Yes |
| Maximum data transfer rate |
1000 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Throughput data rate |
450 Mbit/s |
| Frequency band |
5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.725, 5.725 - 5.850 GHz |
| Modulation |
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Maximum outdoor range |
10000 m |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| AC input voltage |
24 V |
| Input current |
0.5 A |
| Design |
|---|
| Placement |
Ceiling |
| Product colour |
White |
| LED indicators |
Network, Power, Signal strength |
| Certification |
CE, FCC, IC |
| Antenna |
|---|
| Antenna type |
Internal |
| Performance |
|---|
| Built-in processor |
Yes |
| Internal memory |
64 MB |
| Operating system installed |
AirOS |
| Weight & dimensions |
|---|
| Width |
179 mm |
| Depth |
77.5 mm |
| Height |
59.1 mm |
| Weight |
180 g |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-40 - 70 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
