-30-60 °C, 78 × 70 × 174 mm, 1 RJ45, 2560x1440, DWDR, IP66, 30 m, M12, 4 mm, F1.6, 1/3”, CMOS, 12V, DC

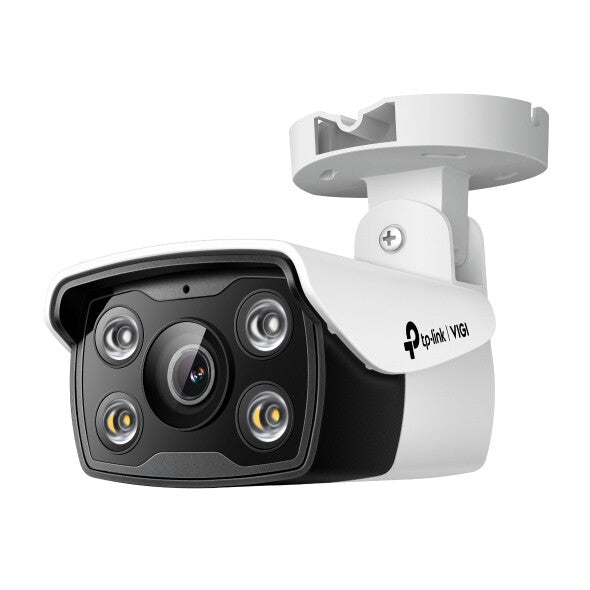

VIGI 4MP Outdoor Full-Colour Bullet Network Camera
All The Colors, All The Time
4MP Outdoor Full-Colour Bullet Network Camera
Outdoor PoE Connection, Simple Wiring
Just connect your camera via an RJ45 cable, and then the power supply and data transmission are all settled. Waterproof hardware protects stable performance in outdoor scenarios.
Clarity and Colors, All in One
Monitor 24-hour clear and colourful details even on pitch night. VIGI’s Full-Color camera provides maximum 4MP resolutions and ensures colourful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
Motion Detection
Get instant notifications when your camera detects motion.
Area Intrusion
Set customized activity zones around key areas for more focused monitoring.
Line-Crossing
Set a boundary and receive an alert anytime a person crosses it from either or both directions.
Camera Tampering
Receive alerts when someone obstructs the camera.
Active Defense
Warn and expel potential intruders instantly with sound and light alarms when abnormal events are detected.
Every Event is Under Your Control.
VIGI camera intelligently detects activities, inform you instantly and responds automatically by smart detection and two-way audio.
Never miss a detail.
SmartVid-Smart Video Enhancement
Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Flexible Management and Storage
Take full control over your security via three management methods, VIGI NVR, App, and Security Manager. Local storage is available for each method, as well as onboard storage with an SD card slot.
Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Flexible Installation
Find the perfect vantage point by simply securing your camera to the ceiling, pole or wall
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
| Performance |
|---|
| Certification |
CE, RCM, BSMI, VCCI, RoHS, NTRA, KC |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
|---|
| International Protection (IP) code |
IP66 |
| Housing material |
Plastic |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Bullet |
| Camera |
|---|
| White balance |
Auto |
| Lens viewing angle, diagonal |
93° |
| Lens viewing angle, vertical |
43° |
| Lens viewing angle, horizontal |
79° |
| Minimum illumination |
0 lx |
| Image sensor |
|---|
| Optical sensor size |
25.4 / 3 mm (1 / 3") |
| Sensor type |
CMOS |
| Lens system |
|---|
| Maximum aperture number |
1.6 |
| Focal length range |
4 mm |
| Night vision |
|---|
| LED type |
IR |
| Night vision distance |
30 m |
| Night vision |
Yes |
| Video |
|---|
| Digital Wide Dynamic Range (DWDR) |
Yes |
| Image quality adjustment |
Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking |
Yes |
| Back Light Compensation (BLC) |
Yes |
| Noise reduction technology |
3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Video compression formats |
H.264, H.264+, H.265, H.265+ |
| Total megapixels |
4 MP |
| Maximum resolution |
2560 x 1440 pixels |
| Audio |
|---|
| Built-in microphone |
Yes |
| Audio system |
2-way |
| Built-in speaker(s) |
Yes |
| Network |
|---|
| Live view |
Yes |
| Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Mirror |
Yes |
| Video motion detection |
Yes |
| Password protection |
Yes |
| Management features |
|---|
| Reset button |
Yes |
| Power |
|---|
| DC output voltage |
12 |
| Power consumption (max) |
5.5 W |
| Power source type |
DC, PoC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 60 °C |
| Weight & dimensions |
|---|
| Weight |
195 g |
| Height |
780 mm |
| Depth |
174 mm |
| Width |
700 mm |
| Packaging content |
|---|
| Packaging content |
VIGI Network CameraQuick Start GuideWaterproof Cable AttachmentsMounting Accessories (Screws, Drywall Anchors, Hex Key) |
| Waterproof connector |
Yes |
| Manual |
Yes |
| Screws included |
Yes |
| Number of cameras |
1 |
