2.4GHz, 300Mbps, 12dBi, Outdoor, CPE, 64MB DDR2 RAM, 8MB eMMC, 802.11b/g/n, White

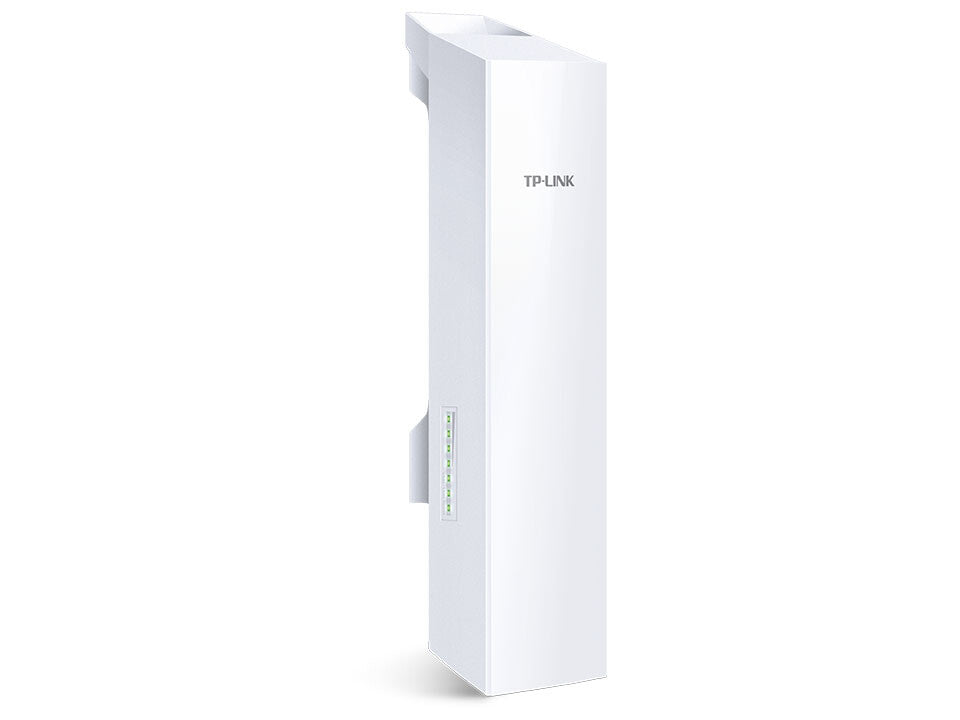

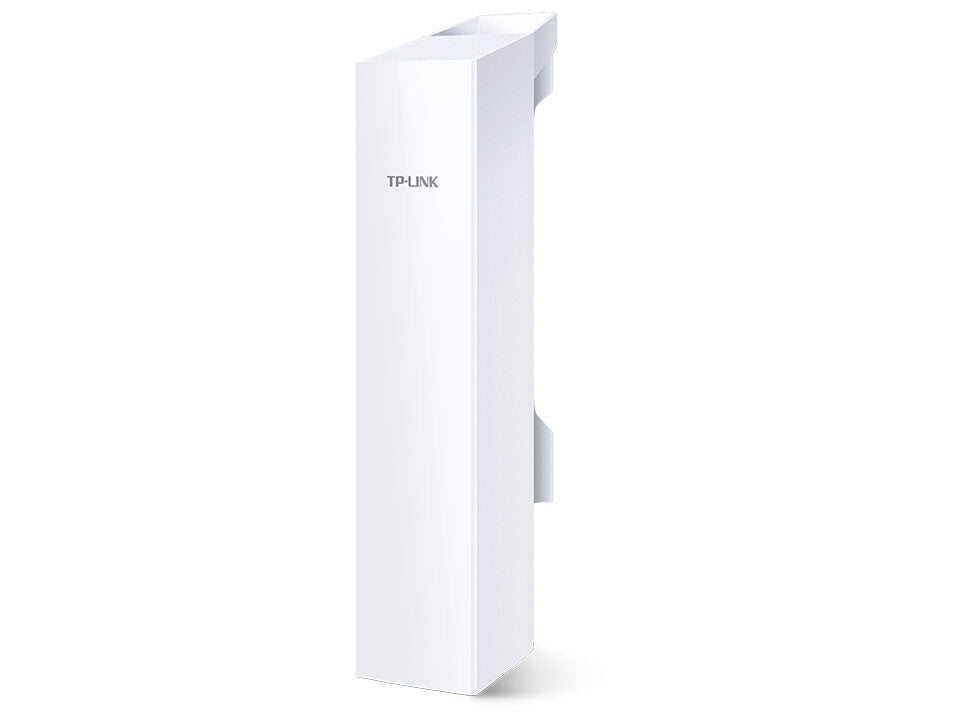

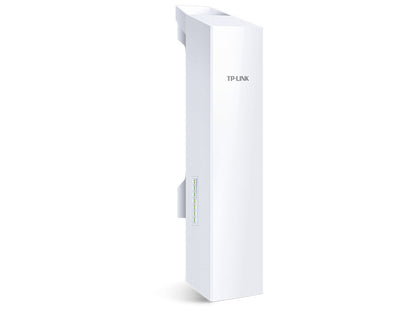

TP-LINK’s 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE220 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference
13km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 13km+, tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE220 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE220 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
| Features |
|---|
| RTS/CTS threshold |
Yes |
| VLAN support |
Yes |
| Automatic channel selection |
Yes |
| Channel bandwidth |
40 MHz |
| Channels quantity |
5 channels |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Bandwidth |
2.4 GHz |
| Frequency band |
2.4 - 2.483 GHz |
| Wi-Fi data rate (max) |
300 Mbit/s |
| Maximum data transfer rate |
300 Mbit/s |
| 5 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
|---|
| Auto Wireless Distribution System (WDS) |
Yes |
| IGMP snooping |
Yes |
| Number of SSID supported |
1 |
| Service Set Identifier (SSID) features |
SSID broadcast on/off |
| IP address filtering |
Yes |
| MAC address filtering |
Yes |
| Security algorithms |
64-bit WEP, 128-bit WEP, 152-bit WEP, AES, HTTPS, SNMP, SSH, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols |
|---|
| Management protocols |
TDMA |
| DHCP client |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Management features |
|---|
| Management platform |
Pharos Control |
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Internal RJ-45 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (max) |
10.8 W |
| Output current |
1 A |
| Output voltage |
24 V |
| Input current |
0.8 A |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Internal |
No |
| Certification |
- CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark- RoHS, IPX5 |
| LED indicators |
Power |
| Reset button |
Yes |
| International Protection (IP) code |
IPX5 |
| Product colour |
White |
| Antenna |
|---|
| Antenna gain level (max) |
12 dBi |
| Antennas quantity |
2 |
| Antenna features |
Integrated antenna |
| Antenna type |
Internal |
| Performance |
|---|
| Flash memory |
8 MB |
| Internal memory |
64 MB |
| Built-in processor |
Yes |
| Weight & dimensions |
|---|
| Height |
33.5 mm |
| Depth |
57 mm |
| Width |
110 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| AC adapter included |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-30 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
