AX1800 Dual Band Wi-Fi 6 USB Adapter
Wi-Fi 6 Upgrades Everything
The latest Wifi technology makes annoying lag and endless loading a thing of the past. Equip your PC with TX20U and enjoy the future of faster network loads and more connections.

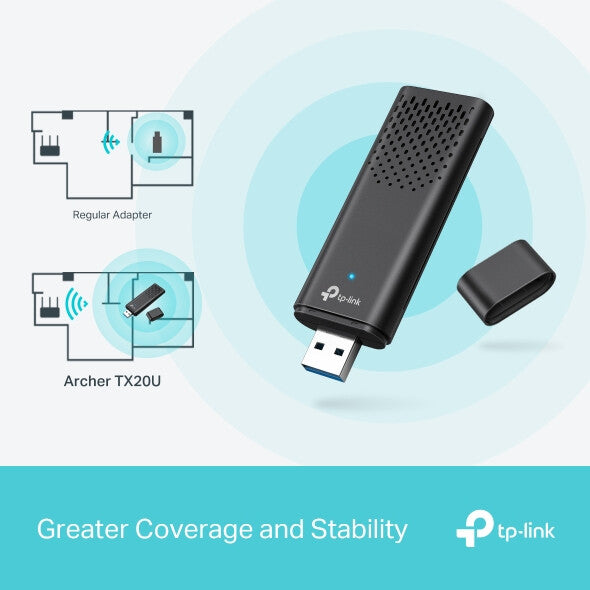

Greater Coverage and Stability
The built-in high-performance antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Lower Latency, Higher Efficiency, and Less Congestion
MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20U ideal for HD streaming, online gaming and large file downloads.
| Ports & interfaces |
|---|
| Connectivity technology |
Wireless |
| Host interface |
USB |
| Interface |
WLAN |
| USB connector form factor |
Straight |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| Network |
|---|
| Maximum data transfer rate |
1201 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi |
Yes |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported |
11,54,300,400,574,867 Mbit/s |
| Security algorithms |
WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Design |
|---|
| Internal |
No |
| Component for |
PC |
| Product colour |
Black |
| Transmitting power (CE) |
18.5 - 21.5 dBm |
| Transmitting power (FCC) |
19 dBm |
| LED indicators |
Status |
| Operating modes |
Infrastructure mode |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
90.2 mm |
| Depth |
29.2 mm |
| Height |
12.9 mm |
| Packaging data |
|---|
| Package width |
150 mm |
| Package depth |
200 mm |
| Package height |
39 mm |
| Package weight |
110 g |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| General |
|---|
| Product family |
Archer |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
