AX1800 Wi-Fi 6, 802.11ax, 2.4/5 GHz, Bluetooth 5.2, 55 x 36 x 11.5 mm
Easily Get Start with Wi-Fi 6
AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
- Fully Featured Wi-Fi 6
- Warp Speed up to 1800 Mbps
- Superior Coverage
- Bluetooth 5.2
- Cutting-Edge Security

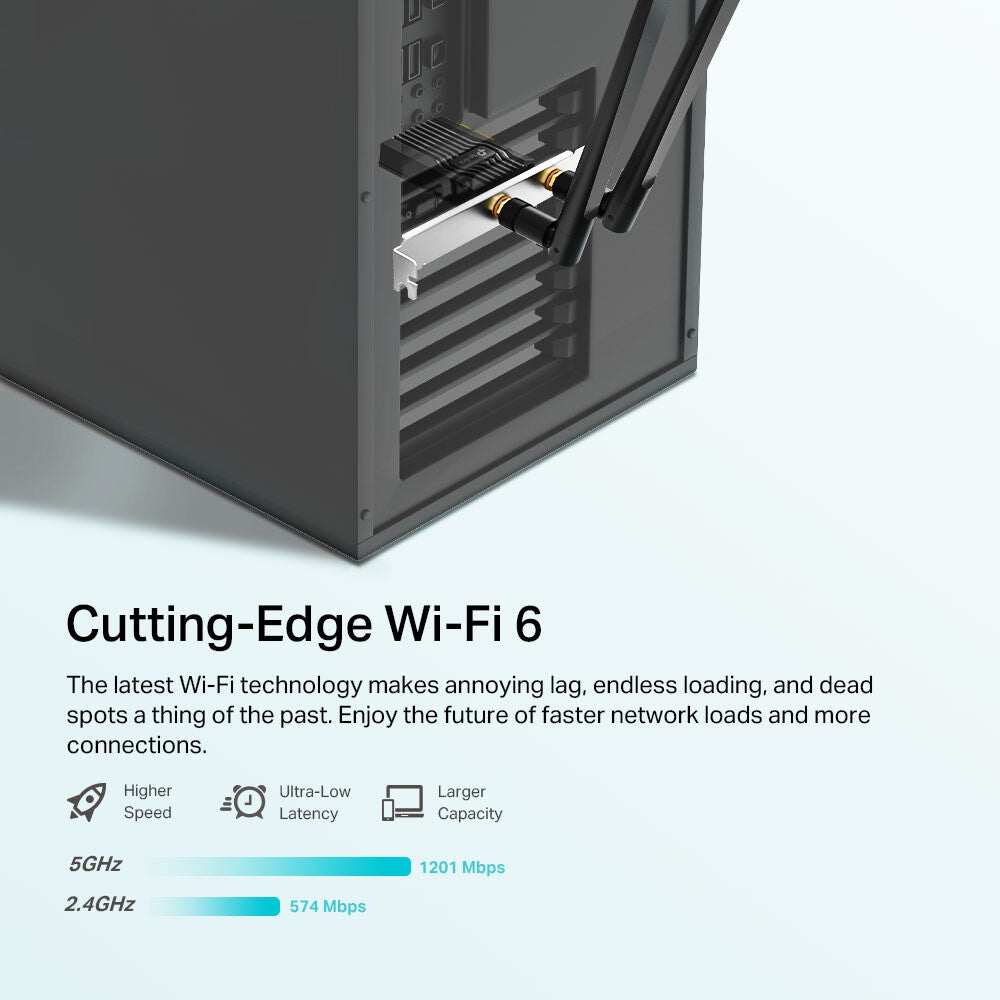

Cutting-Edge Wi-Fi 6
The latest Wi-Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections.
More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.

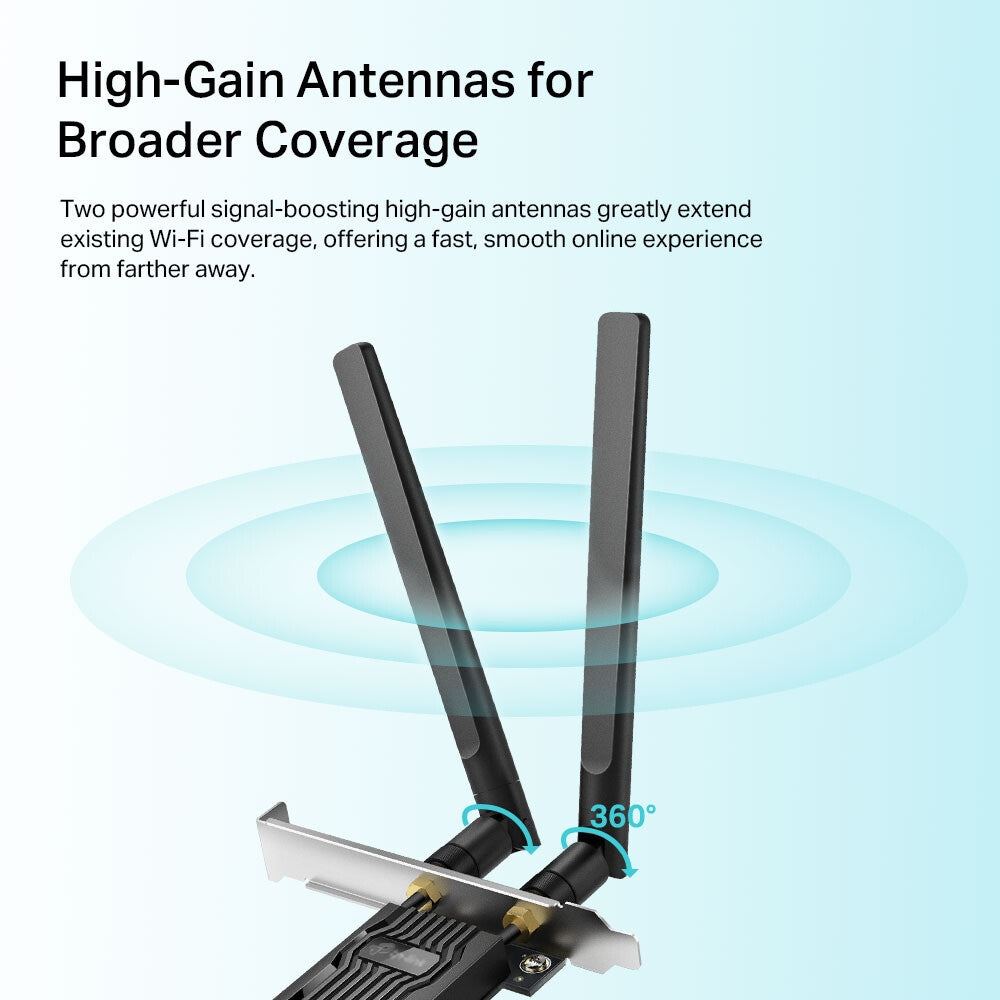

High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.

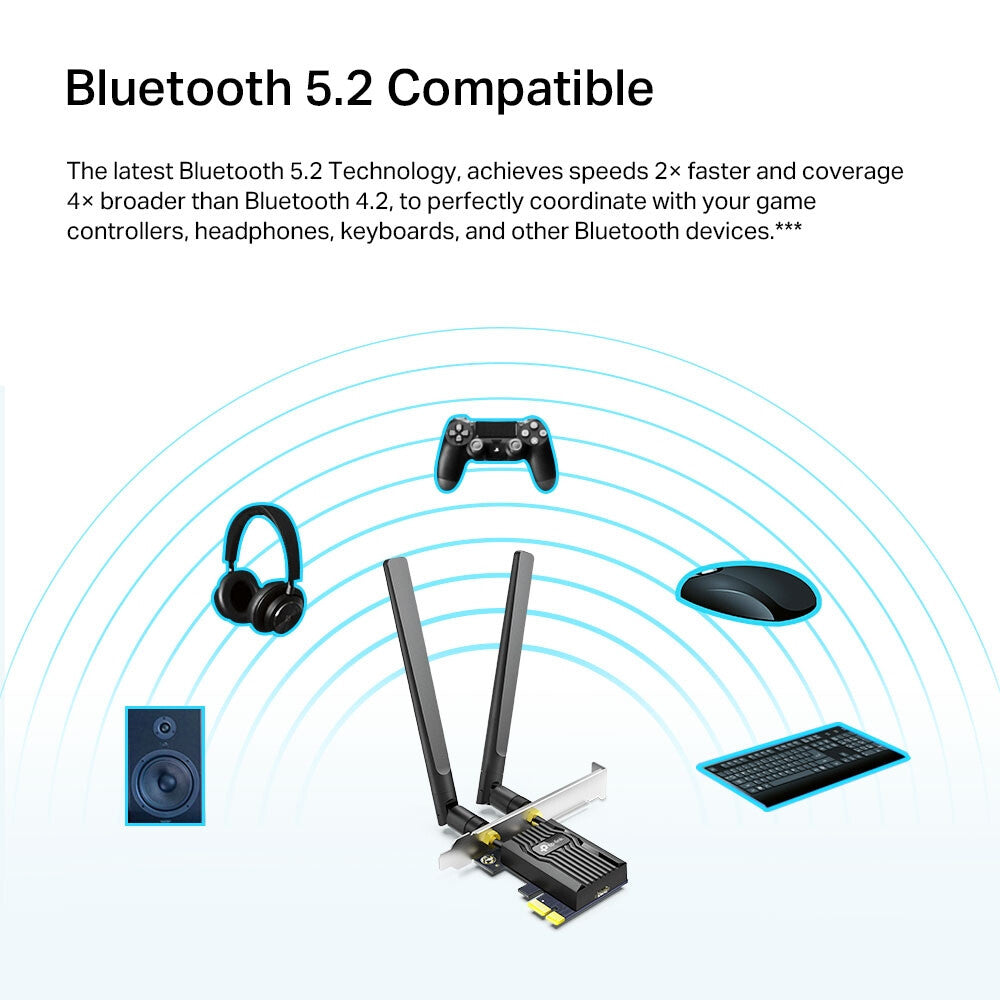

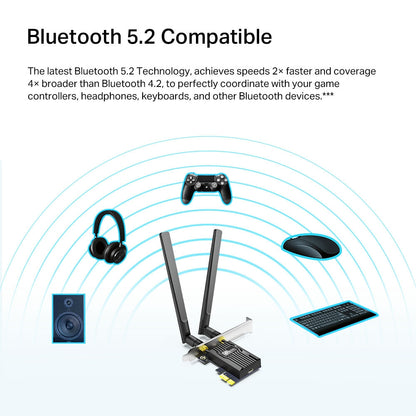

Bluetooth 5.2 Compatible
The latest Bluetooth 5.2 Technology, achieves speeds 2× faster and coverage 4× broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.
Cutting-Edge Security
WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online.
| Ports & interfaces |
|---|
| Connectivity technology |
Wireless |
| Host interface |
PCI Express |
| Interface |
WLAN / Bluetooth |
| Network |
|---|
| Maximum data transfer rate |
1800 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi |
Yes |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported |
11,54,300,574,867,1200 Mbit/s |
| Modulation |
16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM |
| Security algorithms |
64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Bluetooth |
Yes |
| Bluetooth version |
5.2 |
| Design |
|---|
| Internal |
Yes |
| Component for |
PC/Server |
| Product colour |
Black |
| Antenna design |
External |
| Antenna |
Yes |
| Transmitting power (CE) |
23 dBm |
| Transmitting power (FCC) |
27 dBm |
| Plug and Play |
Yes |
| Operating modes |
Infrastructure mode |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Weight & dimensions |
|---|
| Width |
120.8 mm |
| Depth |
78.5 mm |
| Height |
20.9 mm |
| Packaging data |
|---|
| Package width |
201.5 mm |
| Package depth |
152.5 mm |
| Package height |
41.5 mm |
| Package weight |
220 g |
| Packaging content |
|---|
| Mounting brackets included |
Yes |
| Bluetooth header cable |
Yes |
| Resource CD |
Yes |
| Quick installation guide |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
