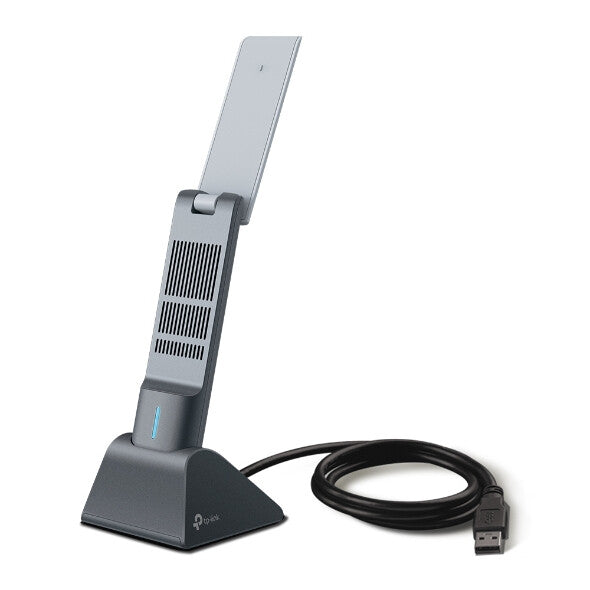

AX1800 High Gain Dual Band Wi-Fi 6 USB Adapter
Stay Fast with WiFi 6 Even in a Crowded Network
AX1800 High Gain Wireless USB Adapter
Upgrades Your PC with Wi-Fi 6
Forget about buying a new PC. TX20UH delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.
Greater Coverage and Stability
The multi-angle adjustable high-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Lower Latency, Higher Efficiency, and Less Congestion
MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20UH ideal for HD streaming, online gaming and large file downloads.

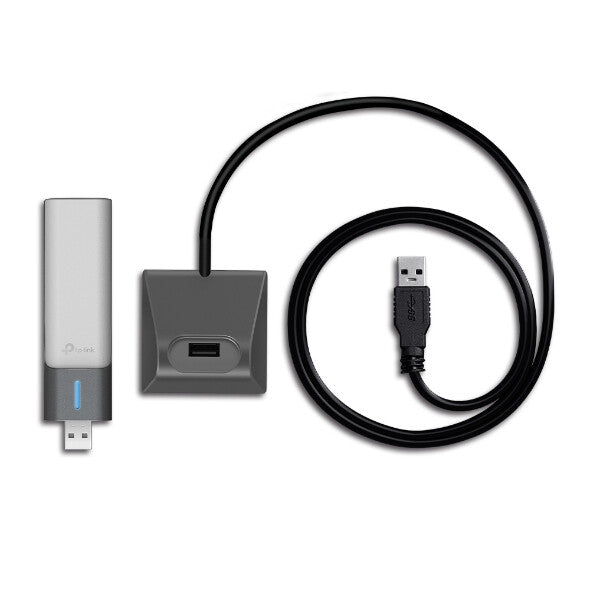

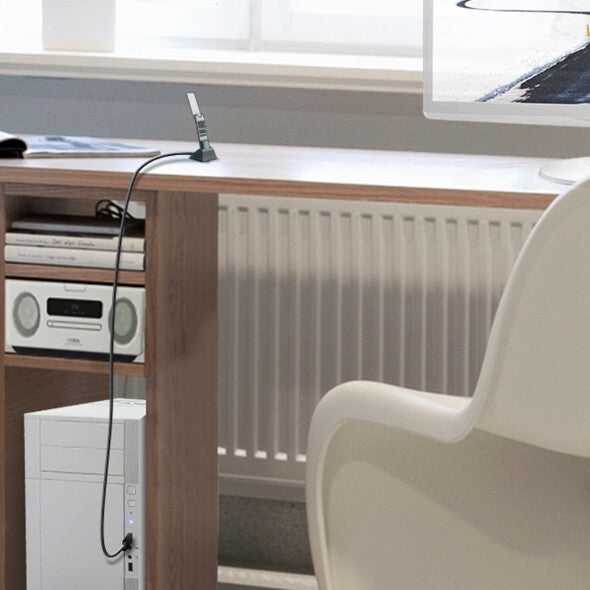

Easy Use with a Flexible Design
A1.2-meter USB 3.0 cable makes it easy to find a spot for the Archer TX20UH in your workspace, and the adapter can be effortlessly attached removed from your computer as needed.
| Ports & interfaces |
|---|
| Connectivity technology |
Wireless |
| Host interface |
USB |
| Interface |
WLAN |
| Network |
|---|
| Maximum data transfer rate |
1201 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi |
Yes |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Security algorithms |
WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Design |
|---|
| Internal |
No |
| Component for |
PC |
| Antenna |
Yes |
| LED indicators |
Status |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
30.5 mm |
| Depth |
14.8 mm |
| Height |
111.7 mm |
| Packaging data |
|---|
| Package width |
39 mm |
| Package depth |
200 mm |
| Package height |
150 mm |
| Package weight |
210 g |
| General |
|---|
| Product family |
Archer |
