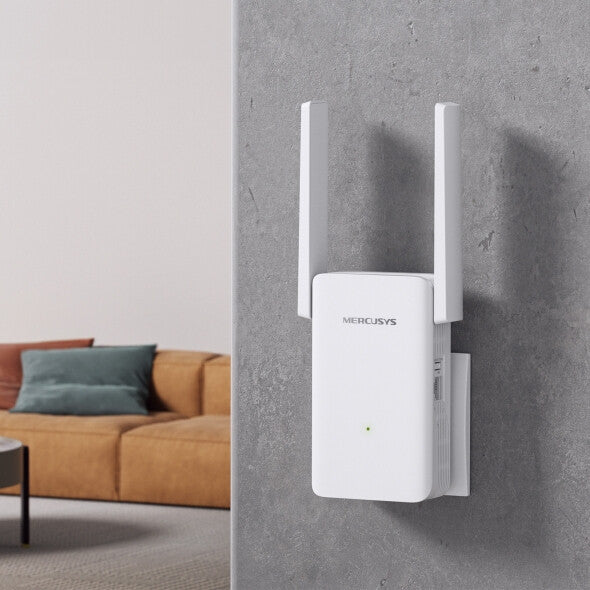

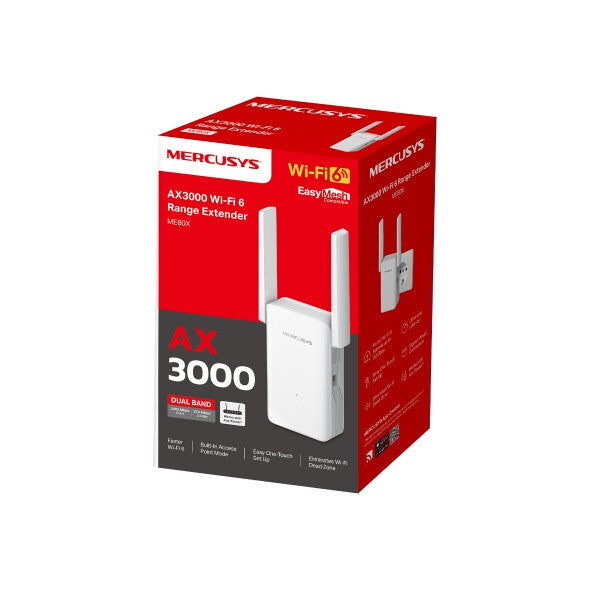

ME80X AX3000 Wi-Fi 6 Range Extender
WiFi 6 Takes Your Network to the Next Level
Armed with Wi-Fi 6 , ME80X improves virtually every aspect of your network: speed, efficiency, and capacity.
Extend WiFi to Where You Need It Most
Extend your router’s coverage. This AX3000 range extender, with two adjustable high-gain antennas, boosts WiFi to hard-to-reach areas and is compatible with older WiFi standards (11b/g/n/a/ac) and all connected devices.
Cover Your Whole Home with EasyMesh
ME80X is compatible with EasyMesh, enabling you to set up a whole home mesh network with one WiFi name and password with any other APs that support EasyMesh from multiple vendors. Enjoy flexible, scalable, and seamless mesh WiFi throughout your home!
Effortless One-Touch Setup
Press the WPS button on your router and the WPS button on your extender to expand your WiFi coverage in seconds.
Built-In Access Point Mode
ME80X is more than a WiFi range extender. Connect it to your wired internet via Ethernet to transform it into a dual-band WiFi access point.
Control at Your Fingertips
Set up and manage your WiFi through the MERCUSYS app from your smartphone (Android, iOS).
| Performance |
|---|
| Ethernet LAN data rates |
100,1000 Mbit/s |
| WPS push button |
Yes |
| Packaging data |
|---|
| Package type |
Box |
| Antenna |
|---|
| Antennas quantity |
2 |
| Antenna type |
External |
| Network |
|---|
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi data rate (max) |
2400 Mbit/s |
| Security algorithms |
WEP, WPA, WPA2, WPA3-PSK |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
|---|
| Product colour |
White |
| Reset button |
Yes |
| Power |
|---|
| Power consumption (typical) |
13 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
100.3 mm |
| Depth |
68.4 mm |
| Height |
138.6 mm |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Quick start guide |
Yes |
