2.4-5 GHz, 300-433 Mbps, 17 dBm, WPS, Reset, Ethernet, 100-240V, 50/60Hz, 124 x 69 x 52 mm
Keep the Whole Home Connected

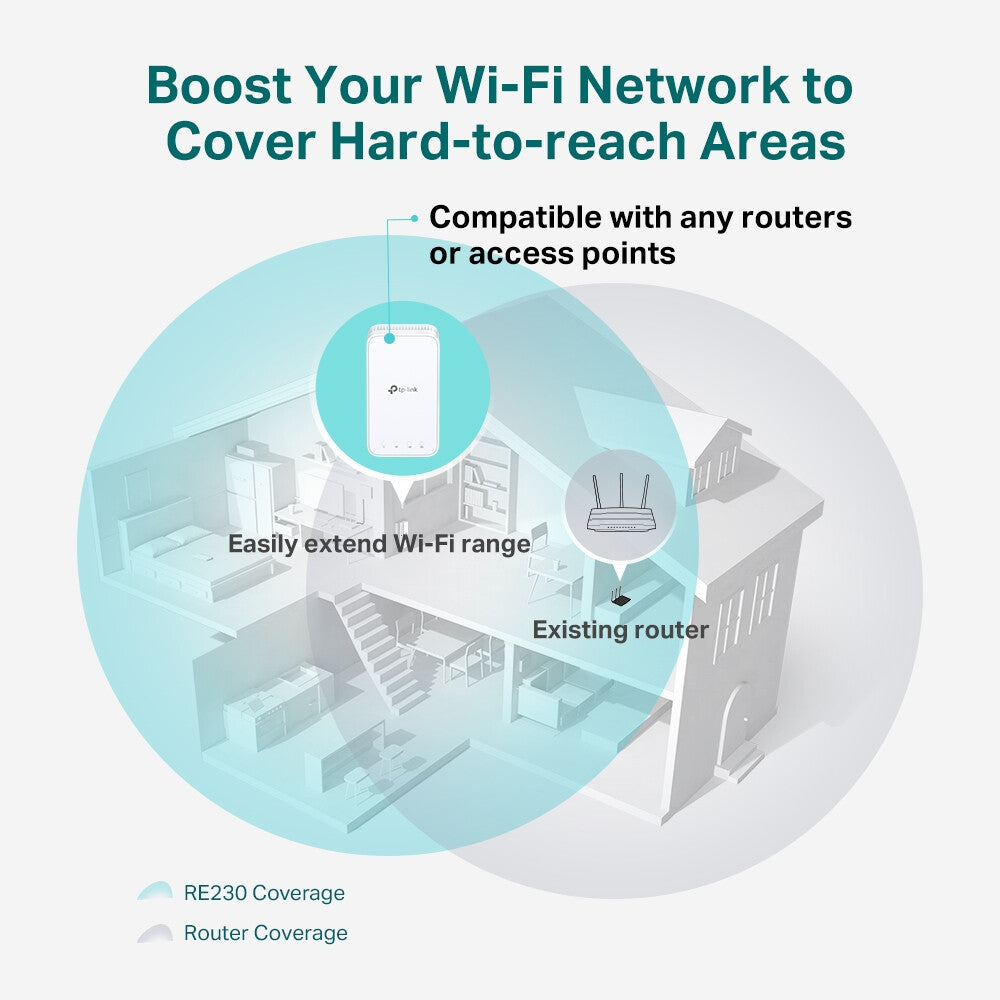

RE230 wirelessly connects to your WiFi router, strengthening and expanding its signal into areas it can’t reach on its own. With speeds of up to 300 Mbps on 2.4 GHz and 433 Mbps on 5 GHz, put strong, fast WiFi in every room and say goodbye to dead zones.
TP-Link OneMesh™

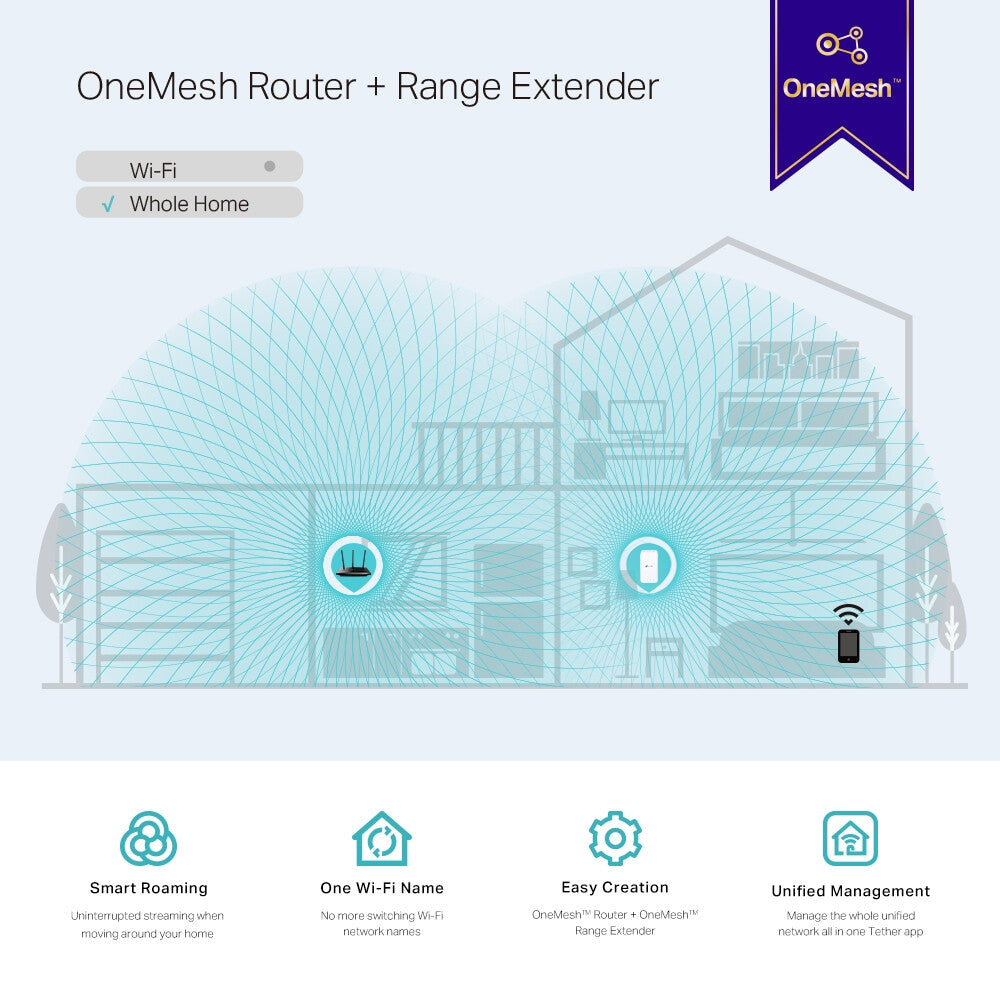

OneMesh™ is a simple way to form a Mesh network with a single WiFi name for seamless whole-home coverage. Just connect a OneMesh™ range extender to a OneMesh™ router. No more searching around for a stable connection.
Enjoy a Mesh Network with Your Existing Router
Want a Mesh network? Hesitate on whether to replace your existing router and buy a Mesh set?
TP-Link OneMesh™ resolves your dilemma.
High-Speed Dual Band WiFi without Bandwidth Drop
Faster AC750 Dual Band WiFi

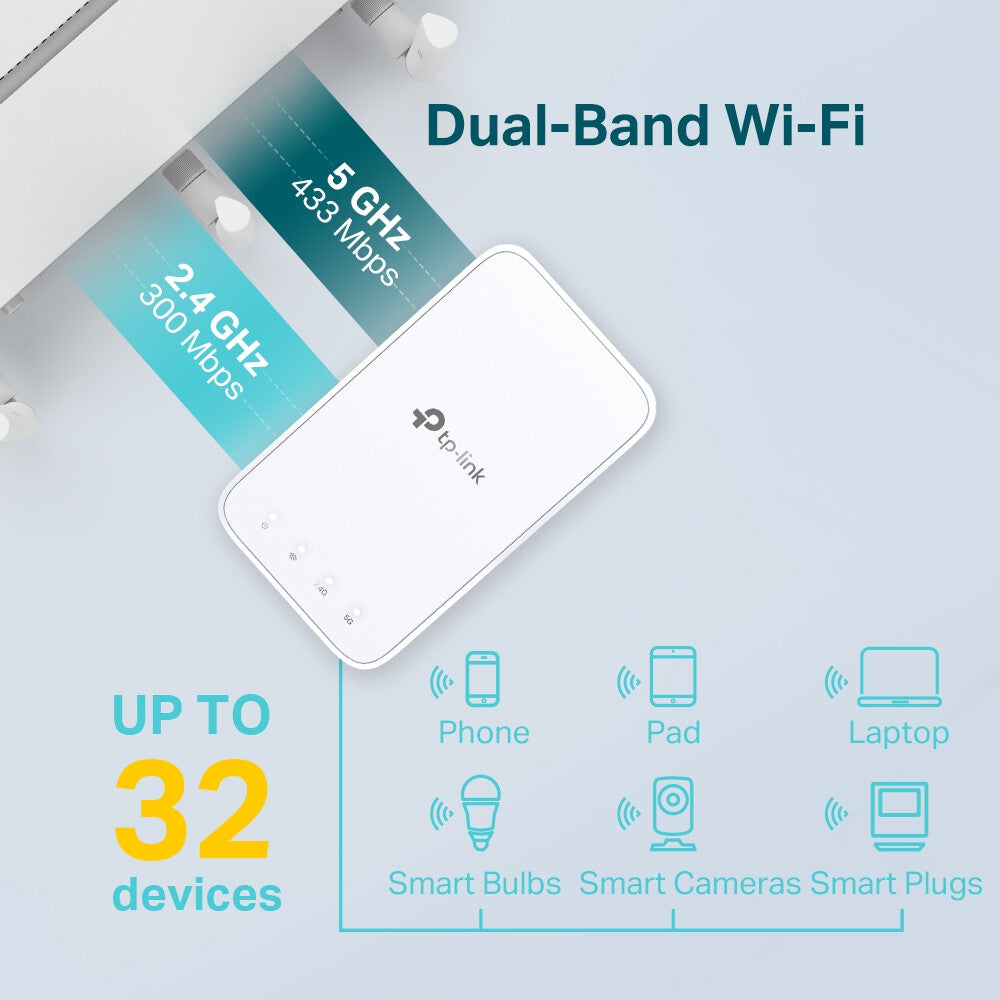

The RE230 lets you keep more devices connected simultaneously with its 2.4 GHz 300 Mbps and 5 GHz 433 Mbps dual bands.
Keeps Itself Fast
Adaptive Path Selection keeps your network running at top-speed by automatically choosing the fastest connection path to the router.
High Speed Mode
Use both WiFi bands to establish one super-high-speed connection, ideal for HD streaming & gaming.
Secure One-Touch Connection for Easy Setup
Step 1: Simply press the WPS button on your router and, within 2 minutes, the WPS button on RE230 to connect to the network.
Step 2: Once connected, place RE230 to the best location—without reconfiguration.
Notes: Please connect the extender to the router via the Tether app or Web UI if your router doesn’t support WPS.
Find the Best Location with the Smart Signal Indicator
The smart signal indicator lets you see signal strength from the existing router at a glance. Easily to find the best place to position your range extender to extend your WiFi.
Feature-Rich App for Control in Your Hands
Set up and manage your WiFi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.
| Performance |
|---|
| Data transfer rate |
433 Mbit/s |
| Ethernet LAN data rates |
10,100 Mbit/s |
| WPS push button |
Yes |
| Windows operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Packaging data |
|---|
| Package width |
156.5 mm |
| Package depth |
101.5 mm |
| Package height |
89 mm |
| Package weight |
230 g |
| Antenna |
|---|
| Antennas quantity |
2 |
| Antenna type |
Internal |
| Transmitting power (CE) |
17 dBm |
| Network |
|---|
| Cabling technology |
10/100Base-T(X) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi data rate (max) |
433 Mbit/s |
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
|---|
| Product colour |
White |
| Quantity per pack |
1 pc(s) |
| LED indicators |
Yes |
| Reset button |
Yes |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
9.5 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
124 mm |
| Depth |
69 mm |
| Height |
52 mm |
| Technical details |
|---|
| Compliance certificates |
RoHS, Federal Communications Commission (FCC), CE |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
