AC650, 2.5 (200 Mbit/s), 5 GHz (433 Mbit/s), USB 2.0, 57.8 x 16.8 x 173.4 mm
AC650 Dual Band Wi-Fi
MU6H receives Wi-Fi signals on two separate bands. Supporting 256-QAM technology increases 2.4 GHz data rate from 150 Mbps to 200 Mbps for 33% faster performance. Choose the 2.4 GHz for surfing and social media, and 5 GHz for up to 433 Mbps for HD streaming and lag-free gaming.
Boost Wireless Range with High Gain Antenna
A 5 dBi high gain antenna reaches your router from farther with more precise directional range, sustaining faster and more stable wireless connections.
Smart Easy-Install for Windows
An internal driver means you just need to plug MU6H into the computer and follow the on-screen directions to set up your network in seconds.

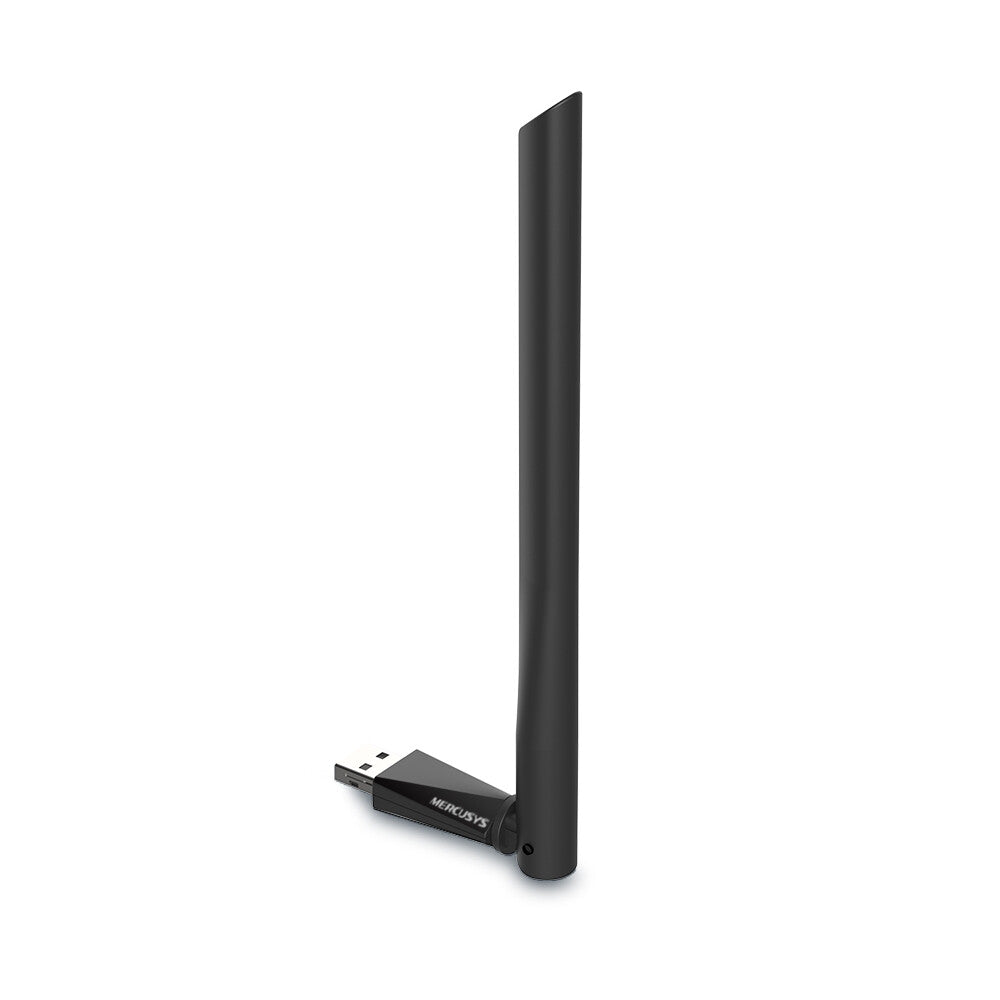

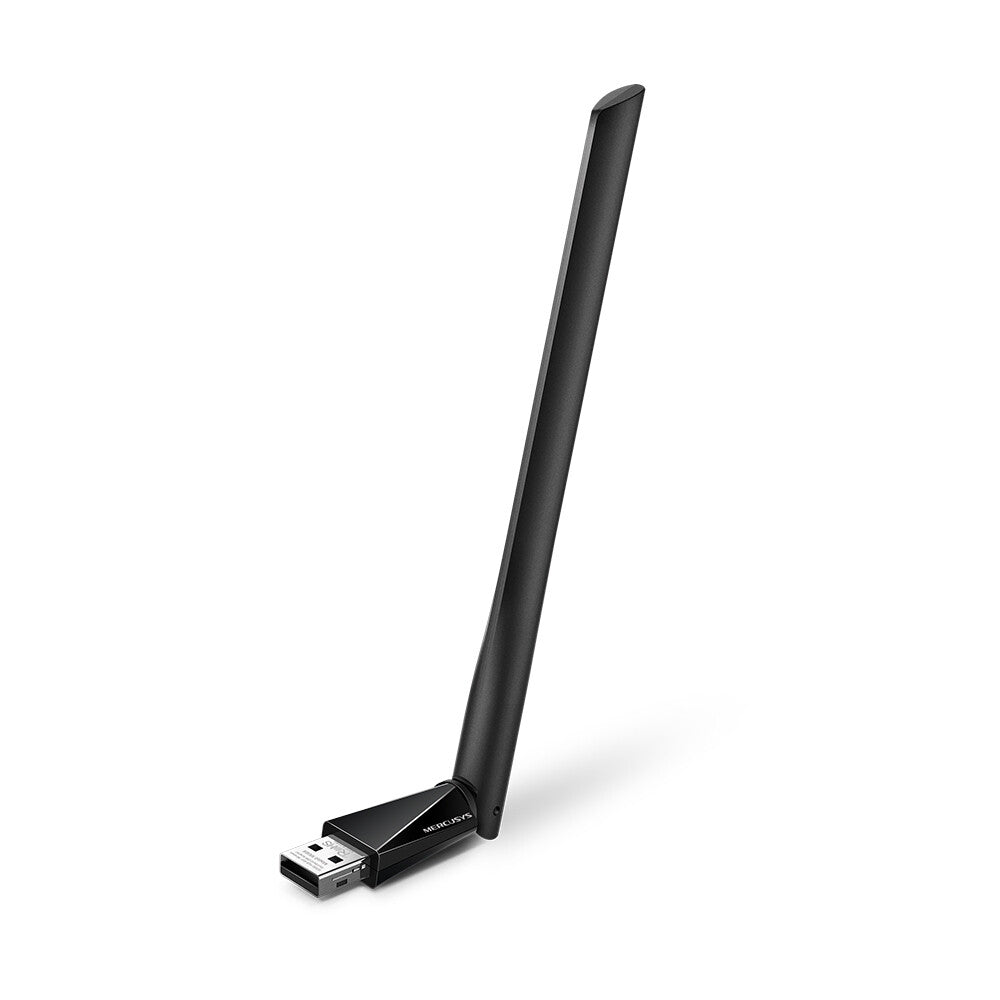

Adjustable, Multi-Directional Antenna
Rotate and adjust the antenna in multi-direction to improve using experience and performance in different environments.
| Ports & interfaces |
|---|
| Connectivity technology |
Wireless |
| Host interface |
USB |
| Interface |
WLAN |
| USB connector form factor |
Straight |
| USB version |
2.0 |
| Network |
|---|
| Maximum data transfer rate |
650 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi |
Yes |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported |
200,433 Mbit/s |
| Design |
|---|
| Internal |
No |
| Component for |
PC/Laptop |
| Product colour |
Black |
| Antenna type |
Omni-directional |
| Antenna gain level (max) |
5 dBi |
| Plug and Play |
Yes |
| LED indicators |
Yes |
| Weight & dimensions |
|---|
| Width |
57.8 mm |
| Depth |
16.8 mm |
| Height |
173.4 mm |
| Packaging data |
|---|
| Package width |
207 mm |
| Package depth |
148 mm |
| Package height |
38 mm |
| Package weight |
110 g |
| Packaging content |
|---|
| Quick installation guide |
Yes |
