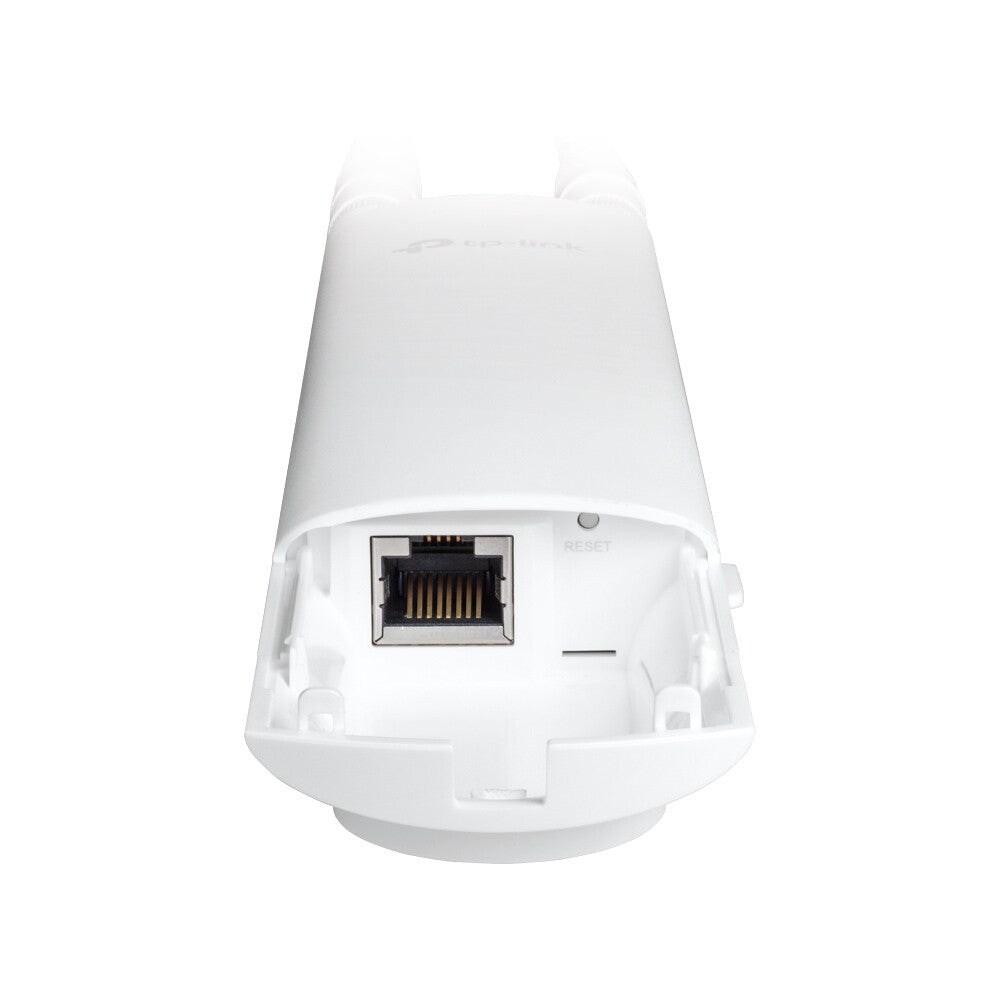

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
11AC Wave 2 Makes Wi-Fi Go Further
Omada
EAP225-Outdoor
Gigabit Wi-Fi Speeds with MU-MIMO Technology
EAP225-Outdoor supports simultaneous dual band speed of up to 1200Mbps. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, EAP225-Outdoor can communicate with multiple clients at the same time which making it ideal for high density environment.
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Delicate Appearance Even Better for Indoor Applications
EAP225-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.1in. (215 × 46 × 27mm)
Multiple PoE Options for Easy Installation
EAP225-Outdoor supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter.
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Flexible Deployment
EAP225-Outdoor can be easily installed on a wall or to a pole with the mounting kits provided.
Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.
| Features |
|---|
| Quality of Service (QoS) support |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Band steering |
Yes |
| Rate limiting |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Frequency band |
2.4 - 5 GHz |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate |
867 Mbit/s |
| 6 GHz |
No |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
|---|
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Number of SSID supported |
16 |
| Security algorithms |
WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| Management features |
|---|
| Syslog |
Yes |
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (typical) |
10.5 W |
| Output voltage |
24 V |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
Active PoE, Passive PoE |
| Design |
|---|
| Certification |
CE、FCC、RoHS |
| Reset button |
Yes |
| Product colour |
White |
| Placement |
Ceiling, Wall |
| Antenna |
|---|
| Antenna gain level (max) |
4 dBi |
| Antennas quantity |
2 |
| Antenna features |
Detachable antenna |
| Antenna direction type |
Omni-directional |
| Antenna type |
External |
| Weight & dimensions |
|---|
| Height |
26.7 mm |
| Depth |
46 mm |
| Width |
214.9 mm |
| Packaging data |
|---|
| Package weight |
640 g |
| Package height |
100 mm |
| Package depth |
140 mm |
| Package width |
270 mm |

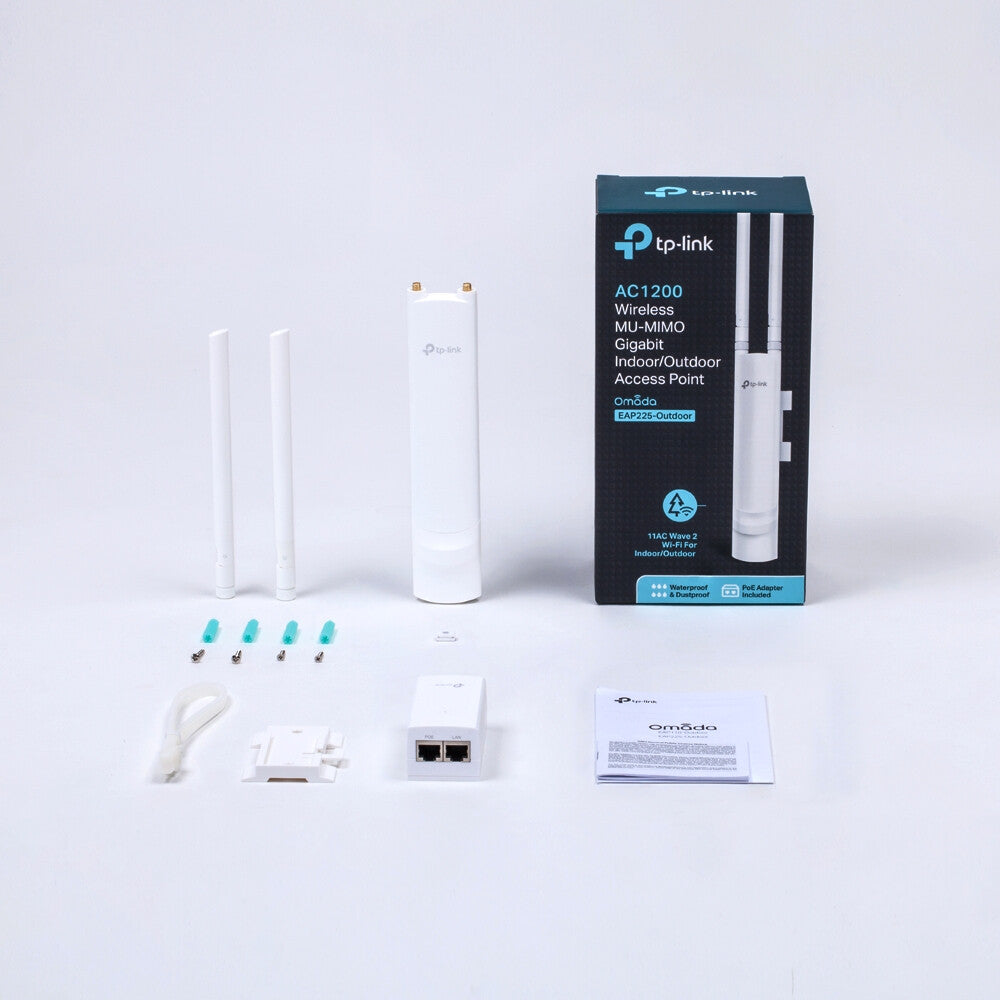

| Packaging content |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| PoE adapter included |
Yes |
| AC adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-30 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
