5× 10/100Mbps, IEEE 802.3i/802.3u/802.3x, 83.6 × 45.7 × 22.8 mm

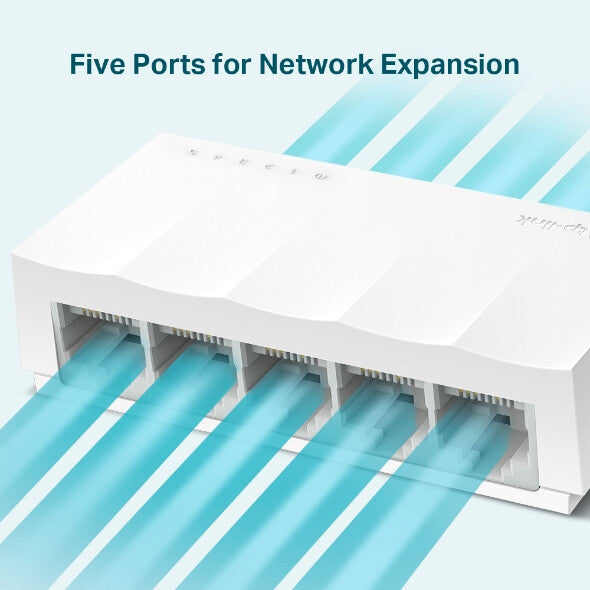

5× 10/100Mbos Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3X flow control provides reliable data transfer
Plastic casing and desktop design
Plug and play, no configuration required
Fanless design ensures quiet operation
Easily Expand Your Network and Save Energy

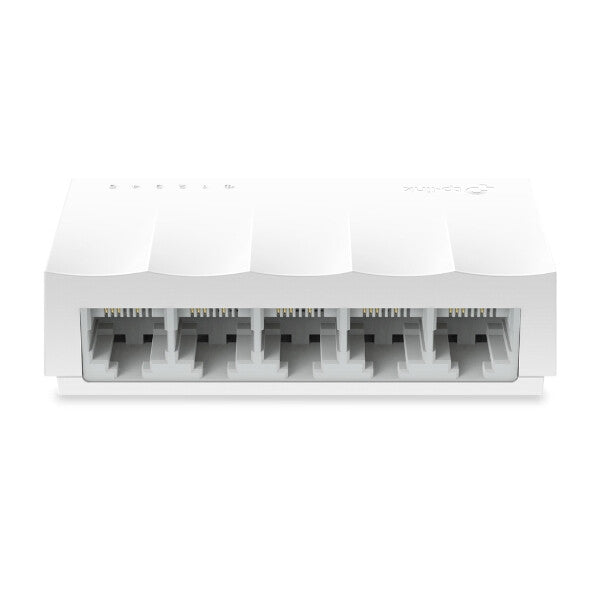

5-Port 10/100 Mbps Desktop Switch
Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

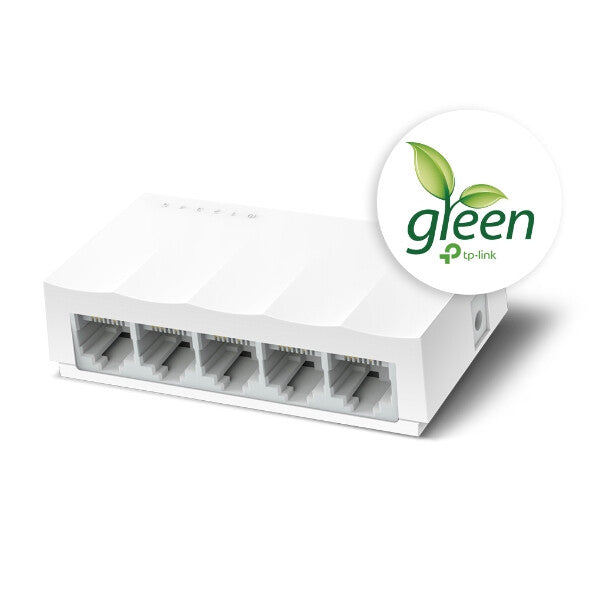

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

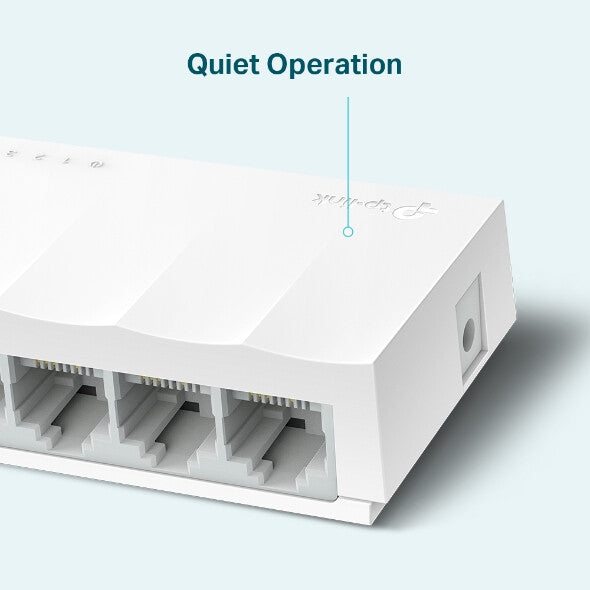

Fanless and Desktop Design
Compact desktop design, to meet your needs in any environment.
Besides, fanless design ensures quiet operation.
Use Where You Need, However You Need

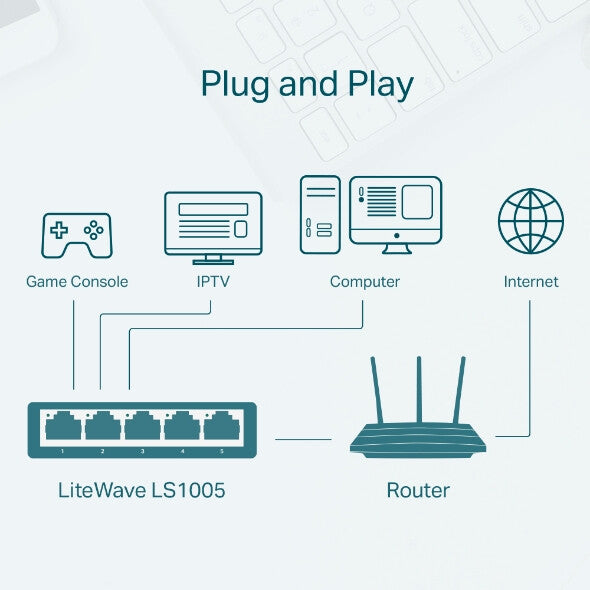

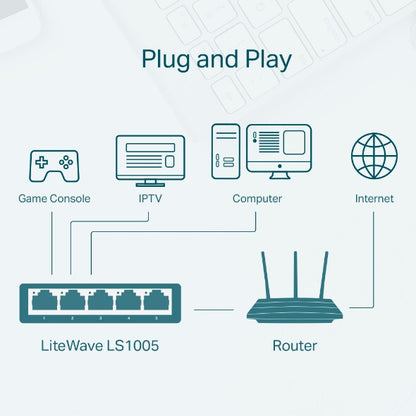

The LS1005 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Power connector |
DC-in jack |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Network |
|---|
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
|---|
| Jumbo frames |
2000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
0.7 Mpps |
| Switching capacity |
1 Gbit/s |
| MAC address table |
2000 entries |
| Design |
|---|
| Certification |
CE, FCC, RoHS |
| Wall mountable |
No |
| LED indicators |
Activity, Link, Power |
| Housing material |
Plastic |
| Product colour |
White |
| Rack mounting |
No |
| Power |
|---|
| Power consumption (max) |
1.65 W |
| Input voltage |
5 V |
| Input current |
0.6 A |
| Power supply included |
Yes |
| Power source |
DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Heat dissipation |
5.627 BTU/h |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
22.8 mm |
| Depth |
45.7 mm |
| Width |
83.6 mm |
| Packaging data |
|---|
| Package weight |
80 g |
| Package height |
84 mm |
| Package depth |
88 mm |
| Package width |
82 mm |
| Package type |
Box |
| Quick start guide |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
