300Mbps LTE-Advanced Mobile Wi-Fi
Do More with a Faster Mobile Connection up to 300Mbps
The M7450 supporting the 4G LTE network LTE-A Cat.6, which is used Carrier Aggregation. This advanced technology merges the fragmented LTE band into a "virtual" wider band to increase the data rate, ,to provide fast 4G speeds of up to 300Mbps. You can enjoy HD movies without interruption, downloading files in seconds, and smooth online gaming.
Share AC1200 Wi-Fi with 32 Wireless Devices Simultaneously
The M7450 provides selectable dual band Wi-Fi, 867Mbps at 5GHz or 300Mbps at 2.4GHz. It can easily share a 4G/3G connection with up to 32 wireless devices like tablets, laptops, and mobile phones at the same time. With this convenient companion, you can share your Wi-Fi with your friends everywhere.
Power to Keep Working All-day-long about 15 Hours
M7450 is equipped with a powerful 3000mAh battery. On its own, it can work effortlessly up to 15 hours at full capacity and stand by for over 900 hours. M7450 can be recharged via a micro USB cable connected to a laptop, portable charger or adapter for endless hours of 4G sharing.
Your Perfect Daily Wi-Fi Partner
The smooth curves and elegant, compact design make the lightweight M7450 perfect for personal travel, business trips, outdoor activities, and everywhere else life takes you.

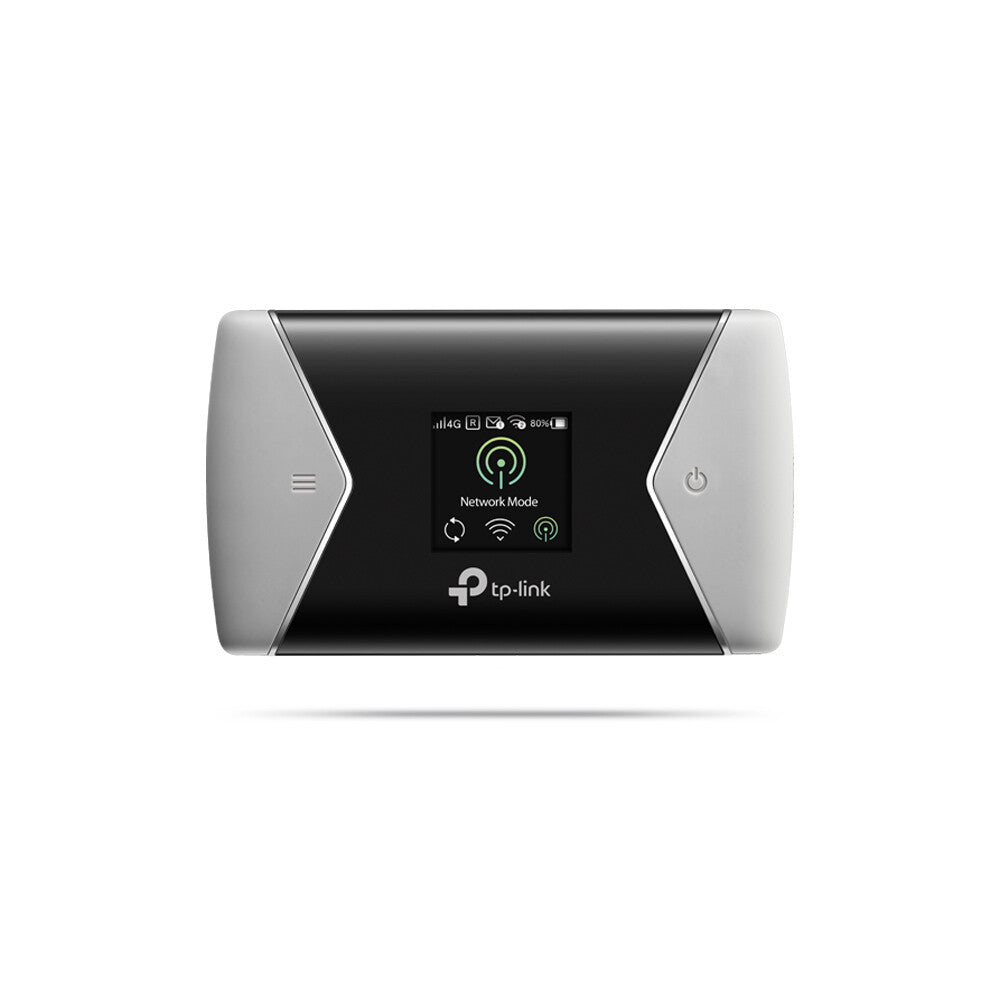

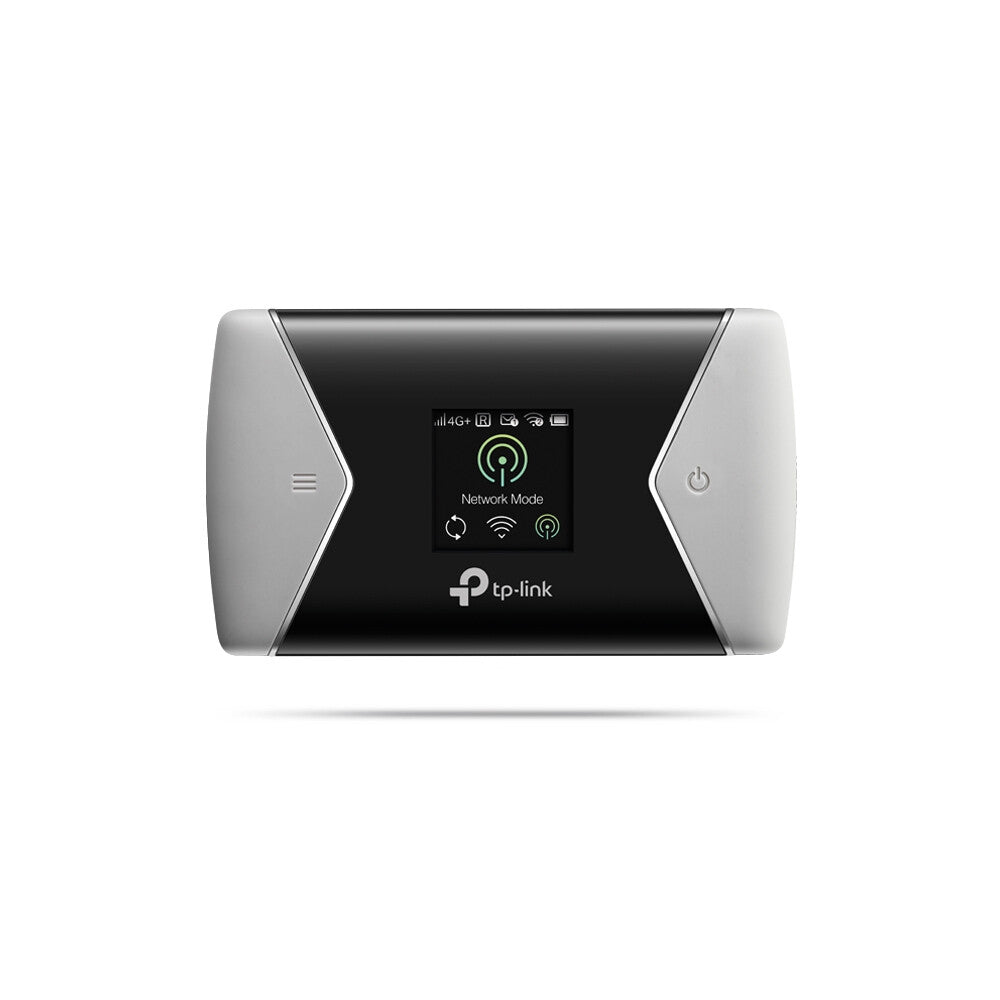

Advanced Screen & Menu for Easy Using
The intuitive screen display of M7450 makes it easy to stay within your data budget and avoids going over the monthly data cap. The screen also displays other much more information of battery life, signal strength, Wi-Fi status, connected users and more.
Wireless Media Sharing from Micro SD Card
It's now easier than ever to share photos, music, videos and more in your mobile network from a micro SD Storage - supports optional storage of up to 32G.
Easy Management with tpMiFi App
With the tpMiFi App, you can easily access and manage the M7450 from your connected iOS/Android devices. The tpMiFi app allows you to establish data limits, control which devices can access your Wi-Fi, send messages, and share media files to/from a removable Micro SD card.
| Design |
|---|
| Device type |
Cellular network router |
| Product colour |
Black, Grey |
| Market positioning |
Portable |
| Built-in display |
Yes |
| Display type |
TFT |
| Display diagonal |
3.66 cm (1.44") |
| Reset button |
Yes |
| LED indicators |
Yes |
| Ethernet LAN features |
|---|
| Ethernet LAN |
No |
| DHCP client |
Yes |
| DHCP server |
Yes |
| Wireless LAN features |
|---|
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported |
300 Mbit/s |
| Mobile network |
|---|
| Data network |
Edge, GPRS, GSM, HSPA, LTE, UMTS |
| 2G standards |
Edge, GPRS |
| 3G standards |
DC-HSDPA, HSPA, HSPA+, UMTS |
| 4G standard |
LTE-TDD & LTE-FDD |
| 2G bands supported |
850,900,1800,1900 MHz |
| 3G bands supported |
900,2100 MHz |
| 4G bands supported |
800,900,1800,2100,2600 MHz |
| GSM bands supported |
850,900,1800,1900 MHz |
| UMTS bands supported |
900,2100 MHz |
| Number of simultaneous SIM cards |
1 |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash) |
| Maximum memory card size |
32 GB |
| Security |
|---|
| Security algorithms |
WPA-PSK, WPA2-PSK |
| Certificates |
|---|
| Certification |
CE, RoHS |
| Packaging content |
|---|

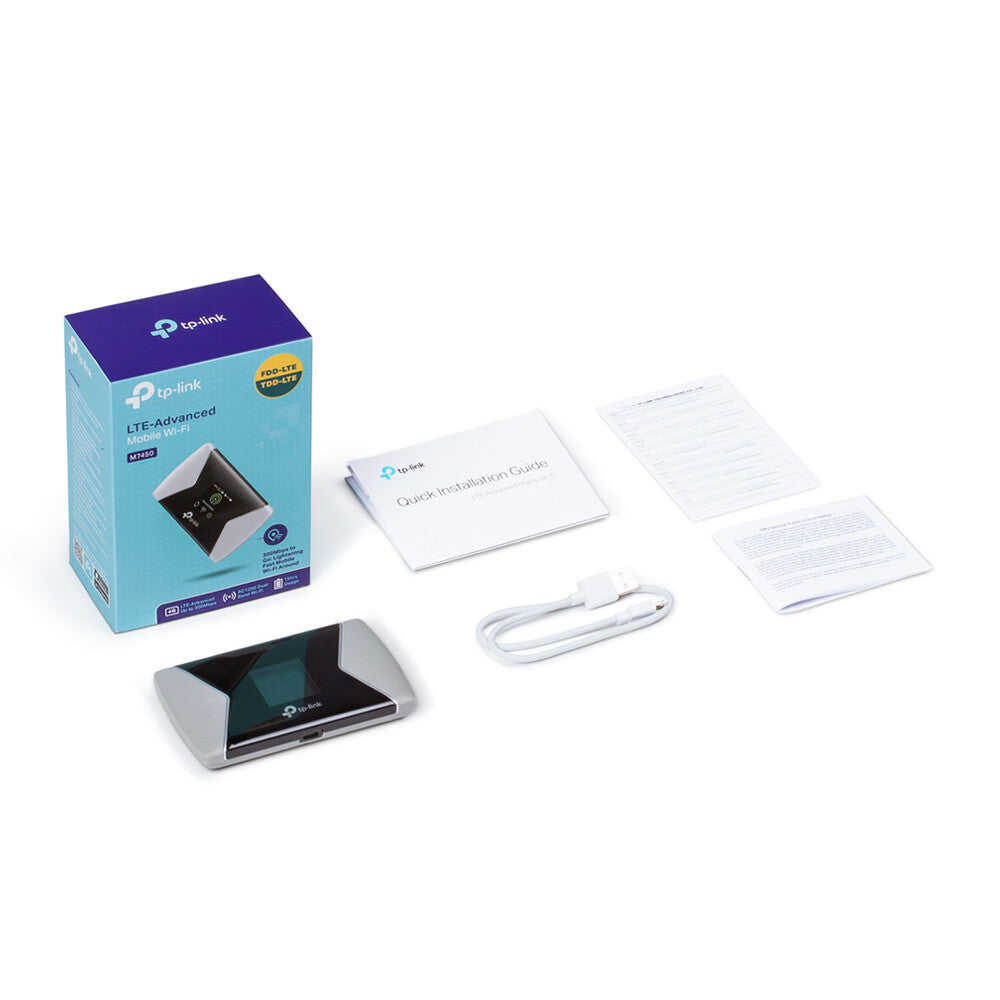

| Cables included |
Micro-USB |
| Performance |
|---|
| Antenna type |
Internal |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Power |
|---|
| Power source type |
Battery |
| Battery capacity |
3000 mAh |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 35 °C |
| Weight & dimensions |
|---|
| Width |
112 mm |
| Depth |
65 mm |
| Height |
16 mm |
| Packaging data |
|---|
| Package width |
149 mm |
| Package depth |
101 mm |
| Package height |
60 mm |
| Package weight |
260 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
