24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x, 294 x 180 x 44 mm, 100-240VAC, 50/60Hz
What This Product Does

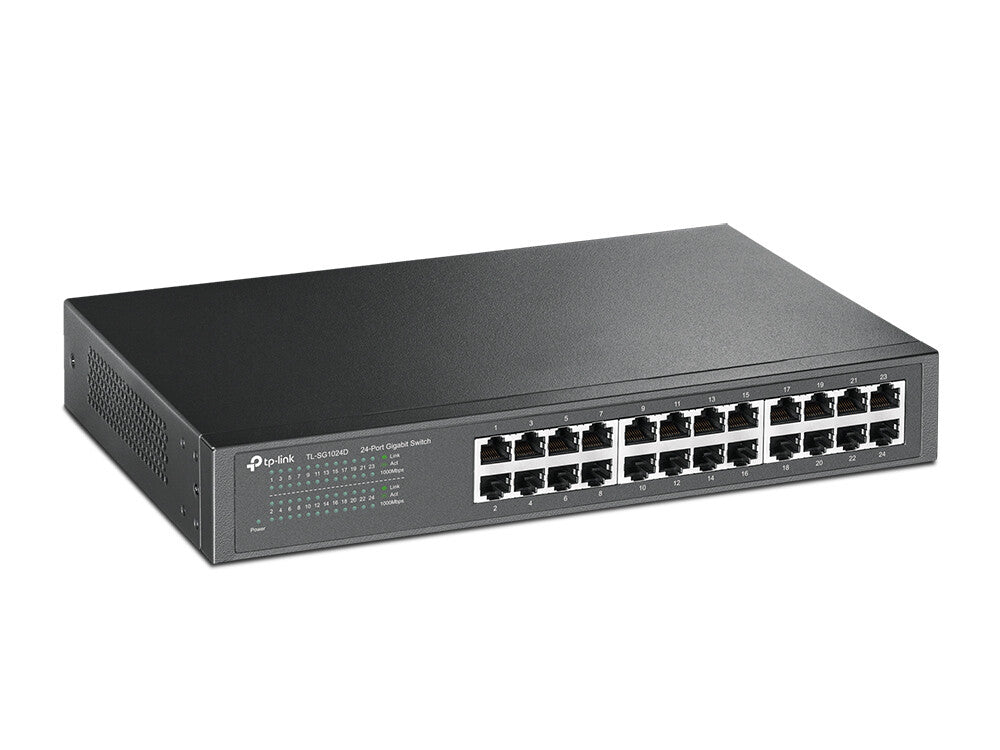

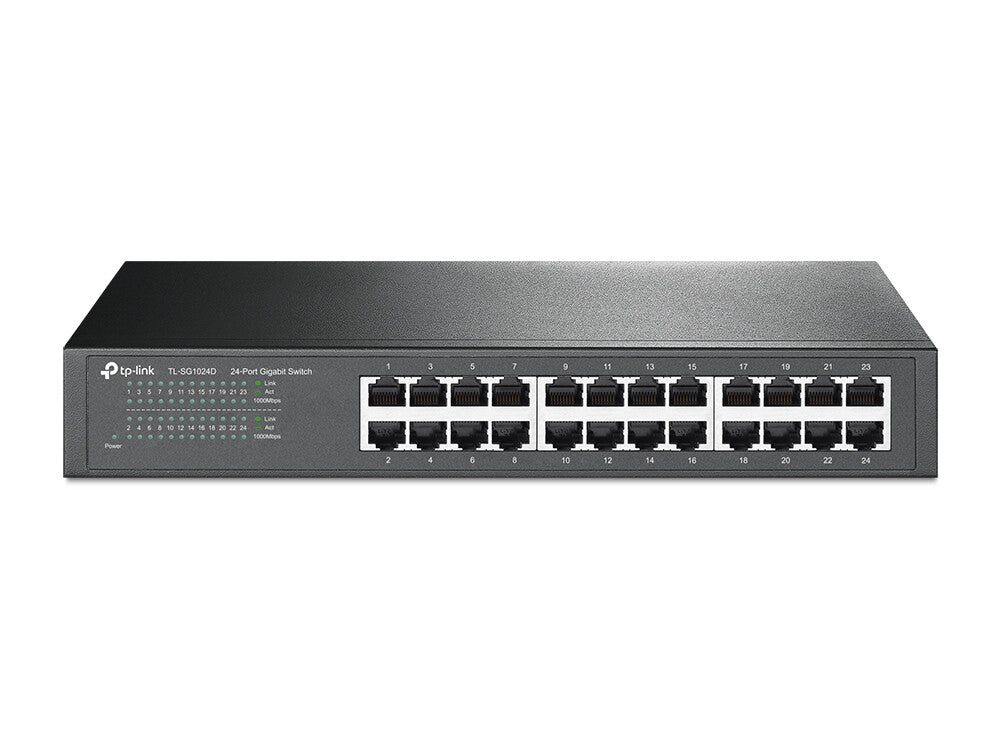

The TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SG1024D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1024D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
| Packaging content |
|---|
| Rack mount kit |
Yes |
| User guide |
Yes |
| Management features |
|---|
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
24 |
| Power connector |
DC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Full duplex |
Yes |
| Auto-negotiation |
Yes |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| Data transmission |
|---|
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/100 Mbps |
| Switching capacity |
48 Gbit/s |
| Forwarding rate |
35.7 Mpps |
| Store-and-forward |
Yes |
| Maximum data transfer rate |
1 Gbit/s |
| Jumbo frames support |
Yes |
| Jumbo frames |
10000 |
| Protocols |
|---|
| Supported network protocols |
CSMA/CD, TCP/IP |
| Design |
|---|
| Rack mounting |
Yes |
| Stackable |
Yes |
| Product colour |
Grey |
| LED indicators |
Yes |
| Certification |
FCC, CE, RoHS |
| Power |
|---|
| Power source |
AC |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (max) |
13.62 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
46.44 BTU/h |
| Weight & dimensions |
|---|
| Width |
294 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Packaging data |
|---|
| Cables included |
AC |
| Package type |
Box |
| Package width |
250 mm |
| Package depth |
400 mm |
| Package height |
80 mm |
| Package weight |
1.95 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Dimensions (WxDxH) |
294 x 180 x 44 mm |
| Connectivity technology |
Wired |
| Bandwidth |
48 Gbit/s |
| Networking features |
Gigabit Ethernet |
| Power requirements |
100 - 240V, 50/60Hz |
| Connectivity LEDs |
Y |
