Mini ITX, Micro ATX, ATX, E-ATX, ARGB, USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1, 456 x 230 x 454 mm, 6.3 kg, Snow
Built for amazing viewing, the View 270 TG ARGB Mid Tower Chassis is an ATX case that features tempered glass front and left panels, and comes with a pre-installed CT140 ARGB Sync PC Cooling Fan at the rear.

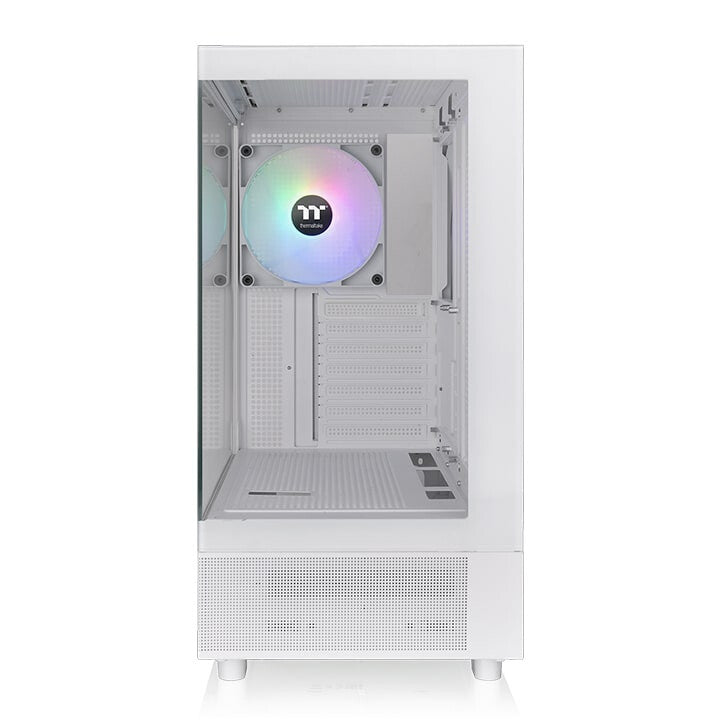

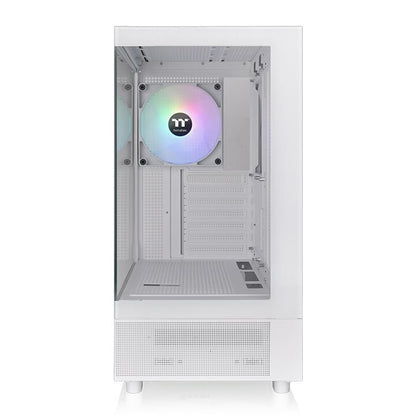

View 270 TG ARGB Mid Tower Chassis
Built for amazing viewing, the View 270 TG ARGB Mid Tower Chassis is an ATX case that features tempered glass front and left panels, and comes with a pre-installed CT140 ARGB Sync PC Cooling Fan at the rear. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to nine 120mm fans can be installed in the chassis, and up to a 360mm radiator can be placed on the top of the View 270 TG ARGB Mid Tower Chassis.

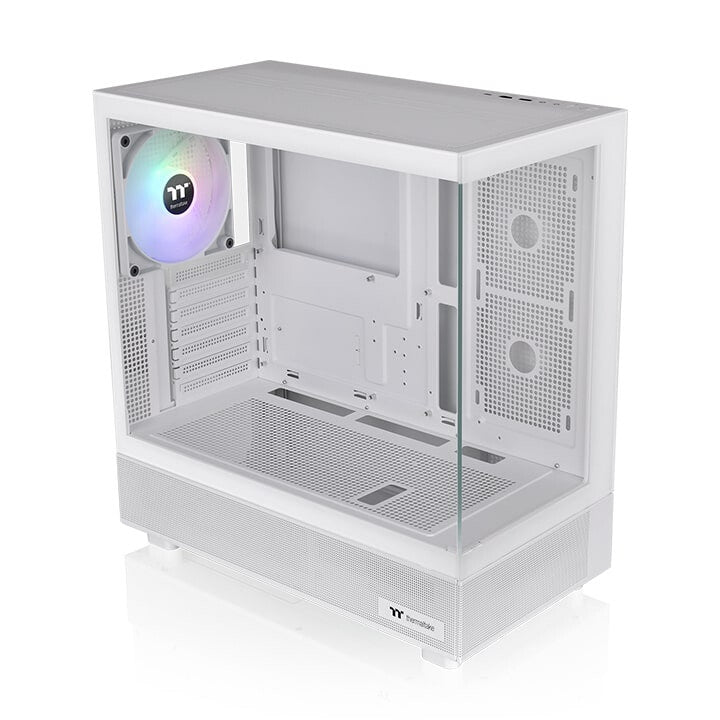

Tempered Glass Front and Left Panels
The View 270 TG ARGB is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.
Supports up to a 360mm Radiator on the Top
Providing good cooling support, users can choose to place a 360mm radiator on the top of the View 270 TG ARGB.
One CT140 ARGB Sync PC Cooling Fan Pre-installed
The View 270 TG ARGB Mid Tower Chassis comes with a CT140 ARGB Sync PC Cooling Fan pre-installed at the rear. It's fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Unify Your Fans with Your Build!
Thermaltake launches brand-new CT series fans, allowing users to choose from black or white, RGB or non-RGB, to match whatever color scheme you have.
Built-in PSU Cover
The View 270 TG ARGB Mid Tower Chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.
Opportunities For High-End Expansion
The View 270 TG ARGB Mid Tower Chassis offers good expandability. It can support a CPU cooler with a maximum height of 180mm, VGA placement up to 420mm in length, a power supply up to 220mm in length. Optimized for excellent cooling performance, the case comes with a pre-installed CT140 ARGB Sync PC Cooling Fan at the rear, and up to nine 120mm fans can be installed. For radiator compatibility, it can support up to 360mm on top, giving more options for high-end expansion!
How Much Storage Is Totally Up To You
For storage compatibility, the View 270 TG ARGB gives maximum support of up to two 2.5″ SSDs or two 3.5″ HDDs in total.
Handy I/O Ports
Two USB 3.0, one USB 3.2 Gen 2 Type C and HD Audio ports are placed on the top panel to grant direct access when needed.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
| Design |
|---|
| Form factor |
Midi Tower |
| Type |
PC |
| Material |
SPCC |
| Product colour |
White |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ATX |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
2 |
| Number of expansion slots |
7 |
| Side window |
Yes |
| Suitable for |
Home/Office |
| Illumination |
Yes |
| Illumination colour |
Multi |
| Illumination location |
Case fans |
| Tempered glass panel(s) |
Yes |
| Cable management |
Yes |
| On/off button |
Yes |
| Reset button |
Yes |
| LED indicators |
Activity |
| Maximum CPU cooler height |
18 cm |
| Maximum graphics card length |
42 cm |
| Maximum PSU length |
22 cm |
| Power supply |
|---|
| Power supply included |
No |
| Power supply shroud |
Yes |
| Number of power supply units |
1 |
| Power supply location |
Rear |
| Supported power supply form factors |
PS2 |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Audio output |
Yes |
| USB Type-C ports quantity |
1 |
| Cooling |
|---|
| Number of side fans supported (max) |
2 |
| Side fans diameters supported |
120 mm |
| Rear fans installed |
1x 140 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Top fans diameters supported |
120,140 mm |
| Fan speed |
0 - 1500 RPM |
| Rear radiator sizes supported |
120 mm |
| Top radiator sizes supported |
120,240,360 mm |
| Storage |
|---|
| Supported HDD sizes |
3.5" |
| SSD form factor |
2.5" |
| Packaging content |
|---|
| Manual |
Yes |
| Weight & dimensions |
|---|
| Width |
230 mm |
| Depth |
454 mm |
| Height |
456 mm |
| Weight |
6.3 kg |
