750 W, Active PFC, 14 cm fan, 80 PLUS Gold, RGB
Toughpower GF2 ARGB 750W Gold
Toughpower GF2 ARGB 750W Gold is constructed with premium components and advanced technology which makes this PSU become a reliable and stable power supply unit. The patented 16.8 million-color Riing Duo 140mm RGB fan with 18 LEDs preinstalled helps deliver brighter and richer lighting. The meticulously designed RGB side panels allow the light to glow through from every angles. The Toughpower GF2 ARGB 750W Gold supports synchronization with motherboard RGB software from ASUS, GIGABYTE, MSI, and ASRock for various illumination poossibilities. With an ample 10-year warranty, the Toughpower GF2 ARGB 750W Gold is able to satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.

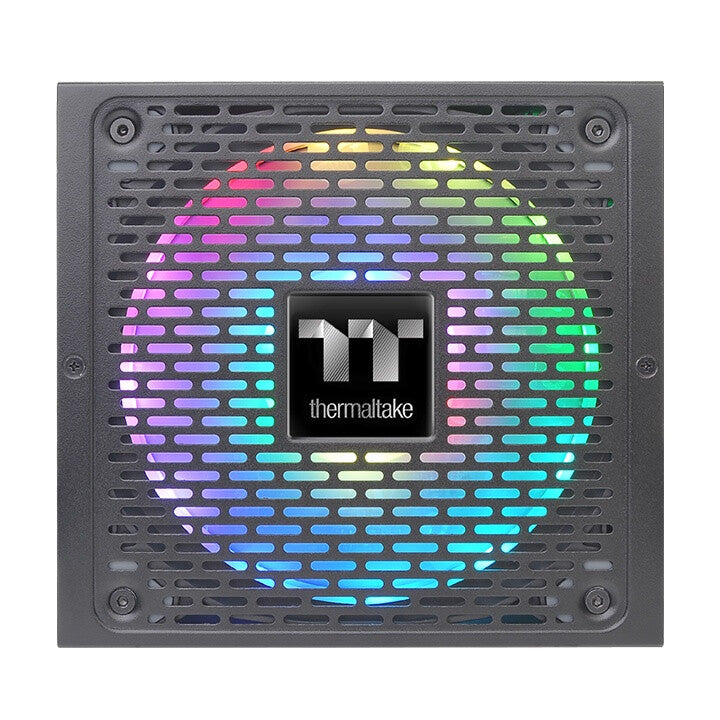

ARGB Side Panels and Riing Duo 140mm RGB Fan
Show off the glamorous illumination through the unique ARGB Side Panel design, enables you to enjoy the RGB glory from every angel. Moreover, the built-in Riing Duo 140mm RGB Fan features dual rings with 18 addressable LEDs, great light coverage, and uniform color and brightness to paint your build with 16.8 million colors.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome. It supports motherboards that have a 5V addressable RGB header, allowing you to control the lights directly from the above-mentioned software without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI and ASRock official websites.
Zero Cable Platform
Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

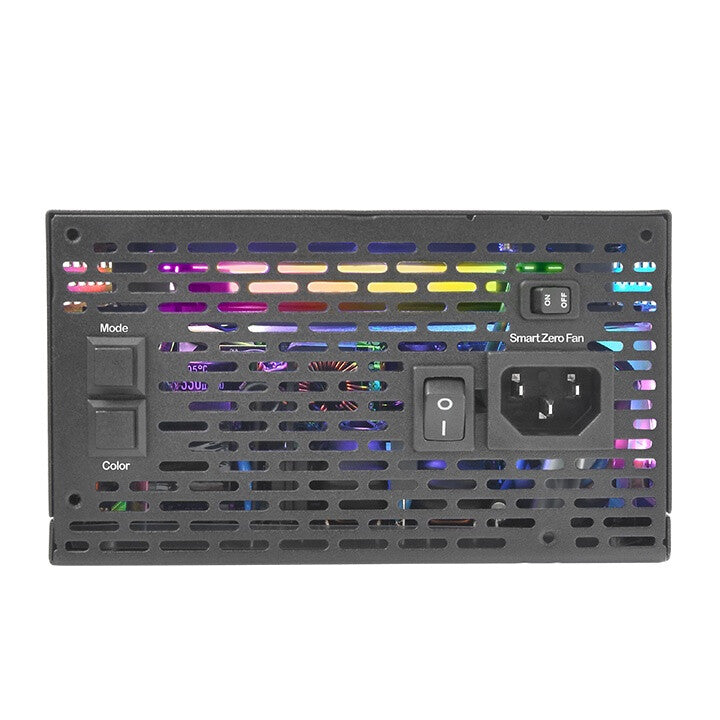

Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 20% of the power supply, minimizing the fan noise.
＜30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.

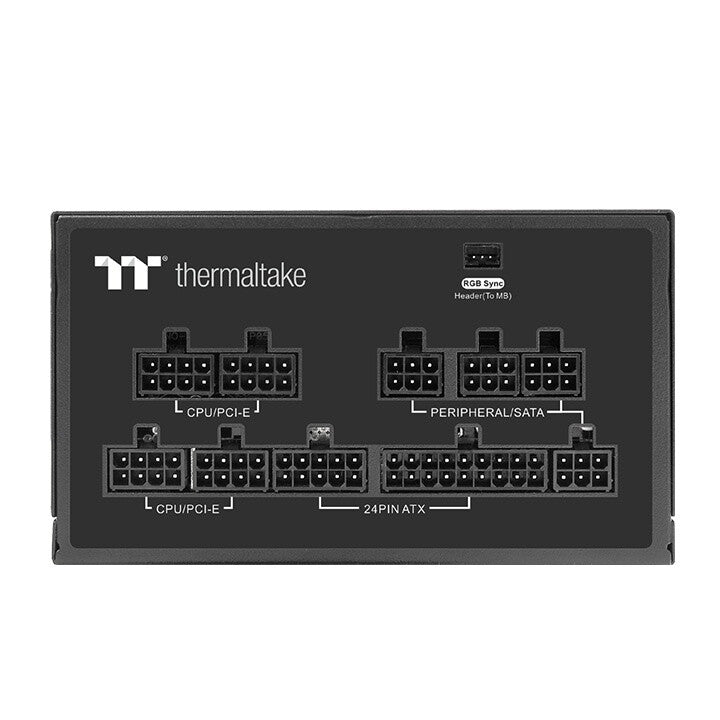

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
Premium Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GF2 ARGB 750W Gold saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
| Power |
|---|
| Total power |
750 W |
| Peak power |
900 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Input current |
10 A |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
120 W |
| Combined power (+12V) |
750 W |
| Combined power (+5V) |
120 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
15 W |
| Max output current (+3.3V) |
22 A |
| Max output current (+12V) |
62.5 A |
| Max output current (+5V) |
22 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
3 A |
| Hold time |
16 ms |
| Ports & interfaces |
|---|
| Motherboard power connector |
24-pin ATX |
| Motherboard power cable length |
60 cm |
| Number of SATA power connectors |
9 |
| SATA power cable length |
500,650,800 mm |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| Peripheral (Molex) power cable length |
500,650,800,950 mm |
| EPS power connector (8-pin) |
Yes |
| EPS power connector (4+4 pin) |
Yes |
| PCI Express power connectors (6+2 pin) |
4 |
| PCI Express power cable length |
65 cm |
| CPU power connector (4+4 pin) |
Yes |
| CPU power cable length |
65 cm |
| ATX Power connector (24-pin) |
Yes |
| Floppy drive power connector |
1 |
| Cabling type |
Fully-Modular |
| Performance |
|---|
| Purpose |
PC |
| 80 PLUS certification |
80 PLUS Gold |
| Bearing technology |
HDB |
| Mean time between failures (MTBF) |
100000 h |
| Design |
|---|
| Product colour |
Black |
| Cooling type |
Active |
| Fan diameter |
14 cm |
| Number of fans |
1 fan(s) |
| Fan location |
Top |
| Illumination |
Yes |
| On/off switch |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Storage relative humidity (H-H) |
20 - 95% |
| Packaging content |
|---|

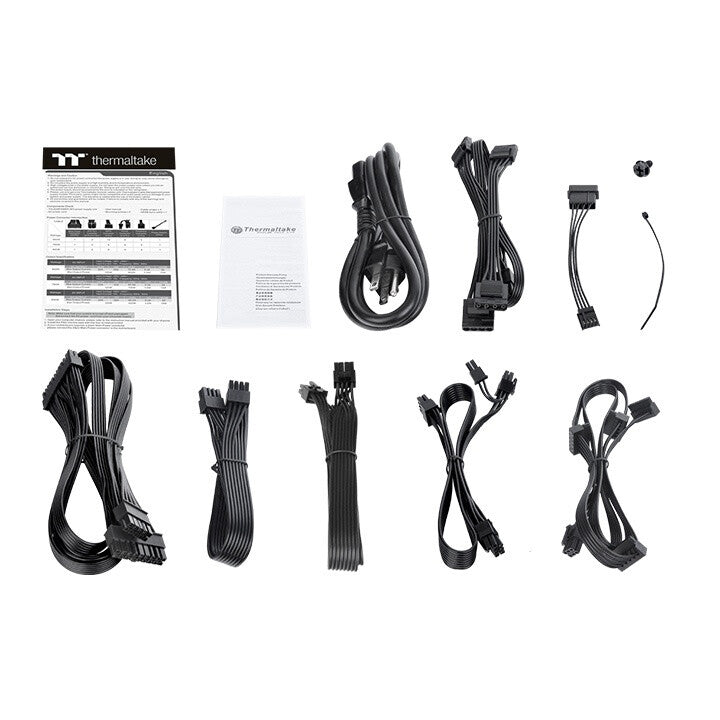

| Cables included |
AC, CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions |
|---|
| Width |
150 mm |
| Depth |
160 mm |
| Height |
86 mm |
| Technical details |
|---|
| Compliance certificates |
CE |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
