750W, Active PFC, 10A, 50Hz - 60Hz, 140mm fan, 80 PLUS Gold

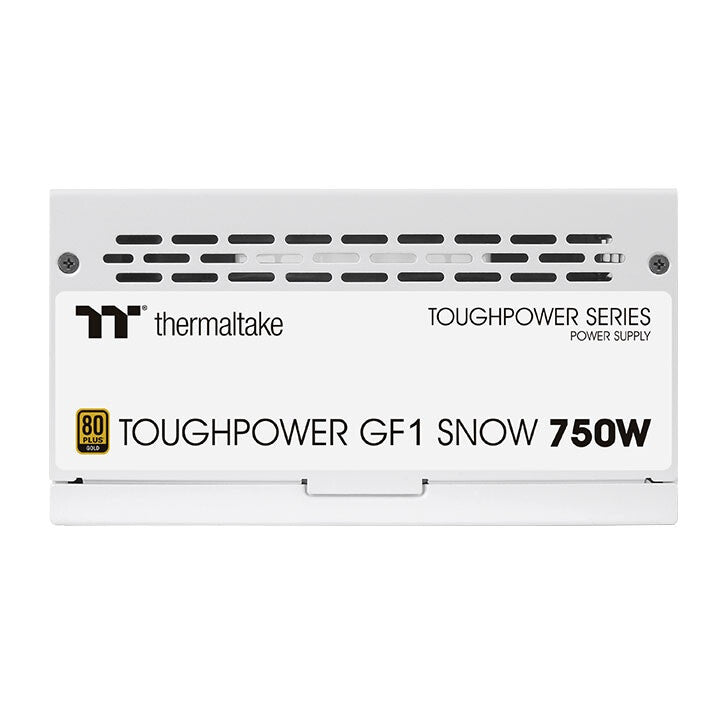

Toughpower GF1 750W Snow - TT Premium Edition
The fully modular Toughpower GF1 Snow Edition series comes in 750W and built to deliver 80 PLUS Gold efficiency. Toughpower GF1 Snow 750W features flat white cables, a 140mm hydraulic bearing fan, Japanese capacitors and other premium components to help deliver a continuous and stable power with an ambient temperature up to 50°C, while near silent operation and reliable performance are guaranteed. With an ample 10-year warranty, the Toughpower GF1 750W Snow Gold can satisfy PC enthusiasts who are looking for a white premium power supply with all the latest features. For users who crave for a pure white build, this power supply can defenitely meet their demand.
Zero Cable Platform
Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

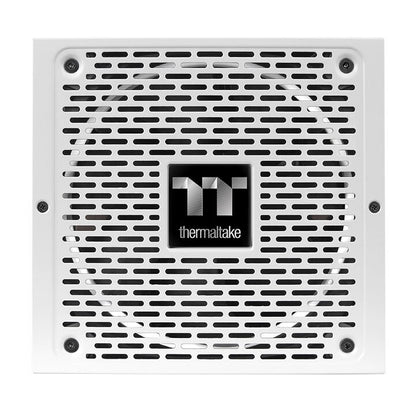

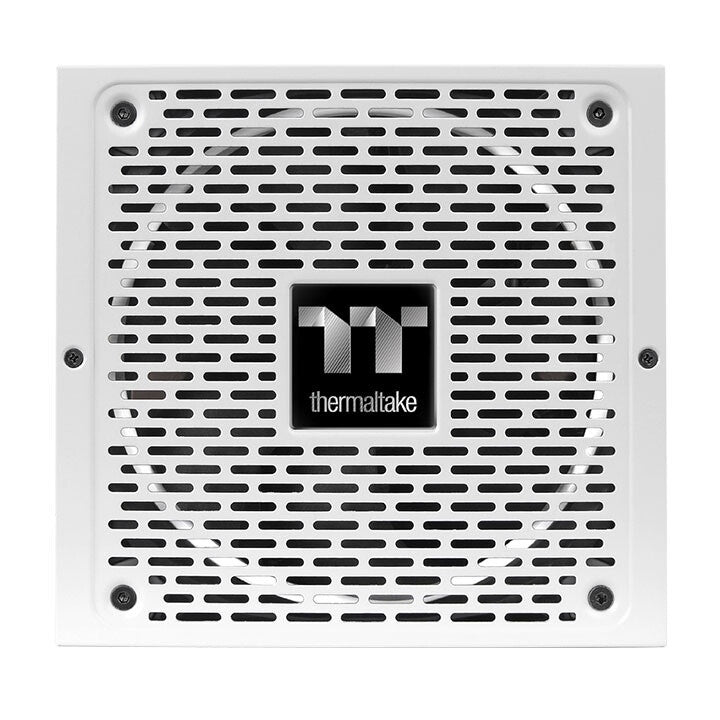

Ultra Quiet 140mm Hydraulic Bearing Fan
Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation

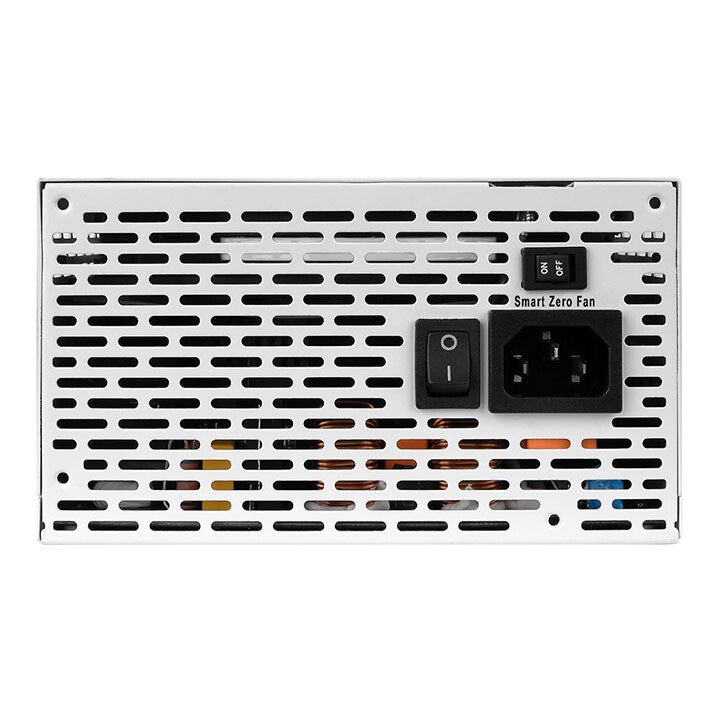

Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.
＜30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.

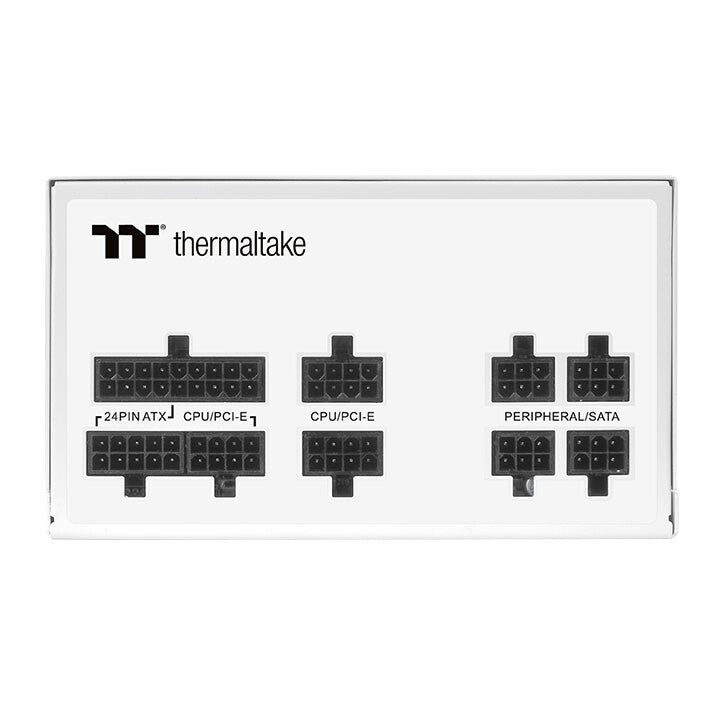

Fully Modular Low-Profile Flat Cable
Fully modular low-profile flat cables offer cable selection while powering the system at an advantageous voltage. By only connecting the cables your system needs, cable management is easier, clutter is reduced, and the airflow inside the chassis is increased. Additionally, the white flat cables can enrich the users' PC build experience depending on their build style.
Premium Japanese 105°C/221°F Capacitors.
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GF1 Snow series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving..
| Power |
|---|
| Total power |
750 W |
| Peak power |
900 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Input current |
10 A |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
120 W |
| Combined power (+12V) |
750 W |
| Combined power (+5V) |
120 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
15 W |
| Max output current (+3.3V) |
22 A |
| Max output current (+12V) |
62.5 A |
| Max output current (+5V) |
22 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
3 A |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces |
|---|
| Motherboard power connector |
24-pin ATX |
| Motherboard power cable length |
60 cm |
| Number of SATA power connectors |
9 |
| SATA power cable length |
150,500 mm |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| Peripheral (Molex) power cable length |
150,500 mm |
| PCI Express power connectors (6+2 pin) |
4 |
| PCI Express power cable length |
50 cm |
| CPU power connector (4+4 pin) |
Yes |
| CPU power cable length |
65 cm |
| ATX Power connector (24-pin) |
Yes |
| Floppy disk drive cable length |
15 cm |
| Floppy disk drive connector |
Yes |
| Floppy drive power connector |
1 |
| Cabling type |
Fully-Modular |
| Performance |
|---|
| Purpose |
PC |
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
80 PLUS Gold |
| Supported motherboard form factors |
ATX |
| Silent mode |
Yes |
| Bearing technology |
HDB |
| Mean time between failures (MTBF) |
120000 h |
| Design |
|---|
| Product colour |
Black |
| Cooling type |
Active |
| Fan diameter |
14 cm |
| Number of fans |
1 fan(s) |
| Illumination |
No |
| On/off switch |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |

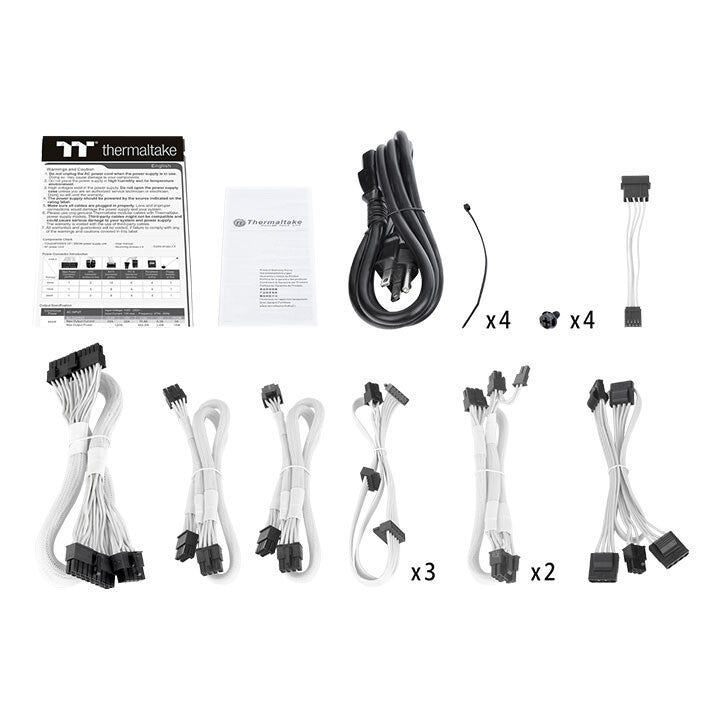

| Packaging content |
|---|
| Cables included |
AC, CPU, Peripheral (Molex), SATA |
| Weight & dimensions |
|---|
| Width |
150 mm |
| Depth |
160 mm |
| Height |
86 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
