120 x 120 x 25 mm, 500 ~ 1500 R.P.M, 1.54mm-H2O, 48.34 CFM

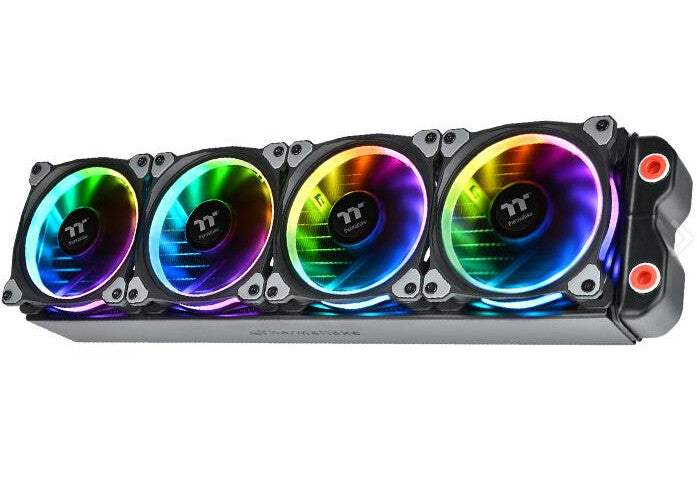

Riing Plus 12 LED RGB Radiator Fan TT Premium Edition (3 Fan Pack)
Thermaltake combines the patented gorgeous LED light with cutting-edge technology to deliver a brand new experience of using PC cooling, Thermaltake Riing Plus 12 LED RGB Radiator Fan TT Premium Edition. A 120mm high-static pressure fan with a patented 16.8 million colors LED ring and 12 controllable single LEDs, the Riing Plus 12 RGB features compression blades, hydraulic bearing and a digital fan controller, and can be controlled by the patented Riing Plus RGB Software. Cool your system with high performance Thermaltake Riing Plus 12 RGB!
Patented LED Design
Featuring 12 controllable single LEDs, great light coverage, and uniform color and brightness, the built-in LED ring can paint your build with 16.8 million colors.

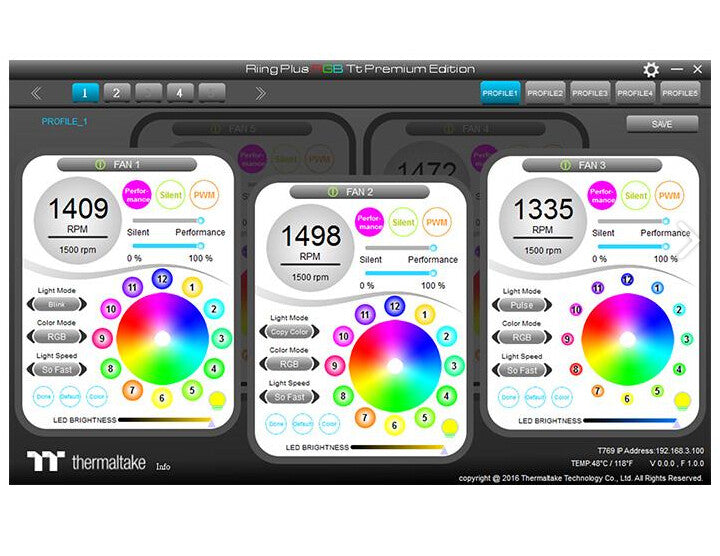

Patented Riing Plus RGB Software
Monitor the fan performance, adjust the fan speeds, and customize the lighting effects for up to 80 fans with Thermaltake’s patented Riing Plus RGB Software. Choose a function from below and scroll down to read the details.
Profiles
Conveniently control all fans and customize the lights at the same time by setting up to five profiles for each fan controller. Each controller your system connected is displayed at the top left of the interface for you to quickly access. Within each profile, you can check which fan is set to what operating speed and lighting effect. You can even “SAVE” and apply the settings to other fan controllers your system is running.

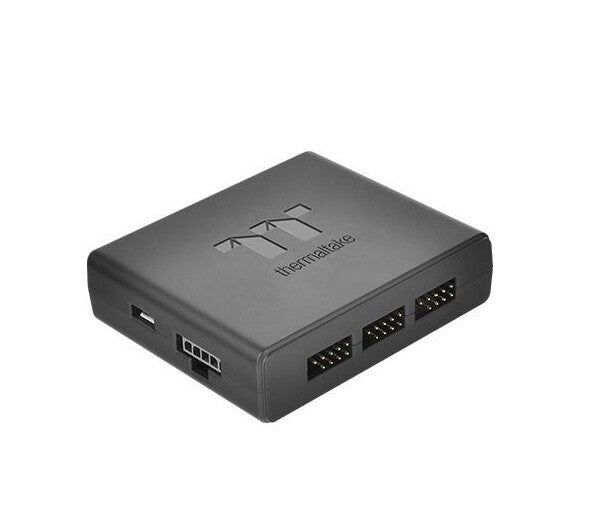

Digital Fan Controller

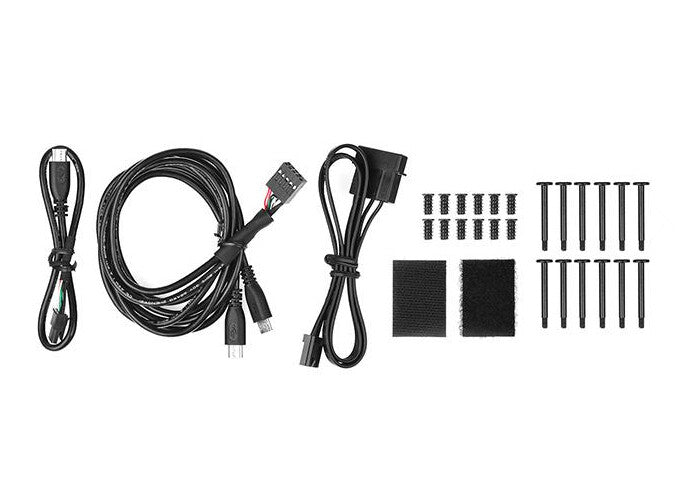

The controller is designed with a DIP switch on the back. Hence, you can set a number for each controller easily. You can add up to 5 fans to one fan controller and up to 16 controllers to the software. The controller and the coding guide are included in all packs.

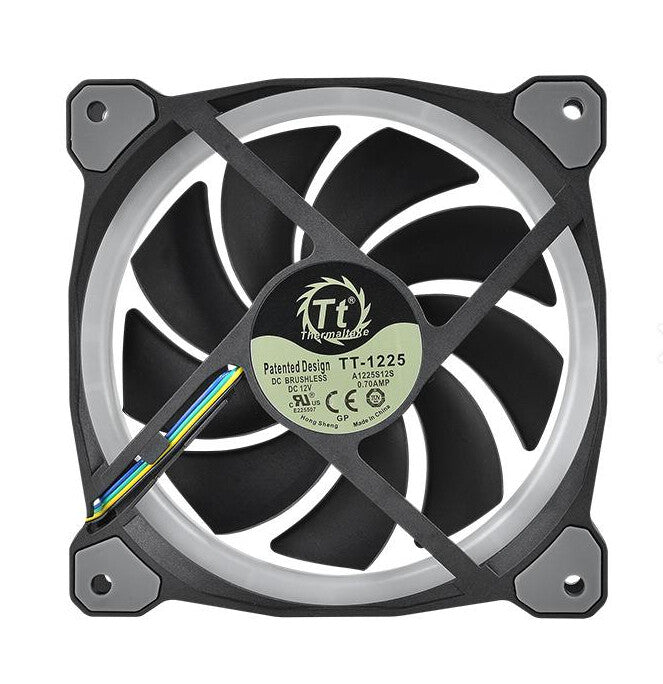

Nine Fan Blade Design
The Nine fan blades are engineered to generate higher airflow without compromising on ultra-silent operation. With this unique blade design, the Riing Plus 12 RGB acts as a guarantee of performance.
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality, friction-reducing substance, which lowers operation noise while improving thermal efficiency. The seal cap prevents lubricant leakage and extends the lifespan of the unit.

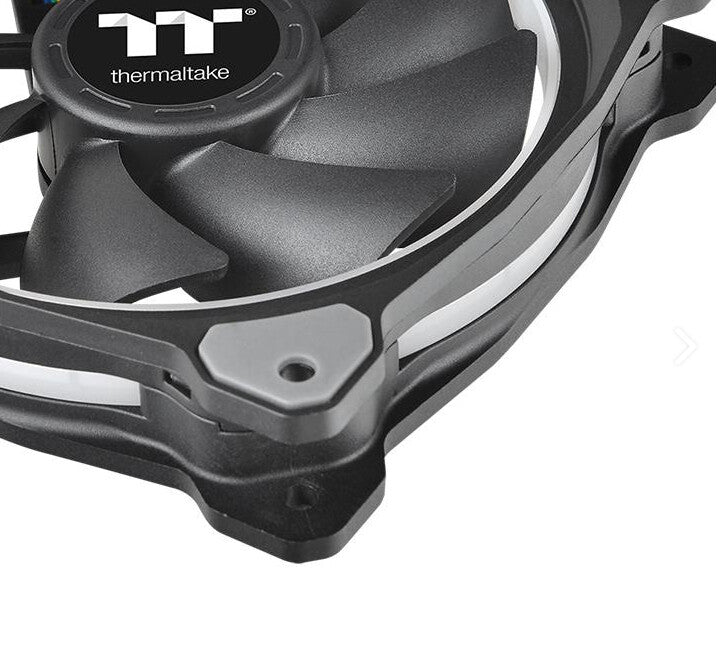

Anti-Vibration Mounting System
In-mold injection anti-vibration rubber pads provide a hassle-free usage with 80% protection coverage for all corners.
| Performance |
|---|
| Suitable location |
Computer case |
| Type |
Fan |
| Fan diameter |
12 cm |
| Rotational speed (min) |
500 RPM |
| Rotational speed (max) |
1500 RPM |
| Noise level (high speed) |
24.7 dB |
| Maximum airflow |
48.34 cfm |
| Maximum air pressure |
1.54 mmH2O |
| Bearing type |
Hydraulic |
| Mean time between failures (MTBF) |
40000 h |
| Design |
|---|
| Product colour |
Multicolour |
| Number of fans |
3 fan(s) |
| Certification |
CE, EAC |
| Power |
|---|
| Voltage |
12.5 V |
| Rated current |
0.15 A |
| Weight & dimensions |
|---|
| Weight |
730 g |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Other features |
|---|
| Country of origin |
China |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
