650 W, ATX, 120mm, PFC, 100-500 ms, 80 PLUS Gold, 150 x 86 x 140 mm

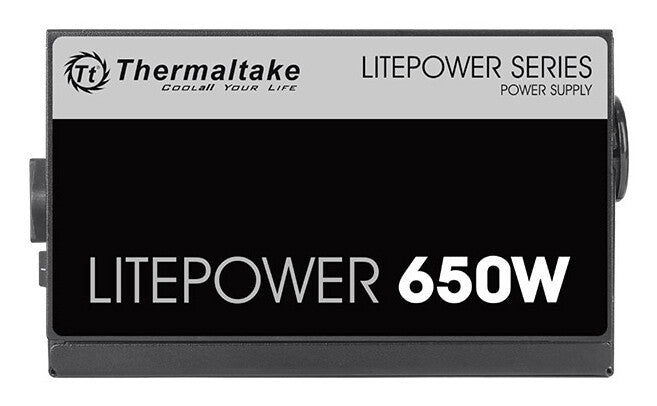

The Litepower 650W
The Litepower 650W power supply supports ATX 12V V2.3 and EPS 12V standards, making it suitable for even the most demanding builds. Its embedded 120mm cooling fan ensures excellent airflow with minimal noise. Additionally, the single +12V rail design provides stable and reliable performance, enabling non-stop usage.

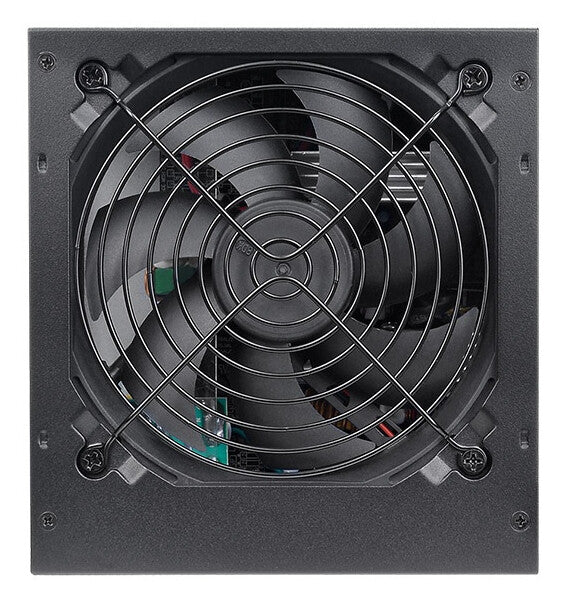

Ultra Quiet 120mm Fan
Litepower Series adopts 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Multiple Connectors

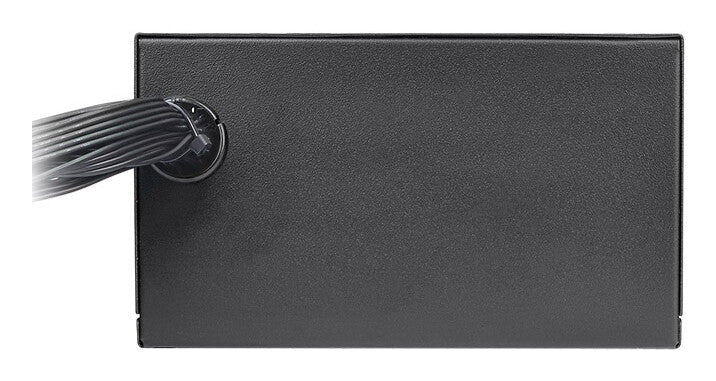

The cables used for the Litepower 650W are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
High amperage Single +12V Rail
The Litepower 650W is equipped with powerful +12V rails, superior performance under all types of system loading.
Built-in Industrial Grade Protection
To protect the hardware, the Litepower 650W is built with industry grade protections: OVP (Over Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection).
| Power |
|---|
| Total power |
650 W |
| AC input voltage |
230 V |
| Input current |
9 A |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
110 W |
| Combined power (+12V) |
576 W |
| Combined power (+5V) |
110 W |
| Combined power (-12V) |
6 W |
| Combined power (+5Vsb) |
12.5 W |
| Max output current (+3.3V) |
23 A |
| Max output current (+12V) |
48 A |
| Max output current (+5V) |
17 A |
| Max output current (-12V) |
0.5 A |
| Max output current (+5Vsb) |
2.5 A |
| Power Good signal delay range |
100 - 500 ms |
| Hold time |
16 ms |
| Power protection features |
Over power, Over voltage, Short circuit |
| Ports & interfaces |
|---|
| Motherboard power connector |
24-pin ATX |
| Motherboard power cable length |
45 cm |
| Number of SATA power connectors |
5 |
| SATA power cable length |
450 mm |
| Peripheral (Molex) power connectors (4-pin) |
6 |
| Peripheral (Molex) power cable length |
450 mm |
| PCI Express power connectors (6+2 pin) |
2 |
| PCI Express power cable length |
45 cm |
| CPU power connector (4+4 pin) |
Yes |
| CPU power cable length |
55 cm |
| ATX Power connector (24-pin) |
Yes |
| Cabling type |
Non-Modular |
| Performance |
|---|
| Purpose |
PC |
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
80 PLUS Gold |
| ATX version |
2.3 |
| Mean time between failures (MTBF) |
100000 h |
| Design |
|---|
| Product colour |
Black |
| Cooling type |
Active |
| Fan diameter |
12 cm |
| Number of fans |
1 fan(s) |
| Fan speed |
600 - 1800 RPM |
| Fan location |
Top |

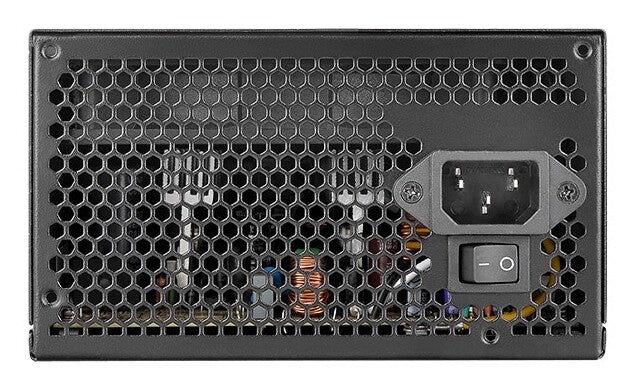

| On/off switch |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-40 - 50 °C |
| Operating relative humidity (H-H) |
20 - 85% |
| Storage relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Width |
150 mm |
| Depth |
140 mm |
| Height |
86 mm |
| Packaging data |
|---|
| Package type |
Box |
| Technical details |
|---|
| Compliance certificates |
CE, CB, EAC, RCM |
