Mid Tower, Mini ITX/Micro ATX/ATX/E-ATX, 2x USB 3.0, HD Audio
H590 TG Snow ARGB Mid-Tower Chassis

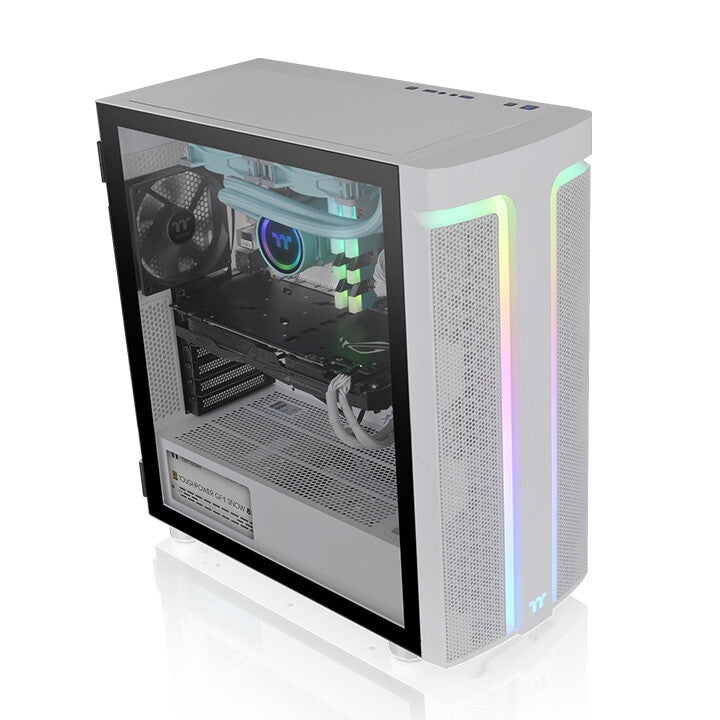

The H590 TG Snow ARGB mid-tower chassis supports up to E-ATX (12" x 13") Motherboards and it has a unique design on the front panel, featuring two RGB lighting strips around the T shaped pillar. Its lighting effects can be controlled by the physical RGB button on the I/O panel or motherboard software from ASUS, GIGABYTE, MSI, and ASRock. H590 TG ARGB mid-tower chassis comes with two pre-installed fans, one at the front and the other at the rear; what’s more, up to seven 120mm fans can be fitted to the chassis and up to a 360mm radiator can be placed on the top and the front of the chassis.

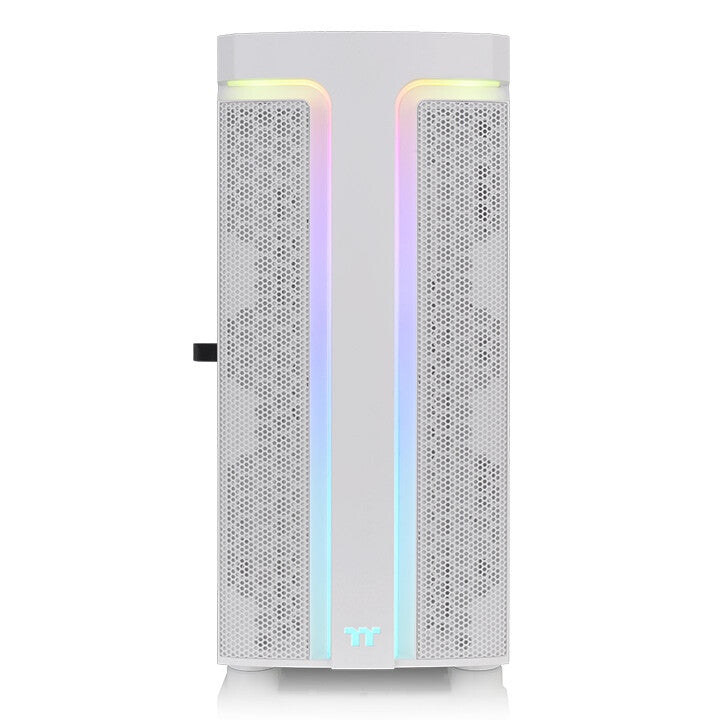

A Unique Design of the Front Panel
H590 TG Snow ARGB mid-tower chassis has a unique design of the front panel, featuring two RGB lighting strips around the T shape. Its lighting effects can be controlled by the physical RGB button on the I/O panel or motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Pre-installed Two 120mm Standard Fans
H590 TG Snow ARGB mid-tower chassis comes with two pre-installed standard fans, one at the front and the other at the rear, delivering better cooling performance.
Built-in PSU Cover
H590 TG Snow ARGB mid-tower chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.

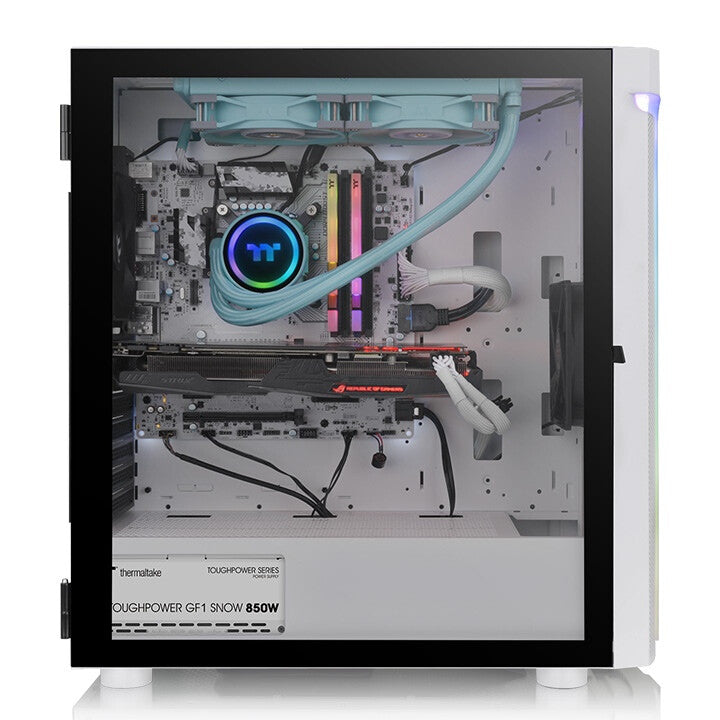

Hinged Tempered Glass Panel
The 4mm hinged tempered glass panel on the left side of the H590 TG Snow ARGB mid-tower chassis is built to be more durable, scratch resistant, and transparent for viewing the hardware.
Dust Filtration
There is one magnetic filter on the top of the chassis to provide a good dust protection.
Opportunities For High-End Expansion
Thermaltake H590 TG Snow ARGB mid-tower chassis has good expandability. It can support a CPU cooler with a maximum height of 160mm, VGA placement of up to 360mm in length, a power supply with a length of up to 180mm (with HDD Rack). Optimized for nice cooling capability, the case comes with two pre-installed fans at the front and at the rear; you may also choose to put three 140mm fans at the front and two 140mm fans on top. For radiator compatibility, it can support up to 360mm at the front and on top, giving more opportunities for outstanding cooling solution!
Handy I/O Ports
Two USB 3.0 ports, and one HD Audio and one RGB lighting control button are placed on the top panel to grant direct access when needed.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
| Design |
|---|
| Form factor |
Midi Tower |
| Type |
PC |
| Material |
SPCC, Tempered glass |
| Product colour |
White |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
2 |
| Number of expansion slots |
7 |
| Side window |
Yes |
| Illumination |
Yes |
| Illumination colour |
Multi |
| Illumination location |
Front |
| Tempered glass panel(s) |
Yes |
| Anti-dust filter |
Yes |
| Cable management |
Yes |
| RGB control button |
Yes |
| On/off button |
Yes |
| Reset button |
Yes |
| Maximum CPU cooler height |
16 cm |
| Maximum graphics card length |
36 cm |
| Maximum PSU length |
18 cm |
| Power supply |
|---|
| Power supply included |
No |
| Supported power supply form factors |
PS2 |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Audio input |
Yes |
| Audio output |
Yes |
| Cooling |
|---|
| Front fans installed |
1x 120 mm |
| Number of front fans supported (max) |
3 |
| Front fans diameters supported |
120,140 mm |
| Rear fans installed |
1x 120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120 mm |
| Number of top fans supported (max) |
3 |
| Top fans diameters supported |
120,140 mm |
| Front radiator sizes supported |
120,140,240,280,360 mm |
| Rear radiator sizes supported |
120 mm |
| Top radiator sizes supported |
120,140,240,280,360 mm |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| Packaging content |
|---|
| Manual |
Yes |
| Weight & dimensions |
|---|
| Width |
216 mm |
| Depth |
467 mm |
| Height |
487 mm |
| Weight |
7.45 kg |
