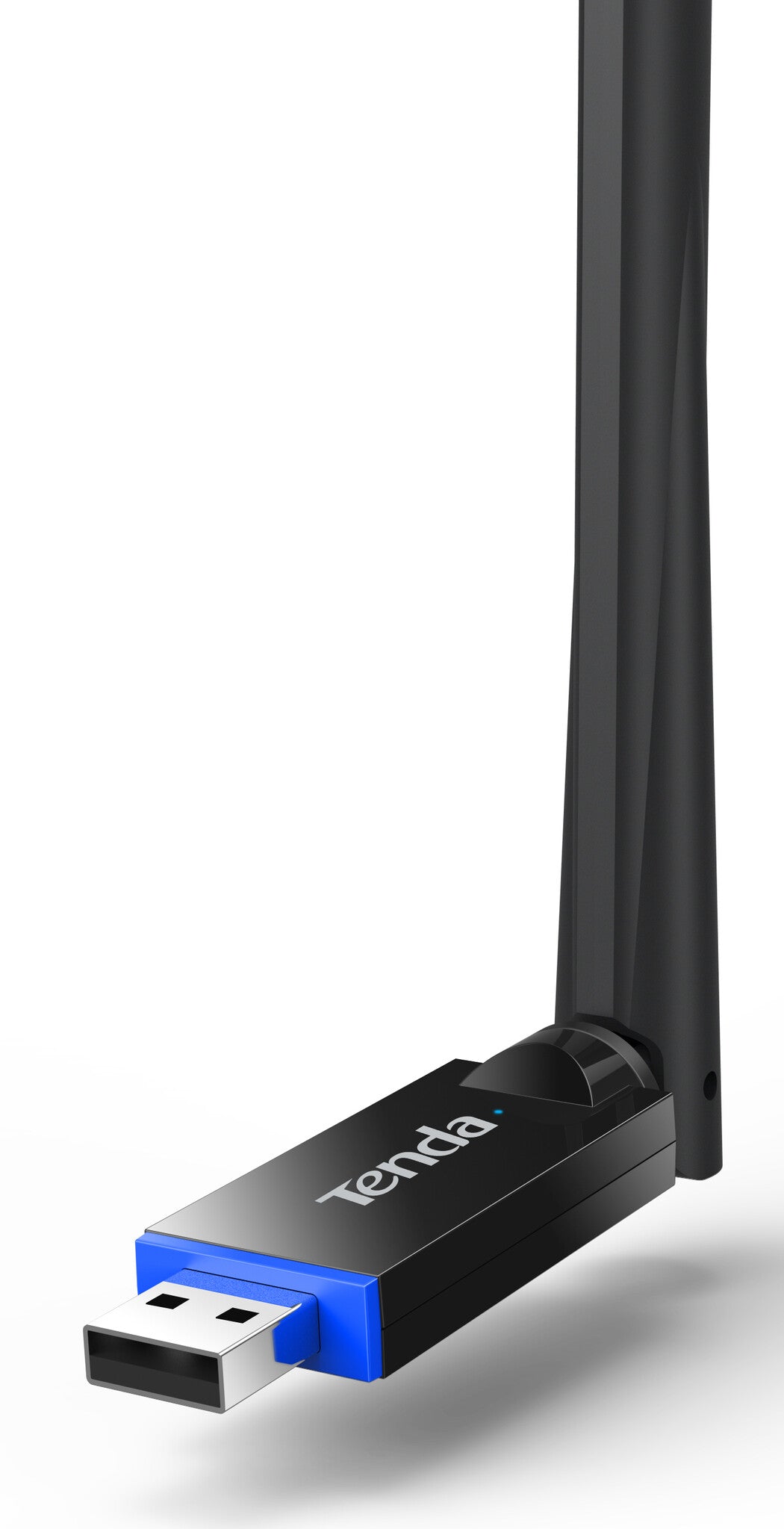

Wi-Fi, USB 2.0, 2.4GHz/5GHz, 286Mbps + 600Mbps, IEEE802.11b/g/n/ac/ax, 6dBi, <20dBm, <0.1W, Black
The U11 Pro supports the new generation of Wi-Fi 6 technology, with a dual band concurrent speed of 886Mbps. The highest speed in the 2.4GHz band can reach 286Mbps, and the highest speed in the 5GHz band can reach 600Mbps. Desktop computers can connect to Wi-Fi by using U11 Pro, while connected computers can transmit WiFi sharing to other devices by U11 Pro. Support driver free installation, no need to download drivers, eliminates tedious installation steps. Adapt to various operating systems including Windows 11, Windows 10, Windows 7, and Linux to meet the needs of various desktop and laptop computers.
Fastest Wi-Fi 6 standard
Both dual frequency bands support Wi-Fi 6 technical features, with concurrent rates up to 900Mbps. You can independently select the wireless network frequency band according to the network environment, effectively avoiding wireless interference and obtaining the best network experience.

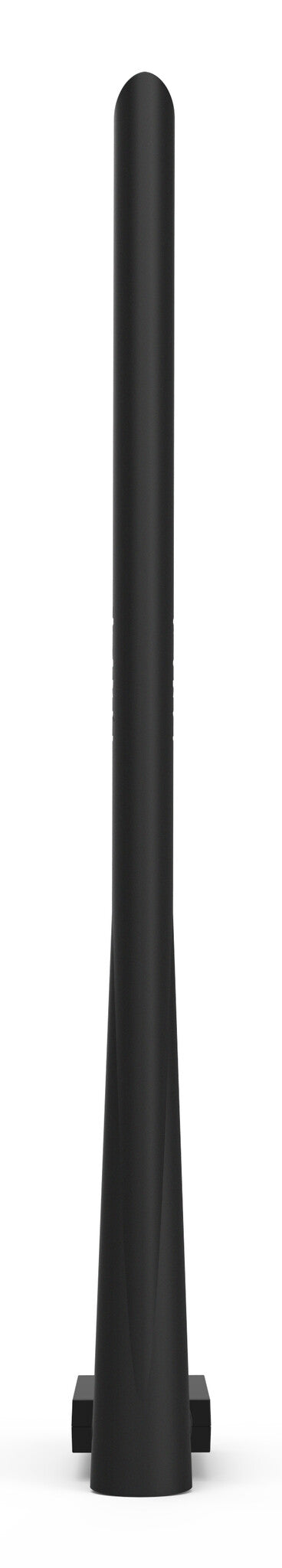

External High-gain Antenna
The external 6dBi omnidirectional high-gain antenna can rotate freely in multiple dimensions. Compared with the built-in antenna network card, the sensitivity of weak signal reception is greatly improved. In a network environment with many interferences, networked devices can also obtain a smooth network experience.
Compatible with Various Operating Systems
Compatible with Windows 7, Windows 10, Windows 11, and Linux*, to meet the requirements of various desktop and laptop users for wireless internet connections.
Cover Most Usage Scenarios
Plug & Play for wireless connection
Insert U11 Pro into a computer and complete the installation. Then you can search for Wi-Fi for wireless Internet access.
Support AP mode
Insert U11 Pro into a computer that is already connected to the Internet, and it can send out Wi-Fi signals for terminal devices.
Minimize Lag in Multi-user Scenario
Significantly improve network performance and efficiency with MU-MIMO + OFDMA technology, U11 Pro meeting the needs of household members to surf the Internet simultaneously without latency.
Efficient error correction algorithm
U11 Pro supports efficient LDPC error correction algorithm (low density parity check code), which effectively enhances the anti-interference ability of data in channel transmission, improves weak signals, and makes the connection faster and more stable.
| Ports & interfaces |
|---|
| Connectivity technology |
Wireless |
| Host interface |
USB |
| Interface |
WLAN |
| USB version |
2.0 |
| Network |
|---|
| Maximum data transfer rate |
886 Mbit/s |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
| Wi-Fi |
Yes |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Frequency range |
2.4 - 5 GHz |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| WLAN data transfer rates supported |
600,286 Mbit/s |
| Security algorithms |
WPA-PSK, WPA2-PSK, WPA, WPA2 |
| Power range |
0 - 20 dBm |
| Bluetooth |
No |
| Design |
|---|
| Internal |
No |
| Component for |
PC/Laptop |
| Product colour |
Black |
| Antenna design |
External |
| Antenna |
Yes |
| Antenna gain level (max) |
6 dBi |
| Plug and Play |
Yes |
| LED indicators |
System |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 11, Windows 7 |
| Linux operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Certificates |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Sustainability |
|---|
| Doesn't contain |
Lead, Mercury, Cadmium |
| Weight & dimensions |
|---|
| Width |
21 mm |
| Depth |
59.1 mm |
| Height |
206.2 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, Norma Oficial Mexicana (NOM), UKCA, EAC |
