IEEE 802.3uxzab, 802.1QWDSP, 802.3af/a L3+, 24P gigabit RJ45 + 4P SFP, 1U 19-inch rack

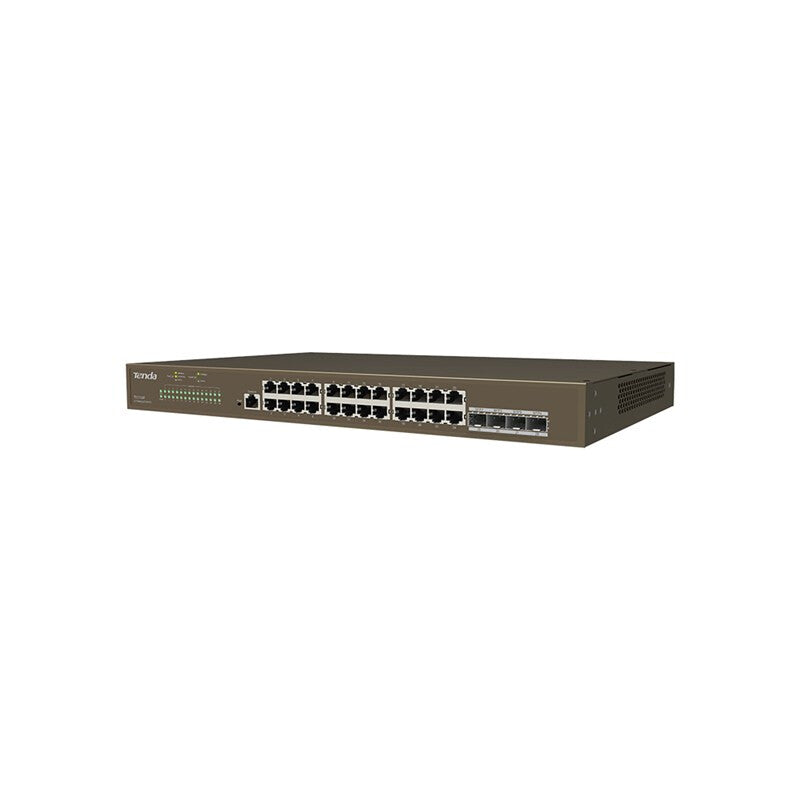

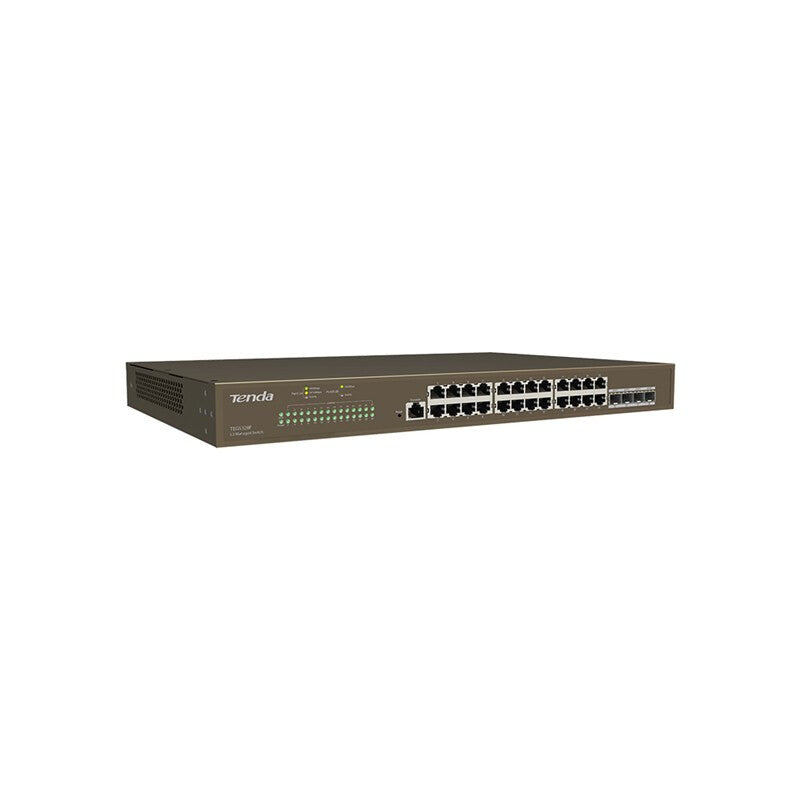

TEG5328F is a Tenda Layer-3 managed switch. To meet the demand of high-performance access, the switch provides 24 10/100/1000 Mbps Base-T Ethernet ports and 4 separate 1000 Mbps Base-X SFP ports. With an innovative hardware structure and software platform, it features a powerful processing capacity and complete security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or core layer of such medium to large networks as enterprises and campuses.
Layer-3 Routing Engine，High-Efficiency Fast Forwarding
Supports Layer 3 static routing protocols, supports Layer 3 forwarding of up to 400+ terminals, easily meets Layer 3 routing and forwarding across network segments, and truly achieves Layer 2 network isolation and Layer 3 network interworking. Compared with using a Layer 2 switch for transmission, there is no need to go through a router, and the forwarding speed is faster!
12M Large Buffer, No Fear of Burst Traffic
12M large buffer design, which is three times than other brands in the same gear.
Flexible QoS, Precise Traffic Control
The TEG5328F supports three QoS scheduling modes (SP, SWRR, WRR) for more accurate traffic control. After the QoS function is enabled, the traffic in the network will be precisely controlled according to the priority of the label. It will prioritize important traffic and reduce the proportion of data flows that occupy a large amount of insignificant traffic in the condition of limited bandwidth，in order to better meet the current transmission needs.
Supports Layer 2 And Layer 3 ACL，For More Secure Access
Support strict access control based on MAC address or IP address, which can filter the corresponding data packets to enhance user network security. It can be used for network deployment of government, medical and other units.
Multiple Attack Defenses, Multiple Securit Blessings
Support IP / MAC / ARP filtering / DoS attack protection, enable attack protection according to networking requirements, bring multiple layers of protection to user network security, and ensure network stability and failure-free.
| Management features |
|---|
| Switch type |
Managed |
| Switch layer |
L3 |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity |
4 |
| Network |
|---|
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support |
No |
| Port mirroring |
Yes |
| VLAN support |
Yes |
| Data transmission |
|---|
| MAC address table |
16000 entries |
| Switching capacity |
56 Gbit/s |
| Forwarding rate |
41.7 Mpps |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
10000 |
| Packet buffer memory |
12 MB |
| Security |
|---|
| DHCP features |
DHCP Option 82, DHCP relay, DHCP snooping |
| Access Control List (ACL) |
Yes |
| IGMP snooping |
Yes |
| Security algorithms |
SNMP, SNMPv2, SNMPv3 |
| Design |
|---|
| Rack mounting |
Yes |
| Form factor |
1U |
| Product colour |
Black |
| LED indicators |
Yes |
| Power |
|---|
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
178.8 mm |
| Depth |
440 mm |
| Height |
44 mm |
