PoE, Gigabit Ethernet, IEEE 802.3af/at, black, 100-240V AC 50/60Hz, 120W

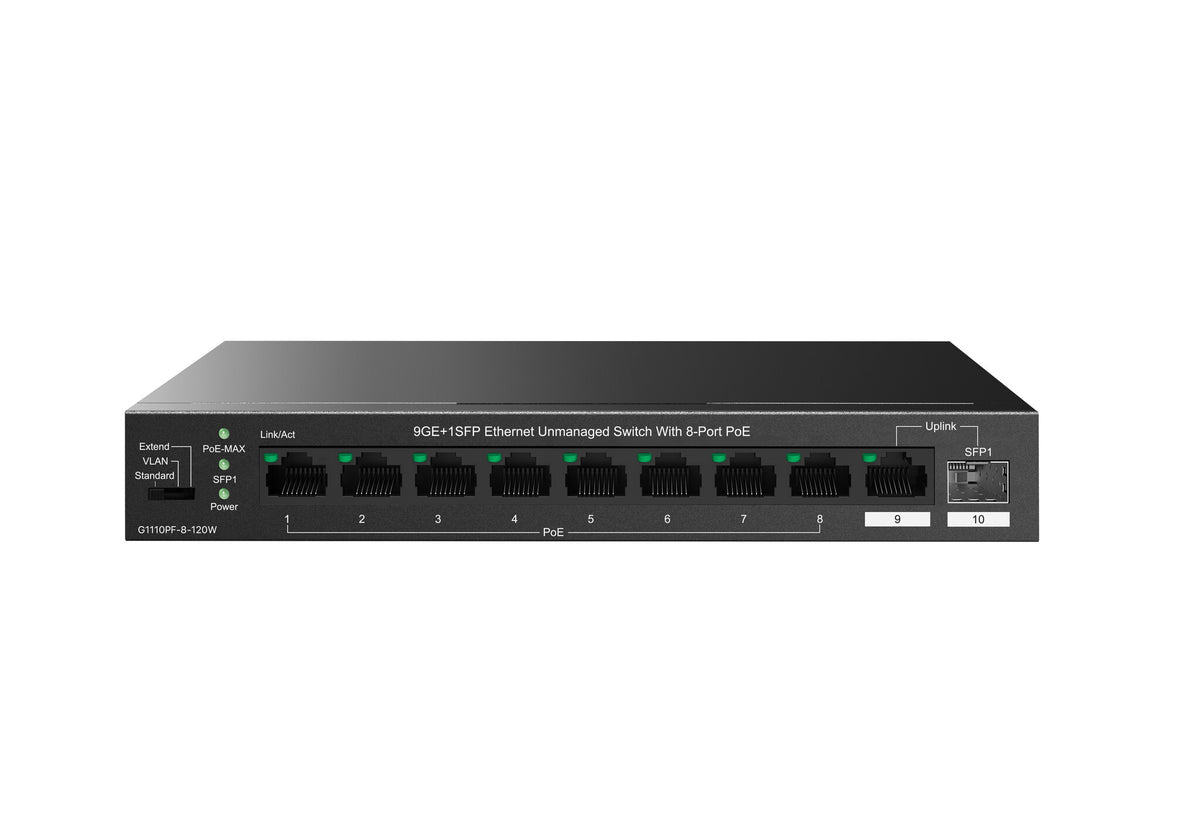

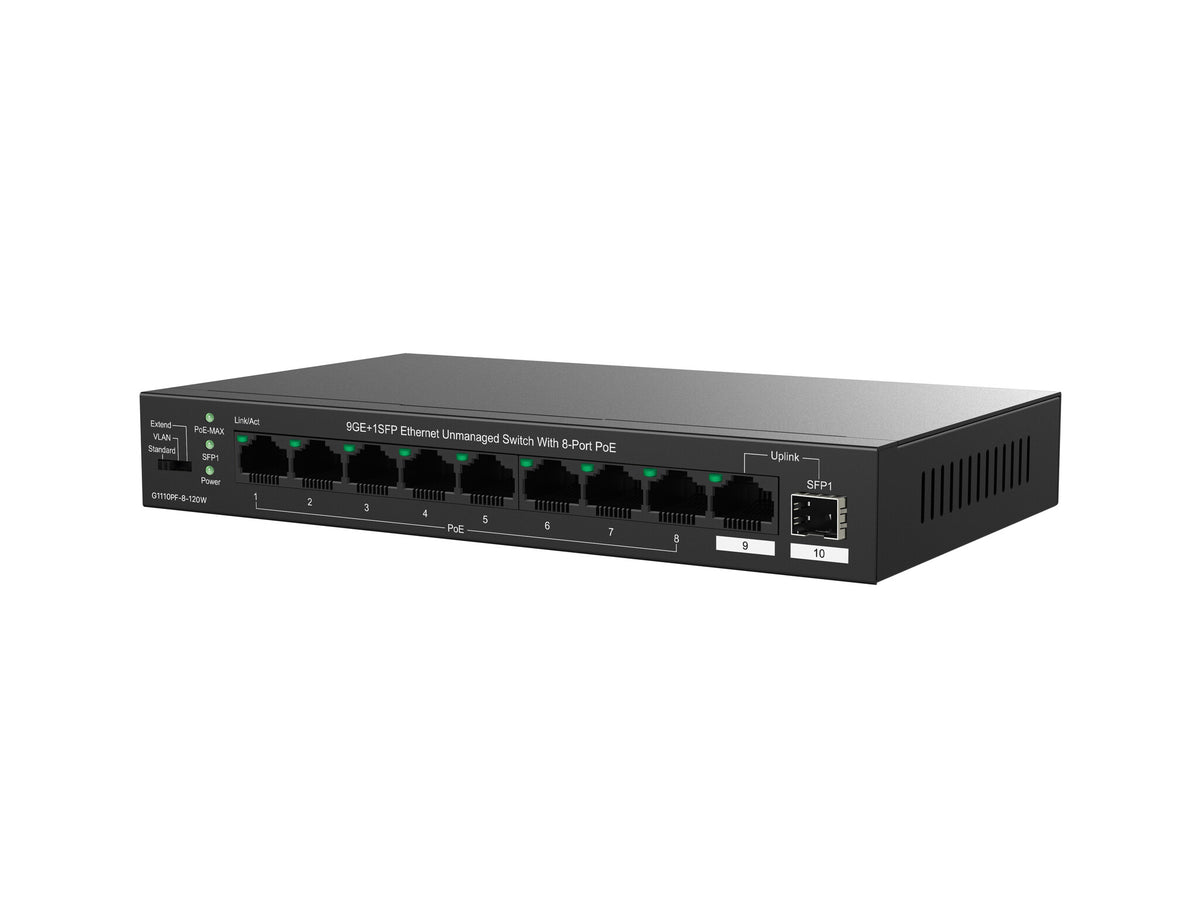

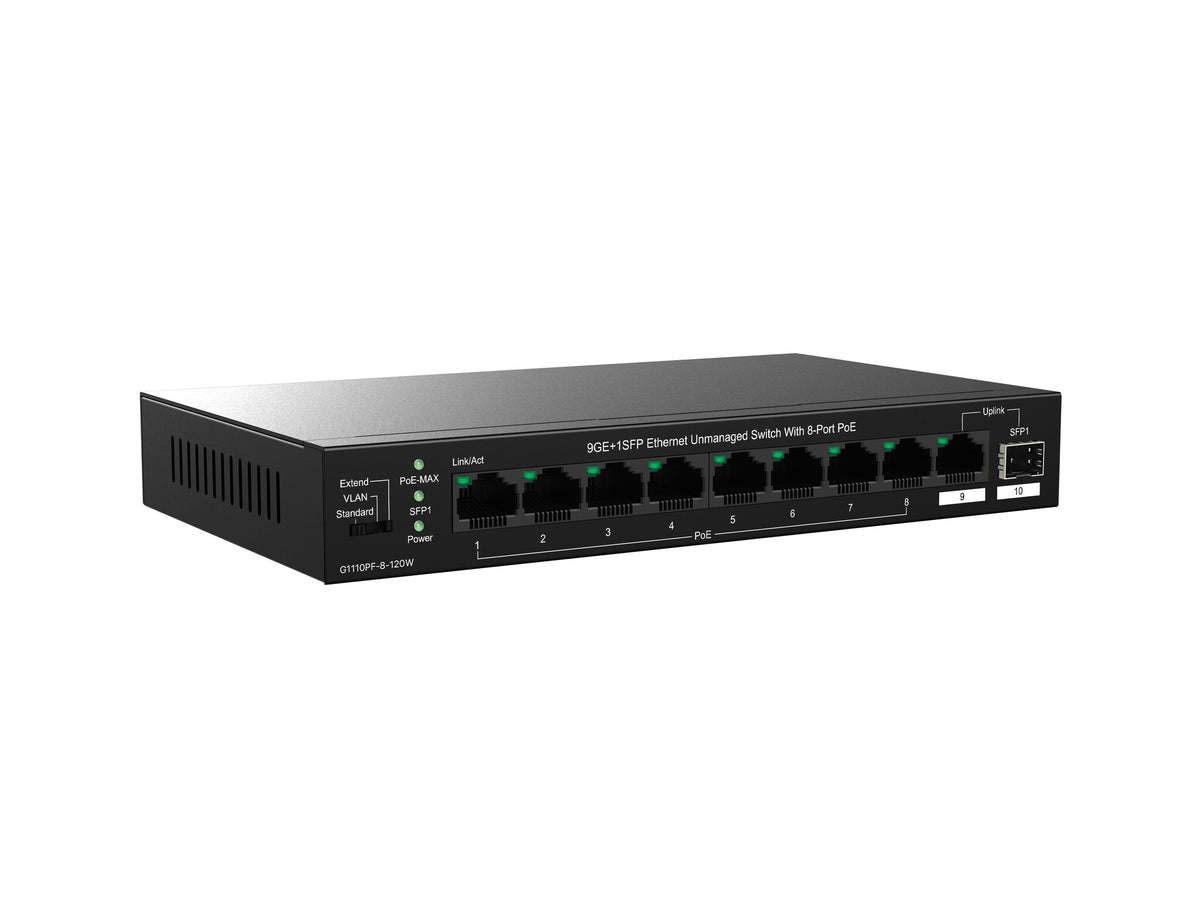

TEG1110PF-8-120W is a 10-port gigabit Ethernet unmanaged PoE switch independently designed by Tenda.It supports IEEE 802.3af/at standards for PoE power supply, capable of transmitting data and supplying power for 8 HD PoE cameras or gigabit APs. The maximum PoE output of a single port is 30 W and the total networking in such scenarios as SMEs, residential areas, indus power consumption of the switch is 120W. Supporting three-mode toggle, TEG1110PF-8-120W is suitable for complex networking deployment and is your ideal choice for video surveillance and gigabit wireless trial parks, hotels and schools.
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
9 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity |
1 |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Cable types supported |
Cat5, Cat5e |
| Data transmission |
|---|
| MAC address table |
8000 entries |
| Switching capacity |
20 Gbit/s |
| Forwarding rate |
14.9 Mpps |
| Store-and-forward |
Yes |
| Design |
|---|
| Product colour |
Black |
| LED indicators |
Activity, Link, PoE, Power |
| Wall mountable |
Yes |
| Certification |
FC, CE, RoHS |
| Performance |
|---|
| Mean time between failures (MTBF) |
100000 h |
| Power |
|---|
| Power source |
DC/PoE |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (typical) |
120 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) power per port |
15.4 W |
| Total Power over Ethernet (PoE) budget |
92 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
177.5 mm |
| Depth |
104 mm |
| Height |
26 mm |
