5 x 10/100/1000 Mbps, 100 x 100 x 26 mm, 50-57 V DC，0.6A, Brown
Integrated PSE & PD,No power adapter required

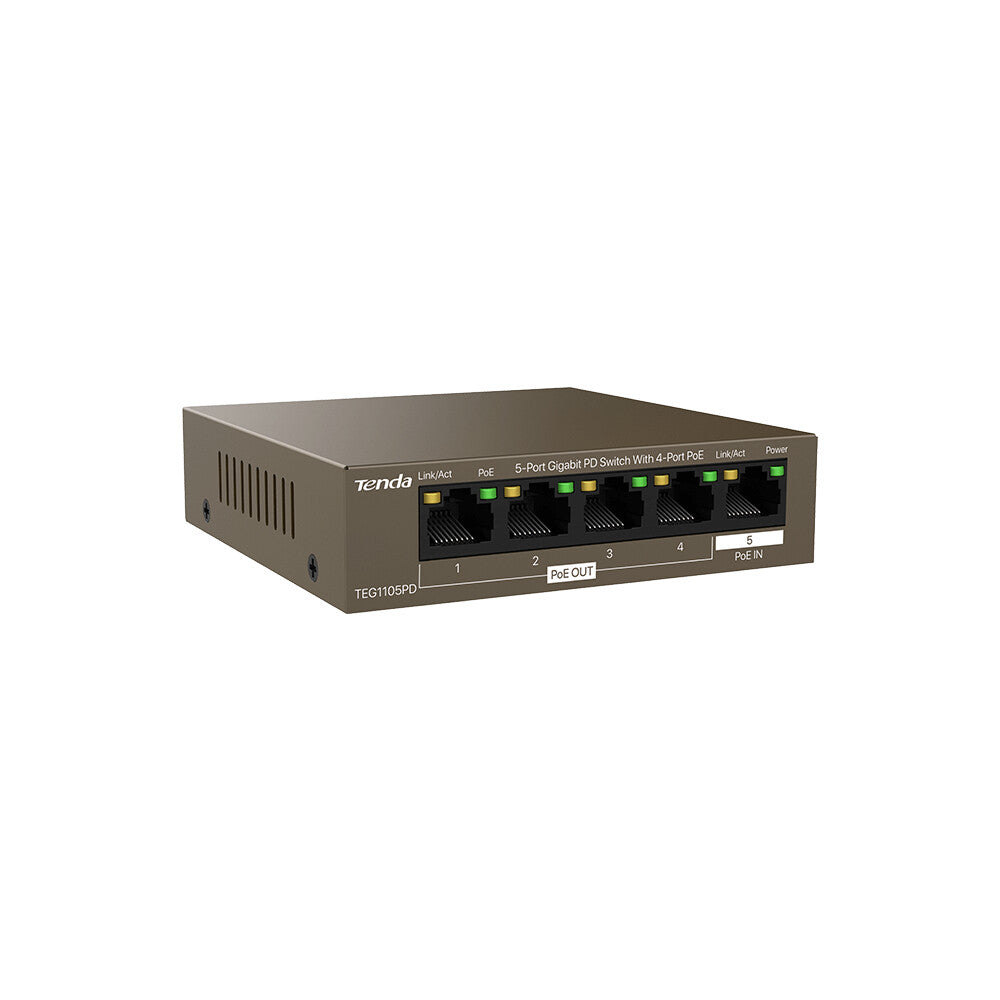

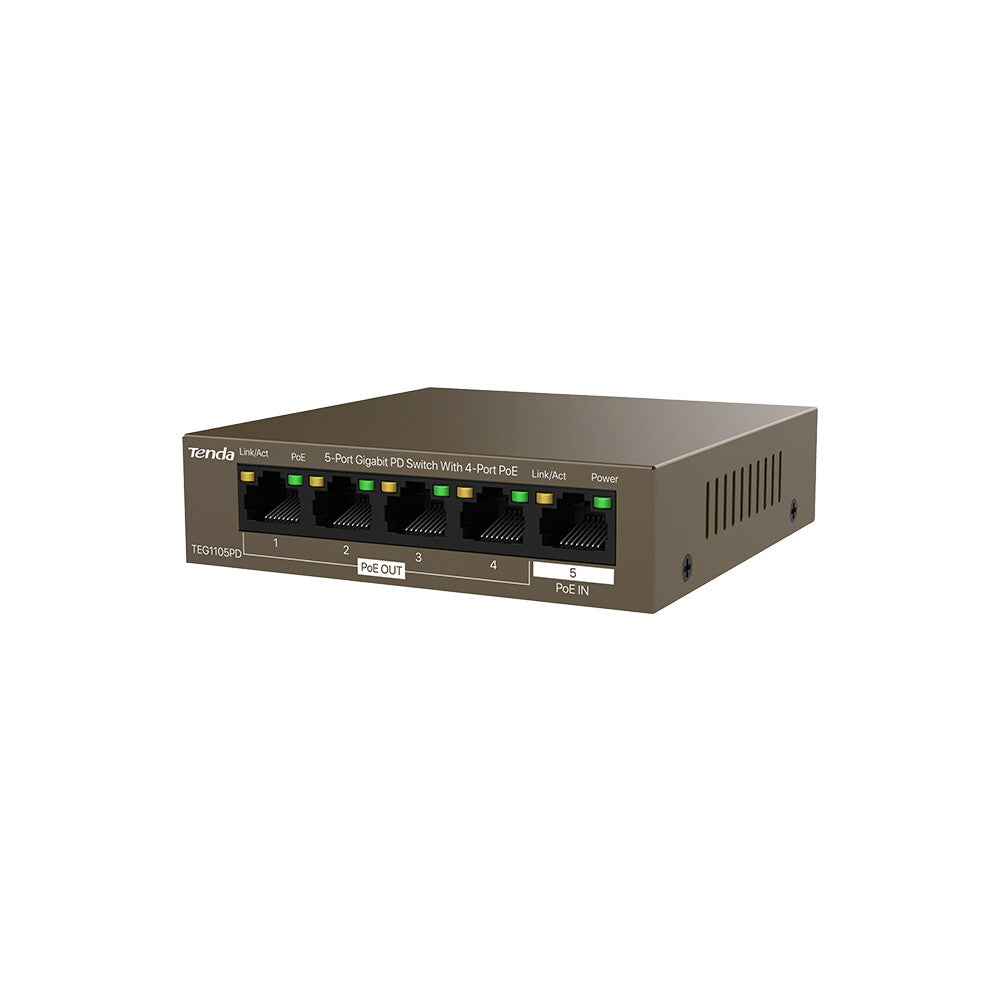

5-Port Gigabit PD Switch With 4-Port PoE
5 Gigabit Ports, Integrated PSE & PD Design
The 5 ports of TEG1105PD are all gigabit ports, with 4 PoE OUT ports (ports 1 to 4) and 1 PoE IN port (port 5). The switch can be powered by the IEEE 802.3af/at compliant PSE through port 5 with an Ethernet cable, and supply power to such PDs as low-power APs and IP cameras through ports 1 to 4.
Gigabit speed without reduction within 200m, Stable transmission without dropping
As a relay, the switch can extend the data transmission distance to 325 meters at most and offer long-distance PoE power supply through multiple PoE ports. Suitable for medium and long-distance wired monitoring scenarios or low-power wireless coverage scenarios such as enterprise parks, factories, schools, etc.
Cut costs,Practical & Stable,Your Better Choice
TEG1105PD does not require independent power supply, just plug and play, no need to consider the power supply during the network deployment; in addition, there is no need to pull out multiple network cables from the PoE switch (PSE) in the data equipment room to supply power to multiple PoE powered devices (PD). Therefore, the network deployment cost can be greatly saved while ensuring the quality of the project.
325m long-distance PoE relay, No power adapter required, Easy to get power supply, Suitable & Practical for your networking.
6KV lightning protection, Stable operation in thunderstorm environment
This switch provides short circuit protection for PSE and 6 kV lightning protection for all ports, protecting the switch itself to operate steadily from surge and lightning damages in thunderstorms.
Small & Delicate,Easy to be installed in the weak electric/waterproof box

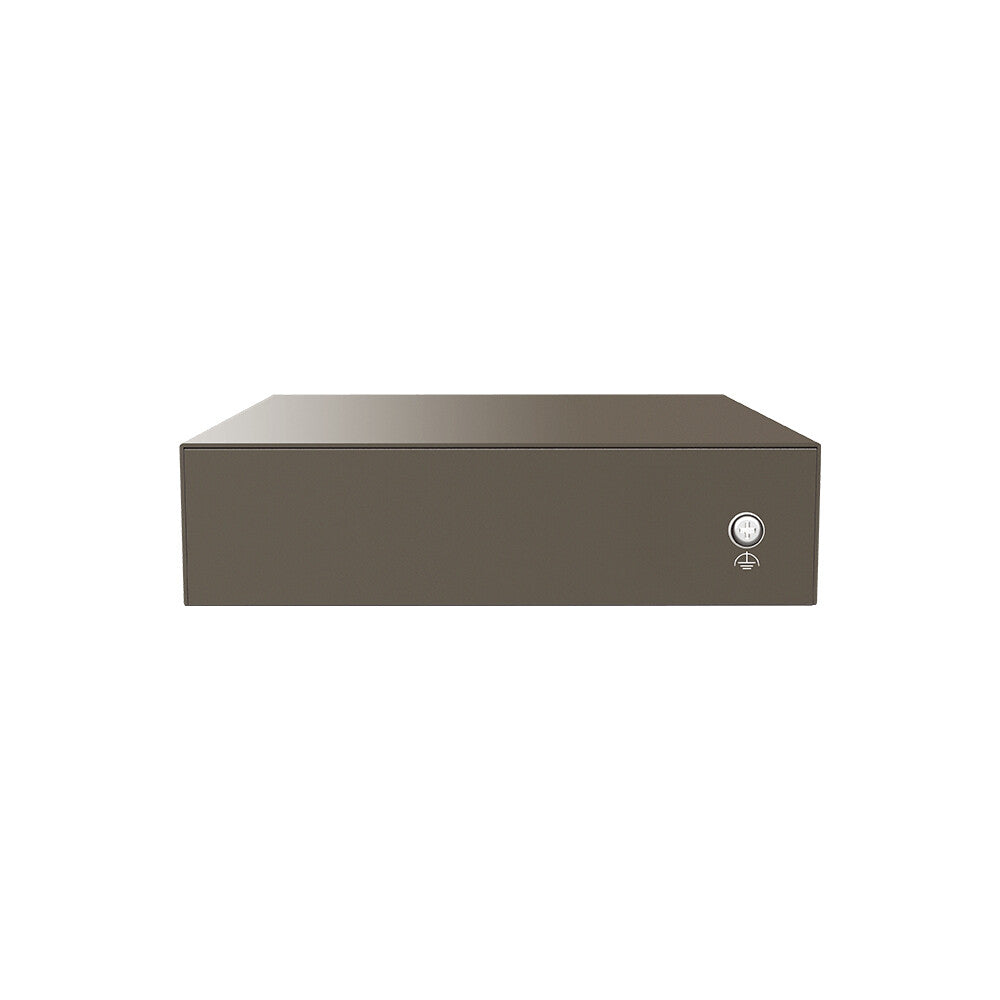

TEG1105PD has a compact shell, about the size of two splicing bank cards, and can be easily installed in a weak electric box or an outdoor waterproof box. All-steel shell, sturdy and durable.
Quiet & Heat dissipation
Steel Shell, Fanless Design, Low Power Consumption
Safer
Network Construction Without Strong Electricity
Stable Operation
Few failure points, easy maintenance
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Power connector |
DC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T |
| MAC address auto-learning supported |
Yes |
| Data transmission |
|---|
| MAC address table |
2000 entries |
| Switching capacity |
10 Gbit/s |
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |
| Packet forwarding rate (10 Mbps) |
1488000 pps |
| Packet forwarding rate (100 Mbps) |
148800 pps |
| Packet forwarding rate (1 Gbps) |
14880 pps |
| Packet buffer memory |
1 MB |
| Design |
|---|
| Product colour |
Brown |
| Housing material |
Metal |
| LED indicators |
Link, PoE, Power |
| Certification |
CQC, FCC, CE, RoHS |
| Power |
|---|
| Power supply included |
Yes |
| DC input voltage |
50 - 57 V |
| Input current |
0.6 A |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
4 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
100 mm |
| Depth |
100 mm |
| Height |
26 mm |
